2008 PEUGEOT 308 CC Owners Manual

3
i
!
!

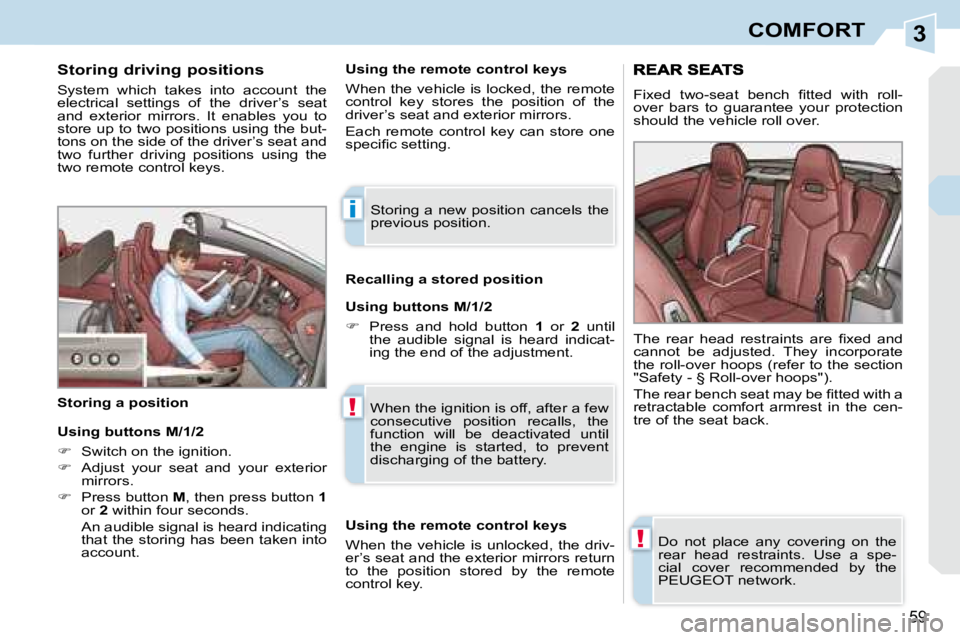

59
COMFORT
Storing driving positions
System which takes into account the
electrical settings of the driver’s seat
and exterior mirrors. It enables you to
store up to two positions using the but-
tons on the side of the driver’s seat and
two further driving positions using the
two remote control keys. Recalling a stored position
Storing a position Storing a new position cancels the
previous position.
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
Using the remote control keys
When the vehicle is locked, the remote
control key stores the position of the
driver’s seat and exterior mirrors.
Each remote control key can store one
specifi c setting.
Using buttons M/1/2

 Press and hold button 1 or 2 until
the audible signal is heard indicat-
ing the end of the adjustment.
Using the remote control keys
When the vehicle is unlocked, the driv-
er’s seat and the exterior mirrors return
to the position stored by the remote
control key.
Using buttons M/1/2

 Switch on the ignition.

 Adjust your seat and your exterior
mirrors.

 Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the storing has been taken into
account.
Fixed two-seat bench fi tted with roll-
over bars to guarantee your protection
should the vehicle roll over.
Do not place any covering on the
rear head restraints. Use a spe-
cial cover recommended by the
PEUGEOT network.
The rear head restraints are fi xed and
cannot be adjusted. They incorporate
the roll-over hoops (refer to the section
"Safety - § Roll-over hoops").
The rear bench seat may be fi tted with a
retractable comfort armrest in the cen-
tre of the seat back.

3
i
!
!
59
COMFORT
Storing driving positions
System which takes into account the
electrical settings of the driver’s seat
and exterior mirrors. It enables you to
store up to two positions using the but-
tons on the side of the driver’s seat and
two further driving positions using the
two remote control keys. Recalling a stored position
Storing a position Storing a new position cancels the
previous position.
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
Using the remote control keys
When the vehicle is locked, the remote
control key stores the position of the
driver’s seat and exterior mirrors.
Each remote control key can store one
specifi c setting.
Using buttons M/1/2

 Press and hold button 1 or 2 until
the audible signal is heard indicat-
ing the end of the adjustment.
Using the remote control keys
When the vehicle is unlocked, the driv-
er’s seat and the exterior mirrors return
to the position stored by the remote
control key.
Using buttons M/1/2

 Switch on the ignition.

 Adjust your seat and your exterior
mirrors.

 Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the storing has been taken into
account.
Fixed two-seat bench fi tted with roll-
over bars to guarantee your protection
should the vehicle roll over.
Do not place any covering on the
rear head restraints. Use a spe-
cial cover recommended by the
PEUGEOT network.
The rear head restraints are fi xed and
cannot be adjusted. They incorporate
the roll-over hoops (refer to the section
"Safety - § Roll-over hoops").
The rear bench seat may be fi tted with a
retractable comfort armrest in the cen-
tre of the seat back.

3
!
i
i

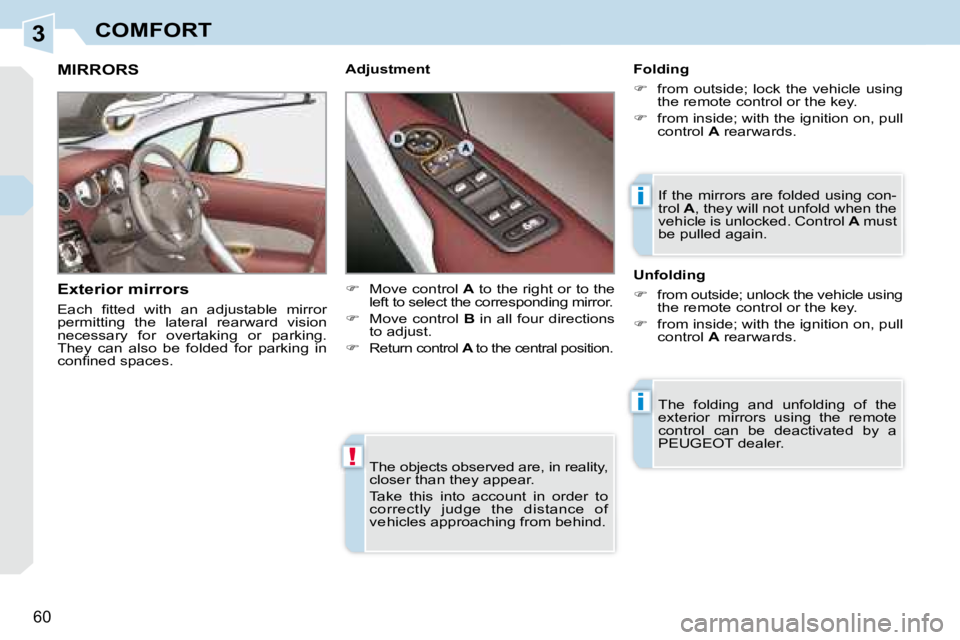

60
COMFORT
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of
vehicles approaching from behind.
MIRRORS
Exterior mirrors
Each fi tted with an adjustable mirror
permitting the lateral rearward vision
necessary for overtaking or parking.
They can also be folded for parking in
confi ned spaces. Folding

 from outside; lock the vehicle using
the remote control or the key.

 from inside; with the ignition on, pull
control A rearwards.
The folding and unfolding of the
exterior mirrors using the remote
control can be deactivated by a
PEUGEOT dealer.
Adjustment
Unfolding

 from outside; unlock the vehicle using
the remote control or the key.

 from inside; with the ignition on, pull
control A rearwards.
If the mirrors are folded using con-
trol
A , they will not unfold when the
vehicle is unlocked. Control A must
be pulled again.

 Move control A to the right or to the
left to select the corresponding mirror.

 Move control B in all four directions
to adjust.


Return control A to the central position.

3
!
61
COMFORT
Adjustment

 Adjust the mirror so that the glass is di-
rected correctly in the "day" position.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot".
Manual model
The mirror is fi tted with a night-time anti-
dazzle device.
Day/night position

 Pull the lever to change to the "night"
anti-dazzle position.

 Push the lever to change to the normal
"day" position.
Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
Switching on

 With the engine running, engage re-
verse gear.

 Move control A to the right or to the
left to select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Programming

 With the engine running, engage re-
verse gear.

 Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately. Switching off

 Exit reverse gear and wait ten
seconds.
or

 Return control A to the central posi-
tion.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
-
if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off. Interior mirror
Adjustable mirror providing a central
rearward view.

3
!
61
COMFORT
Adjustment

 Adjust the mirror so that the glass is di-
rected correctly in the "day" position.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot".
Manual model
The mirror is fi tted with a night-time anti-
dazzle device.
Day/night position

 Pull the lever to change to the "night"
anti-dazzle position.

 Push the lever to change to the normal
"day" position.
Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
Switching on

 With the engine running, engage re-
verse gear.

 Move control A to the right or to the
left to select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Programming

 With the engine running, engage re-
verse gear.

 Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately. Switching off

 Exit reverse gear and wait ten
seconds.
or

 Return control A to the central posi-
tion.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
-
if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off. Interior mirror
Adjustable mirror providing a central
rearward view.

3
!
i

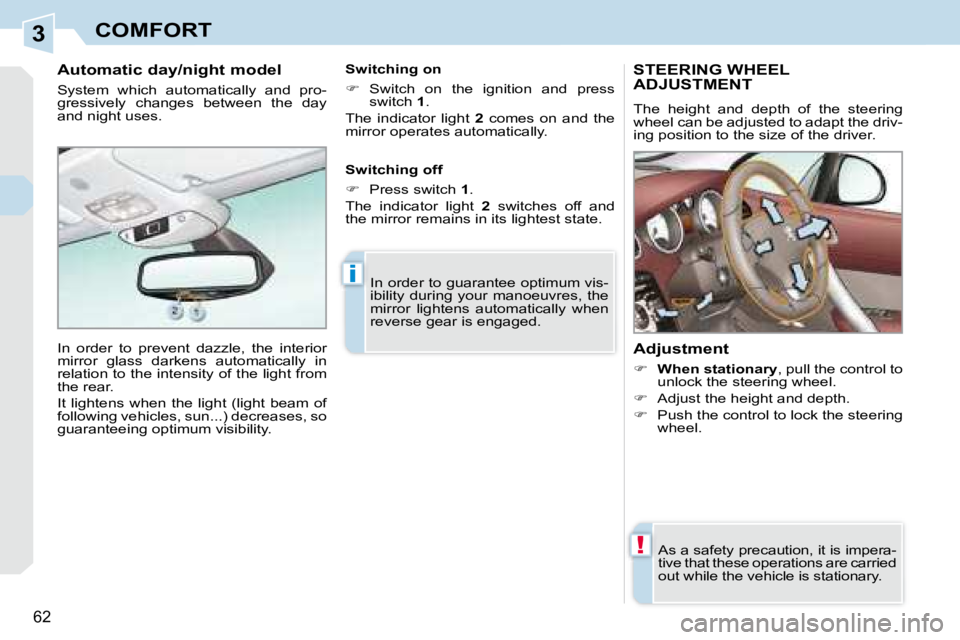

62
COMFORT
STEERING WHEEL ADJUSTMENT
The height and depth of the steering
wheel can be adjusted to adapt the driv-
ing position to the size of the driver.
Adjustment

 When stationary , pull the control to
unlock the steering wheel.

 Adjust the height and depth.

 Push the control to lock the steering
wheel.
As a safety precaution, it is impera-
tive that these operations are carried
out while the vehicle is stationary.
In order to guarantee optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
Automatic day/night model
System which automatically and pro-
gressively changes between the day
and night uses.
In order to prevent dazzle, the interior
mirror glass darkens automatically in
relation to the intensity of the light from
the rear.
It lightens when the light (light beam of
following vehicles, sun...) decreases, so
guaranteeing optimum visibility. Switching on

 Switch on the ignition and press
switch 1 .
The indicator light 2 comes on and the
mirror operates automatically.
Switching off

 Press switch 1 .
The indicator light 2 switches off and
the mirror remains in its lightest state.

3
!
i
62
COMFORT
STEERING WHEEL ADJUSTMENT
The height and depth of the steering
wheel can be adjusted to adapt the driv-
ing position to the size of the driver.
Adjustment

 When stationary , pull the control to
unlock the steering wheel.

 Adjust the height and depth.

 Push the control to lock the steering
wheel.
As a safety precaution, it is impera-
tive that these operations are carried
out while the vehicle is stationary.
In order to guarantee optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
Automatic day/night model
System which automatically and pro-
gressively changes between the day
and night uses.
In order to prevent dazzle, the interior
mirror glass darkens automatically in
relation to the intensity of the light from
the rear.
It lightens when the light (light beam of
following vehicles, sun...) decreases, so
guaranteeing optimum visibility. Switching on

 Switch on the ignition and press
switch 1 .
The indicator light 2 comes on and the
mirror operates automatically.
Switching off

 Press switch 1 .
The indicator light 2 switches off and
the mirror remains in its lightest state.

4

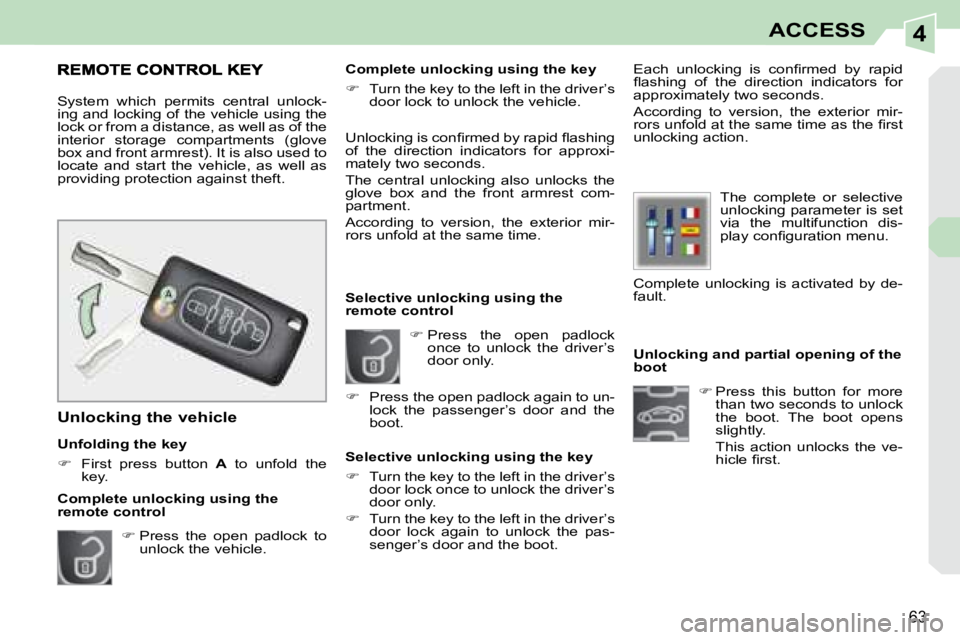

63
ACCESS
Unlocking and partial opening of the
boot
 Press this button for more
than two seconds to unlock
the boot. The boot opens
slightly.
This action unlocks the ve- hicle fi rst.

 Press the open padlock
once to unlock the driver’s
door only.
Selective unlocking using the
remote control Each unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
According to version, the exterior mir-
rors unfold at the same time as the fi rst
unlocking action.
Selective unlocking using the key

 Turn the key to the left in the driver’s
door lock once to unlock the driver’s
door only.

 Turn the key to the left in the driver’s
door lock again to unlock the pas-
senger’s door and the boot. The complete or selective
unlocking parameter is set
via the multifunction dis-
play confi guration menu.
System which permits central unlock-
ing and locking of the vehicle using the
lock or from a distance, as well as of the
interior storage compartments (glove
box and front armrest). It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unfolding the key

 First press button A to unfold the
key.
Unlocking the vehicle Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
The central unlocking also unlocks the
glove box and the front armrest com-
partment.
According to version, the exterior mir-
rors unfold at the same time.

 Press the open padlock to
unlock the vehicle. Complete unlocking using the key

 Turn the key to the left in the driver’s
door lock to unlock the vehicle.
Complete unlocking using the
remote control
 Press the open padlock again to un-
lock the passenger’s door and the
boot. Complete unlocking is activated by de-
fault.
