2008 PEUGEOT 308 CC Owners Manual

i!

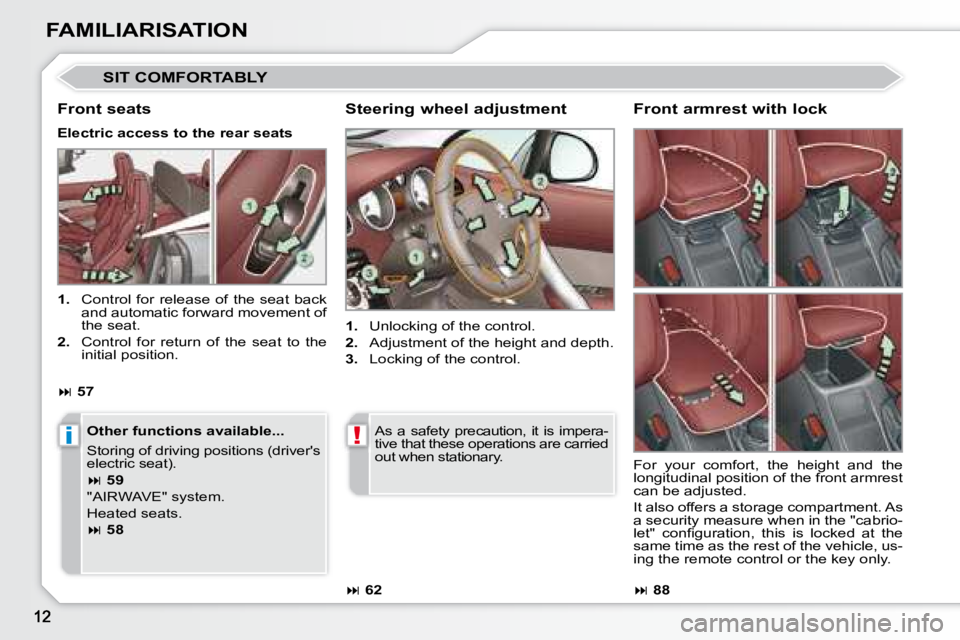

FAMILIARISATION
SIT COMFORTABLY
Steering wheel adjustment

1. Unlocking of the control.

2. Adjustment of the height and depth.

3. Locking of the control.
Front seats
Other functions available...
Storing of driving positions (driver's
electric seat).


 59
"AIRWAVE" system.
Heated seats.


 58
Electric access to the rear seats
Front armrest with lock


 88


 62 For your comfort, the height and the
longitudinal position of the front armrest
can be adjusted.
It also offers a storage compartment. As
a security measure when in the "cabrio-
let" confi guration, this is locked at the
same time as the rest of the vehicle, us-
ing the remote control or the key only.
As a safety precaution, it is impera-
tive that these operations are carried
out when stationary.

1. Control for release of the seat back
and automatic forward movement of
the seat.

2. Control for return of the seat to the
initial position.


 57

i

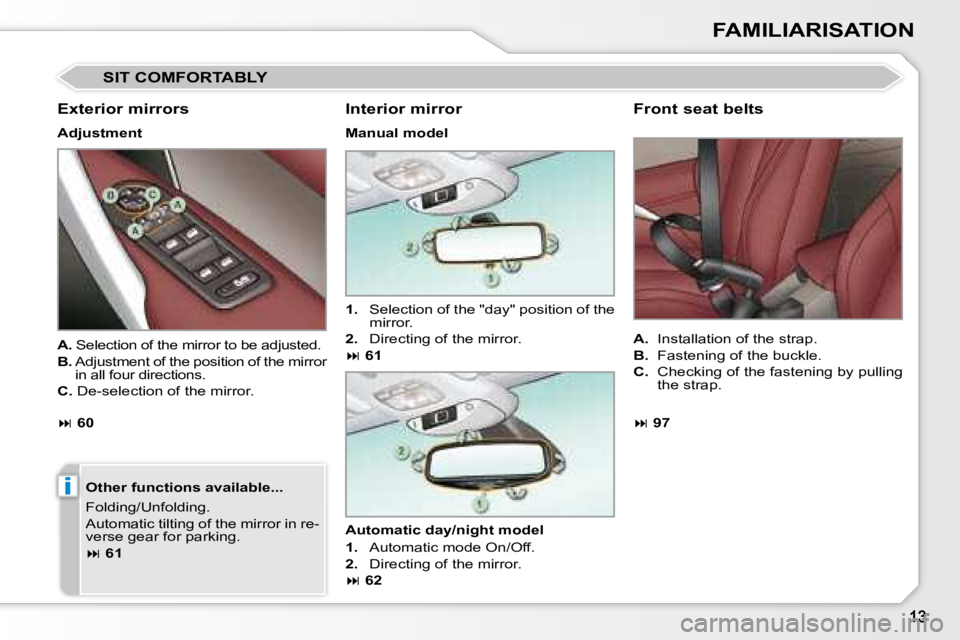

FAMILIARISATION
SIT COMFORTABLY
Exterior mirrors
Adjustment Other functions available...
Folding/Unfolding.
Automatic tilting of the mirror in re-
verse gear for parking.


 61 Interior mirror

1. Selection of the "day" position of the
mirror.

2. Directing of the mirror.


 61 Front seat belts

A. Installation of the strap.

B. Fastening of the buckle.

C. Checking of the fastening by pulling
the strap.

A. Selection of the mirror to be adjusted.

B. Adjustment of the position of the mirror
in all four directions.

C. De-selection of the mirror.


 97
Manual model
Automatic day/night model

1. Automatic mode On/Off.

2. Directing of the mirror.


 62


 60

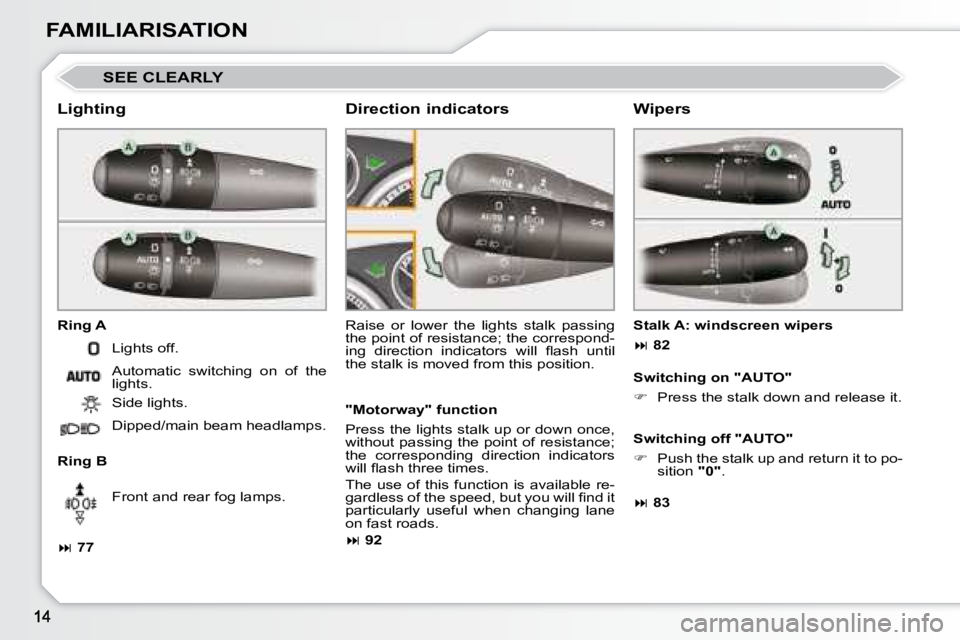

FAMILIARISATION
SEE CLEARLY
Lighting
Ring A
Ring B Raise or lower the lights stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash until
the stalk is moved from this position.
Direction indicators
Switching on "AUTO"

 Press the stalk down and release it.


 77 Lights off.
Automatic switching on of the
lights.
Side lights.
Dipped/main beam headlamps.
Front and rear fog lamps.
Stalk A: windscreen wipers


 82
Wipers
Switching off "AUTO"

 Push the stalk up and return it to po-
sition "0" .
"Motorway" function
Press the lights stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
The use of this function is available re-
gardless of the speed, but you will fi nd it
particularly useful when changing lane
on fast roads.


 92

 83

–

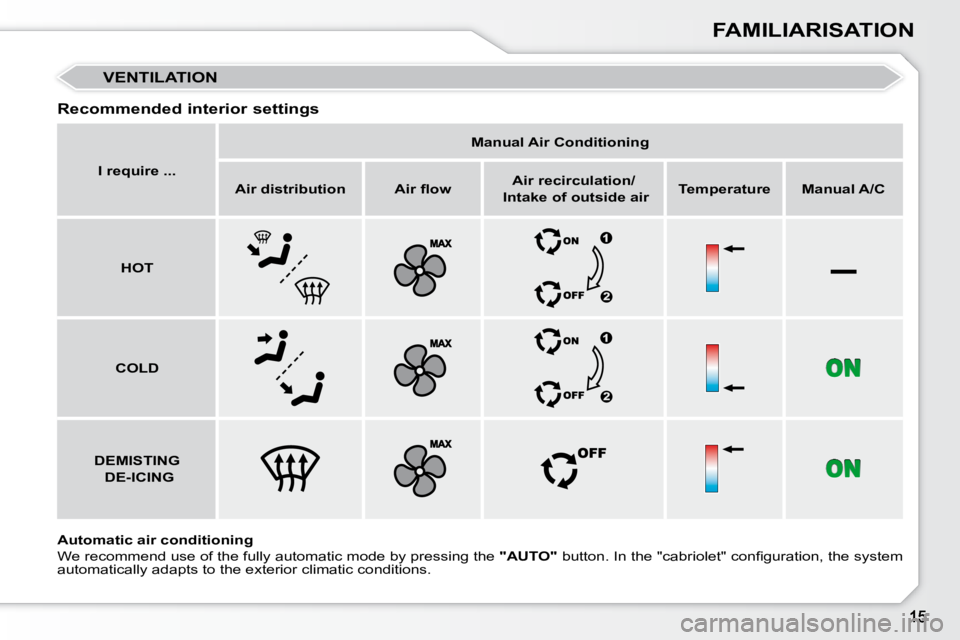

FAMILIARISATION
VENTILATION
Recommended interior settings

Automatic air conditioning
We recommend use of the fully automatic mode by pressing the "AUTO" button. In the "cabriolet" confi guration, the system
automatically adapts to the exterior climatic conditions.
I require ...
Manual Air Conditioning

Air distribution Air fl ow
Air recirculation/
Intake of outside air
Temperature Manual A/C

HOT

COLD

DEMISTING
DE-ICING

FAMILIARISATION
MONITOR THOROUGHLY
Instrument panel Controls bar

A. With the ignition on, the needle should
indicate the level of fuel remaining.

B. With the engine running, its asso-
ciated low level warning light should
switch off.

C. With the ignition on, the oil level in-
dicator should display "OIL OK" for
a few seconds.
If the levels are not correct, top up the
levels which are low. Lighting of the indicator light indicates
the status of the corresponding function.

A. Emergency call in progress.

B. Disarming of the interior protection
alarm.


 68

C. Central locking.


 73

D. Deactivation of the ESP/ASR system.


 95

E. Deactivation of the visual and audible
parking assistance.


 119

F. Access to the PEUGEOT services.
For A and F , refer to the specifi c user
guide given to you with the other owner's
documents.

1. With the ignition on, the orange and
red warning lights come on.

2. With the engine running, these war-
ning lights should switch off.
If warning lights remain on, refer to the
page concerned.
Warning lights


 19

 23

i
FAMILIARISATION
Passenger's front air bag
START

1. Insertion of the key.

2. Selection of the position:
"OFF" (disarming), with "rear facing"
child seat,
"ON" (activation), with front passenger
or "forwards facing" child seat.

3. Removal of the key keeping the switch
in this position.
1. Stop position.

2. Running position.

3. Starting position.

A. Front and/or rear seat belts not fas-
tened/unfastened warning light.

B. Front left seat belt warning light.

C. Front right seat belt warning light.

D. Rear right seat belt warning light.

E. Rear left seat belt warning light.

F. Passenger's front air bag disarmed
warning light.

G. Passenger's front air bag activated
warning light.
Seat belts and passenger's
front air bag


 100


 97, 101 Ignition switch


 66
Avoid attaching any heavy objects
to the key which would weigh down
on its shaft in the ignition switch;
this could cause a malfunction.

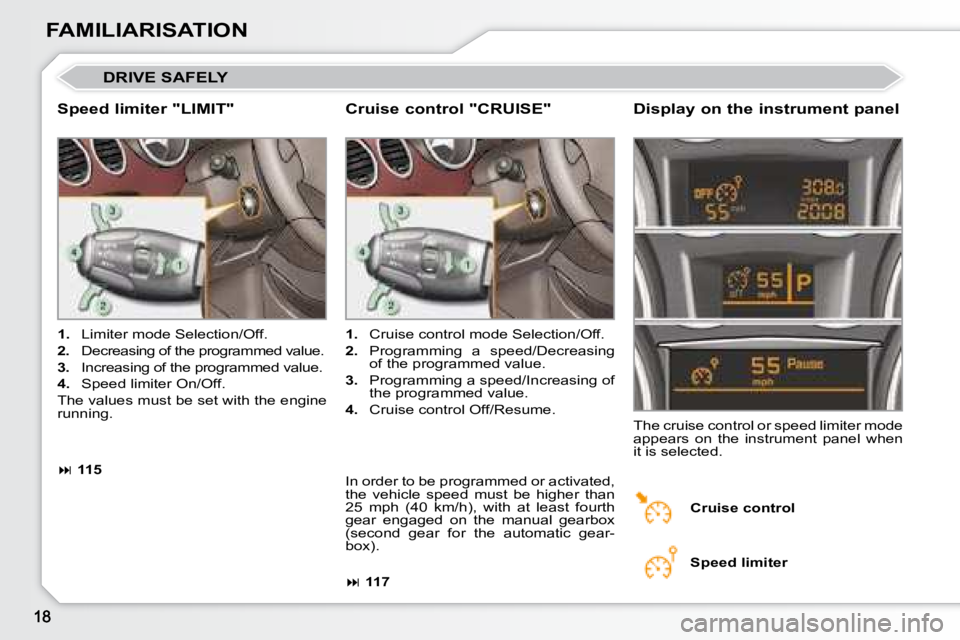

FAMILIARISATION
DRIVE SAFELY
Speed limiter "LIMIT" Display on the instrument panel

1. Limiter mode Selection/Off.

2. Decreasing of the programmed value.

3. Increasing of the programmed value.

4. Speed limiter On/Off.
The values must be set with the engine
running. The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.

1. Cruise control mode Selection/Off.

2. Programming a speed/Decreasing
of the programmed value.

3. Programming a speed/Increasing of
the programmed value.

4. Cruise control Off/Resume.
Cruise control "CRUISE"
Cruise control
Speed limiter


 117


 115
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox
(second gear for the automatic gear-
box).

1
i
19
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lights.
5. Display.

6. Display zero reset button.
Resets the selected function to zero (trip distance recorder or service
indicator).

7. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).

3. Fuel level.
Indicates the quantity of fuel remaining in the tank.

4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Speed limiter
or
Cruise control.
(km/h or mph)

B. Trip distance recorder.
(km or miles)
The following three functions are displayed in succession when the
ignition is switched on.

C. Service indicator.
(km or miles) then,
Engine oil level indicator.
then
Distance recorder.
(km or miles)
Display
For further information, refer to the
paragraph relating to the button or
function and its associated display.
