2008 Peugeot 206 SW Owner's Manual

SPECIAL FEATURES
120 -
CHANGING A WHEEL
Changing a wheel is identical to the
method described in the paragraph
''Changing a wheel'' in the section
''Practical information'', except that
the folding shim located in the stor-
age box must be used to chock a
wheel.
Depending on the country in which
the vehicle is registered, the jack
and the jack storage box may differ
from those shown in the paragraph
''Changing a wheel'' in the section
''Practical information''.
The illustrations on this page show
the alternative version. The box also contains the tool pro-
vided for removal of the bolt covers.

PRACTICAL INFORMATION
96 -
Dipped headlamps H7 55W/
main beam headlamps H1 55 W
F Remove the protective cover A
for the H7 55 W bulb or B for the
H1 55 W bulb.
F Disconnect the connector(s) C.
F Press the end of the securing
clip(s) D to remove it(them).
Change the faulty bulb.
CHANGING A BULB
To make access easier, on the right-
hand side , irst remove the screen
wash reservoir iller pipe:
F align the notches by turning,
F pull upwards.
1. Dipped beam headlamps/
main beam headlamps
2. Side lights
3. Direction indicators F
On itting, ensure that the
direction notches are in the
correct position and that the
securing clip(s) is(are) secured
correctly.
F Reconnect the connector.
F Replace the protective cover(s),
then the screen wash reservoir
iller pipe (right-hand side).

97
PRACTICAL INFORMATION
-
Amber direction indicators
PY 21 W
F Turn the pin connector 3 a
quarter turn (towards the front of
the vehicle) and remove it.
F Change the bulb. Amber direction indicator
side repeater WY 5 W
F
Push the repeater forwards and
release it.
F Remove the repeater and
change it.
It can be obtained from a PEUGEOT
dealer.
Side lights W 5 W
F
Turn the pin connector 2 a
quarter turn and remove it.
F Change the bulb.
Handle the bulbs with a
dry cloth.
The headlamps are itted
with polycarbon glass with
a protective coating.
Do
not clean them using a dry or
abrasive cloth, or using deter-
gents or solvents.
Use a sponge and soapy water.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, lights and their
surrounds to avoid damaging their
coating and seal.

PRACTICAL INFORMATION
98 -

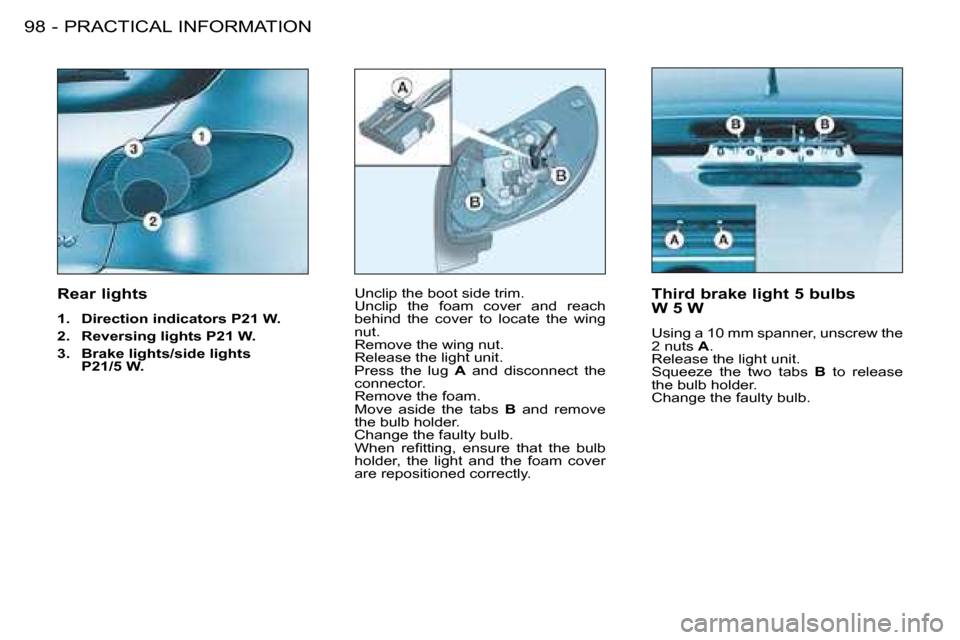

Unclip the boot side trim.
Unclip the foam cover and reach
behind the cover to locate the wing
nut.
Remove the wing nut.
Release the light unit.
Press the lug A and disconnect the
connector.
Remove the foam.
Move aside the tabs B and remove
the bulb holder.
Change the faulty bulb.
When reitting, ensure that the bulb
holder, the light and the foam cover
are repositioned correctly. Third brake light 5 bulbs
W 5 W
Using a 10 mm spanner, unscrew the
2 nuts
A.
Release the light unit.
Squeeze the two tabs B to release
the bulb holder.
Change the faulty bulb.
Rear lights
1.
Direction indicators P21 W.
2. Reversing lights P21 W.
3. Brake lights/side lights
P21/5 W.

99
PRACTICAL INFORMATION
-
Front fog lamps H1 55 W
Press under the access lap to re-
lease it.
Open the lap.
Turn the cover to remove it.
Disconnect the bulb.
Press the two ends of the securing
clip to release the bulb. Rear fog lamp P21 W
Unclip the lamp and release the as-
sembly.
Turn the pin connector a quarter turn
and remove it.
Change the bulb.
Number plate lights W 5 W
Insert a thin screwdriver into one of the
outer holes of the transparent cover.
Push it outwards to unclip it.
Remove the transparent cover.
Change the faulty bulb.

PRACTICAL INFORMATION
100 -
CHANGING A FUSE
The fuse boxes are located under
the fascia and in the engine compart-
ment.
Correct Incorrect
Pliers A
Fascia fuse box
Unscrew the catch a quarter turn us
-
ing a coin then remove the cover to
gain access to the fuses.
The spare fuses and the pliers A are
itted inside of the fascia fuse box
lid. Removing and itting a fuse
Before changing a fuse, the cause of the fault must be foun
d and remedied. The
fuse numbers are indicated on the fuse box.
Use the pliers A.
Always replace a faulty fuse with a fuse of the same rating .

PRACTICAL INFORMATION
100 -
CHANGING A FUSE
The fuse boxes are located under
the fascia and in the engine compart-
ment.
Correct Incorrect
Pliers A
Fascia fuse box
Unscrew the catch a quarter turn us
-
ing a coin then remove the cover to
gain access to the fuses.
The spare fuses and the pliers A are
itted inside of the fascia fuse box
lid. Removing and itting a fuse
Before changing a fuse, the cause of the fault must be foun
d and remedied. The
fuse numbers are indicated on the fuse box.
Use the pliers A.
Always replace a faulty fuse with a fuse of the same rating .

101
PRACTICAL INFORMATION
-
Fuse N° Rating Functions
1 15 A Alarm siren
4 20 A Multifunction display - Boot lighting - Audio equipment - Stee ring wheel controls - Trailer
5 15 A Automatic gearbox diagnostics
6 10 A Coolant level - Automatic gearbox - Audio equipment - Steering w heel angle sensor (ESP)
7 15 A Driving school accessory - Alarm
9 30 A Rear electric windows
10 40 A Rear screen and mirror demisting
11 15 A Rear windscreen wiper
12 30 A Front electric windows - Sunroof
14 10 A Engine fuse box - Air bags - Steering wheel controls - Rain sensor
15 15 A Instrument panel - Multifunction display - Air conditioni ng - Audio equipment
16 30 A Locking/unlocking controls for doors, bonnet and boot - Deadlo cking controls
20 10 A Right-hand brake light
21 15 A Left-hand brake light - 3rd brake light
22 20 A Front courtesy light - Map reader - Glove box lighting - L ighter
S1 Shunt PARC shunt
