2008 NISSAN QUEST ESP

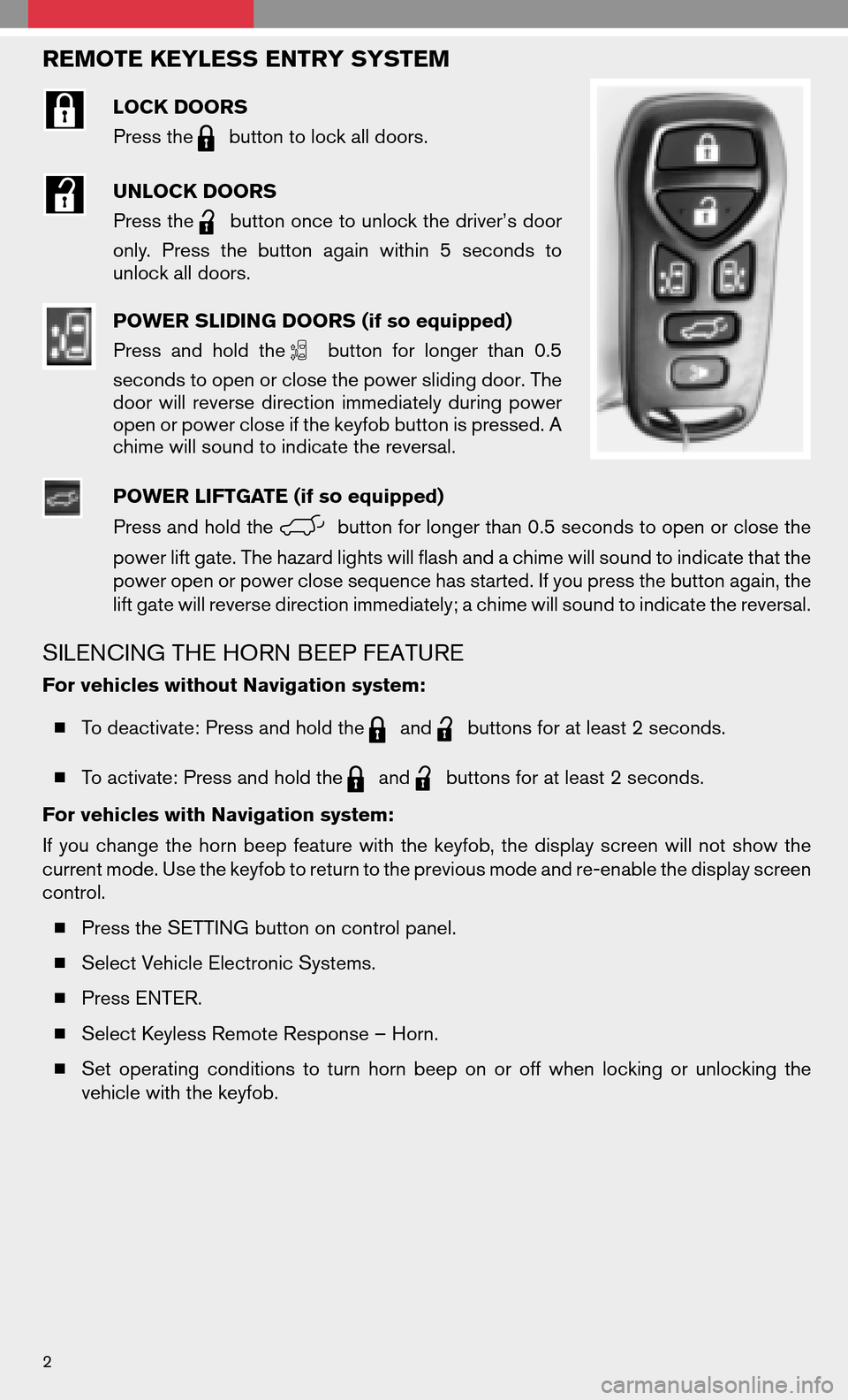

REMOTE KEYLESS ENTRY SYSTEM
LOCK DOORS
Press the
button to lock all doors.
UNLOCK DOORS
Press the
button once to unlock the driver’s door
only. Press thebutton againwithin 5seconds to
unlock all doors.
POWER SLIDING DOORS (if so equipped)
Press andhold the
button forlonger than0.5
seconds to open or close the power sliding door. The
door willreverse direction immediately duringpower
open or power close if the keyfob button is pressed. A
chime will sound to indicate the reversal.
POWER LIFTGATE (if so equipped)
Press and hold the
button for longer than 0.5 seconds to open or close the
power lift gate. The hazard lights will flash and a chime will sound to indicate that the
power open or power close sequence has started. If you press the button again, the
lift gate will reverse direction immediately; a chime will sound to indicate the reversal.
SILENCING THE HORN BEEP FEATURE
For vehicles without Navigation system:
 To deactivate: Press and hold the
andbuttons for at least 2 seconds.
 To activate: Press and hold the
andbuttons for at least 2 seconds.
For vehicles with Navigation system:
If you change thehorn beep feature withthekeyfob, thedisplay screenwillnot show the
current mode. Use the keyfob to return to the previous mode and re-enable the display screen
control.
 Press the SETTING button on control panel.
 Select Vehicle Electronic Systems.
 Press ENTER.
 Select Keyless Remote Response – Horn.
 Set operating conditions toturn horn beep onoroff when locking orunlocking the
vehicle with the keyfob.
2

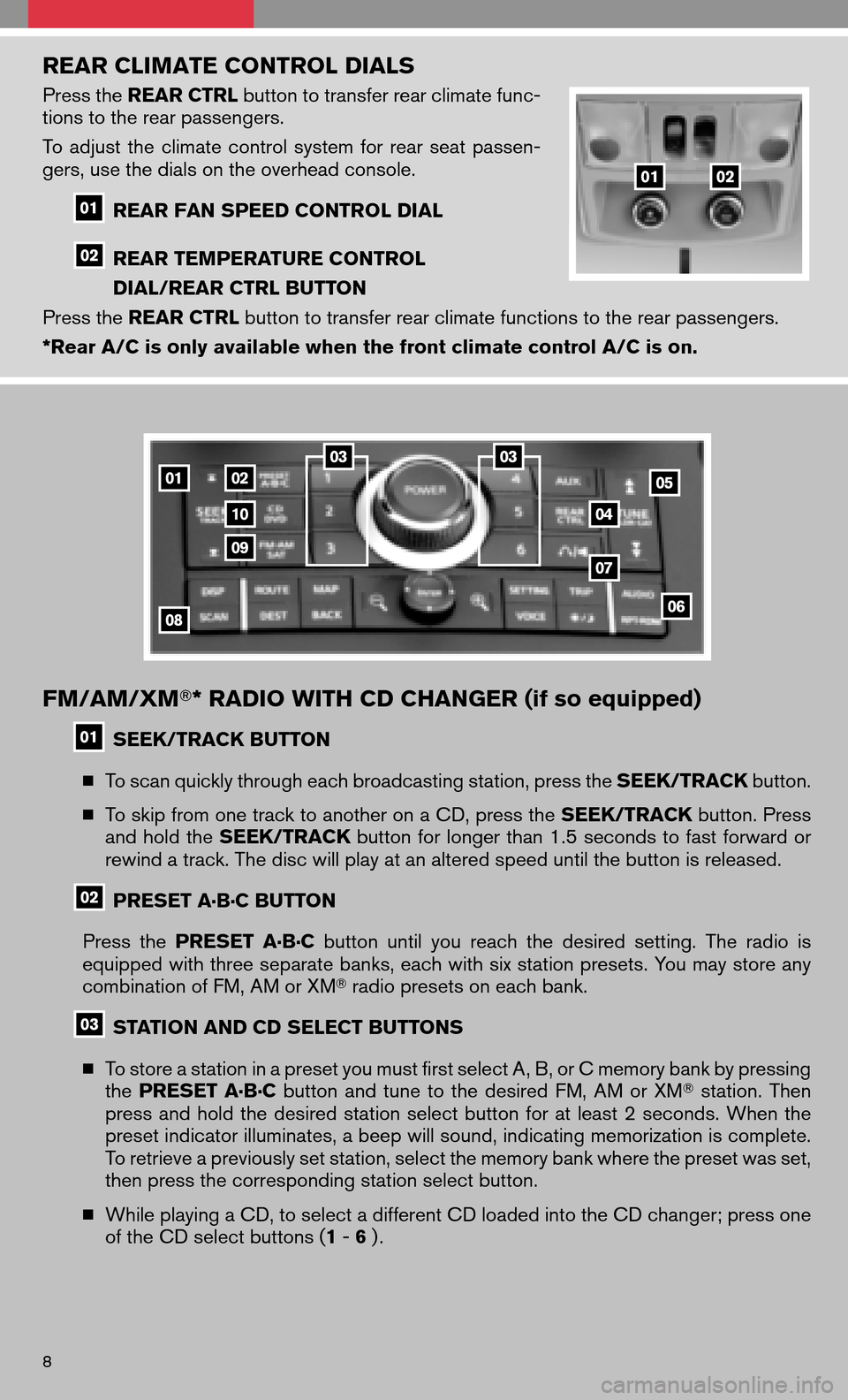

REAR CLIMATE CONTROL DIALS
Press theREAR CTRL button to transfer rear climate func-
tions to the rear passengers.
To adjust theclimate controlsystem forrear seat passen-
gers, use the dials on the overhead console.
REAR FAN SPEED CONTROL DIAL
REAR TEMPERATURE CONTROL
DIAL/REAR CTRL BUTTON
Press the REAR CTRL button to transfer rear climate functions to the rear passengers.
*Rear A/C is only available when the front climate control A/C is on.
FM/AM/XM * RADIO WITH CD CHANGER (if so equipped)
SEEK/TRACK BUTTON
 To scan quickly through each broadcasting station, press the SEEK/TRACKbutton.
 To skip from one track to another on a CD, press the SEEK/TRACKbutton. Press
and hold the SEEK/TRACK buttonforlonger than1.5seconds tofast forward or
rewind a track. The disc will play at an altered speed until the button is released.
PRESET A·B·C BUTTON
Press the PRESET A·B·Cbutton untilyoureach thedesired setting.Theradio is
equipped with three separate banks, each with six station presets. You may store any
combination of FM, AM or XM radio presets on each bank.
STATION AND CD SELECT BUTTONS
 To store a station in a preset you must first select A, B, or C memory bank by pressing
the PRESET A·B·Cbutton andtune tothe desired FM,AMorXM station. Then
press andhold thedesired stationselectbutton foratleast 2seconds. Whenthe
preset indicator illuminates, a beep will sound, indicating memorization is complete.
To retrieve a previously set station, select the memory bank where the preset was set,
then press the corresponding station select button.
 While playing a CD, to select a different CD loaded into the CD changer; press one
of the CD select buttons ( 1-6 ).
8

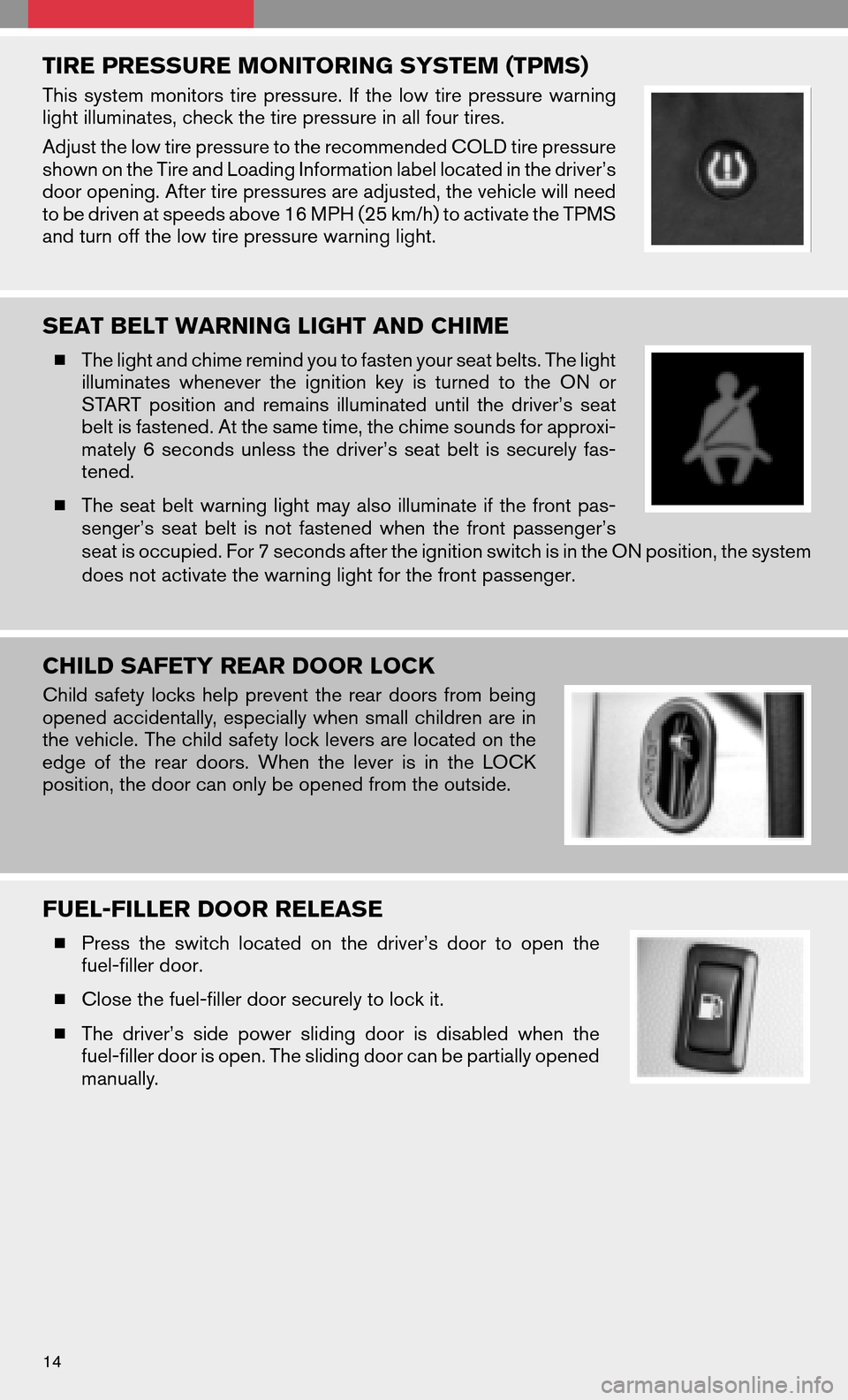

TIRE PRESSURE MONITORING SYSTEM (TPMS)
Thissystem monitors tirepressure. Ifthe low tirepressure warning
light illuminates, check the tire pressure in all four tires.
Adjust the low tire pressure to the recommended COLD tire pressure
shown on the Tire and Loading Information label located in the driver’s
door opening. After tire pressures are adjusted, the vehicle will need
to be driven at speeds above 16 MPH (25 km/h) to activate the TPMS
and turn off the low tire pressure warning light.
SEAT BELT WARNING LIGHT AND CHIME
 The light and chime remind you to fasten your seat belts. The light
illuminates whenevertheignition keyisturned tothe ON or
START position andremains illuminated untilthedriver’s seat
belt is fastened. At the same time, the chime sounds for approxi-
mately 6seconds unlessthedriver’s seatbeltissecurely fas-
tened.
 The seat beltwarning lightmayalso illuminate ifthe front pas-
senger’s seatbeltisnot fastened whenthefront passenger’s
seat is occupied. For 7 seconds after the ignition switch is in the ON position, the system
does not activate the warning light for the front passenger.
CHILD SAFETY REAR DOOR LOCK
Child safety lockshelpprevent therear doors frombeing
opened accidentally, especiallywhensmallchildren arein
the vehicle. The child safety lock levers are located on the
edge ofthe rear doors. Whenthelever isin the LOCK
position, the door can only be opened from the outside.
FUEL-FILLER DOOR RELEASE
 Press theswitch located onthe driver’s doortoopen the
fuel-filler door.
 Close the fuel-filler door securely to lock it.
 The driver’s sidepower sliding doorisdisabled whenthe
fuel-filler door is open. The sliding door can be partially opened
manually.
14

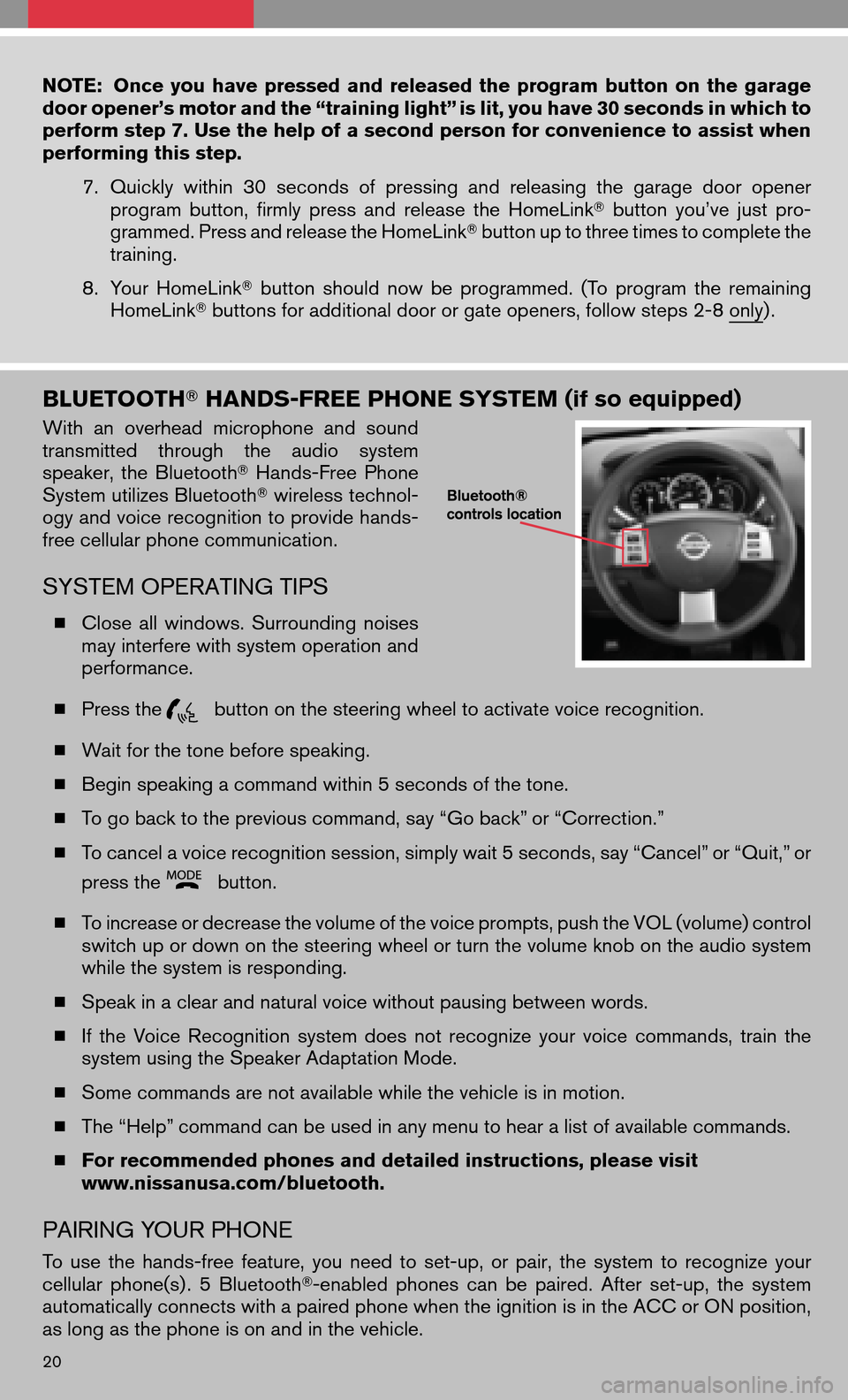

NOTE:Onceyouhave pressed andreleased theprogram buttononthe garage
door opener’s motor and the “training light” is lit, you have 30 seconds in which to
perform step 7. Use the help of a second person for convenience to assist when
performing this step.
7.Quickly within30seconds ofpressing andreleasing thegarage dooropener
program button,firmlypress andrelease theHomeLink button you’vejustpro-
grammed. Press and release the HomeLink button up to three times to complete the
training.
8. Your HomeLink button should nowbeprogrammed. (Toprogram theremaining
HomeLink buttons for additional door or gate openers, follow steps 2-8 only) .
BLUETOOTH HANDS-FREE PHONE SYSTEM (if so equipped)
Withanoverhead microphone andsound
transmitted throughtheaudio system
speaker, theBluetooth Hands-Free Phone
System utilizes Bluetooth wireless technol-
ogy and voice recognition to provide hands-
free cellular phone communication.
SYSTEM OPERATING TIPS
 Close allwindows. Surrounding noises
may interfere with system operation and
performance.
 Press the
button on the steering wheel to activate voice recognition.
 Wait for the tone before speaking.
 Begin speaking a command within 5 seconds of the tone.
 To go back to the previous command, say “Go back” or “Correction.”
 To cancel a voice recognition session, simply wait 5 seconds, say “Cancel” or “Quit,” or
press the
button.
 To increase or decrease the volume of the voice prompts, push the VOL (volume) control
switch up or down on the steering wheel or turn the volume knob on the audio system
while the system is responding.
 Speak in a clear and natural voice without pausing between words.
 Ifthe Voice Recognition systemdoesnotrecognize yourvoice commands, trainthe
system using the Speaker Adaptation Mode.
 Some commands are not available while the vehicle is in motion.
 The “Help” command can be used in any menu to hear a list of available commands.
 For recommended phones and detailed instructions, please visit
www.nissanusa.com/bluetooth.
PAIRING YOUR PHONE
To use thehands-free feature,youneed toset-up, orpair, thesystem torecognize your
cellular phone(s) . 5Bluetooth -enabled phonescanbepaired. Afterset-up, thesystem
automatically connects with a paired phone when the ignition is in the ACC or ON position,
as long as the phone is on and in the vehicle.
20

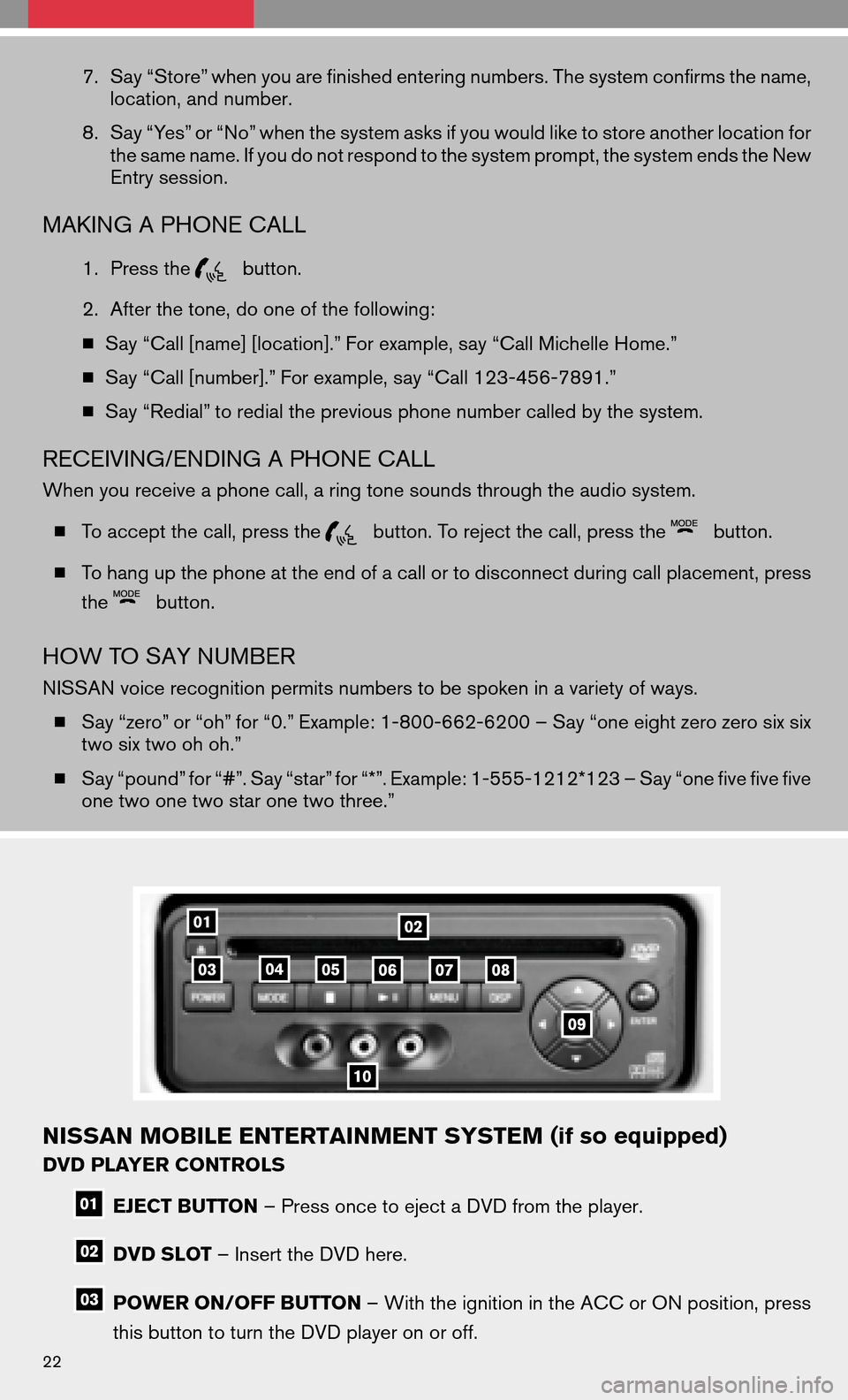

7.Say “Store” when you are finished entering numbers. The system confirms the name,
location, and number.
8. Say “Yes” or “No” when the system asks if you would like to store another location for
the same name. If you do not respond to the system prompt, the system ends the New
Entry session.
MAKING A PHONE CALL
1. Press thebutton.
2. After the tone, do one of the following:
 Say “Call [name] [location].” For example, say “Call Michelle Home.”
 Say “Call [number].” For example, say “Call 123-456-7891.”
 Say “Redial” to redial the previous phone number called by the system.
RECEIVING/ENDING A PHONE CALL
When you receive a phone call, a ring tone sounds through the audio system.
 To accept the call, press the
button. To reject the call, press thebutton.
 To hang up the phone at the end of a call or to disconnect during call placement, press
the
button.
HOW TO SAY NUMBER
NISSAN voice recognition permits numbers to be spoken in a variety of ways.
 Say “zero” or “oh” for “0.” Example: 1-800-662-6200 – Say “one eight zero zero six six
two six two oh oh.”
 Say “pound” for “#”. Say “star” for “*”. Example: 1-555-1212*123 – Say “one five five five
one two one two star one two three.”
NISSAN MOBILE ENTERTAINMENT SYSTEM (if so equipped)
DVD PLAYER CONTROLS
EJECT BUTTON – Press once to eject a DVD from the player.
DVD SLOT– Insert the DVD here.
POWER ON/OFF BUTTON – With the ignition in the ACC or ON position, press
this button to turn the DVD player on or off.
22

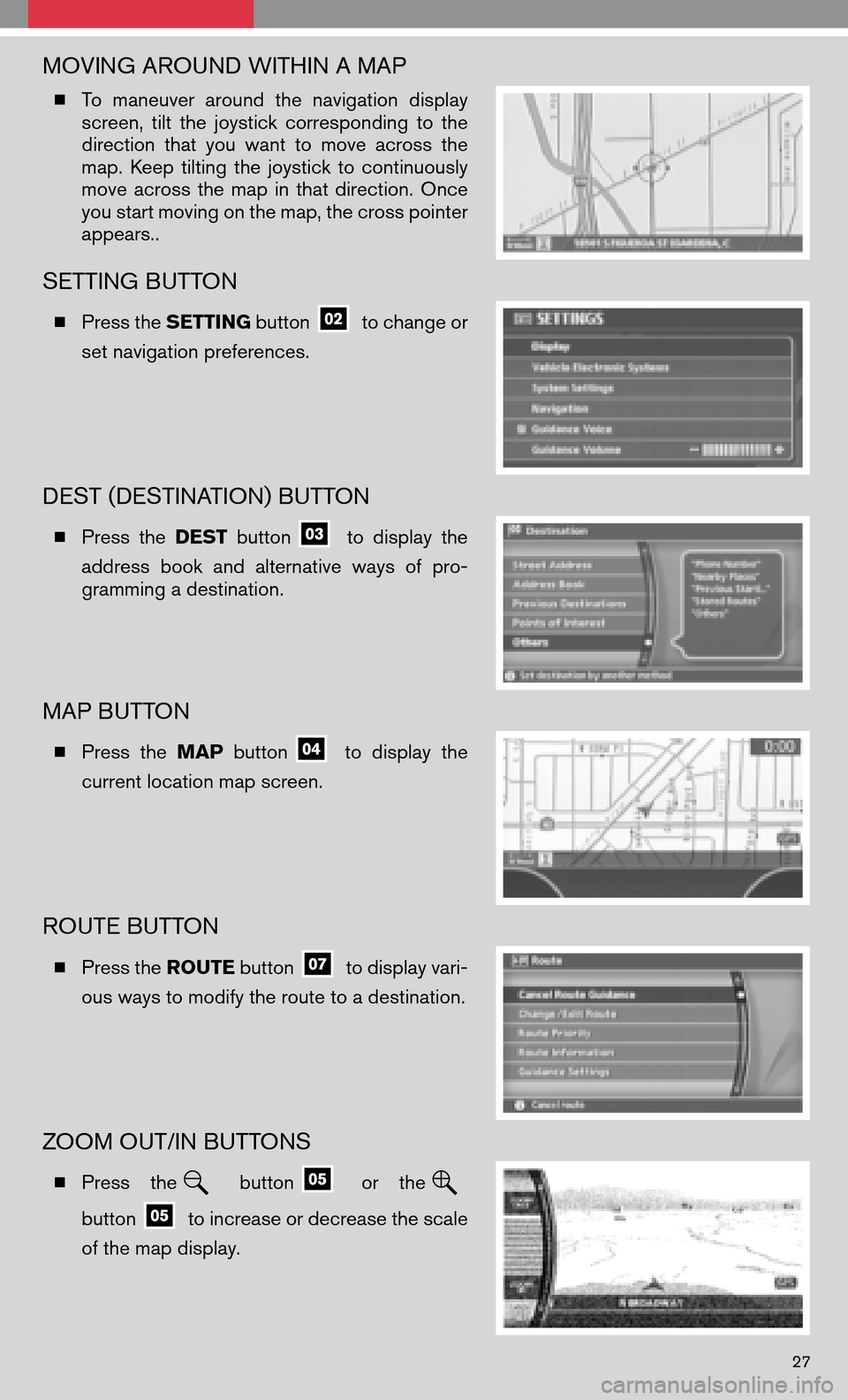

MOVING AROUND WITHIN A MAP
To maneuver aroundthenavigation display
screen, tiltthe joystick corresponding tothe
direction thatyouwant tomove across the
map. Keep tilting thejoystick tocontinuously
move across themap inthat direction. Once
you start moving on the map, the cross pointer
appears..
SETTING BUTTON
 Press the SETTING buttonto change or
set navigation preferences.
DEST (DESTINATION) BUTTON
 Press theDEST buttontodisplay the
address bookandalternative waysofpro-
gramming a destination.
MAP BUTTON
 Press theMAP buttontodisplay the
current location map screen.
ROUTE BUTTON
 Press the ROUTEbuttonto display vari-
ous ways to modify the route to a destination.
ZOOM OUT/IN BUTTONS
 Press thebuttonorthe
buttonto increase or decrease the scale
of the map display.
27

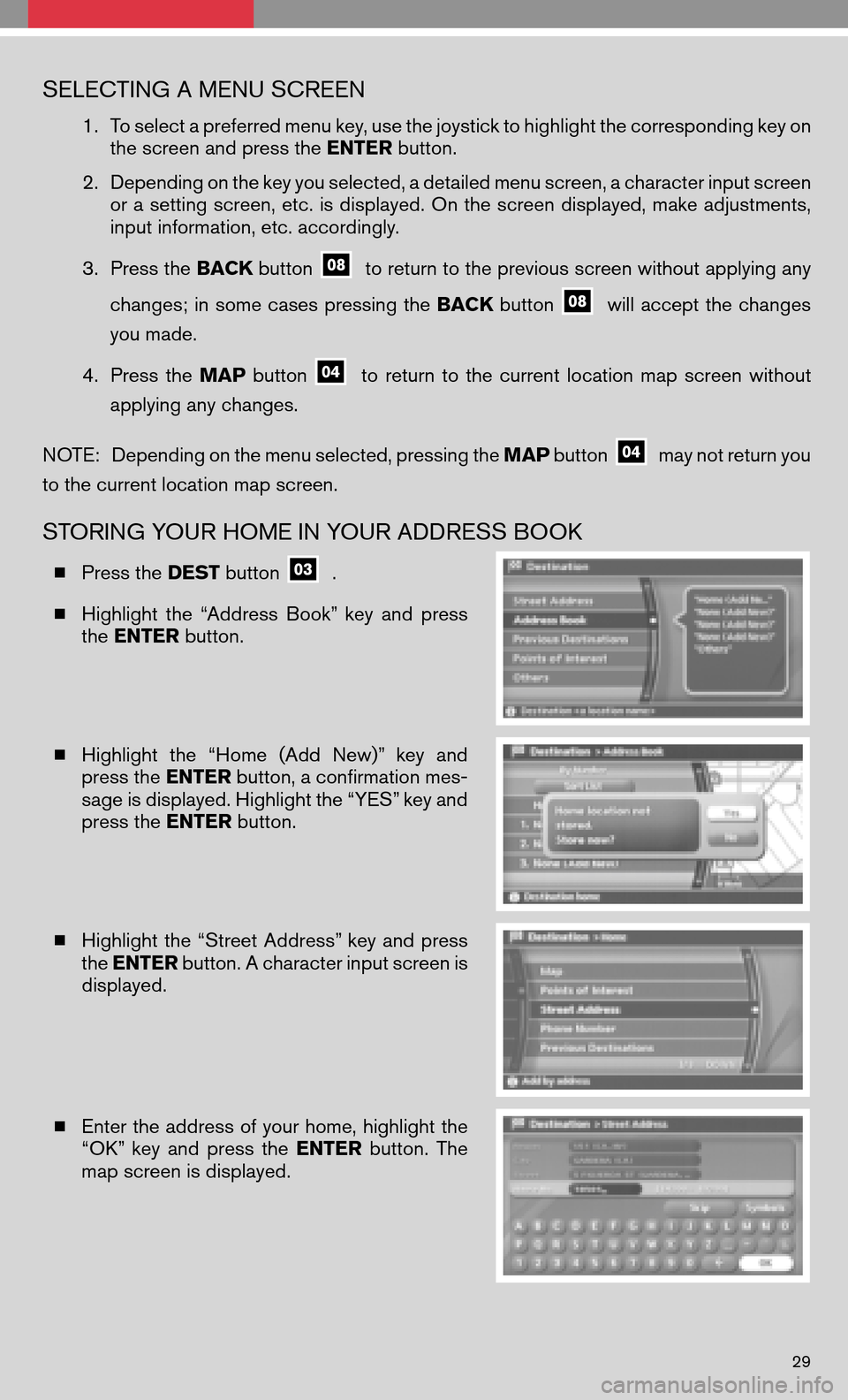

SELECTING A MENU SCREEN
1.To select a preferred menu key, use the joystick to highlight the corresponding key on
the screen and press the ENTERbutton.
2. Depending on the key you selected, a detailed menu screen, a character input screen
or asetting screen, etc.isdisplayed. Onthe screen displayed, makeadjustments,
input information, etc. accordingly.
3. Press the BACKbutton
to return to the previous screen without applying any
changes; insome cases pressing the BACK button
willaccept thechanges
you made.
4. Press the MAP button
toreturn tothe current location mapscreen without
applying any changes.
NOTE: Depending on the menu selected, pressing the MAPbutton
may not return you
to the current location map screen.
STORING YOUR HOME IN YOUR ADDRESS BOOK
 Press the DESTbutton.
 Highlight the“Address Book”keyand press
the ENTER button.
 Highlight the“Home (AddNew)” keyand
press the ENTERbutton, a confirmation mes-
sage is displayed. Highlight the “YES” key and
press the ENTERbutton.
 Highlight the“Street Address” key andpress
the ENTER button. A character input screen is
displayed.
 Enter the address of your home, highlight the
“OK” keyand press the ENTER button.The
map screen is displayed.
29
