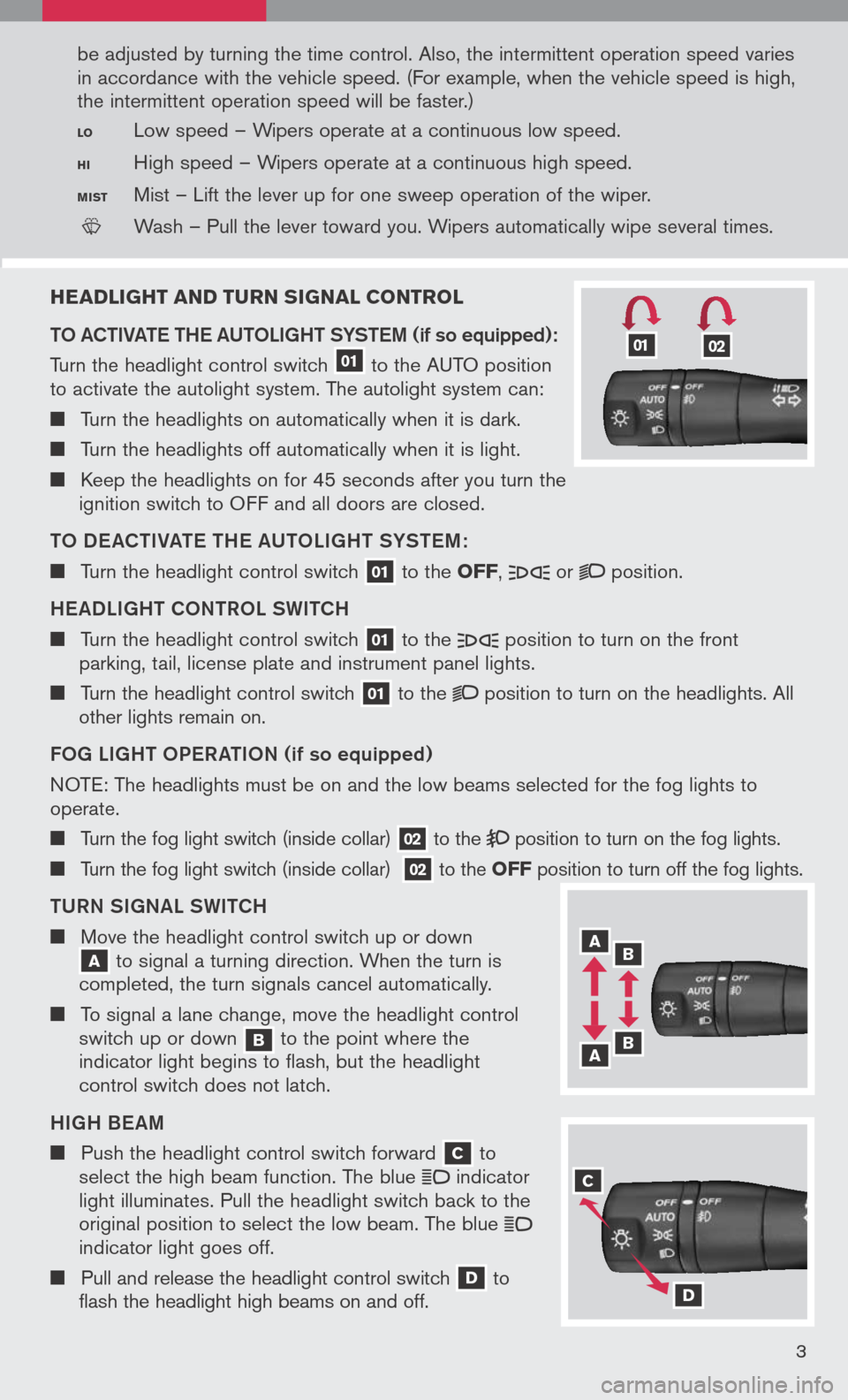

HEADLIGHT AND TURN SIGNAL CONTROL
to AC tIVA te t H e AU toLIGH t SYS teM
(if so equipped):
Turn the headlight control switch 01 to the AUTO position to activate the autolight system. The autolight system can:
Turn the headlights on automatically when it is dark.
Turn the headlights off automatically when it is light.
Keep the headlights on for 45 seconds after you turn the ignition switch to OFF and all doors are closed.
to DeAC tIVA te t H e AU toLIGH t SYS teM :
Turn the headlight control switch 01 to the OFF, or position.
H eADLIGH t CoNtR o L SWI tCH
Turn the headlight control switch 01 to the position to turn on the front parking, tail, license plate and instrument panel lights.
Turn the headlight control switch 01 to the position to turn on the headlights. All other lights remain on.
F o G LIGH t oPe RA tIo N (if so equipped)
N OTE:
The headlights must be on and the low beams selected for the fog lights to
operate.
Turn the fog light switch (inside collar) 02 to the position to turn on the fog lights.
Turn the fog light switch (inside collar) 02 to the OFF position to turn off the fog lights.
t URN SIGNAL SWI tCH
Move the headlight control switch up or down A to signal a turning direction. When the turn is completed, the turn signals cancel automatically.
To signal a lane change, move the headlight control switch up or down b to the point where the indicator light begins to flash, but the headlight control switch does not latch.
HIGH B eAM
Push the headlight control switch forward C to select the high beam function. The blue indicator light illuminates. Pull the headlight switch back to the original position to select the low beam. The blue indicator light goes off.
Pull and release the headlight control switch D to flash the headlight high beams on and off.
3
be adjusted by turning the time control. Also, the intermittent operation speed varies
in accordance with the vehicle speed. (For example, when the vehicle speed is high,
the intermittent operation speed will be faster.)
LO Low speed – Wipers operate at a continuous low speed.
HI High speed – Wipers operate at a continuous high speed.
MIST Mist – Lift the lever up for one sweep operation of the wiper.
LCN0042
Wash – Pull the lever toward you. Wipers automatically wipe several times.
A b
b A
C
D
0102
