2008 NISSAN ALTIMA HYBRID Owners Manual

Front seat-mounted side-impact
supplemental air bag and roof-
mounted curtain side-impact
supplemental air bag system
The front seat-mounted side-impact supplemen-
tal air bags are located in the outside of the
seatback of the front seats. The roof-mounted
curtain side-impact supplemental air bags are
located in the side roof rails. These systems are
designed to meet voluntary guidelines to help
reduce the risk of injury to out-of-position occu-
pants.However, all of the information, cau-
tions and warnings in this manual still ap-
ply and must be followed.The front seat-mounted side-impact supplemental air bags and
roof-mounted curtain side-impact supplemental
air bags are designed to inflate in higher severity
side collisions, although they may inflate if the
forces in another type of collision are similar to
those of a higher severity side impact. They are
designed to inflate on the side where the vehicle
is impacted. They may not inflate in certain side
collisions.
Vehicle damage (or lack of it) is not always an
indication of proper supplemental side air bag
and curtain side-impact air bag operation.
When the front seat-mounted side-impact
supplemental air bags and roof-mounted curtain
side-impact supplemental air bags inflate, a fairly
loud noise may be heard, followed by release of
smoke. This smoke is not harmful and does not
indicate a fire. Care should be taken not to inhale
it, as it may cause irritation and choking. Those
with a history of a breathing condition should get
fresh air promptly.
Front seat-mounted side-impact supplemental
air bags, along with the use of seat belts, help to
cushion the impact force on the chest and pelvic
area of the front occupants. Roof-mounted cur-
tain side-impact supplemental air bags help to
cushion the impact force to the head of occu-
pants in the front and rear outboard seating po-
sitions. They can help save lives and reduceserious injuries. However, an inflating front seat-
mounted side-impact supplemental air bag and
roof-mounted curtain side-impact supplemental
air bag may cause abrasions or other injuries.
Front seat-mounted side-impact supplemental
air bags and roof-mounted curtain side-impact
supplemental air bags do not provide restraint to
the lower body.
The seat belts should be correctly worn and the
driver and passenger seated upright as far as
practical away from the supplemental side air
bag. Rear seat passengers should be seated as
far away as practical from the door finishers and
side roof rails. The front seat-mounted side-
impact supplemental air bags and roof-mounted
curtain side-impact supplemental air bag inflate
quickly in order to help protect the front occu-
pants. Because of this, the force of the front
seat-mounted side-impact supplemental air bag
and roof-mounted curtain side-impact supple-
mental air bag inflating can increase the risk of
injury if the occupant is too close to, or is against,
these air bag modules during inflation. The front
seat-mounted side-impact supplemental air bags
and roof-mounted curtain side-impact supple-
mental air bag will deflate quickly after the colli-
sion is over.
LRS0259
1-46Safety—Seats, seat belts and supplemental restraint system
ZREVIEW COPYÐ2008 Altima Hybrid Electric
(ahv)
Owners ManualÐUSA_English(nna)
05/31/07Ðdebbie
X

The front seat-mounted side-impact
supplemental air bags and roof-mounted
curtain side-impact supplemental air bags
operate only when the ignition switch is in
the ON position.
After pushing the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the system is operational.
WARNING
cDo not place any objects near the seat-
back of the front seats. Also, do not
place any objects (an umbrella, bag,
etc.) between the front door finisher
and the front seat. Such objects may
become dangerous projectiles and
cause injury if the front seat-mounted
side-impact supplemental air bag
inflates.
cRight after inflation, several front seat-
mounted side-impact supplemental air
bag and roof-mounted curtain side-
impact supplemental air bag system
components will be hot. Do not touch
them; you may severely burn yourself.cNo unauthorized changes should be
made to any components or wiring of
the front seat-mounted side-impact
supplemental air bag and roof-mounted
curtain side-impact supplemental air
bag system. This is to prevent acciden-
tal inflation of the side air bag and cur-
tain side-impact air bag or damage to
the front seat-mounted side-impact
supplemental air bag and roof-mounted
curtain side-impact supplemental air
bag system.
cDo not make unauthorized changes to
your vehicle’s electrical system, sus-
pension system or side panel. This
could affect proper operation of the
front seat-mounted side-impact
supplemental air bag and roof-mounted
curtain side-impact supplemental air
bag system.
cTampering with the front seat-mounted
side-impact supplemental air bag sys-
tem may result in serious personal in-
jury. For example, do not change the
front seats by placing material near the
seatbacks or by installing additional
trim material, such as seat covers,
around the side air bag.cWork around and on the roof-mounted
curtain side-impact supplemental air
bag system should be done by a
NISSAN dealer. Installation of electrical
equipment should also be done by a
NISSAN dealer. The SRS wiring har-
nesses* should not be modified or dis-
connected. Unauthorized electrical test
equipment and probing devices should
not be used on the front seat-mounted
side-impact supplemental air bag and
roof-mounted curtain side-impact
supplemental air bag system.
* The SRS wiring harness connectors are
yellow and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the front seat-mounted
side-impact supplemental air bag and roof-
mounted curtain side-impact supplemental air
bag system and guide the buyer to the appropri-
ate sections in this Owner’s Manual.
Safety—Seats, seat belts and supplemental restraint system1-47
ZREVIEW COPYÐ2008 Altima Hybrid Electric
(ahv)
Owners ManualÐUSA_English(nna)
05/31/07Ðdebbie
X

Seat belts with pretensioners (Front
seats)

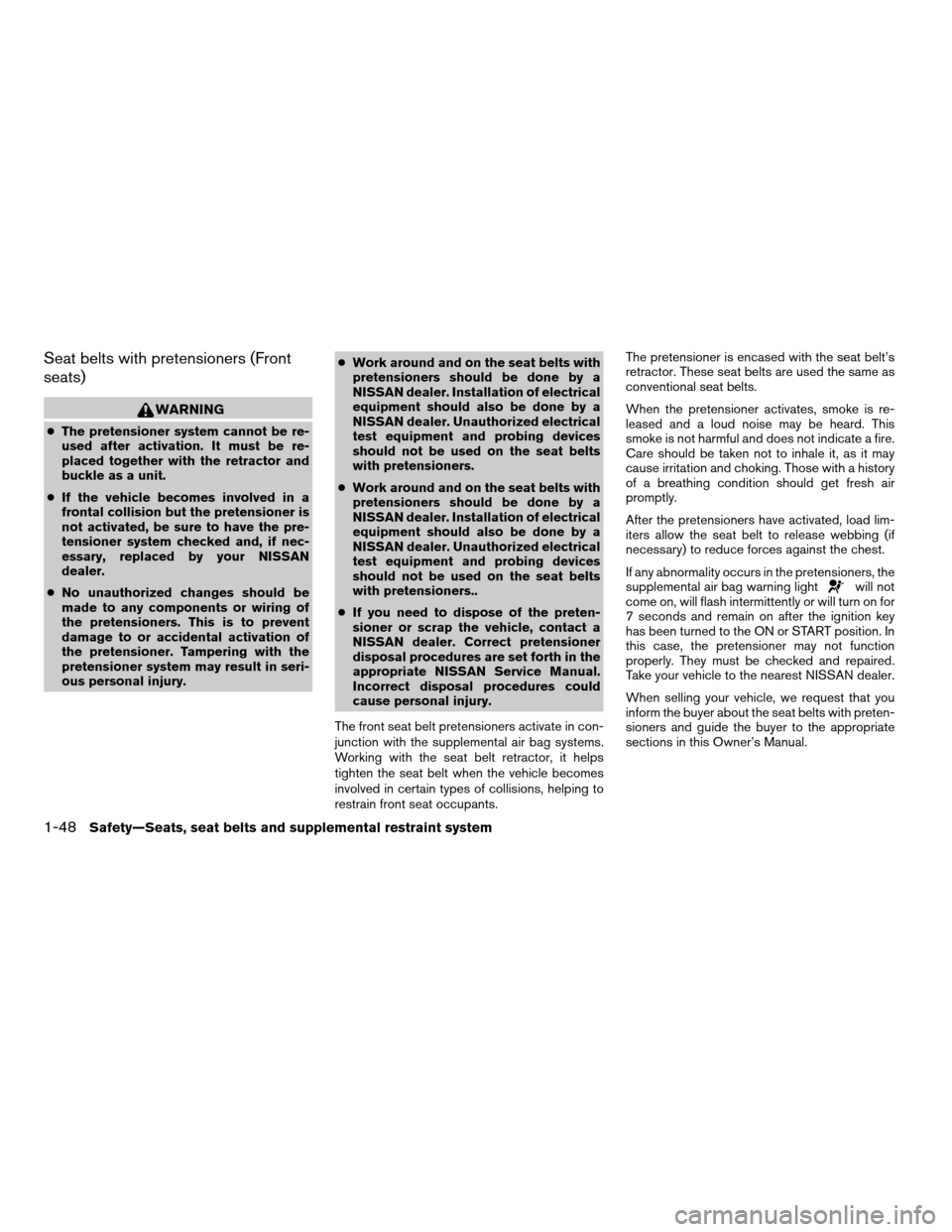

WARNING
cThe pretensioner system cannot be re-
used after activation. It must be re-
placed together with the retractor and
buckle as a unit.
cIf the vehicle becomes involved in a
frontal collision but the pretensioner is
not activated, be sure to have the pre-
tensioner system checked and, if nec-
essary, replaced by your NISSAN
dealer.
cNo unauthorized changes should be
made to any components or wiring of
the pretensioners. This is to prevent
damage to or accidental activation of
the pretensioner. Tampering with the
pretensioner system may result in seri-
ous personal injury.cWork around and on the seat belts with
pretensioners should be done by a
NISSAN dealer. Installation of electrical
equipment should also be done by a
NISSAN dealer. Unauthorized electrical
test equipment and probing devices
should not be used on the seat belts
with pretensioners.
cWork around and on the seat belts with
pretensioners should be done by a
NISSAN dealer. Installation of electrical
equipment should also be done by a
NISSAN dealer. Unauthorized electrical
test equipment and probing devices
should not be used on the seat belts
with pretensioners..
cIf you need to dispose of the preten-
sioner or scrap the vehicle, contact a
NISSAN dealer. Correct pretensioner
disposal procedures are set forth in the
appropriate NISSAN Service Manual.
Incorrect disposal procedures could
cause personal injury.
The front seat belt pretensioners activate in con-
junction with the supplemental air bag systems.
Working with the seat belt retractor, it helps
tighten the seat belt when the vehicle becomes
involved in certain types of collisions, helping to
restrain front seat occupants.The pretensioner is encased with the seat belt’s
retractor. These seat belts are used the same as
conventional seat belts.
When the pretensioner activates, smoke is re-
leased and a loud noise may be heard. This
smoke is not harmful and does not indicate a fire.
Care should be taken not to inhale it, as it may
cause irritation and choking. Those with a history
of a breathing condition should get fresh air
promptly.
After the pretensioners have activated, load lim-
iters allow the seat belt to release webbing (if
necessary) to reduce forces against the chest.
If any abnormality occurs in the pretensioners, the
supplemental air bag warning light
will not
come on, will flash intermittently or will turn on for
7 seconds and remain on after the ignition key
has been turned to the ON or START position. In
this case, the pretensioner may not function
properly. They must be checked and repaired.
Take your vehicle to the nearest NISSAN dealer.
When selling your vehicle, we request that you
inform the buyer about the seat belts with preten-
sioners and guide the buyer to the appropriate
sections in this Owner’s Manual.
1-48Safety—Seats, seat belts and supplemental restraint system
ZREVIEW COPYÐ2008 Altima Hybrid Electric
(ahv)
Owners ManualÐUSA_English(nna)
05/31/07Ðdebbie
X

1. SRS air bag warning labels
2. Front seat-mounted side-impact
supplemental air bag warning label
SUPPLEMENTAL AIR BAG
WARNING LABELS
Warning labels about the supplemental front air
bag systems are placed in the vehicle as shown
in the illustration.
SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light,
displayingin the instrument panel, moni-
tors the circuits of the supplemental front air bag,
front seat-mounted side-impact supplemental air
bags, roof-mounted curtain side-impact and
supplemental air bag and seatbelt pretensioner
systems. The circuits monitored by the supple-
mental air bag warning light are the Air bag
Control Unit, crash zone sensor, satellite sen-
sors, front air bag modules, side air bag modules,
curtain side-impact air bag modules, seat belt
pretensioners and all related wiring.When the ignition is in the ON position, the
supplemental air bag warning light illuminates for
about 7 seconds and then turns off. This means
the system is operational.
If any of the following conditions occur, the
supplemental front air bag, side-impact supple-
mental air bag and curtain side-impact supple-
mental air bag and pretensioner system need
servicing:
cThe supplemental air bag warning light re-
mains on after approximately 7 seconds.
cThe supplemental air bag warning light
flashes intermittently.
cThe supplemental air bag warning light does
not come on at all.
Under these conditions, the supplemental front
air bag, side-impact supplemental air bag and
curtain side-impact and supplemental air bag or
pretensioner systems may not operate properly. It
must be checked and repaired. Take your vehicle
to the nearest NISSAN dealer.
WRS0169LRS0100
Safety—Seats, seat belts and supplemental restraint system1-49
ZREVIEW COPYÐ2008 Altima Hybrid Electric
(ahv)
Owners ManualÐUSA_English(nna)
05/31/07Ðdebbie
X

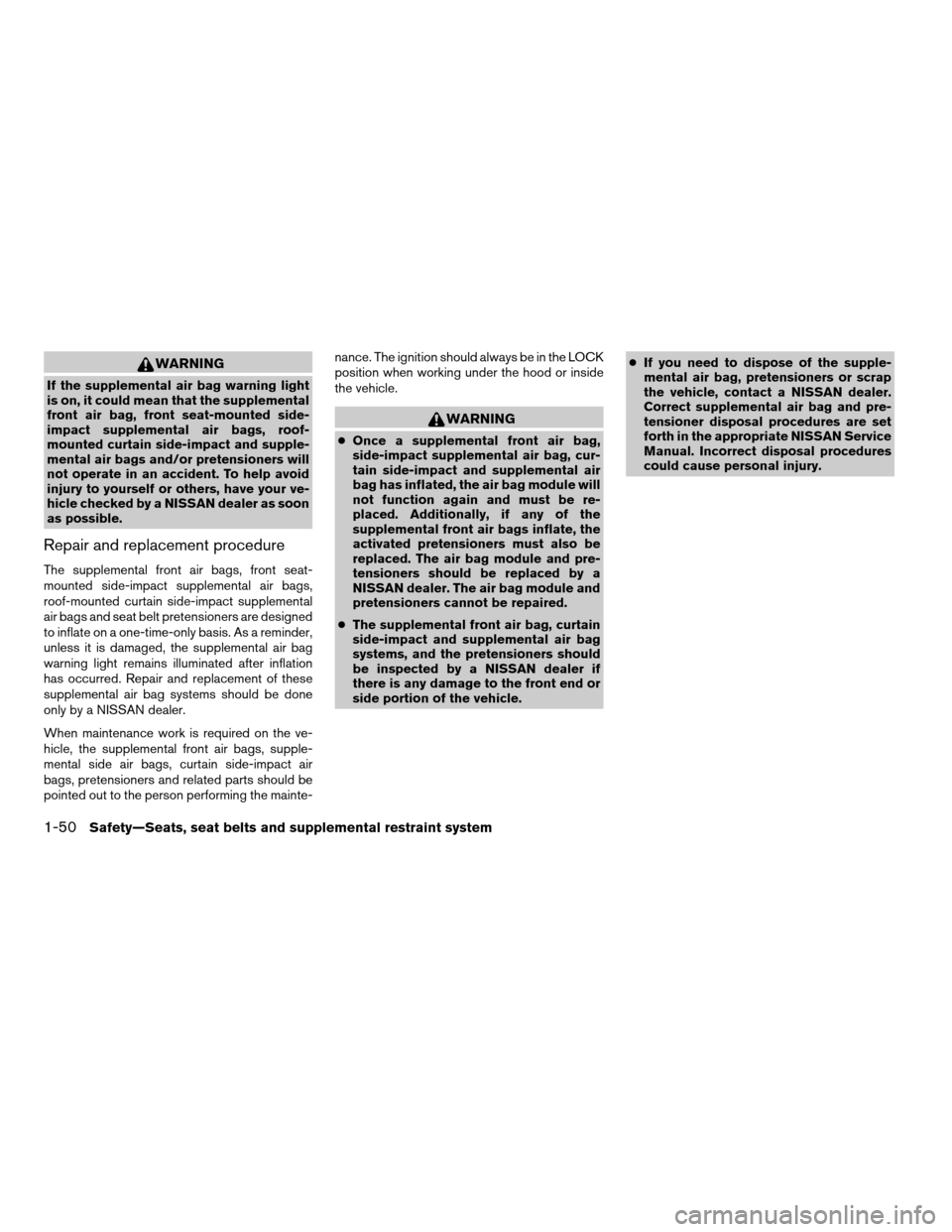

WARNING
If the supplemental air bag warning light
is on, it could mean that the supplemental
front air bag, front seat-mounted side-
impact supplemental air bags, roof-
mounted curtain side-impact and supple-
mental air bags and/or pretensioners will
not operate in an accident. To help avoid
injury to yourself or others, have your ve-
hicle checked by a NISSAN dealer as soon
as possible.
Repair and replacement procedure
The supplemental front air bags, front seat-
mounted side-impact supplemental air bags,
roof-mounted curtain side-impact supplemental
air bags and seat belt pretensioners are designed
to inflate on a one-time-only basis. As a reminder,
unless it is damaged, the supplemental air bag
warning light remains illuminated after inflation
has occurred. Repair and replacement of these
supplemental air bag systems should be done
only by a NISSAN dealer.
When maintenance work is required on the ve-
hicle, the supplemental front air bags, supple-
mental side air bags, curtain side-impact air
bags, pretensioners and related parts should be
pointed out to the person performing the mainte-nance. The ignition should always be in the LOCK
position when working under the hood or inside
the vehicle.
WARNING
cOnce a supplemental front air bag,
side-impact supplemental air bag, cur-
tain side-impact and supplemental air
bag has inflated, the air bag module will
not function again and must be re-
placed. Additionally, if any of the
supplemental front air bags inflate, the
activated pretensioners must also be
replaced. The air bag module and pre-
tensioners should be replaced by a
NISSAN dealer. The air bag module and
pretensioners cannot be repaired.
cThe supplemental front air bag, curtain
side-impact and supplemental air bag
systems, and the pretensioners should
be inspected by a NISSAN dealer if
there is any damage to the front end or
side portion of the vehicle.cIf you need to dispose of the supple-
mental air bag, pretensioners or scrap
the vehicle, contact a NISSAN dealer.
Correct supplemental air bag and pre-
tensioner disposal procedures are set
forth in the appropriate NISSAN Service
Manual. Incorrect disposal procedures
could cause personal injury.
1-50Safety—Seats, seat belts and supplemental restraint system
ZREVIEW COPYÐ2008 Altima Hybrid Electric
(ahv)
Owners ManualÐUSA_English(nna)
05/31/07Ðdebbie
X

Safety—Seats, seat belts and supplemental restraint system1-51
MEMO

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges................................2-3
Speedometer and odometer.....................2-3
Power meter...................................2-4
High voltage battery status meter.................2-5
Fuel gauge....................................2-5
Compass display (if so equipped)...................2-6
Compass display...............................2-6
Warning/indicator lights and audible reminders.......2-9
Checking bulbs................................2-9
Warning lights................................2-10
Indicator lights................................2-15
Audible reminders.............................2-17
Vehicle information display.........................2-18
How to use the Vehicle Information Display.......2-18
Security systems.................................2-26
Vehicle security system.........................2-26
NISSAN vehicle immobilizer system.............2-27
Windshield wiper and washer switch...............2-28
Switch operation..............................2-28
Rear window and outside mirror (if so equipped)
defroster switch..................................2-29
Headlight and turn signal switch....................2-29Headlight control switch........................2-29
Daytime running light system (Canada only)......2-32
Instrument brightness control...................2-32
Turn signal switch.............................2-33
Fog light switch (if so equipped)................2-33
Hazard warning flasher switch.....................2-33
Horn............................................2-34
Heated seats (if so equipped)......................2-34
Power outlet.....................................2-35
Storage.........................................2-36
Map pockets..................................2-36
Seatback pockets.............................2-37
Sunglasses holder.............................2-37
Cup holders..................................2-38
Glove box....................................2-38
Console box..................................2-39
Covered storage box...........................2-40
Grocery hooks (if so equipped).................2-40
Cargo net (if so equipped)......................2-41
Windows........................................2-41
Power windows...............................2-41
Sunroof (if so equipped)...........................2-44
Interior light......................................2-45
ZREVIEW COPYÐ2008 Altima Hybrid Electric
(ahv)
Owners ManualÐUSA_English(nna)
05/31/07Ðdebbie
X

Map lights.......................................2-46
Trunk light.......................................2-47
HomeLinkTuniversal transceiver (if so equipped).....2-47
Programming HomeLinkT.......................2-48
Programming HomeLinkTfor Canadian
customers....................................2-49
Operating the HomeLinkTuniversal
transceiver....................................2-49Programming trouble-diagnosis.................2-49
Clearing the programmed information............2-50
Rolling code programming......................2-50
Reprogramming a single HomeLinkTbutton......2-50
If your vehicle is stolen.........................2-51
ZREVIEW COPYÐ2008 Altima Hybrid Electric
(ahv)
Owners ManualÐUSA_English(nna)
05/31/07Ðdebbie
X
