2008 MINI COOPER CONVERTIBLE Owners Manual

OVERVIEW
CONTROLS
OPERATION, CARE, MAINTENANCE
OWNER SERVICE PROCEDURES
INDEX TECHNICAL DATA
151
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
Data

152
ENGINE DATA
MINI COOPER,
MINI COOPER ConvertibleMINI COOPER S,
MINI COOPER S ConvertibleMINI COOPER S,
MINI COOPER S Convertible
with John Cooper Works Kit
*
Displacement
Number of cylinders cu in/cmμ97.5/1,598
497.5/1,598
497.5/1,598
4
Maximum output
at engine speed hp/kW
rpm115/85
6,000168/125
6,000208/155
6,950
Maximum torque
at engine speedlb ft/Nm
rpm111/150
4,500162/220
4,000180/245
4,500

153
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
DIMENSIONS: MINI
All measurements in inches/millimeters. Smallest turning circle dia. 34 ft 10 in/10.66 m.
Values following a ; are differing values for MINI COOPER S.

154
DIMENSIONS: MINI CONVERTIBLE
All measurements in inches/millimeters. Smallest turning circle dia. 34 ft 10 in/10.66 m.
Values following a ; are differing values for MINI COOPER S.

155
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
WEIGHTS: MINI
MINI COOPER MINI COOPER S
Curb weight, with all optional special equipment
with manual transmission
automatic transmission with Steptroniclbs/kg
lbs/kg2,524/1,145
2,557/1,1602,679/1,215
2,723/1,235
Approved gross vehicle weight
with manual transmission
automatic transmission with Steptroniclbs/kg
lbs/kg3,340/1,515
3,373/1,5303,494/1,585
3,538/1,605
Cargo and luggage load capacity lbs/kg 816/370 816/370
Approved front axle load lbs/kg 1,918/870 1,962/890
Approved rear axle load lbs/kg 1,609/730 1,698/770
Approved roof load, with special MINI roof rack lbs/kg 165/75 165/75
Luggage compartment volume
with rear backrest folded downcu ft/liters
cu ft/liters5.3/150
23.7/6705.3/150
23.7/670

156

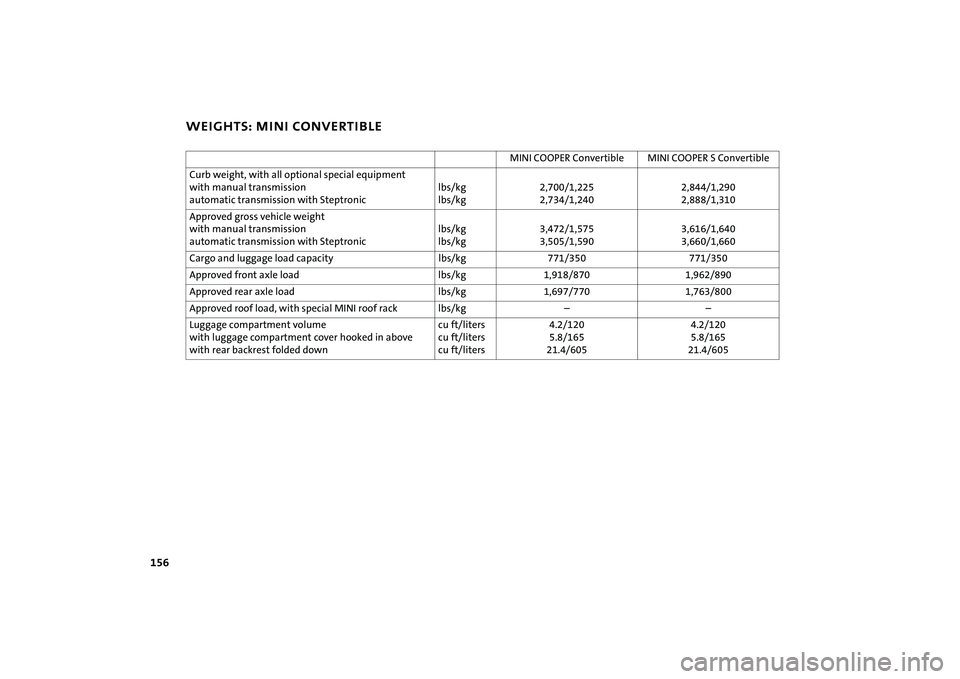

WEIGHTS: MINI CONVERTIBLE
MINI COOPER Convertible MINI COOPER S Convertible
Curb weight, with all optional special equipment
with manual transmission
automatic transmission with Steptroniclbs/kg
lbs/kg2,700/1,225
2,734/1,2402,844/1,290
2,888/1,310
Approved gross vehicle weight
with manual transmission
automatic transmission with Steptroniclbs/kg
lbs/kg3,472/1,575
3,505/1,5903,616/1,640
3,660/1,660
Cargo and luggage load capacity lbs/kg 771/350 771/350
Approved front axle load lbs/kg 1,918/870 1,962/890
Approved rear axle load lbs/kg 1,697/770 1,763/800
Approved roof load, with special MINI roof rack lbs/kg – –
Luggage compartment volume
with luggage compartment cover hooked in above
with rear backrest folded downcu ft/liters
cu ft/liters
cu ft/liters4.2/120
5.8/165
21.4/6054.2/120
5.8/165
21.4/605

157
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
CAPACITIES
Notes
Fuel tank
Reservegal./liters
gal./litersapprox. 13.2/50
approx. 2.1/8Fuel quality, refer to page105
Window washer system
Headlamp washer systemquarts/liters
quarts/litersapprox. 2.4/2.3
approx. 2.6/2.5 More details, refer to page64
Cooling system including heater circuit quarts/liters
quarts/liters5.6/5.3 MINI COOPER and
MINI COOPER Convertible
6.3/6.0 MINI COOPER S and
MINI COOPER S ConvertibleMore details, refer to page122

158
