Display messages
Possible causes/consequences and
X
X Solutions à a
with 4
buttons:
inopera-
tive
a with
12 buttons:
inopera-
tive DSR is deactivated due to a malfunction.
X
Have DSR checked at a qualified specialist workshop. ? a
with 4
buttons:
Stop vehi-
cle Engine
off
a with
12 buttons:
Coolant
Stop vehi-
cle Switch
engine off The coolant is too hot. In addition, the
?warning lamp in
the instrument cluster lights up and a warning tone sounds.
X Pull over and stop the vehicle safely and switch off the
engine, paying attention to road and traffic conditions.
X Make sure that the air supply to the radiator is not blocked,
e.g. by slush.
X Wait until the display message disappears before restarting
the engine. Otherwise, there is a risk of engine damage.
X Observe the coolant temperature gauge.
X If the coolant temperature increases again, visit a qualified
specialist workshop immediately. The poly-V-belt may have torn. A warning tone also sounds.
X
Pull over and stop the vehicle safely and switch off the
engine, paying attention to road and traffic conditions.
X Check the poly-V-belt.
X If the poly-V-belt is not damaged: do not start the engine
again until the display message goes out. Otherwise, there
is a risk of engine damage.
X If the poly-V-belt is torn: do not continue driving. Consult
a qualified specialist workshop. ? The engine fan is faulty.
X
If the coolant temperature is less than 120 †, you can
continue driving to the nearest qualified specialist work-
shop.
X Avoid subjecting the engine to heavy loads (e.g. driving in
mountainous terrain) and stop-and-go driving. 186 Display
messagesPractical advice
X204_AKB; 1; 5, en-GB
wobuchh,V ersion: 2.11.4
2008-10-15T13:20:56+02:00 - Seite 186 Dateiname: 6515_0671_02_buchblock.pdf; preflight

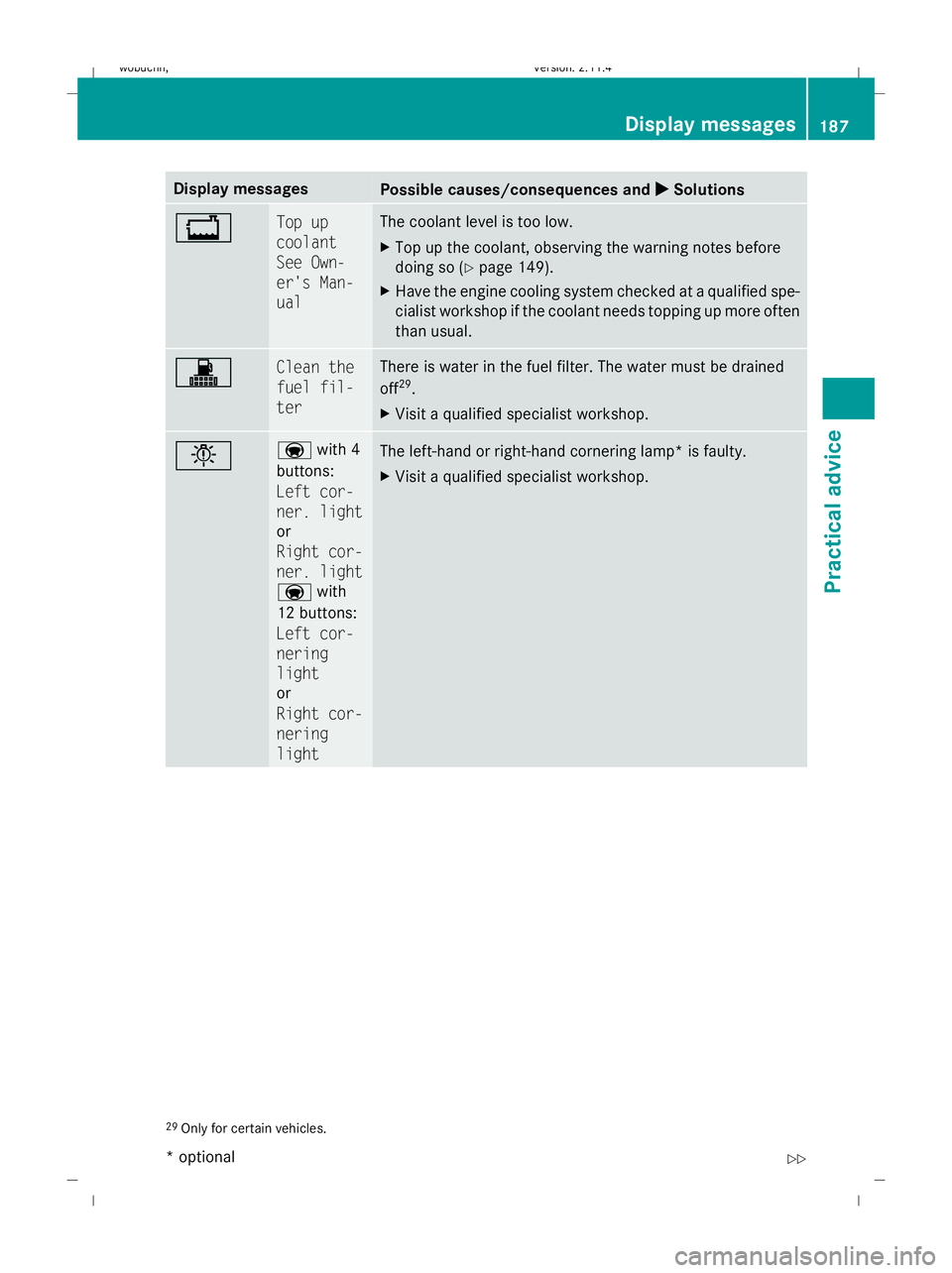

Display messages
Possible causes/consequences and
X
X Solutions + Top up
coolant
See Own-
er's Man-
ual The coolant level is too low.
X
Top up the coolant, observing the warning notes before
doing so (Y page 149).
X Have the engine cooling system checked at a qualified spe-
cialist workshop if the coolant needs topping up more often
than usual. ! Clean the
fuel fil-
ter There is water in the fuel filter. The water must be drained
off
29
.
X Visit a qualified specialist workshop. b a
with 4
buttons:
Left cor-
ner. light
or
Right cor-
ner. light
a with
12 buttons:
Left cor-
nering
light
or
Right cor-
nering
light The left-hand or right-hand cornering lamp* is faulty.
X
Visit a qualified specialist workshop. 29
Only for certain vehicles. Display
messages
187Practical advice
* optional
X204_AKB; 1; 5, en-GB
wobuchh
,V ersion: 2.11.4
2008-10-15T13:20:56+02:00 - Seite 187 ZDateiname: 6515_0671_02_buchblock.pdf; preflight

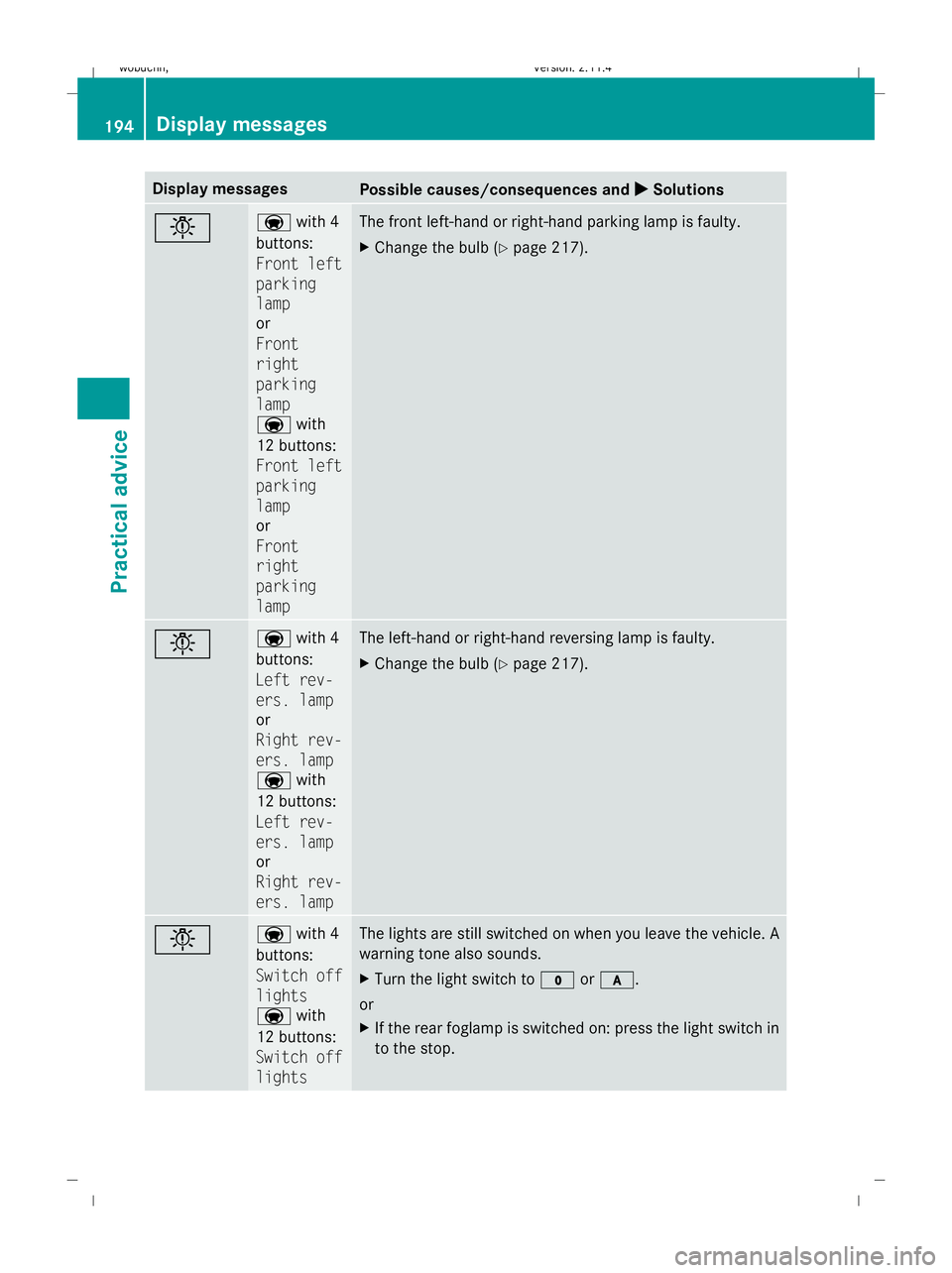

Display messages
Possible causes/consequences and
X
X Solutions b a
with 4
buttons:
Front left
parking
lamp
or
Front
right
parking
lamp
a with
12 buttons:
Front left
parking
lamp
or
Front
right
parking
lamp The front left-hand or right-hand parking lamp is faulty.
X
Change the bulb ( Ypage 217). b a
with 4
buttons:
Left rev-
ers. lamp
or
Right rev-
ers. lamp
a with
12 buttons:
Left rev-
ers. lamp
or
Right rev-
ers. lamp The left-hand or right-hand reversing lamp is faulty.
X
Change the bulb ( Ypage 217). b a
with 4
buttons:
Switch off
lights
a with
12 buttons:
Switch off
lights The lights are still switched on when you leave the vehicle. A
warning tone also sounds.
X
Turn the light switch to $orc.
or
X If the rear foglamp is switched on: press the light switch in
to the stop. 194 Display
messagesPractical advice
X204_AKB; 1; 5, en-GB
wobuchh,V ersion: 2.11.4
2008-10-15T13:20:56+02:00 - Seite 194 Dateiname: 6515_0671_02_buchblock.pdf; preflight

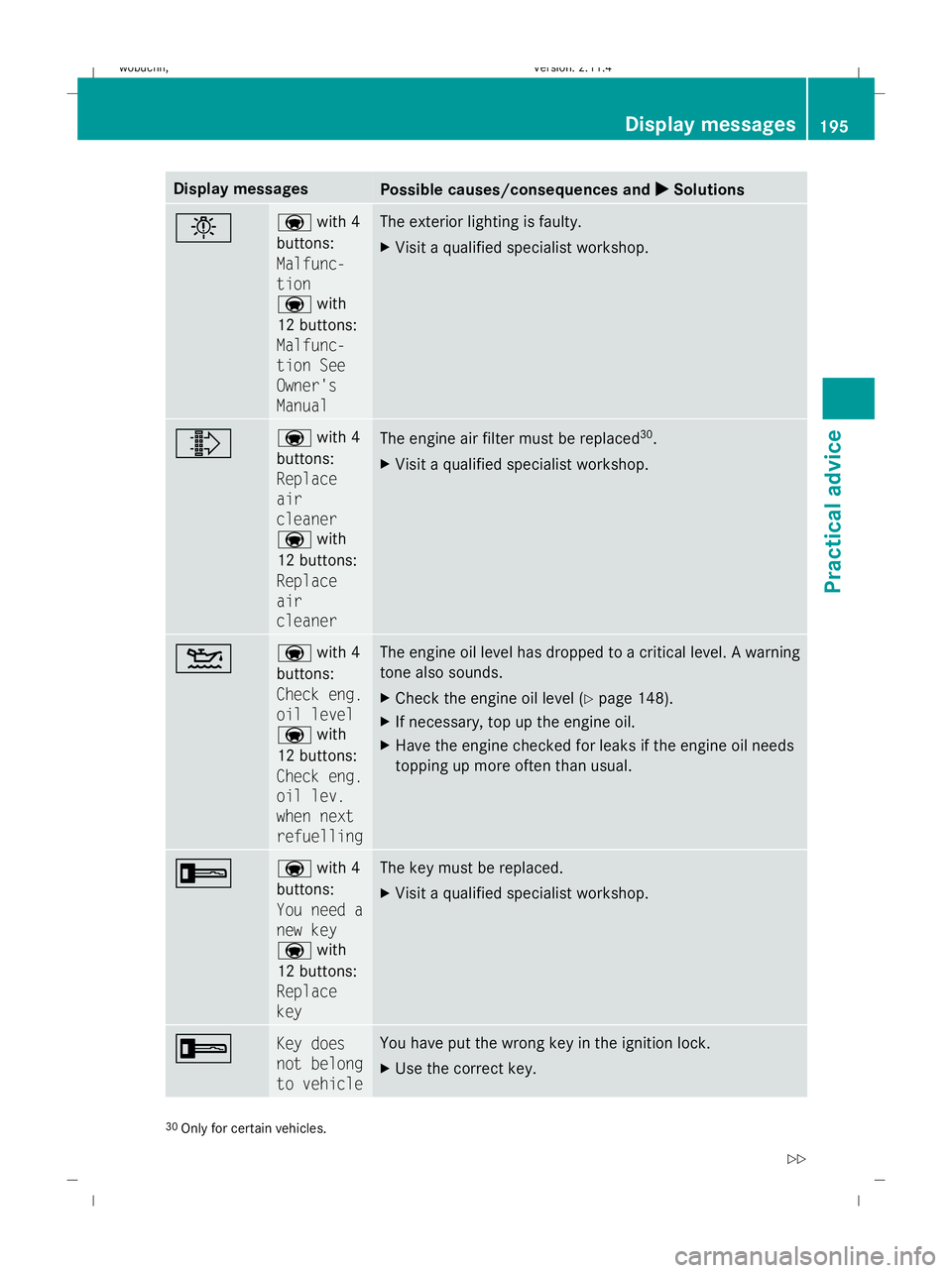

Display messages
Possible causes/consequences and
X
X Solutions b a
with 4
buttons:
Malfunc-
tion
a with
12 buttons:
Malfunc-
tion See
Owner's
Manual The exterior lighting is faulty.
X
Visit a qualified specialist workshop. ¸ a
with 4
buttons:
Replace
air
cleaner
a with
12 buttons:
Replace
air
cleaner The engine air filter must be replaced
30
.
X Visit a qualified specialist workshop. 4 a
with 4
buttons:
Check eng.
oil level
a with
12 buttons:
Check eng.
oil lev.
when next
refuelling The engine oil level has dropped to a critical level. A warning
tone also sounds.
X
Check the engine oil level ( Ypage 148).
X If necessary, top up the engine oil.
X Have the engine checked for leaks if the engine oil needs
topping up more often than usual. + a
with 4
buttons:
You need a
new key
a with
12 buttons:
Replace
key The key must be replaced.
X
Visit a qualified specialist workshop. + Key does
not belong
to vehicle You have put the wrong key in the ignition lock.
X
Use the correct key. 30
Only for certain vehicles. Display
messages
195Practical advice
X204_AKB; 1; 5, en-GB
wobuchh,V ersion: 2.11.4
2008-10-15T13:20:56+02:00 - Seite 195 ZDateiname: 6515_0671_02_buchblock.pdf; preflight

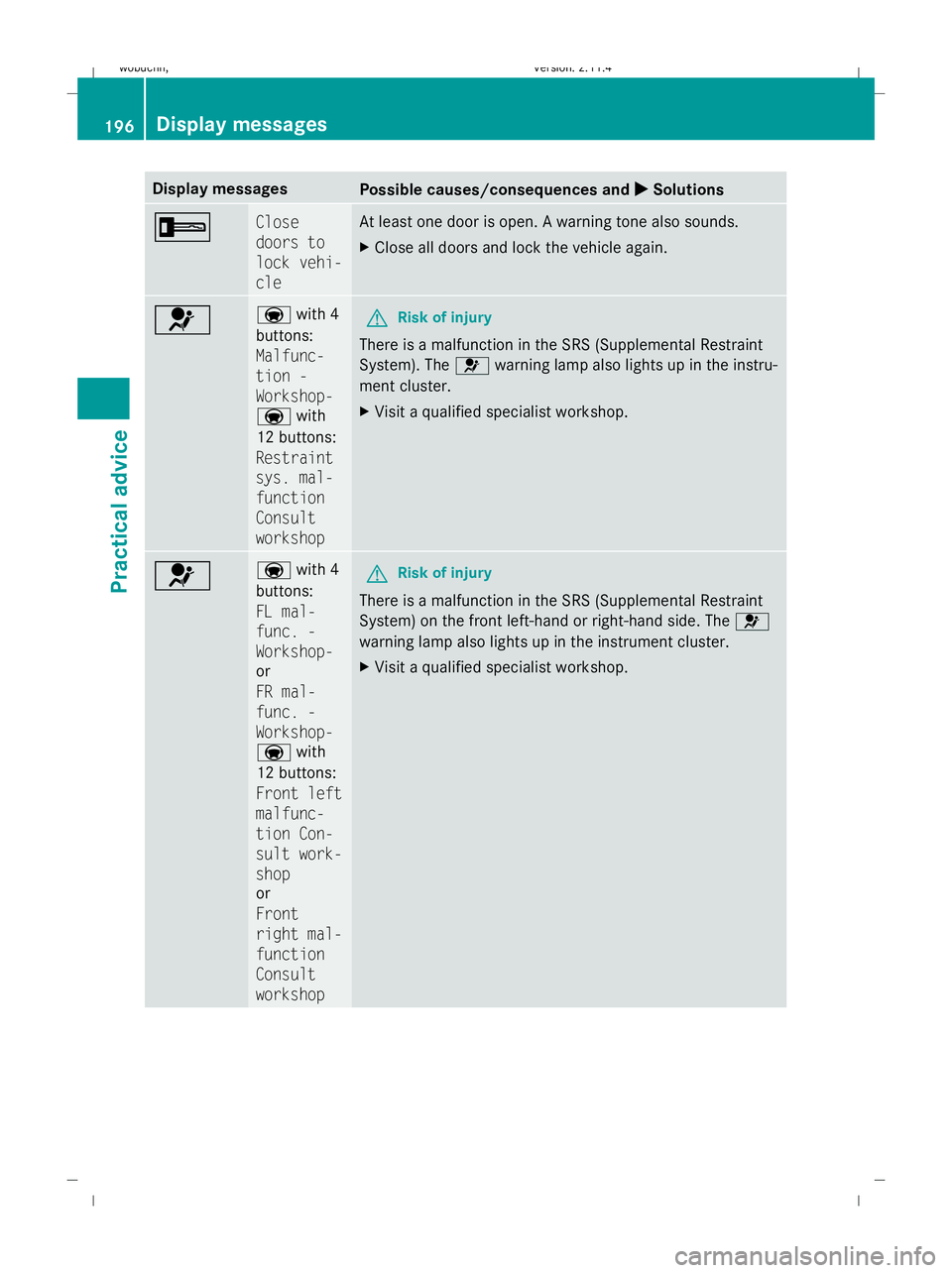

Display messages
Possible causes/consequences and
X
X Solutions + Close
doors to
lock vehi-
cle At least one door is open. A warning tone also sounds.
X
Close all doors and lock the vehicle again. 6 a
with 4
buttons:
Malfunc-
tion -
Workshop-
a with
12 buttons:
Restraint
sys. mal-
function
Consult
workshop G
Risk of injury
There is a malfunction in the SRS (Supplemental Restraint
System). The 6warning lamp also lights up in the instru-
ment cluster.
X Visit a qualified specialist workshop. 6 a
with 4
buttons:
FL mal-
func. -
Workshop-
or
FR mal-
func. -
Workshop-
a with
12 buttons:
Front left
malfunc-
tion Con-
sult work-
shop
or
Front
right mal-
function
Consult
workshop G
Risk of injury
There is a malfunction in the SRS (Supplemental Restraint
System) on the front left-hand or right-hand side. The 6
warning lamp also lights up in the instrument cluster.
X Visit a qualified specialist workshop. 196 Display
messagesPractical advice
X204_AKB; 1; 5, en-GB
wobuchh,V ersion: 2.11.4
2008-10-15T13:20:56+02:00 - Seite 196 Dateiname: 6515_0671_02_buchblock.pdf; preflight

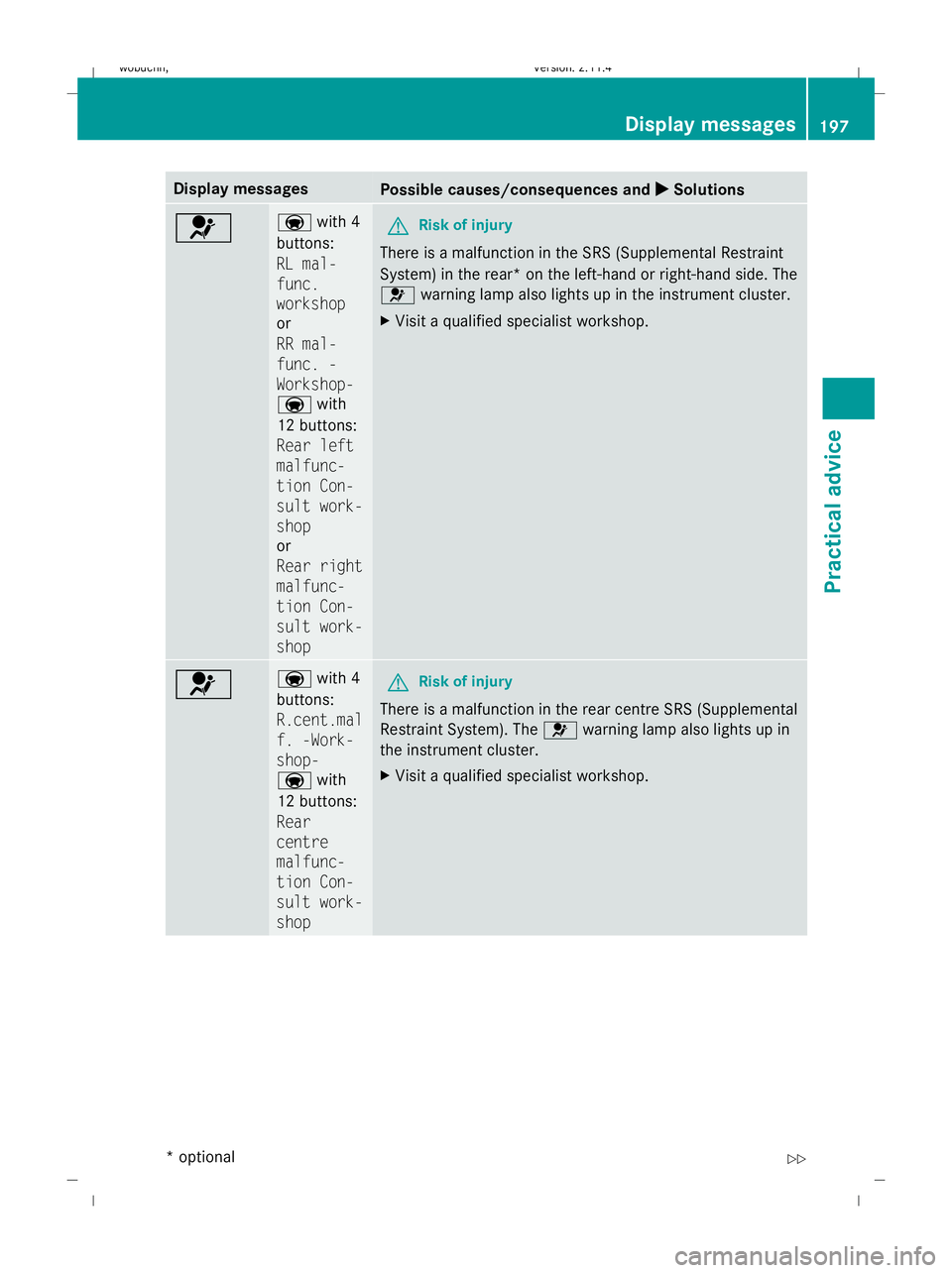

Display messages
Possible causes/consequences and
X
X Solutions 6 a
with 4
buttons:
RL mal-
func.
workshop
or
RR mal-
func. -
Workshop-
a with
12 buttons:
Rear left
malfunc-
tion Con-
sult work-
shop
or
Rear right
malfunc-
tion Con-
sult work-
shop G
Risk of injury
There is a malfunction in the SRS (Supplemental Restraint
System) in the rear* on the left-hand or right-hand side. The
6 warning lamp also lights up in the instrument cluster.
X Visit a qualified specialist workshop. 6 a
with 4
buttons:
R.cent.mal
f. -Work-
shop-
a with
12 buttons:
Rear
centre
malfunc-
tion Con-
sult work-
shop G
Risk of injury
There is a malfunction in the rear centre SRS (Supplemental
Restraint System). The 6warning lamp also lights up in
the instrument cluster.
X Visit a qualified specialist workshop. Display
messages
197Practical advice
* optional
X204_AKB; 1; 5, en-GB
wobuchh
,V ersion: 2.11.4
2008-10-15T13:20:56+02:00 - Seite 197 ZDateiname: 6515_0671_02_buchblock.pdf; preflight

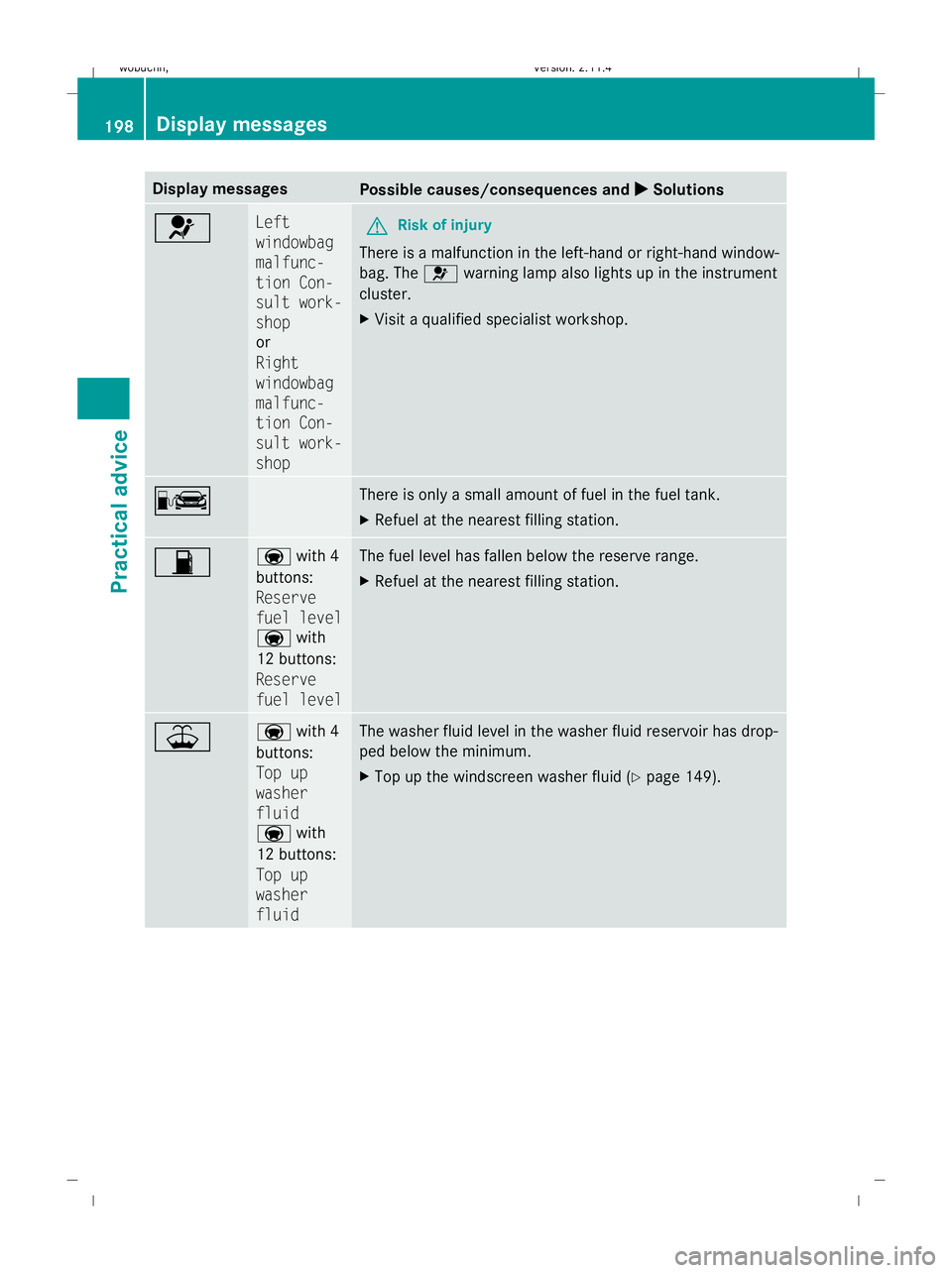

Display messages
Possible causes/consequences and
X
X Solutions 6 Left
windowbag
malfunc-
tion Con-
sult work-
shop
or
Right
windowbag
malfunc-
tion Con-
sult work-
shop
G
Risk of injury
There is a malfunction in the left-hand or right-hand window-
bag. The 6warning lamp also lights up in the instrument
cluster.
X Visit a qualified specialist workshop. C There is only a small amount of fuel in the fuel tank.
X
Refuel at the nearest filling station. 7 a
with 4
buttons:
Reserve
fuel level
a with
12 buttons:
Reserve
fuel level The fuel level has fallen below the reserve range.
X
Refuel at the nearest filling station. ¥ a
with 4
buttons:
Top up
washer
fluid
a with
12 buttons:
Top up
washer
fluid The washer fluid level in the washer fluid reservoir has drop-
ped below the minimum.
X
Top up the windscreen washer fluid (Y page 149).198 Display
messagesPractical advice
X204_AKB; 1; 5, en-GB
wobuchh,V ersion: 2.11.4
2008-10-15T13:20:56+02:00 - Seite 198 Dateiname: 6515_0671_02_buchblock.pdf; preflight

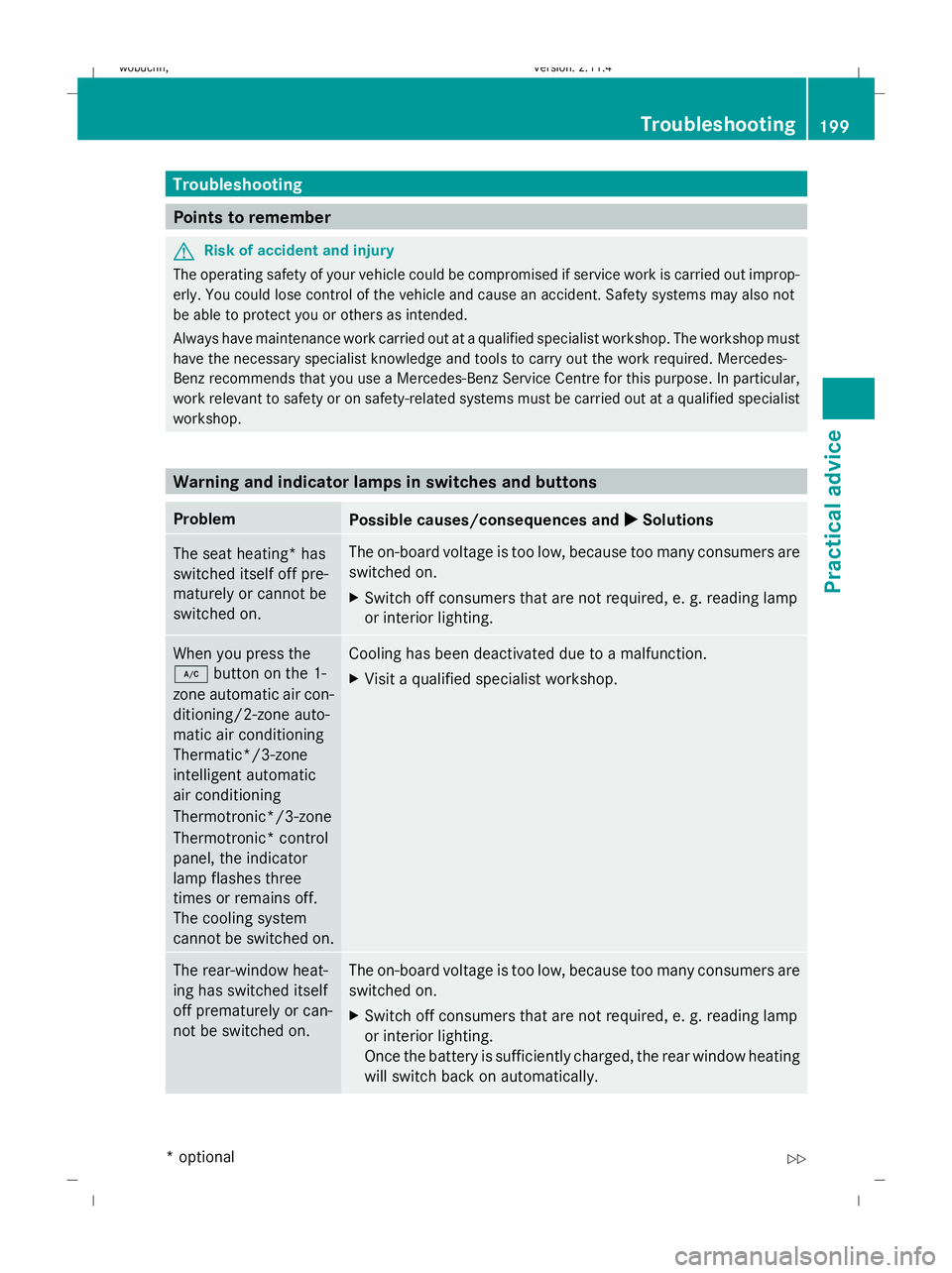

Troubleshooting
Points to remember
G
Risk of accident and injury
The operating safety of your vehicle could be compromised if service work is carried out improp-
erly. You could lose control of the vehicle and cause an accident. Safety systems may also not
be able to protect you or others as intended.
Always have maintenance work carried out at a qualified specialist workshop. The workshop must
have the necessary specialist knowledge and tools to carry out the work required. Mercedes-
Benz recommends that you use a Mercedes-Benz Service Centre for this purpose. In particular,
work relevant to safety or on safety-related systems must be carried out at a qualified specialist
workshop. Warning and indicator lamps in switches and buttons
Problem
Possible causes/consequences and
X
X Solutions The seat heating* has
switched itself off pre-
maturely or cannot be
switched on. The on-board voltage is too low, because too many consumers are
switched on.
X Switch off consumers that are not required, e. g. reading lamp
or interior lighting. When you press the
¿
button on the 1-
zone automatic air con-
ditioning/2-zone auto-
matic air conditioning
Thermatic*/3-zone
intelligent automatic
air conditioning
Thermotronic*/3-zone
Thermotronic* control
panel, the indicator
lamp flashes three
times or remains off.
The cooling system
cannot be switched on. Cooling has been deactivated due to a malfunction.
X
Visit a qualified specialist workshop. The rear-window heat-
ing has switched itself
off prematurely or can-
not be switched on. The on-board voltage is too low, because too many consumers are
switched on.
X Switch off consumers that are not required, e. g. reading lamp
or interior lighting.
Once the battery is sufficiently charged, the rear window heating
will switch back on automatically. Troubleshooting
