2008 MERCEDES-BENZ E-CLASS SALOON air conditioning

31, 2, 3 ...
4MATIC (permanent four-wheel
drive) . . . . . . . . . . . . . . . . . . . . . . . . . .158
7G–TRONIC . . . . . . . . . . . . . . . . . . . . .116 A
ABS (Anti-lock Braking System) . . . ..58
Display message . . . . . . . . . .258, 269
Warning lamp . . . . . . . . . . . . . . . . .285
Acceleration
Technical data . . . . . . . . . . . . . . . .354
Accident
Notes . . . . . . . . . . . . . . . . . . . . . . .293
Active Service System
see ASSYST PLUS
ADAPTIVE BRAKE . . . . . . . . . . . . . . . . .61
Adaptive brake lamps . . . . . . . . . . . ..59
Adaptive damping system see ADS
ADS . . . . . . . . . . . . . . . . . . . . . . . . . . .157
Airbag Activatio n.. . . . . . . . . . . . . . . . . . . .41
Control unit . . . . . . . . . . . . . . . . . . .41
Driver's . . . . . . . . . . . . . . . . . . . . . . .44
Front . . . . . . . . . . . . . . . . . . . . . . . .44
Front passenger . . . . . . . . . . . . . . . .44
PASSENGER AIRBAG OFF warning
lamp . . . . . . . . . . . . . . . . . . . . . . .283
Sidebag s.. . . . . . . . . . . . . . . . . . . .45System . . . . . . . . . . . . . . . . . . . . . .
.43
Windowbags . . . . . . . . . . . . . . . . . . .46
Air cleaner
Display message . . . . . . . . . . . . . .276
Air conditioning
2-zone Thermatic . . . . . . . . . . . . . .164
4-zone Thermotronic . . . . . . . . . . .166
Activating/deactivating . . . . . . . . .169
Activating/deactivating air-recir-
culation mode . . . . . . . . . . . . . . . .175
Air-recirculation mode with con-
venience opening/closing feature .176
Auxiliary heating/ventilation . . . . .177
Controlling automatically . . . . . . . .170
Cooling with air dehumidification . .169
Demisting the windscreen . . . . . . .174
Malfunction indicator lamp . . . . . .283
Misted-up windows . . . . . . . . . . . .175
Rear compartment . . . . . . . . . . . . .169
Rear window heating . . . . . . . . . . .175
Setting the air distribution . . . . . . .173
Setting the airflow . . . . . . . . . . . . .174
Setting the air vents . . . . . . . . . . . .171
Setting the temperature . . . . . . . . .170
Setting the temperature (rear
compartment) . . . . . . . . . . . . . . . .171
Switching the residual heat func-
tion on/off . . . . . . . . . . . . . . . . . . .176
see Climate control
Airmatic DC (Dual Control) . . . . . . ..156 Air pump, electric
. . . . . . . . . . . . . ..255
Ambient lighting Setting (on-board computer) . . . . .136
Antifreeze concentration . . . ..389, 390
Anti-lock braking system see ABS
Anti-theft alarm system
see ATA
Anti-theft systems . . . . . . . . . . . . . . ..62
Ashtray . . . . . . . . . . . . . . . . . . . . . . . .209
ASSYST PLUS . . . . . . . . . . . . . . . . . . .243
ATA (anti-theft alarm system) . . . . ..62
Switching off the alarm . . . . . . . . . .62
Audible warning signal . . . . . . . . . ..292
AUTO lights Display message . . . . . . . . . . . . . .273
Automatic car wash . . . . . . . . . . . ..245
Automatic transmission Changing gear yoursel f.. . . . . . . .116
Display in the speedometer . . . . . .115
Driving tips . . . . . . . . . . . . . . . . . . .117
Emergency running mode . . . . . . .297
Malfunction . . . . . . . . . . . . . . . . . .297
One-touch gearshifting . . . . . . . . .116
Program selector button . . . . . . . .117
Releasing the parking lock man-
ually . . . . . . . . . . . . . . . . . . . . . . . .309
Selector lever positions . . . . . . . . .115
Shift ranges . . . . . . . . . . . . . . . . . .116
Trailer towing . . . . . . . . . . . . . . . . .117 Index
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 3 Dateiname: 6515_3416_02_buchblock.pdf; preflight

8 G
Garage door Opening/closing (with the remote
control) . . . . . . . . . . . . . . . . . . . . .215
Garage door opener . . . . . . . . . . . . ..214
Clearing the memory . . . . . . . . . . .216
Frequencies . . . . . . . . . . . . . . . . . .391
Programming the remote control . .214
Gear indicator (on-board computer) 126
Gearshift program Manual . . . . . . . . . . . . . . . . . . . . . .118
Genuine Mercedes-Benz parts . . . ..344
Glove compartment . . . . . . . . . . . . ..205
Gross vehicle weight, maximum
permissible . . ..369, 371, 372, 373, 374 H
Headlamp Misting up . . . . . . . . . . . . . . . . . . .299
Headlamps
Cleaning . . . . . . . . . . . . . . . . . . . . .246
Cleaning system . . . . . . . . . . . . . . .103
Headlamps delayed switch-off
see Exterior lighting delayed switch-off
Head restraint
Adjusting (front) . . . . . . . . . . . . .79, 80
Adjusting (rear) . . . . . . . . . . . . . . . .81
Luxury . . . . . . . . . . . . . . . . . . . .79, 81 NECK-PR
O.. . . . . . . . . . . . . . . . . . .47
Removing (rear) . . . . . . . . . . . . . . . .83
Head restraints
Resetting triggered NECK-PRO
head restraints . . . . . . . . . . . . . . . .309
Heating
see Air conditioning
High-pressure cleaners . . . . . . . . . ..245
HOLD . . . . . . . . . . . . . . . . . . . . . . . . . .155
Display message . . . . . . . . . . . . . .264
HomeLink ®
see Garage door opener I
Immobiliser . . . . . . . . . . . . . . . . . . . . .62
Indicator and warning lamp Brakes (red ).. . . . . . . . . . . . . . . . .286
Coolant . . . . . . . . . . . . . . . . . . . . .287
Distronic (red ).. . . . . . . . . . .149, 286
Engine diagnostic . . . . . . . . . . . . . .288
ESP ®
. . . . . . . . . . . . . . . . . . . .60, 285
PASSENGER AIRBAG OFF . . . .49, 283
Reserve fuel . . . . . . . . . . . . . . . . . .291
Seat belt . . . . . . . . . . . . . . . . . . . . .290
SRS . . . . . . . . . . . . . . . . . . . . .41, 289
Tyre pressure monitor . . . . . . . . . .289
Indicator and warning lamps . . . . ..285
Indicator lamp see Indicator and warning lamp Instrument cluster
. . . . . . . . . . . . ..120
Overview . . . . . . . . . . . . . . . . . .26, 28
Selecting the language (on-board
computer) . . . . . . . . . . . . . . . . . . .133
Instrument lighting . . . . . . . . . . . . ..120
Integrated child seat . . . . . . . . . . . . ..55
Intelligent Light System . . . . . . . . ..103
Display message . . . . . . . . . . . . . .274
Menu (on-board computer) . . . . . .137
Interior lighting . . . . . . . . . . . . . . . . .104
Ambient (on-board computer) . . . .136
Automatic control . . . . . . . . . . . . .105
Delayed switch-off (on-board
computer) . . . . . . . . . . . . . . . . . . .136
Manual control . . . . . . . . . . . . . . . .105
Reading lamp . . . . . . . . . . . . . . . . .105
Interior motion sensor . . . . . . . . . . ..63
ISOFIX child seat securing system ..54 J
Jack Operation . . . . . . . . . . . . . . . . . . . .324
Storage location . . . . . . . . . . . . . . .254
Jump-starting . . . . . . . . . . . . . . . . . . .333
Jump leads . . . . . . . . . . . . . . . . . . .333 K
Key . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Changing the battery . . . . . . . . . . .310 Index
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 8Dateiname: 6515_3416_02_buchblock.pdf; preflight

65
Opening and closing
...........................66
Key positions ....................................... 76
Seats .................................................... 77
Steering wheel .................................... 89
Mirrors ................................................. 91
Memory functions* .............................93
Seat belts ............................................. 95
Lights ................................................... 99
Windscreen wipers ...........................105
Side windows .................................... 107Driving and parking
..........................110
Transmission ..................................... 114
Instrument cluster ............................120
On-board computer ..........................121
Driving systems ................................ 142
Air conditioning ................................. 162
Sliding sunroof .................................. 180
Loading and stowing ........................186
Features ............................................. 207 Controls
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 65 Dateiname: 6515_3416_02_buchblock.pdf; preflight

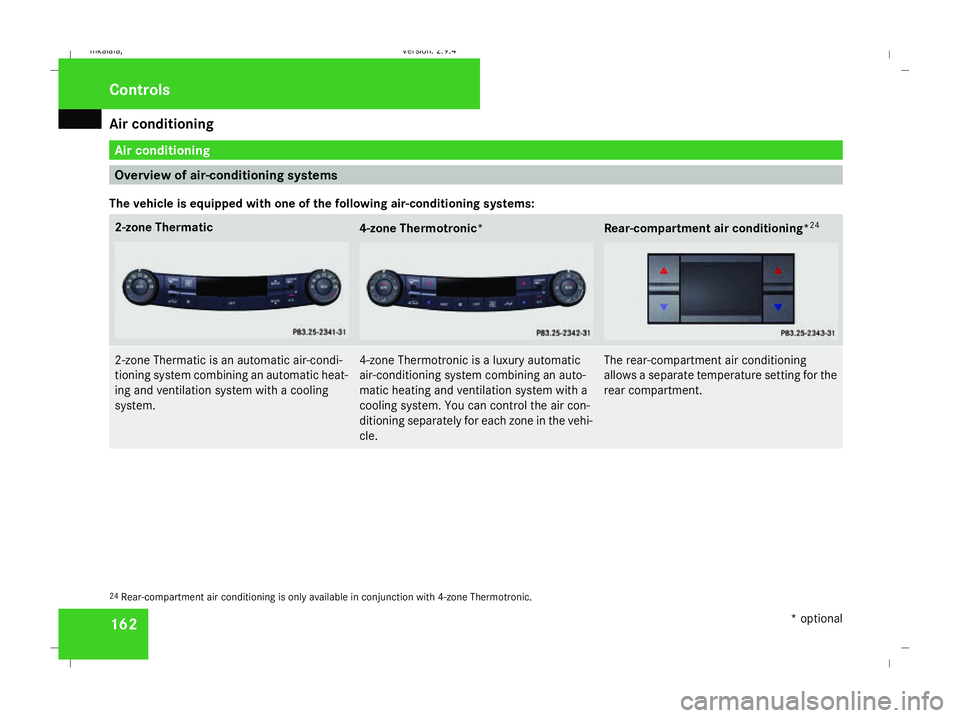

Air conditioning
162 Air conditioning
Overview of air-conditioning systems
The vehicle is equipped with one of the following air-conditioning systems: 2-zone Thermatic
4-zone Thermotronic*
Rear-compartment air conditioning*
242-zone Thermatic is an automatic air-condi-
tioning system combining an automatic heat-
ing and ventilation system with a cooling
system. 4-zone Thermotronic is a luxury automatic
air-conditioning system combining an auto-
matic heating and ventilation system with a
cooling system. You can control the air con-
ditioning separately for each zone in the vehi-
cle. The rear-compartment air conditioning
allows a separate temperature setting for the
rear compartment.
24
Rear-compartment air conditioning is only available in conjunction with 4-zone Thermotronic. Cont
rols
* optional
211_AKB; 2; 5, en-GB
mkalafa
,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 162 Dateiname: 6515_3416_02_buchblock.pdf; preflight

Air conditioning
163General notes
2-zone Thermatic controls the temperature of
the vehicle interior and filters out undesirable
substances from the air.
4-zone Thermotronic* controls the tempera-
ture and the humidity of the vehicle interior
and filters out undesirable substances from
the air.
2-zone Thermatic/4-zone Thermotronic* is
only operational when the engine is running.
Optimum operation is only achieved when
you drive with the side windows and sliding/ tilting sunroof*/panorama sliding sunroof*
closed.
i
Ventilate the vehicle for a brief period
during warm weather, e.g. using the sum-
mer opening feature (Y page 109). This will
speed up the cooling process and the
desired interior temperature will be
reached more quickly.
i The integrated filter filters out most par-
ticles of dust and completely filters out
pollen. A clogged filter reduces the amount of air supplied to the vehicle interior. For
this reason, you should always observe the
interval for replacing the filter, which is
specified in the Service Booklet. As it
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Service Booklet. G
Risk of accident
Observe the settings recommended on the
following pages. The windows could other-
wise mist up. This may obstruct your view
of the traffic situation, thereby causing an
accident. Cont
rols
* optional
211_AKB; 2; 5, en-GB
mkalafa ,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 163 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

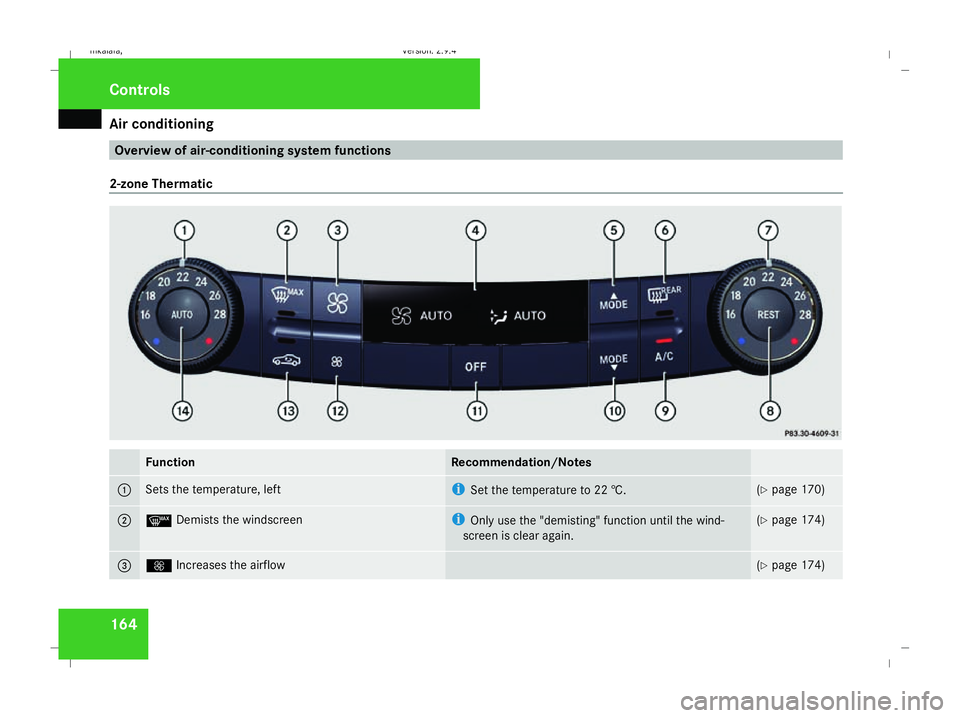

Air conditioning
164 Overview of air-conditioning system functions
2-zone Thermatic Function Recommendation/Notes
1 Sets the temperature, left i
Set the temperature to 22 †. (Y
page 170) 2 y
Demists the windscreen i
Only use the "demisting" function until the wind-
screen is clear again. (Y
page 174) 3 Q
Increases the airflow (Y
page 174) Cont
rols
211_AKB; 2; 5, en-GB
mkalafa
,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 164 Dateiname: 6515_3416_02_buchblock.pdf; preflight

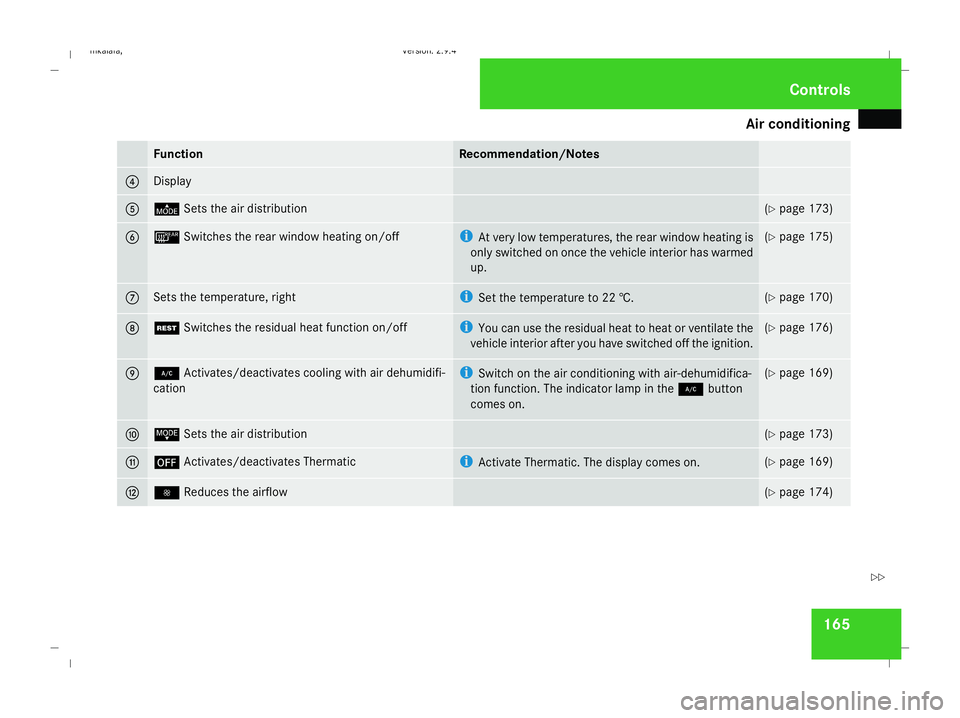

Air conditioning
165Function Recommendation/Notes
4 Display
5 ©
Sets the air distribution (Y
page 173) 6 ¯
Switches the rear window heating on/off i
At very low temperatures, the rear window heating is
only switched on once the vehicle interior has warmed
up. (Y
page 175) 7 Sets the temperature, right i
Set the temperature to 22 †. (Y
page 170) 8 T
Switches the residual heat function on/off i
You can use the residual heat to heat or ventilate the
vehicle interior after you have switched off the ignition. (Y
page 176) 9 2
Activates/deactivates cooling with air dehumidifi-
cation i
Switch on the air conditioning with air-dehumidifica-
tion function. The indicator lamp in the 2button
comes on. (Y
page 169) a ª
Sets the air distribution (Y
page 173) b ´
Activates/deactivates Thermatic i
Activate Thermatic. The display comes on. (Y
page 169) c ·
Reduces the airflow (Y
page 174) Cont
rols
211_AKB; 2; 5, en-GB
mkalafa
,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 165 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

Air conditioning
166 Function Recommendation/Notes
d ,
Activates/deactivates Thermatic i
Only use this operating mode for a short time, e.g. in
a tunnel. Otherwise, the windows can mist up due to
lack of fresh air. (Y
page 175) e U
Controls the air conditioning automatically i
Activate automatic air conditioning. AUTOappears in
the display. (Y
page 170) 4-zone Thermotronic*Cont
rols
* optional
211_AKB; 2; 5, en-GB
mkalafa
,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 166 Dateiname: 6515_3416_02_buchblock.pdf; preflight
