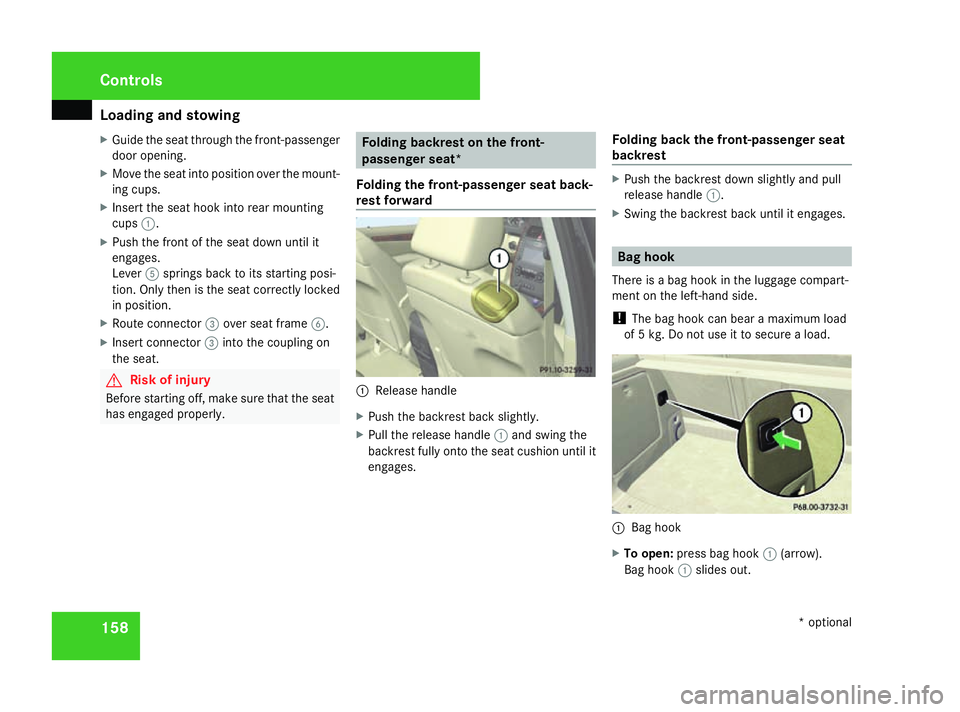

Loading and stowing
158
X
Guide the seat through the front-passenger
door opening.
X Move the seat into position over the mount-
ing cups.
X Insert the seat hook into rear mounting
cups 1.
X Push the front of the seat down until it
engages.
Lever 5springs back to its starting posi-
tion. Only then is the seat correctly locked
in position.
X Route connector 3over seat frame 6.
X Insert connector 3into the coupling on
the seat. G
Risk of injury
Before starting off, make sure that the seat
has engaged properly. Folding backrest on the front-
passenger seat*
Folding the front-passenger seat back-
rest forward 1
Release handle
X Push the backrest back slightly.
X Pull the release handle 1and swing the
backrest fully onto the seat cushion until it
engages. Folding back the front-passenger seat
backrest X
Push the backrest down slightly and pull
release handle 1.
X Swing the backrest back until it engages. Bag hook
There is a bag hook in the luggage compart-
ment on the left-hand side.
! The bag hook can bear a maximum load
of 5 kg. Do not use it to secure a load. 1
Bag hook
X To open: press bag hook 1(arrow).
Bag hook 1slides out. Controls
* optional
169_AKB; 2; 4, en-GB
wdomann,
Version: 2.10.6
2008-07-16T08:52:06+02:00 - Seite 158 Dateiname: 6515_0315_02_buchblock.pdf; preflight

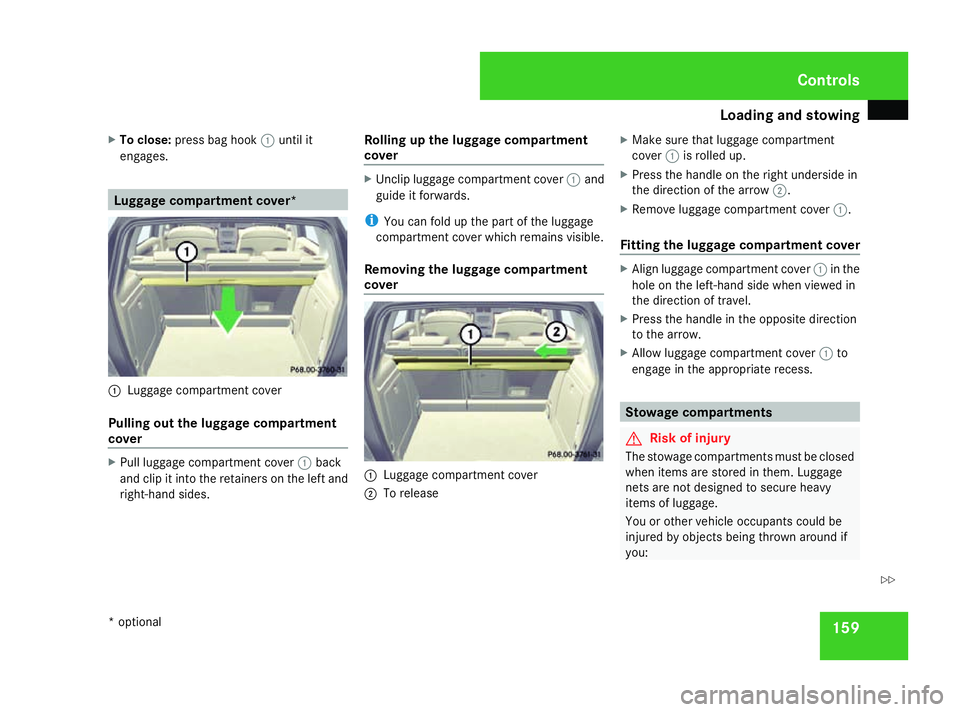

Loading and stowing
159
X
To close: press bag hook 1until it
engages. Luggage compartment cover*
1
Luggage compartment cover
Pulling out the luggage compartment
cover X
Pull luggage compartment cover 1back
and clip it into the retainers on the left and
right-hand sides. Rolling up the luggage compartment
cover X
Unclip luggage compartment cover 1and
guide it forwards.
i You can fold up the part of the luggage
compartment cover which remains visible.
Removing the luggage compartment
cover 1
Luggage compartment cover
2 To release X
Make sure that luggage compartment
cover 1is rolled up.
X Press the handle on the right underside in
the direction of the arrow 2.
X Remove luggage compartment cover 1.
Fitting the luggage compartment cover X
Align luggage compartment cover 1in the
hole on the left-hand side when viewed in
the direction of travel.
X Press the handle in the opposite direction
to the arrow.
X Allow luggage compartment cover 1to
engage in the appropriate recess. Stowage compartments
G
Risk of injury
The stowage compartments must be closed
when items are stored in them. Luggage
nets are not designed to secure heavy
items of luggage.
You or other vehicle occupants could be
injured by objects being thrown around if
you: Controls
* optional
169_AKB; 2; 4, en-GB
wdomann
, Version: 2.10.6 2008-07-16T08:52:06+02:00 - Seite 159 ZDateiname: 6515_0315_02_buchblock.pdf; preflight

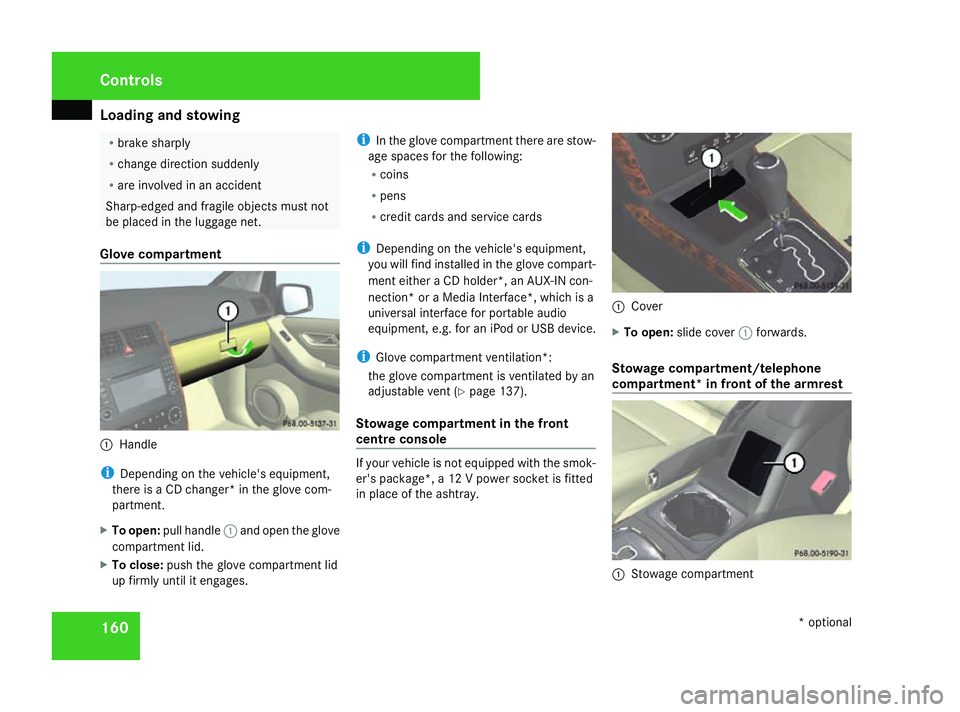

Loading and stowing
160 R
brake sharply
R change direction suddenly
R are involved in an accident
Sharp-edged and fragile objects must not
be placed in the luggage net.
Glove compartment 1
Handle
i Depending on the vehicle's equipment,
there is a CD changer* in the glove com-
partment.
X To open: pull handle 1and open the glove
compartment lid.
X To close: push the glove compartment lid
up firmly until it engages. i
In the glove compartment there are stow-
age spaces for the following:
R coins
R pens
R credit cards and service cards
i Depending on the vehicle's equipment,
you will find installed in the glove compart-
ment either a CD holder*, an AUX-IN con-
nection* or a Media Interface*, which is a
universal interface for portable audio
equipment, e.g. for an iPod or USB device.
i Glove compartment ventilation*:
the glove compartment is ventilated by an
adjustable vent (Y page 137).
Stowage compartment in the front
centre console If your vehicle is not equipped with the smok-
er's package*, a 12 V power socket is fitted
in place of the ashtray. 1
Cover
X To open: slide cover 1forwards.
Stowage compartment/telephone
compartment* in front of the armrest 1
Stowage compartment Controls
* optional
169_AKB; 2; 4, en-GB
wdomann,
Version: 2.10.6 2008-07-16T08:52:06+02:00 - Seite 160Dateiname: 6515_0315_02_buchblock.pdf; preflight

Loading and stowing
161
X
To open: briefly press the cover of stowage
compartment 1.
Stowage compartment 1opens.
Stowage boxes* under the driver's seat
and front-passenger seat The stowage boxes can store up to 2.5 kg.
The illustration shows the driver's seat
1
Stop for CD jewel case
2 CD jewel case
3 Recess X
To open: raise the stowage box slightly and
pull it out using handle 3.
i Several CD jewel cases 2can be stacked
in the stowage box. There is a catch 1fit-
ted to stop the CD cases moving around.
Stowage compartment under the arm-
rest* 1
Stowage compartment G
Risk of injury
There is the risk of entrapment when sliding
the armrest forwards or backwards.
X To open: slide the armrest forwards. Stowage compartment in the rear com-
partment
1
Stowage compartment
X To open: pull out the top of stowage com-
partment 1by the edge of the handle.
Stowage compartments in the luggage
compartment G
Risk of injury
The stowage boxes can store up to 1.5 kg.
The objects in the left-hand stowage com-
partment should only be placed in the des-
ignated spaces and secured using the
appropriate holders. Otherwise, the stow-
age compartment could open and you and
other vehicle occupants could be injured by Controls
169_AKB; 2; 4, en-GB
wdomann,
Version: 2.10.6 2008-07-16T08:52:06+02:00 - Seite 161 ZDateiname: 6515_0315_02_buchblock.pdf; preflight

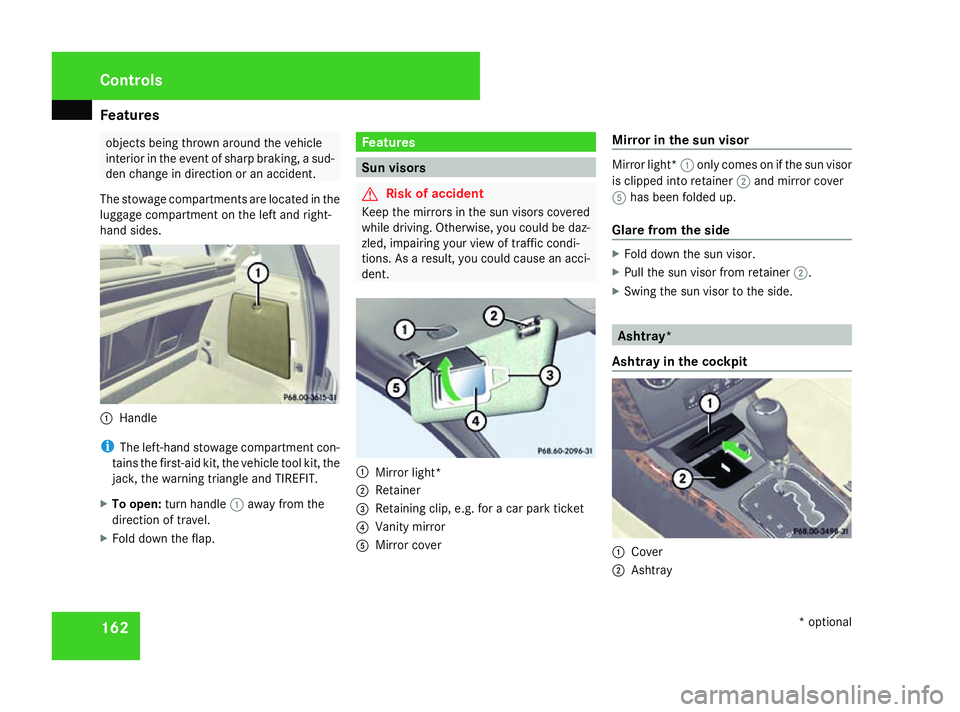

Features
162 objects being thrown around the vehicle
interior in the event of sharp braking, a sud-
den change in direction or an accident.
The stowage compartments are located in the
luggage compartment on the left and right-
hand sides. 1
Handle
i The left-hand stowage compartment con-
tains the first-aid kit, the vehicle tool kit, the
jack, the warning triangle and TIREFIT.
X To open: turn handle 1away from the
direction of travel.
X Fold down the flap. Features
Sun visors
G
Risk of accident
Keep the mirrors in the sun visors covered
while driving. Otherwise, you could be daz-
zled, impairing your view of traffic condi-
tions. As a result, you could cause an acci-
dent. 1
Mirror light*
2 Retainer
3 Retaining clip, e.g. for a car park ticket
4 Vanity mirror
5 Mirror cover Mirror in the sun visor Mirror light*
1only comes on if the sun visor
is clipped into retainer 2and mirror cover
5 has been folded up.
Glare from the side X
Fold down the sun visor.
X Pull the sun visor from retainer 2.
X Swing the sun visor to the side. Ashtray*
Ashtray in the cockpit 1
Cover
2 Ashtray Cont
rols
* optional
169_AKB; 2; 4, en-GB
wdomann,
Version: 2.10.6
2008-07-16T08:52:06+02:00 - Seite 162 Dateiname: 6515_0315_02_buchblock.pdf; preflight

Features
163
X
To open: slide cover 1forwards.
Ashtray 2opens.
X To remove the insert: pull the insert up
and out.
X To refit the insert: press the insert into the
holder until it clicks into place.
Ashtray in the rear compartment 1
Ashtray
X To open: pull ashtray 1out by its top
edge.
X To remove the insert: pull the insert up
and out beyond the stop.
X To refit the insert: press the insert into the
holder until it clicks into place. Cigarette lighter*
G
Risk of injury and fire
Only hold the hot cigarette lighter by its
knob. Otherwise, you might burn yourself.
Make sure that children travelling in the
vehicle are not able to injure themselves on
the hot cigarette lighter or cause a fire with
it. 1
Cover
2 Cigarette lighter X
Make sure that the key is in position 2in
the ignition lock.
X Slide cover 1forwards.
X Press in cigarette lighter 2.
Cigarette lighter 2will pop out automati-
cally when the heating element is red-hot. 12 V socket
The socket can be used for accessories with
a maximum power consumption of 180 watts.
Socket in the cockpit A socket is fitted in the centre console on
vehicles with the non-smoker's package.
1
Socket Cont
rols
* option al
169_AKB; 2; 4, en-GB
wdomann
,V ersion: 2.10.6
2008-07-16T08:52:06+02:00 - Seite 163 ZDateiname: 6515_0315_02_buchblock.pdf; preflight

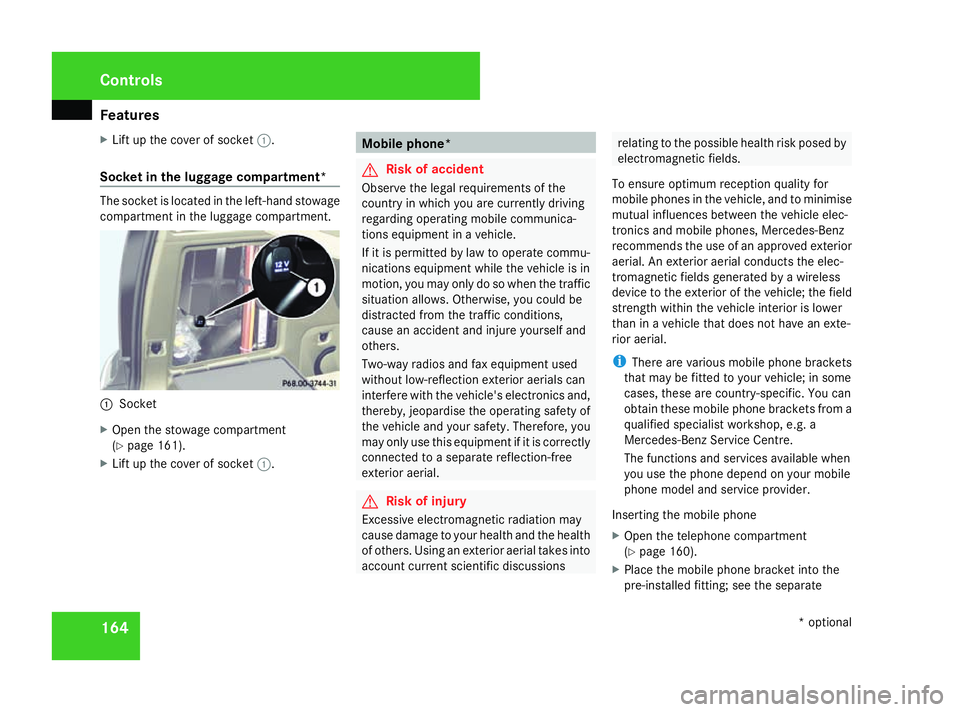

Features
164
X
Lift up the cover of socket 1.
Socket in the luggage compartment* The socket is located in the left-hand stowage
compartment in the luggage compartment. 1
Socket
X Open the stowage compartment
(Y page 161).
X Lift up the cover of socket 1. Mobile phone*
G
Risk of accident
Observe the legal requirements of the
country in which you are currently driving
regarding operating mobile communica-
tions equipment in a vehicle.
If it is permitted by law to operate commu-
nications equipment while the vehicle is in
motion, you may only do so when the traffic
situation allows. Otherwise, you could be
distracted from the traffic conditions,
cause an accident and injure yourself and
others.
Two-way radios and fax equipment used
without low-reflection exterior aerials can
interfere with the vehicle's electronics and,
thereby, jeopardise the operating safety of
the vehicle and your safety. Therefore, you
may only use this equipment if it is correctly
connected to a separate reflection-free
exterior aerial. G
Risk of injury
Excessive electromagnetic radiation may
cause damage to your health and the health
of others. Using an exterior aerial takes into
account current scientific discussions relating to the possible health risk posed by
electromagnetic fields.
To ensure optimum reception quality for
mobile phones in the vehicle, and to minimise
mutual influences between the vehicle elec-
tronics and mobile phones, Mercedes-Benz
recommends the use of an approved exterior
aerial. An exterior aerial conducts the elec-
tromagnetic fields generated by a wireless
device to the exterior of the vehicle; the field
strength within the vehicle interior is lower
than in a vehicle that does not have an exte-
rior aerial.
i There are various mobile phone brackets
that may be fitted to your vehicle; in some
cases, these are country-specific. You can
obtain these mobile phone brackets from a
qualified specialist workshop, e.g. a
Mercedes-Benz Service Centre.
The functions and services available when
you use the phone depend on your mobile
phone model and service provider.
Inserting the mobile phone
X Open the telephone compartment
(Y page 160).
X Place the mobile phone bracket into the
pre-installed fitting; see the separate Cont
rols
* optional
169_AKB; 2; 4, en-GB
wdomann
,V ersion: 2.10.6
2008-07-16T08:52:06+02:00 - Seite 164 Dateiname: 6515_0315_02_buchblock.pdf; preflight

Features
165
mobile phone bracket installation instruc-
tions.
X Insert the mobile phone into the mobile
phone bracket; see the separate mobile
phone bracket installation instructions.
If the mobile phone is inserted in the mobile
phone bracket, you can speak to the person
you are calling using the hands-free system.
You can operate the telephone using the
s andt buttons on the multi-function
steering wheel. You can operate other mobile
phone functions via the on-board computer
(Y page 113).
When you take the key out of the ignition lock,
the mobile phone stays on but you can no
longer use the hands-free system.
If you are making a call and you would like to
take the key out of the ignition lock, first
remove the mobile phone from the bracket.
Otherwise, the call will be terminated. Floormat on the driver's side
G
Risk of accident
Make sure that there is sufficient clearance
around the pedals when floormats are
used, and that the floormats are properly
secured.
The floormats must be secured at all times
using retainers and studs.
Before you drive off, make sure that the
floormats are secure and rectify if neces-
sary. A floormat which is not properly
secured can slip and thereby interfere with
the movement of the pedals.
Do not place floormats on top of one
another. 1
Press-studs
2 Retainers
X Slide seat backwards.
X To fit: place the floormat in position.
X Press stud 1onto retainer 2.
X To remove: pull floormat off retainers 2.
X Remove the floormat. Cont
rols
169_AKB; 2; 4, en-GB
wdomann,
Version: 2.10.6 2008-07-16T08:52:06+02:00 - Seite 165 ZDateiname: 6515_0315_02_buchblock.pdf; preflight
