2008 MAZDA MODEL CX-7 Owners Manual (in English)

Black plate (345,1)
After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal:Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives.Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for metallic, mica, and solid colors.
3. When waxing, coat evenly with the sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and similar
materials will usually also take off the wax.
Rewax these areas even if the rest of the
vehicle doesn't need it.
q Repairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.
CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced,
make sure the body shop applies
anti-corrosion materials to all parts,
both repaired and new. This will
prevent them from rusting.
qPaint Damage Touch-up
Repair damage to the finish caused by
stone chipping, damage during parking
etc., by using Mazda touch-up paint
before rust begins to form. First, remove
the dirt and grease with a clean soft cloth.
If rust has already begun to form:
1. Remove rust completely with
sandpaper.
2. Wipe with a clean soft cloth.
3. Apply rust preventive primer to the area.
4. After drying it completely, apply a suitable top coat material to the area.
Of course there will be no problem if you
assign the work to an Authorized Mazda
Dealer.
Maintenance and Care
Appearance Care
8-53
CX-7_8X59-EA-07E_Edition3 Page345
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (346,1)
qCavity Protection
Cavities are treated for protection at the
factory, but additional protective treatment
after the vehicle has been put into use will
extend the life of the body.
We recommend that you consult an
Authorized Mazda Dealer concerning this
additional precaution.
qBright-Metal Maintenance
lUse tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.
lTo prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.
lDuring cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.
CAUTION
Don't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may result in
damage to the protective coating and
cause discoloration or paint
deterioration.
qUnderbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also
to do this every month.
Pay special attention to these areas
because they easily hide mud and dirt. It
will do more harm than good to wet
down the road grime without removing
it.
The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting.
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal: Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
8-54
Maintenance and Care
Appearance Care
CX-7_8X59-EA-07E_Edition3 Page346
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (347,1)
qUndercoating
This special coating is applied to the
critical parts of the underside to protect
vehicles from damage caused by
chemicals or stones. This coating is liable
to be damaged with time. Check this
coating periodically.
An Authorized Mazda Dealer are well
informed on how repairs should be made.
Consult an Authorized Mazda Dealer.
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
NOTE
lDon't use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lOnly use a mild soap or neutral detergent
and always use a sponge or soft cloth to
clean the wheels.
Rinse thoroughly with lukewarm or cold
water. Also, be sure to clean the wheels
after driving on dusty or salted roads. This
helps prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Real leather isn't uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
Wipe it with a dampsoft cloth; then dry
and buff it with a drysoft cloth.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.
Maintenance and Care
Appearance Care
8-55íSome models.
CX-7_8X59-EA-07E_Edition3 Page347
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (348,1)
To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
Piano black panelí
The following parts are fitted with panels
that have been treated with a special
coating that resists scratching.
Steering wheel (partial)
When the panel needs to be cleaned, use a
soft cloth to wipe off dirt from the surface.
NOTE
Scratches or nicks on the panels resulting from
the use of a hard brush or cloth may not be
repairable.
qCleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Have an Authorized Mazda Dealer
replace damaged seat belts
immediately:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection.
qCleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them
with glass cleaner. Follow the directions
on the container.
CAUTION
Don't scrape or scratch the inside of
the rear window. You may damage
the rear window defroster grid.
8-56
Maintenance and Care
íSome models.
Appearance Care
CX-7_8X59-EA-07E_Edition3 Page348
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (349,1)
9
Customer Information and Reporting
Safety Defects
Important consumer information including warranties and add-on equipment.
Customer Assistance ............................... 9-2 Customer Assistance (U.S.A.) ............ 9-2
Customer Assistance (Canada) ........... 9-5
Customer Assistance (Puerto Rico) .... 9-8
Customer Assistance (Mexico) ........... 9-9
Mazda Importer/Distributors ............... 9-11 Importer/Distributor .......................... 9-11
Distributor in Each Area ................... 9-11
Warranty ................................................ 9-13 Warranties for Your Mazda ............... 9-13
Outside the United States and
Canada .............................................. 9-14
Outside the United States .................. 9-15
Outside Canada ................................. 9-16
Registering Your Vehicle in A Foreign
Country (Except United States and
Canada) ............................................. 9-17
Add-On Non-Genuine Parts and
Accessories ....................................... 9-18
Cell Phones ............................................. 9-19 Cell Phones Warning ......................... 9-19
Type Approval of Equipment ............... 9-20 Type Approval of Equipment
(Mexico) ............................................ 9-20
Uniform Tire Quality Grading System
(UTQGS) ................................................ 9-21 Uniform Tire Quality Grading System
(UTQGS) .......................................... 9-21 Tire Information (except Canada) ....... 9-23
Tire Labeling ..................................... 9-23
Location of the Tire Label
(Placard) ............................................ 9-29
Tire Maintenance .............................. 9-32
Vehicle Loading ................................ 9-35
Steps for Determining the Correct Load
Limit: ................................................ 9-42
Reporting Safety Defects ....................... 9-43 Reporting Safety Defects (U.S.A.) .... 9-43
Reporting Safety Defects (Canada) ... 9-44
Service Publications .............................. 9-45 Service Publications .......................... 9-45
9-1
CX-7_8X59-EA-07E_Edition3 Page349
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (350,1)
Customer Assistance (U.S.A.)
Your complete and permanent satisfaction is our business. We are here to serve you. All
Authorized Mazda Dealers have the knowledge and the tools to keep your Mazda vehicle
in top condition.
If you have any questions or recommendations for improvement regarding the service of
your Mazda vehicle or servicing by Mazda Dealer personnel, we recommend that you take
the following steps:
NOTE
If it becomes necessary to have the components or wiring system for the supplementary restraint
system modified to accommodate a person with certain medical conditions in accordance with a
certified physician, contact an Authorized Mazda Dealer.
qSTEP 1: Contact Your Mazda Dealer
Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to
address the issue.
lIf your concern has not been resolved by the CUSTOMER RELATIONS, SALES,
SERVICE, or PARTS MANAGER, then please contact the GENERAL MANAGER of
the dealership or the OWNER.
lIf it becomes necessary to have the components or wiring system for the supplementary
restraint system modified to accommodate a person with certain medical conditions in
accordance with a certified physician, go to STEP2.
qSTEP 2: Contact Mazda North American Operations
If for any reason you feel the need for further assistance after contacting your dealership
management and it becomes necessary to have the components or wiring system for the
supplementary restraint system modified to accommodate a person with certain medical
conditions in accordance with a certified physician, you can reach Mazda North American
Operations by one of the following ways.
Log on: at www.mazdaUSA.com
Answers to many questions, including how to locate or contact a local Mazda dealership in
the U.S., can be found here.
E-mail: click on “Contact Us ”at the bottom of the page at www.mazdaUSA.com
By phone at: 1 (800) 222-5500
9-2
Customer Information and Reporting Safety Defects
Customer Assistance
CX-7_8X59-EA-07E_Edition3 Page350
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (351,1)
By letter at:
Attn: Customer Assistance
Mazda North American Operations
7755 Irvine Center Drive
Irvine, CA 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
In order to serve you efficiently and effectively, please help us by providing the following
information:
1. Your name, address, and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number (17 digits, noted on your registration or title or located onthe upper driver's side corner of the dash)
4. Purchase date and current mileage
5. Your dealer's name and location
6. Your question(s)
If you live outside the U.S.A., please contact your nearest Mazda Distributor.
q STEP 3: Contact Better Business Bureau (BBB)
Mazda North American Operations realizes that mutual agreement on some issues may not
be possible. As a final step to ensure that your concerns are being fairly considered, Mazda
North American Operations has agreed to participate in a dispute settlement program
administered by the Better Business Bureau (BBB) system, at no cost to you the consumer.
BBB AUTO LINE works with consumers and the manufacturer in an attempt to reach a
mutually acceptable resolution of any warranty related concerns. If the BBB is not able to
facilitate a settlement they will provide an informal hearing before an arbitrator.
You are required to resort to BBB AUTO LINE before exercising rights or seeking
remedies under the Federal Magnuson-Moss Warranty Act, 15 U.S.C. § 2301 et seq. To the
extent permitted by the applicable state “Lemon Law ”, you are also required to resort to
BBB AUTO LINE before exercising any rights or seeking remedies under the “Lemon
Law ”. If you choose to seek remedies that are not created by the Magnuson-Moss Warranty
Act or the applicable state “Lemon Law ”, you are not required to first use BBB AUTO
LINE.
Customer Information and Reporting Safety Defects
Customer Assistance
9-3
CX-7_8X59-EA-07E_Edition3 Page351
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (352,1)

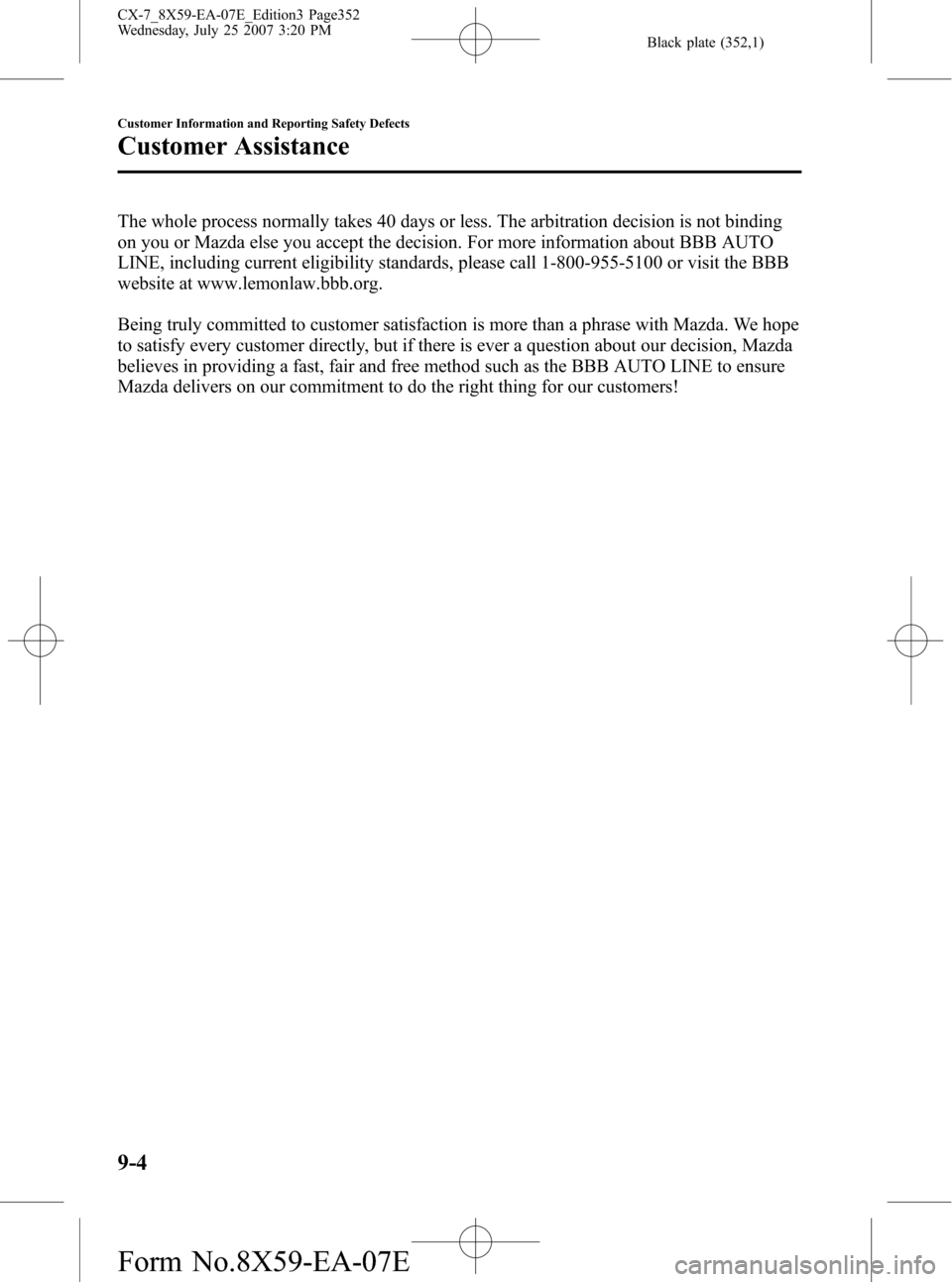

The whole process normally takes 40 days or less. The arbitration decision is not binding
on you or Mazda else you accept the decision. For more information about BBB AUTO
LINE, including current eligibility standards, please call 1-800-955-5100 or visit the BBB
website at www.lemonlaw.bbb.org.
Being truly committed to customer satisfaction is more than a phrase with Mazda. We hope
to satisfy every customer directly, but if there is ever a question about our decision, Mazda
believes in providing a fast, fair and free method such as the BBB AUTO LINE to ensure
Mazda delivers on our commitment to do the right thing for our customers!
9-4
Customer Information and Reporting Safety Defects
Customer Assistance
CX-7_8X59-EA-07E_Edition3 Page352
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E
