2008 MAZDA MODEL 6 display

Black plate (9,1)
Dashboard illumination ..................................................................................... page 5-34
TCS-OFF switch ................................................................................................ page 5-22
Headlight leveling switch .................................................................................. page 5-48
Lighting control/Turn signals ............................................................................ page 5-47
Audio control switch ......................................................................................... page 6-42
Instrument cluster .............................................................................................. page 5-31
Air bags ............................................................................................................. page 2-45
Wiper and washer lever ..................................................................................... page 5-50
Cruise control switches ...................................................................................... page 5-19
Information display ............................................................................................ page 6-49
Hazard warning flasher switch .......................................................................... page 5-53
Audio system ..................................................................................................... page 6-14
Glove box .......................................................................................................... page 6-54
Center console ................................................................................................... page 6-54
Accessory socket ............................................................................................... page 6-56
Cup holder ......................................................................................................... page 6-51
Parking brake ....................................................................................................... page 5-5
MT shift lever ...................................................................................................... page 5-9
AT shift lever (Sport AT) ................................................................................... page 5-12
Climate control system ........................................................................................ page 6-2
Ignition switch ..................................................................................................... page 5-2
Steering column release lever ............................................................................ page 3-38
Remote fuel-filler lid release ............................................................................. page 3-29
Trunk release button .......................................................................................... page 3-19
Hood release handle .......................................................................................... page 3-30
Storage pocket ................................................................................................... page 6-53
Outside mirror switch ........................................................................................ page 3-38
Interior light ....................................................................................................... page 6-46
Sunvisor ............................................................................................................. page 6-46
Map light ........................................................................................................... page 6-47
Rearview mirror ................................................................................................. page 3-39
Vanity mirror ...................................................................................................... page 6-46
Front seats ............................................................................................................ page 2-2
Seat belt ............................................................................................................. page 2-15
Rear seat .............................................................................................................. page 2-9
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3The equipment and installation position varies by vehicle
Mazda6_8X47-EA-07G_Edition1 Page9
Tuesday, May 29 2007 3:42 PM
Form No.8X47-EA-07G

Black plate (160,1)
qSpeedometer
The speedometer indicates the speed of
the vehicle.
qOdometer, Trip Meter and Trip
Meter Selector
The display mode can be changed
between trip meter A and trip meter B by
pressing the selector while one of them is
displayed. The selected mode will be
displayed.
Trip meter Odometer
Selector
Trip meter B Press the selector
Press the selector
Trip meter A Odometer
Odometer
NOTE(Standard meter)
The odometer and trip meter can be displayed
as follows even when the ignition switch is in
the ACC or LOCK position.
The headlight switch must be in the
orposition to see the display.lDisplays for 10 minutes after the ignition
switch is turned to the ACC or LOCK
position from the ON position.
lDisplays for 10 minutes after any door is
opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to “0.0 ”by holding
the selector depressed for more than 1
second. Use this meter to measure trip
distances and to compute fuel
consumption.
5-32
Driving Your Mazda
Instrument Cluster and Indicators
Mazda6_8X47-EA-07G_Edition1 Page160
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (162,1)

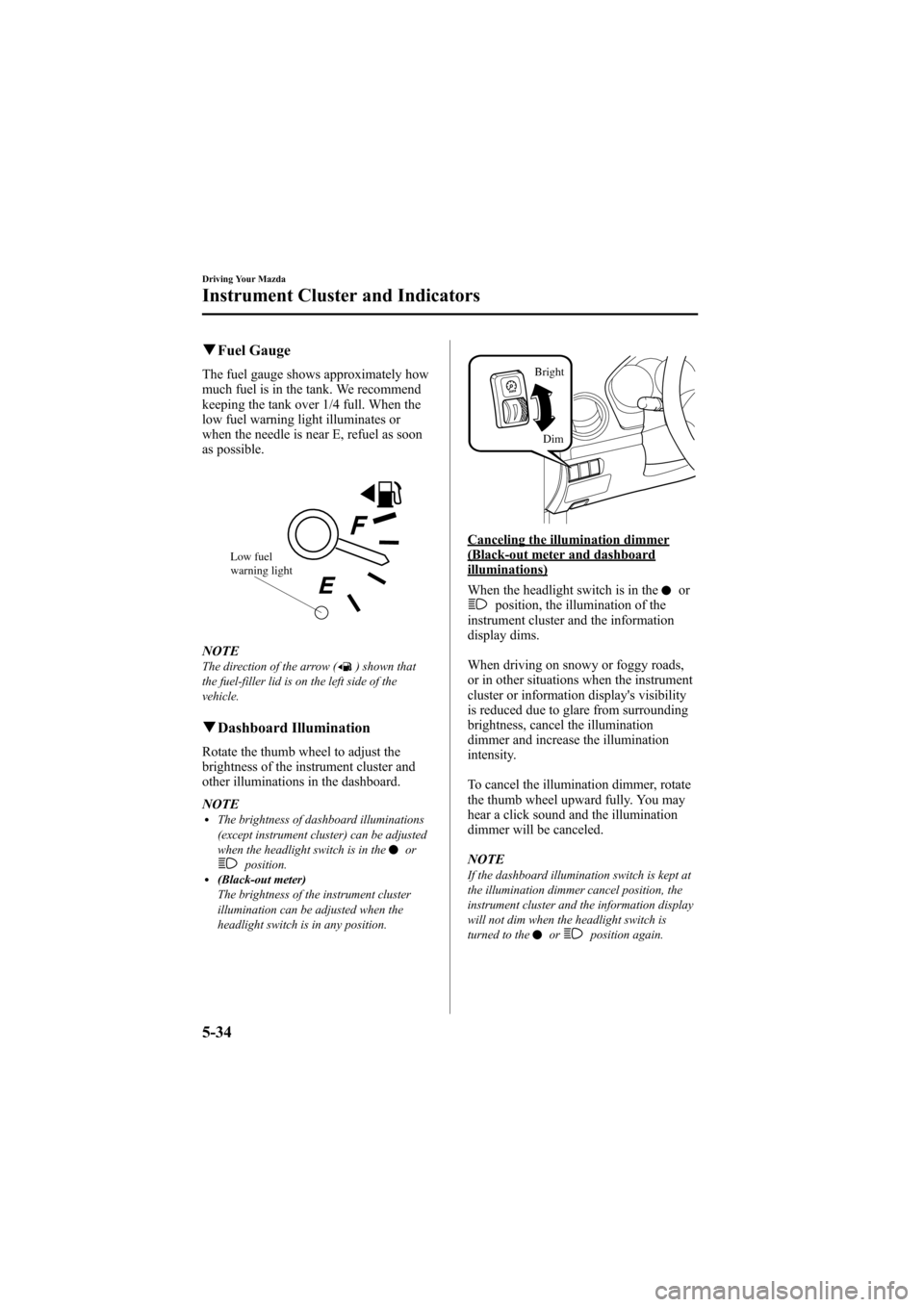

qFuel Gauge
The fuel gauge shows approximately how
much fuel is in the tank. We recommend
keeping the tank over 1/4 full. When the
low fuel warning light illuminates or
when the needle is near E, refuel as soon
as possible.
Low fuel
warning light
NOTEThe direction of the arrow () shown that
the fuel-filler lid is on the left side of the
vehicle.
q Dashboard Illumination
Rotate the thumb wheel to adjust the
brightness of the instrument cluster and
other illuminations in the dashboard.
NOTE
lThe brightness of dashboard illuminations
(except instrument cluster) can be adjusted
when the headlight switch is in the
orposition.l(Black-out meter)
The brightness of the instrument cluster
illumination can be adjusted when the
headlight switch is in any position.
Dim
Bright
Canceling the illumination dimmer(Black-out meter and dashboardilluminations)
When the headlight switch is in the
orposition, the illumination of the
instrument cluster and the information
display dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster or information display's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer and increase the illumination
intensity.
To cancel the illumination dimmer, rotate
the thumb wheel upward fully. You may
hear a click sound and the illumination
dimmer will be canceled.
NOTE
If the dashboard illumination switch is kept at
the illumination dimmer cancel position, the
instrument cluster and the information display
will not dim when the headlight switch is
turned to the
orposition again.
5-34
Driving Your Mazda
Instrument Cluster and Indicators
Mazda6_8X47-EA-07G_Edition1 Page162
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (172,1)
qHeadlight High-Beam Indicator
Light
This light indicates one of two things:lThe high-beam headlights are on.lThe turn signal lever is in the flash-to-
pass position.
qShift Position Indicator Light
(Automatic Transaxle)
This indicates the selected shift position
when the ignition switch is in the ON
position.
Gear position indicator
Gear position indicator
When the shift lever is in the D or M
position, the numeral for the selected gear
displays.
qTCS Indicator Lightí
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS is
operating, the indicator light flashes.
If the light stays on, the TCS may have a
malfunction and it may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.
NOTE
lIn addition to the indicator light flashing, a
slight lugging sound will come from the
engine. This indicates that the TCS is
operating properly.
lOn slippery surfaces, such as fresh snow, it
will be impossible to achieve high rpm
when the TCS is on.
5-44
Driving Your Mazda
íSome models.
Warning/Indicator Lights and Beep Sounds
Mazda6_8X47-EA-07G_Edition1 Page172
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (187,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 6-2Operating Tips ........................................................................... 6-2
Vent Operation .......................................................................... 6-3
Types of the Climate Control System ....................................... 6-5
Manual Type ............................................................................. 6-6
Fully Automatic Type ............................................................. 6-10
Audio System ............................................................................... 6-14 Antenna ................................................................................... 6-14
Operating Tips for Audio System ........................................... 6-14
Audio Set ................................................................................ 6-25
Audio Control Switch Operation (Steering Wheel)
í............. 6-42
Safety Certification ................................................................. 6-45
Interior Equipment ..................................................................... 6-46 Sunvisors ................................................................................. 6-46
Interior Lights ......................................................................... 6-46
Information Display ................................................................ 6-49
Cup Holder .............................................................................. 6-51
Bottle Holder ........................................................................... 6-52
Storage Compartments ............................................................ 6-53
Accessory Sockets .................................................................. 6-56
6-1íSome models.
Mazda6_8X47-EA-07G_Edition1 Page187
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (196,1)
Fully Automatic Type
Climate control information is displayed on the information display.
Fan control dialAir intake selector
A/C switchTemperature control dial
OFF switch Mode selector switch
Windshield defroster switch Auto switch
q
Control Switches
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the set
temperature:
lAirflow temperaturelAmount of airflowlSelection of airflow mode
lOutside/Recirculated air selectionlAir conditioner operation
NOTE
AUTO switch indicator lightlWhen on, it indicates AUTO operation, and
the system will function automatically.
lWhen off, it indicates the operation of other
switches such as the mode selector switch,
fan control dial, A/C switch and windshield
defroster switch. Other functions will
continue to operate automatically.
6-10
Interior Comfort
Climate Control System
Mazda6_8X47-EA-07G_Edition1 Page196
Tuesday, May 29 2007 3:44 PM
Form No.8X47-EA-07G

Black plate (197,1)
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
Hot
Cold
This dial controls temperature.Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
Fast
Slow
The fan has seven speeds. The selected
speed will be displayed.
Mode selector switch
The desired airflow mode can be selected
(page 6-4).
NOTE
lWith the airflow mode set toposition
and the temperature control dial set at a
medium temperature, heated air is directed
to the feet and a comparably lower air
temperature will flow through the central,
left and right vents.
lTo set the air vent to, press the
windshield defroster switch.
A/C switch
With the AUTO or fan control dial ON,
press the A/C switch to select the air
conditioning (cooling/dehumidifying
functions) on or off.
NOTE
The air conditioner may not function when the
outside temperature approaches 0 °C (32 °F).
(Indicator remains on even when system is off.)
Interior Comfort
Climate Control System
6-11
Mazda6_8X47-EA-07G_Edition1 Page197
Tuesday, May 29 2007 3:44 PM
Form No.8X47-EA-07G

Black plate (206,1)
lDo not use record sprays, antistatic
agents, or household spray cleaners.
Volatile chemicals such as benzine and
thinner can also damage the surface of
the CD and must not be used. Anything
that can damage, warp, or fog plastic
should never be used to clean CDs.
lInsert discs one by one. If two discs are
inserted at the same time, the system
may not operate properly.
lCD TEXT textual information cannot
be displayed by audio units other than
the In-dash CD changer (MP3
compatible type only). (Only playback
is possible.)
lThe following player can play MP3
files recorded in CD-ROM, CD-R, and
CD-RW.
· In-dash CD changer (MP3compatible type only)
lThe CD player/In-dash CD changer
ejects the CD if the CD is inserted
upside down. Also dirty and/or
defective CDs may be ejected.
lAn 8 cm (3 in) CD cannot be played in
the CD player even if an 8 cm (3 in)
CD adapter is used.
The In-dash CD changer is specially
made for 12 cm (5 in) CDs.
An 8 cm (3 in) CD can be played in the
In-dash CD changer if an 8 cm (3 in)
CD adapter is used.
If an 8 cm (3 in) CD adapter is not
used, the In-dash CD changer may be
damaged. Always use a CD adapter.
lDo not insert cleaning discs in the CD
player/In-dash CD changer.
lDo not insert any disc with a peel-off
seal affixed to it.
Handling the In-dash CD changer
lThis unit may not be able to play
certain CD-R/CD-RWs made using a
computer or music CD recorder due to
disc characteristics, scratches,
smudges, dirt, etc., or due to dust or
condensation on the lens inside the
unit.
lStoring CDs in the vehicle exposed to
direct sunlight or high temperature may
damage the CD-R/CD-RWs, and make
them unplayable.
lCD-R/CD-RW exceeding 700 MB
cannot be played.
lThis unit may not be able to play
certain discs made using a computer
due to the application (writing
software) setting used. (For details,
consult the store where the application
was purchased.)
lIt is possible that certain text data, such
as titles, recorded on a CD-R/CD-RW
may not be displayed when musical
data (CD-DA) is playing.
lThe period from when a CD-RW is
inserted to when it begins playing is
longer than a normal CD or CD-R.
lCompletely read the instruction manual
and cautions for CD-R/CD-RWs.
lDo not use discs with cellophane tape
adhering, partially peeled off labels, or
adhesive material exuding from the
edges of the CD label. Also, do not use
discs with a commercially-available
CD-R label affixed. The disc may not
eject resulting in a malfunction.
6-20
Interior Comfort
Audio System
Mazda6_8X47-EA-07G_Edition1 Page206
Tuesday, May 29 2007 3:44 PM
Form No.8X47-EA-07G
