Information Display
OPEN/CLOSE switch (with navigation system)
AMB switch (with outside temperature display )
TILT switch (with navigation system)
CLOCK/CLK switch
SET switch
qInformation Display Functions
The information display has the following functions:lClocklAmbient Temperature Display (Outside Temperature Display)lClimate Control DisplaylAudio Display
Interior Comfort
Interior Equipment
6-49
Mazda6_8X47-EA-07G_Edition1 Page235
Tuesday, May 29 2007 3:44 PM
Form No.8X47-EA-07G

Black plate (236,1)
qClock
When the ignition switch is in the ACC or
ON position, the time is displayed.
Time setting
1. Press the CLOCK/CLK switch until a
beep sounds, and “12Hr ”and “24Hr ”
will be displayed.
2. Press the SET switch to switch between “12Hr ”and “24Hr ”displays. The
selected display will flash.
To select the desired clock setting,
press the CLOCK/CLK switch again
while the preferred setting is flashing.
3. “Hr. ADJUST ”will be displayed next,
and the hour portion of the display will
flash. Press the SET switch to set the
hour, then press the CLOCK/CLK
switch.
4. “Min. ADJUST ”will be displayed
next, and the minutes portion of the
display will flash. Press the SET switch
to set the minutes, then press the
CLOCK/CLK switch.
Time resetting
While the clock is displayed, press the
SET switch 1.5 seconds or more. When
the switch is released, a beep will sound
and the clock will be reset as follows:
(Example)
12:01 ―12:29 →12:00
12:30 ―12:59 →1:00
NOTE
When the SET switch is released, the seconds
are reset to “00 ”.
q Ambient Temperature Display
When the ignition switch is in the ON
position, press the AMB switch to display
the ambient temperature.
6-50
Interior Comfort
Interior Equipment
Mazda6_8X47-EA-07G_Edition1 Page236
Tuesday, May 29 2007 3:44 PM
Form No.8X47-EA-07G

Black plate (237,1)

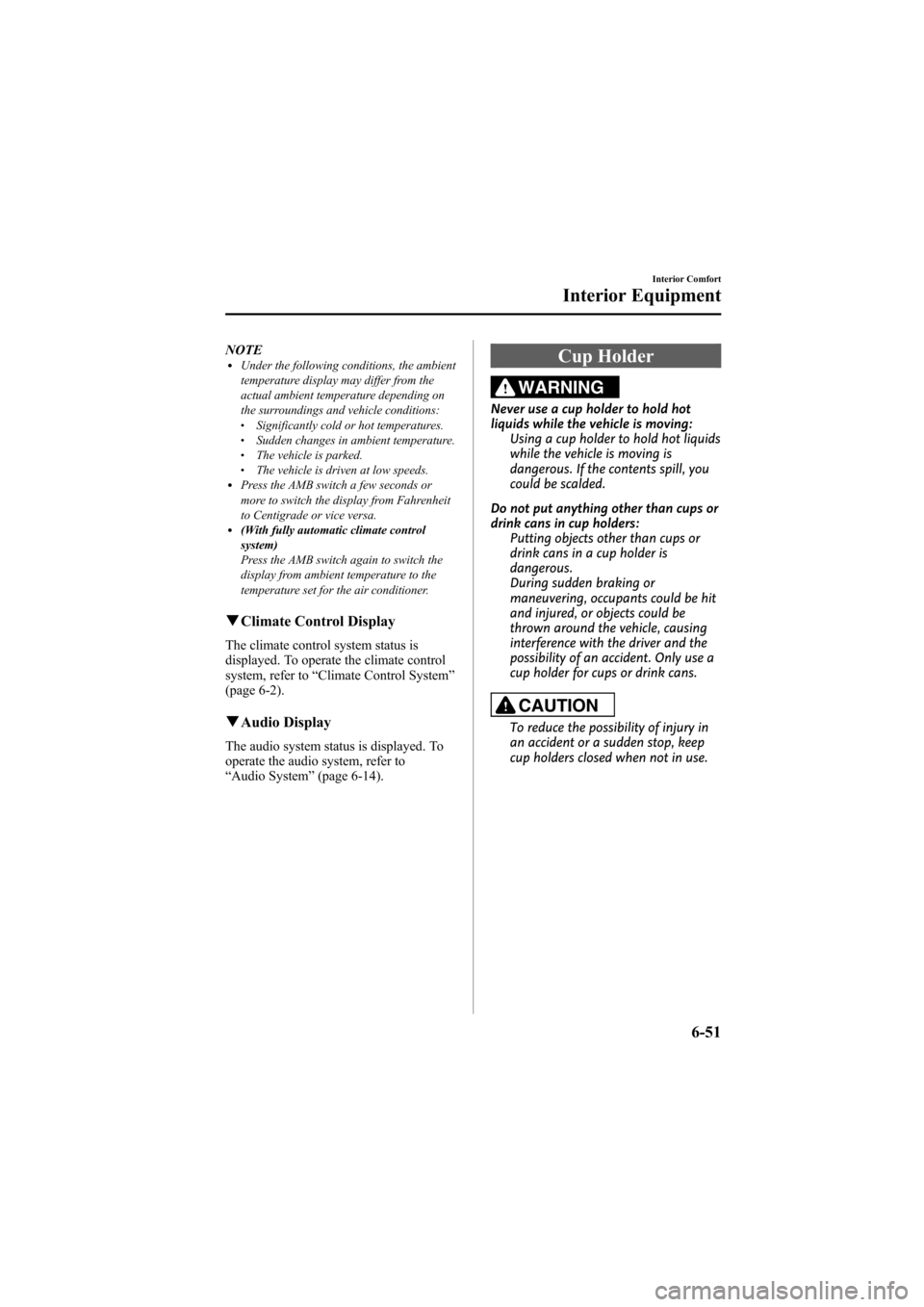

NOTElUnder the following conditions, the ambient
temperature display may differ from the
actual ambient temperature depending on
the surroundings and vehicle conditions:
lSignificantly cold or hot temperatures.lSudden changes in ambient temperature.lThe vehicle is parked.lThe vehicle is driven at low speeds.lPress the AMB switch a few seconds or
more to switch the display from Fahrenheit
to Centigrade or vice versa.
l(With fully automatic climate control
system)
Press the AMB switch again to switch the
display from ambient temperature to the
temperature set for the air conditioner.
qClimate Control Display
The climate control system status is
displayed. To operate the climate control
system, refer to “Climate Control System ”
(page 6-2).
q Audio Display
The audio system status is displayed. To
operate the audio system, refer to
“Audio System ”(page 6-14).
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups or
drink cans in cup holders: Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
CAUTION
To reduce the possibility of injury in
an accident or a sudden stop, keep
cup holders closed when not in use.
Interior Comfort
Interior Equipment
6-51
Mazda6_8X47-EA-07G_Edition1 Page237
Tuesday, May 29 2007 3:44 PM
