4-3. Do-it-yourself maintenance
4
Maintenance and care
RX400h_U
65HEATER7. 5
Electric cooling fan, air conditioning
system, rear window defogger, engine
switch, windshield wiper de-icer
66WA S H E R20Windshield washer
67SEAT HTR20No circuit
68GAUGE NO.17. 5
Instrument cluster lights, instrument
panel lights, emergency flashers, seat
belt, power outlet, multiport fuel injec-
tion system/sequential multiport fuel
injection system, back-up lights
69FR WIP30Windshield wipers
70RR WIP15Rear window wiper
71INJ 20
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
72IGN10
SRS airbag system, multiport fuel
injection system/sequential multiport
fuel injection system, front passenger
occupant classification system, stop
lights, hybrid vehicle immobilizer sys-
tem
73GAUGE NO.27. 5Gauge and meters
74ECU-ACC7. 5
Navigation system display, power rear
view mirror control, shift lock control
system, multiplex communication sys-
tem
75CIG15Po w e r o u t l e t
76PWR OUTLET
NO.115Po w e r o u t l e t
FuseAmpereCircuit

362
4-3. Do-it-yourself maintenance
RX400h_U
77RADIO NO.27. 5
Instrument cluster lights, instrument
panel lights, navigation system, audio
system
78MIR HTR10Outside rear view mirror defogger
79PWR30
Power window, multiplex communica-
tion system (power door lock system,
wireless remote control system), out-
side rear view mirror
80P/ S E AT30Po w e r s e a t s
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (→P. 3 6 5 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
FuseAmpereCircuit

431
6-1. Specifications
6
Vehicle specifications
RX400h_U

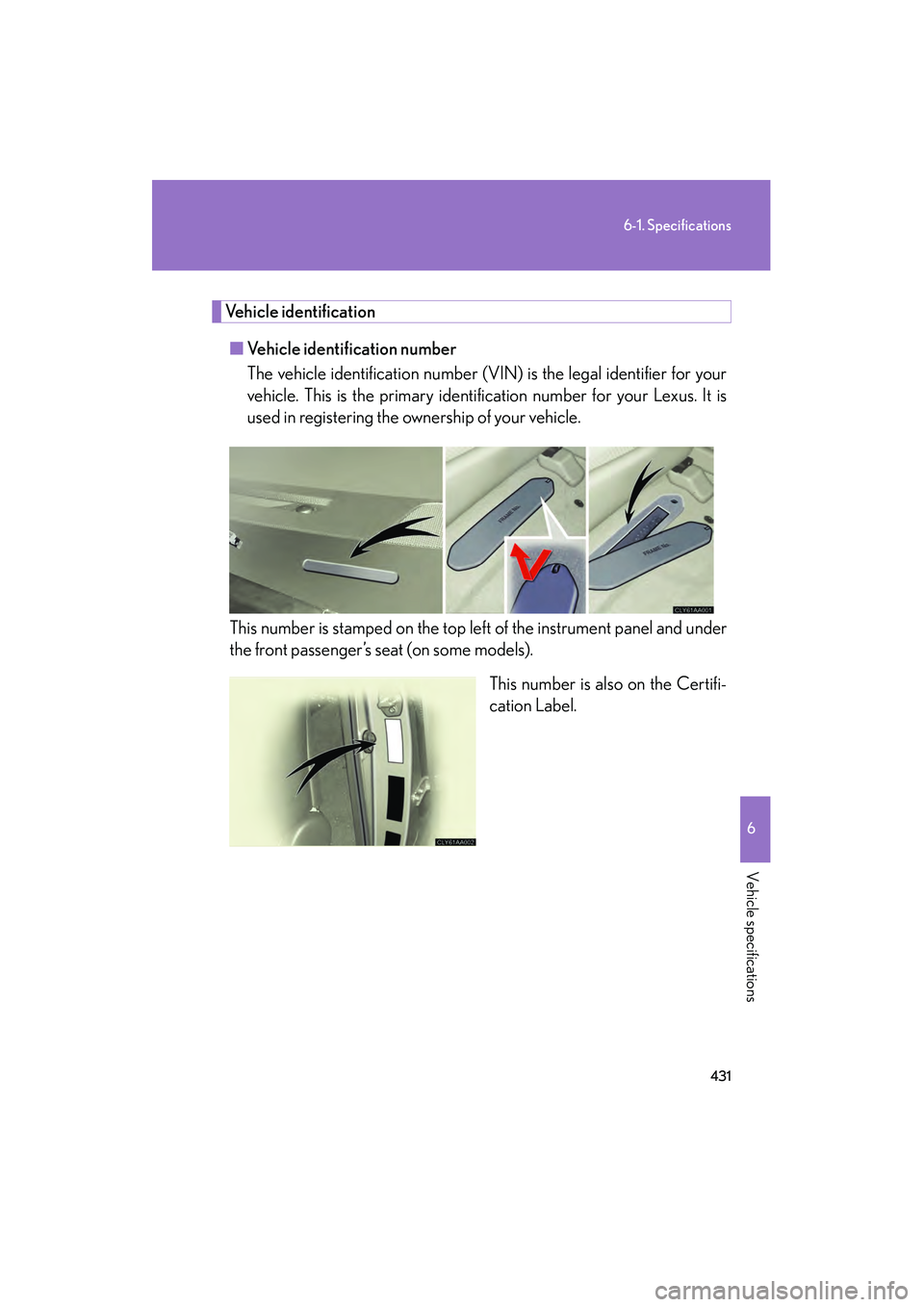

Vehicle identification■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and under
the front passenger’s seat (on some models). This number is also on the Certifi-
cation Label.
