2008 LEXUS RX400H windshield wipers

152
2-3. Operating the lights and windshield wipers
RX400h_U

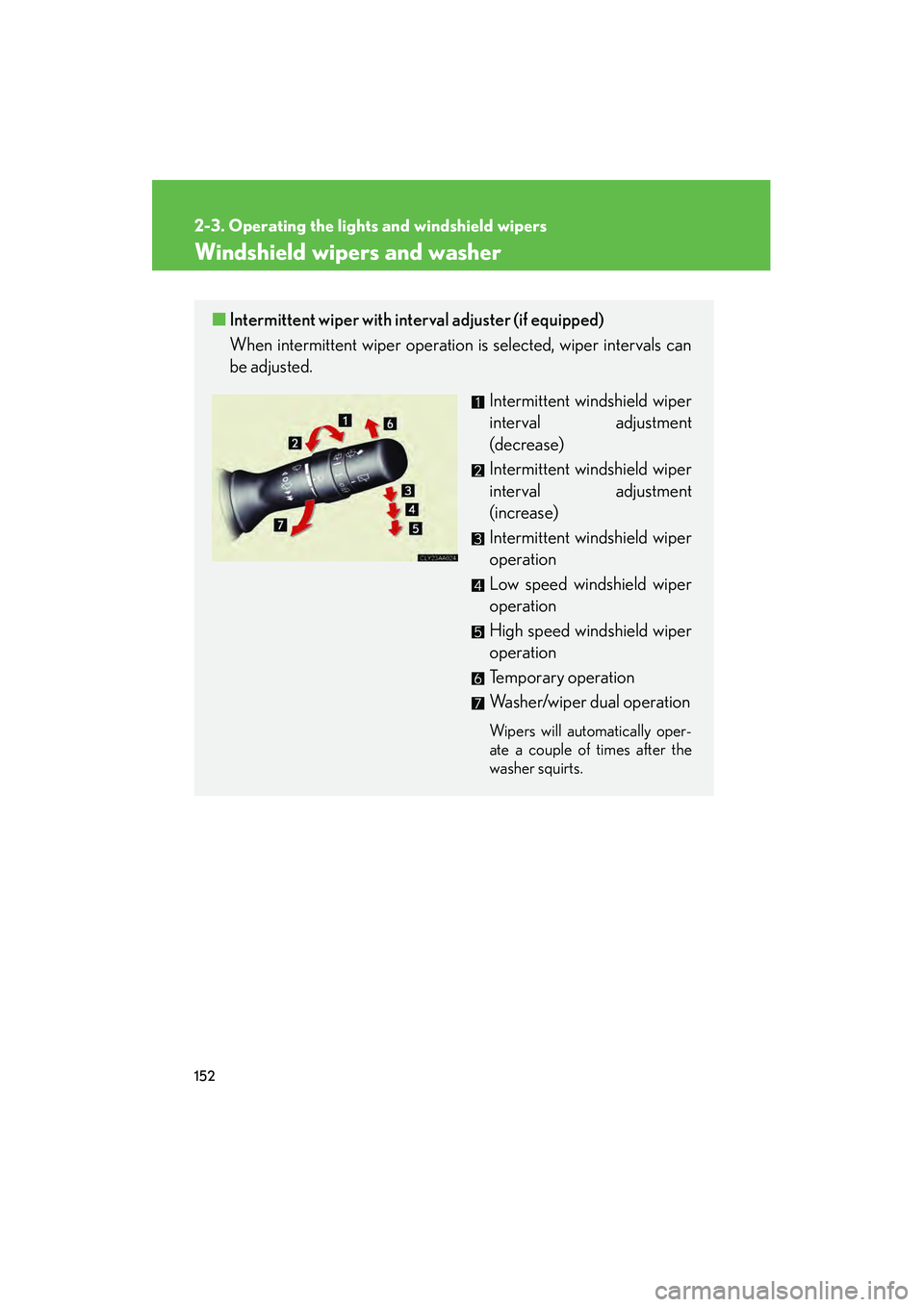

Windshield wipers and washer
■Intermittent wiper with interval adjuster (if equipped)
When intermittent wiper operation is selected, wiper intervals can
be adjusted.
Intermittent windshield wiper
interval adjustment
(decrease)
Intermittent windshield wiper
interval adjustment
(increase)
Intermittent windshield wiper
operation
Low speed windshield wiper
operation
High speed windshield wiper
operation
Temporary operation
Washer/wiper dual operation
Wipers will automatically oper-
ate a couple of times after the
washer squirts.

153
2-3. Operating the lights and windshield wipers
2
When driving
RX400h_U
■The windshield wiper and washer can be operated when
The engine switch must be in the ON position.
■Effects of vehicle speed on wiper operation (vehicles with the rain-sensing wind-
shield wipers)
When low speed wiper operation is selected, wiper operation will be switched from
low speed to intermittent wiper operation when the vehicle is stationary.
(However, the mode will not be switched when the adjustment dial for the auto-
matic wiper control sensitivity is set to high.)
■Rain-sensing windshield wipers (if equipped)
With AUTO selected, the wipers will operate automatically when
the sensor detects falling rain. The system automatically adjusts
wiper timing in accordance with rain volume.
Sensor sensitivity (high)
Sensor sensitivity (low)
Rain-sensing wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Washer/wiper dual operation
Wipers will automatically oper-
ate a couple of times after the
washer squirts.

154
2-3. Operating the lights and windshield wipers
RX400h_U
■Rain drop sensor (vehicles with the rain-sensing windshield wipers)
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
■Customization that can be configured at Lexus dealer
The setting of the wiper operation when the vehicle is stationary can be changed.
(Customizable features →P. 4 5 8 )
CAUTION
■Caution regarding the use of windshield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in AUTO mode. Take care that your fingers or any-
thing else do not become caught in the windshield wipers.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you
and held continually.
The sensor judges the amount of raindrops.

155
2-3. Operating the lights and windshield wipers
2
When driving
RX400h_U
Rear window wiper and washer
■The rear window wiper and washer can be operated when
The engine switch must be in the ON position.
NOTICE
■When the rear window is dry
Do not use the wipers, as they may damage the rear window.
Intermittent window wiper
operation
Normal window wiper oper-
ation
Washer operation
Washer/wiper dual operation

156
2-3. Operating the lights and windshield wipers
RX400h_U
Headlight cleaner switch (if equipped)
■The headlight cleaner can be operated when
When the engine switch must be in the ON position and the headlight switch is
turned ON.
NOTICE
■When the washer fluid tank is empty
Do not use this function when the washer fluid tank is empty.
This may cause the washer fluid pump to overheat.
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.

165
2-4. Using other driving systems
2
When driving
RX400h_U
■Automatically canceling vehicle-to-vehicle distance control
Vehicle-to-vehicle distance control driving is automatically canceled in the follow-
ing situations.
●Vehicle speed falls below 25 mph (40 km/h)
●VSC is activated
●The sensor cannot operate correctly because it is covered in some way.*
●The windshield wipers are operating at high or low speed.*
*
: Vehicle-to-vehicle distance control driving must be reset by turning the ON-OFF button on again.
If vehicle-to-vehicle distance control driving is automatically canceled for any other
reason, there may be a malfunction in the system. Contact your Lexus dealer.
■Automatically cancelling constant speed control
The set speed is automatically canceled in the following situations.
●Actual vehicle speed is more than 10 mph (16 km/h) below the preset vehicle
speed
At this time, the memorized set speed is not retained.
●Vehicle speed falls below 25 mph (40 km/h)
●VSC is activated

300
4-1. Maintenance and care
RX400h_U
NOTICE
■To protect your vehicle’s painted surfaces
Do not use organic cleaners such as benzene or gasoline.
■To protect your vehicle’s
Do not splash water on the electric components in the engine compartment. This
may cause malfunction of the electric components.
■If the windshield washer nozzle become blocked
Contact your Lexus dealer. Do not try to clear it with a pin or other object.
This may damage the nozzle.
■Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
●Do not apply wax on the surfaces of the lights.
Wax may cause damage to the lenses.
■When using an automatic car wash (vehicles with the rain-sensing windshield
wipers)
■To prevent damage to the windshield wiper arms
When lifting the wiper arms away from the windshield, pull the driver side wiper
arm upward first, and repeat for the passenger side. When returning the wipers to
their original position, do so from the passenger side first.
Set the wiper switch to the off position.
If the wiper switch is in AUTO, the wipers may
operate and the wiper blades may be dam-
aged.
Off

360
4-3. Do-it-yourself maintenance
RX400h_U
57RR FOG 7. 5No circuit
58AIR SUS7. 5No circuit
59DOOR NO.225Multiplex communication system
60S/ROOF 30Moon roof
61TA I L10
Front fog lights, instrument cluster
lights, instrument panel lights, front
side marker lights, tail lights, license
plate lights, towing converter
62PA N E L7. 5
Glove box light, instrument cluster
lights, instrument panel lights, console
box light, audio system, power outlet,
garage door opener switch, transmis-
sion system, headlight cleaner, seat
heaters, steering switches, power
back door
63ECU-IG NO.17. 5
Power rear view mirror control, moon
roof, multiplex communication system,
shift lock control system, multiplex
communication system (power door
lock system, wireless remote control
system), driving position memory sys-
tem, vehicle dynamics integrated
management, windshield wipers,
transmission, seat heaters, power
seats, tilt and telescopic steering,
power back door
64ECU-IG NO.210
Automatic headlight leveling system,
vehicle dynamics integrated manage-
ment, dynamic laser cruise control,
headlight cleaner, adaptive front-light-
ing system
FuseAmpereCircuit
