Page 57 of 82
SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log55
90 Months or 75,000 Miles
❏Replace engine oil and oil filter; reset reminder light
❏ Rotate tires
1
❏Clean air conditioner filter (ES, GS, IS)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
❏ Inspect the following:
___Axle shaft boots
___Ball joints and dust covers
___Body
___Brake lines and hoses
___Drive belt
___Engine coolant (see page 67)
Additional Maintenance Required If You Drive Primarily Under the Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect engine air filter
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
___Exhaust pipes and mountings
___Front differential oil (GS 350 AWD,
IS 250 AWD)
___Rack and pinion assembly
___Rear differential oil (GS, IS, LS, SC)
___Steering linkage and boots
Date: _____________________________ Mileage: ____________________________
Notes:
Lexus sedans-046_080.cgla 7/3/07 8:01 PM Page 55
Page 58 of 82
SCHEDULED MAINTENANCE LOG
MAINTENANCE
96 Months or 80,000 Miles
❏Replace engine oil and oil filter; reset
reminder light
❏ Rotate tires
1
❏Measure thickness of brake pads and rotors
(GS, IS, LS2)
❏ Replace air conditioner filter (LS, SC)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect axle shaft boots
❏ Inspect ball joints and dust covers
❏ Inspect engine air filter
❏ Inspect steering linkage and boots
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
102 Months or 85,000 Miles
❏ Replace engine oil and oil filter; reset
reminder light
❏ Rotate tires
1
❏Visually inspect brake pads and rotors
❏ Road-test vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect axle shaft boots
❏ Inspect ball joints and dust covers
❏ Inspect engine air filter
❏ Inspect steering linkage and boots
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
Scheduled Maintenance Log
56
1Applies to models with same size front and rear tires and wheels.2Applies to LS 460 L with Touring Package.
Lexus sedans-046_080.cgla 7/3/07 8:01 PM Page 56
Page 59 of 82
SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log57
108 Months or 90,000 Miles
❏Replace engine oil and oil filter; reset reminder light
❏ Rotate tires
1
❏Measure thickness of brake pads and rotors; measure rotor runout (GS, IS, LS2)
❏ Replace air conditioner filter
❏ Replace brake fluid
❏ Replace engine air filter
❏ Replace timing belt (SC)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
❏ Inspect the following:
___Axle shaft boots
___Ball joints and dust covers
___Body
___Brake lines and hoses
___Drive belt
___Engine coolant (see page 67)
___Exhaust pipes and mountings
___Front differential oil (GS 350 AWD, IS 250 AWD)
___Fuel lines and connections, fuel tank band and fuel
tank vapor vent system hoses
Additional Maintenance Required If You Drive Primarily Under the Following Conditions
Driving on dirt roads or dusty roads:
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
___Fuel tank cap gasket
___Manual transmission oil (IS 250)
___Rack and pinion assembly
___Rear differential oil (GS, IS, LS, SC)
___Steering linkage and boots
___Transfer case for signs of leakage
(GS 350 AWD, IS 250 AWD)
___Transmission for signs of leakage
Date: _____________________________ Mileage: ____________________________
Notes:
Lexus sedans-046_080.cgla 7/3/07 8:02 PM Page 57
Page 60 of 82
SCHEDULED MAINTENANCE LOG
MAINTENANCE
114 Months or 95,000 Miles
❏Replace engine oil and oil filter; reset
reminder light
❏ Rotate tires
1
❏Visually inspect brake pads and rotors
❏ Road-test vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect axle shaft boots
❏ Inspect ball joints and dust covers
❏ Inspect engine air filter
❏ Inspect steering linkage and boots
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
120 Months or 100,000 Miles
❏ Replace engine oil and oil filter; reset
reminder light
❏ Rotate tires
1
❏Measure thickness of brake pads and rotors
(GS, IS, LS2)
❏ Replace air conditioner filter (LS, SC)
❏ Replace engine coolant (see page 67)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect axle shaft boots
❏ Inspect ball joints and dust covers
❏ Inspect engine air filter
❏ Inspect steering linkage and boots
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
Scheduled Maintenance Log
58
1Applies to models with same size front and rear tires and wheels.2Applies to LS 460 L with Touring Package.
Lexus sedans-046_080.cgla 7/3/07 8:02 PM Page 58
Page 61 of 82
SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log59

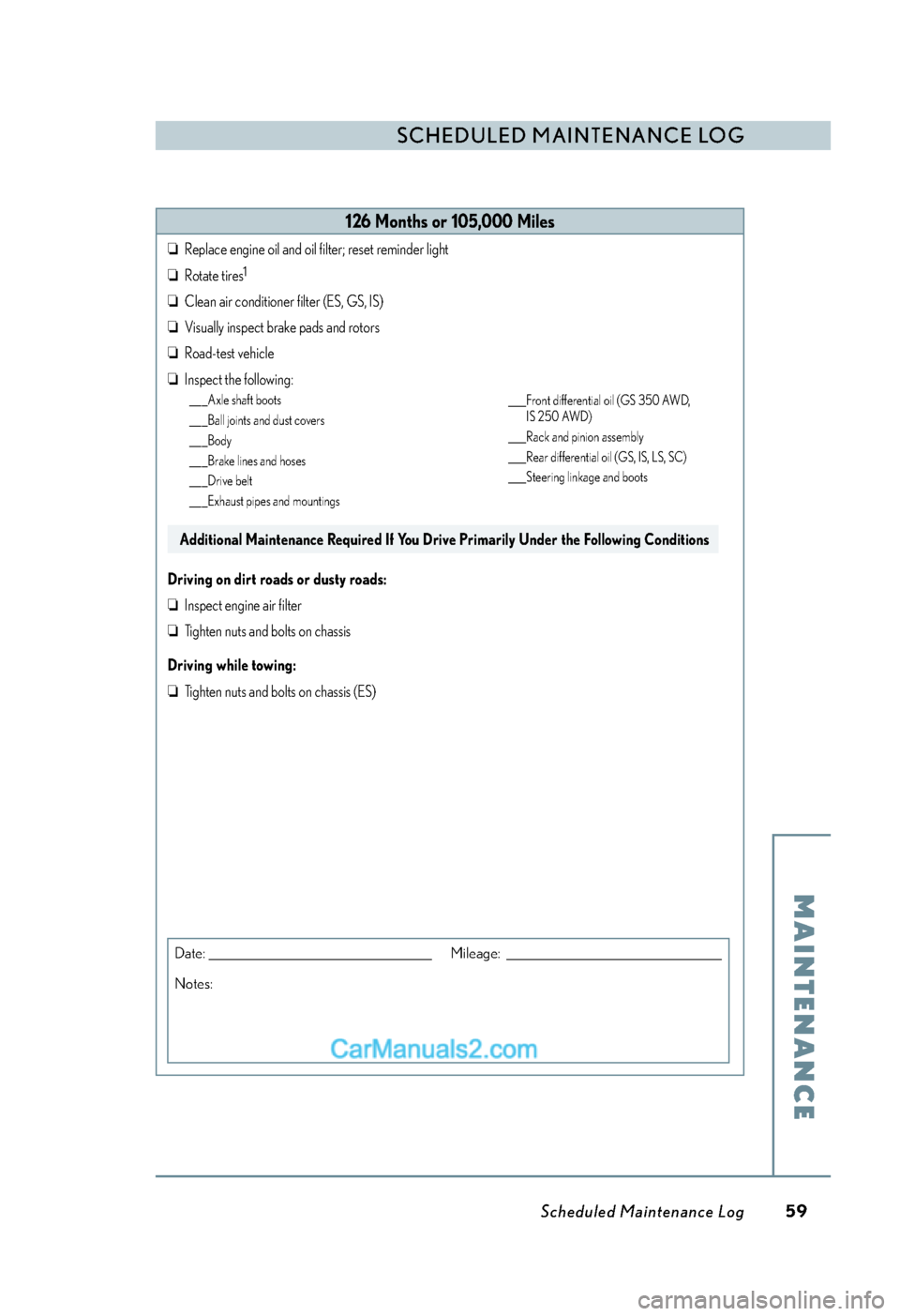

126 Months or 105,000 Miles
❏Replace engine oil and oil filter; reset reminder light
❏ Rotate tires
1
❏Clean air conditioner filter (ES, GS, IS)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
❏ Inspect the following:
___Axle shaft boots
___Ball joints and dust covers
___Body
___Brake lines and hoses
___Drive belt
___Exhaust pipes and mountings
Additional Maintenance Required If You Drive Primarily Under the Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect engine air filter
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
___Front differential oil (GS 350 AWD,
IS 250 AWD)
___Rack and pinion assembly
___Rear differential oil (GS, IS, LS, SC)
___Steering linkage and boots
Date: _____________________________ Mileage: ____________________________
Notes:
Lexus sedans-046_080.cgla 7/3/07 8:03 PM Page 59
Page 62 of 82
SCHEDULED MAINTENANCE LOG
MAINTENANCE
132 Months or 110,000 Miles
❏Replace engine oil and oil filter; reset
reminder light
❏ Rotate tires
1
❏Measure thickness of brake pads and rotors
(GS, IS, LS2)
❏ Replace air conditioner filter (LS, SC)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect axle shaft boots
❏ Inspect ball joints and dust covers
❏ Inspect engine air filter
❏ Inspect steering linkage and boots
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
138 Months or 115,000 Miles
❏ Replace engine oil and oil filter; reset
reminder light
❏ Rotate tires
1
❏Inspect engine coolant (see page 67)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect axle shaft boots
❏ Inspect ball joints and dust covers
❏ Inspect engine air filter
❏ Inspect steering linkage and boots
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
Scheduled Maintenance Log
60
1Applies to models with same size front and rear tires and wheels.2Applies to LS 460 L with Touring Package.
Lexus sedans-046_080.cgla 7/3/07 8:03 PM Page 60
Page 63 of 82
SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log61
144 Months or 120,000 Miles
❏Replace engine oil and oil filter; reset reminder light
❏ Rotate tires
1
❏Measure thickness of brake pads and rotors; measure rotor runout (GS, IS, LS2)
❏ Replace air conditioner filter
❏ Replace brake fluid
❏ Replace engine air filter
❏ Replace spark plugs
3(for ES 350, use Denso FK20HR11
plugs or equivalent)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
❏ Inspect the following:
___Axle shaft boots
___Ball joints and dust covers
___Body
___Brake lines and hoses
___Drive belt
___Engine valve clearance (SC)
___Exhaust pipes and mountings
___Front differential oil (GS 350 AWD, IS 250 AWD)
___Fuel lines and connections, fuel tank band and fuel
tank vapor vent system hoses
Additional Maintenance Required If You Drive Primarily Under the Following Conditions
Driving on dirt roads or dusty roads:
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Replace transmission fluid (ES only; use type ATFWS or equivalent)
❏ Tighten nuts and bolts on chassis (ES)
___Fuel tank cap gasket
___Manual transmission oil (IS 250)
___Rack and pinion assembly
___Rear differential oil (GS, IS, LS, SC)
___Steering linkage and boots
___Transfer case for signs of leakage
(GS 350 AWD, IS 250 AWD)
___Transmission for signs of leakage
Date: _____________________________ Mileage: ____________________________
Notes:
3Required under the terms of the Emission Control Warranty.
Lexus sedans-046_080.cgla 7/3/07 8:04 PM Page 61
Page 64 of 82
SCHEDULED MAINTENANCE LOG
MAINTENANCE
150 Months or 125,000 Miles
❏Replace engine oil and oil filter; reset
reminder light
❏ Rotate tires
1
❏Visually inspect brake pads and rotors
❏ Road-test vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect axle shaft boots
❏ Inspect ball joints and dust covers
❏ Inspect engine air filter
❏ Inspect steering linkage and boots
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
156 Months or 130,000 Miles
❏ Replace engine oil and oil filter; reset
reminder light
❏ Rotate tires
1
❏Inspect engine coolant (see page 67)
❏ Measure thickness of brake pads and rotors
(GS, IS, LS
2)
❏ Replace air conditioner filter (LS, SC)
❏ Visually inspect brake pads and rotors
❏ Road-test vehicle
Additional Maintenance Required
If You Drive Primarily Under the
Following Conditions
Driving on dirt roads or dusty roads:
❏ Inspect axle shaft boots
❏ Inspect ball joints and dust covers
❏ Inspect engine air filter
❏ Inspect steering linkage and boots
❏ Tighten nuts and bolts on chassis
Driving while towing:
❏ Tighten nuts and bolts on chassis (ES)
Date: _________ Mileage: _________
Notes:
Scheduled Maintenance Log
62
1Applies to models with same size front and rear tires and wheels.2Applies to LS 460 L with Touring Package.
Lexus sedans-046_080.cgla 7/3/07 8:09 PM Page 62
