TAILGATE CLOSING
Lower the tailgate by using handle
A-fig. 108as shown in the figure,
then press the tailgate until a lock
click is heard.
IMPORTANT If the “Key” option is
enabled, before closing the tailgate
ensure that you have the ignition key
with you, as the tailgate will be auto-
matically locked.BOOT
The tailgate can only be unlocked
from outside the car by using the elec-
tric opening handle A-fig. 106.
The tailgate can be opened at any
time if car doors are unlocked.
From the set-up menu of the display
located on the instrument panel (see
“Reconfigurable multifunctional dis-
play” in this section) it is possible to
enable the “Key” option in this way,
the boot is not unlocked together with
the doors; press button
Rof the re-
mote control to open.
Tailgate opening is indicated by dou-
ble flashing of direction indicators.
fig. 106L0D0390m
fig. 107L0D0378m
fig. 108L0D0391m
Do not fit additional objects
onto the rear window shelf
or tailgate (speakers, spoil-
ers, etc.) except when con-
templated by the manufacturer to
ensure the correct operation of the
side gas shock absorbers of the tail-
gate itself.
038-094 MUSA 3ed GB 12-11-2007 11:35 Pagina 80

85
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ABS SYSTEM
The car is fitted with an ABS braking
system, which prevents the wheels
from locking when braking, makes
the most of road grip and gives the
best control when emergency braking
under difficult road conditions.
The system is completed by EBD
(Electronic Braking Force Distribu-
tion), which distributes the braking
action between front and rear wheels.
IMPORTANT To achieve maximum
efficiency of the braking system, a
running in period of about 500 km is
required: during this time, avoid sud-
den, repeated and prolonged braking.SYSTEM INTERVENTION
Intervention of the ABS is detected by
a slight pulsing of the brake pedal ac-
companied by noise: such an event in-
dicates that you need to adjust your
speed to the type of road on which
you are travelling.
When the ABS intervenes it means
that you are approaching the grip
limit between tyres and road: slow
down to exploit all the available grip.
FAILURE INDICATIONS
ABS failure
It is indicated by the turning on of
warning light >on the instrument
panel together with the message
(where provided) shown on the re-
configurable multifunctional display
(see section “Warning lights and mes-
sages”).
In the case, the braking system will
work as normal without the extra po-
tentials offered by the ABS system.
Drive carefully to the nearest Lancia
Dealership to have the system
checked.When the ABS intervenes
it means that you are ap-
proaching the grip limit between
tyres and road: it is necessary to
slow down to adjust the speed ac-
cording to available grip.
WARNING
The ABS exploits the tyre
road grip to the full, but it
cannot improve it; you should
therefore exercise great caution
when driving on slippery surfaces
without taking unnecessary risks.
WARNING
038-094 MUSA 3ed GB 12-11-2007 11:35 Pagina 85

86
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
EOBD SYSTEM
The EOBD system (European On
Board Diagnosis) allows continuous
diagnosis of the components of the car
correlated with emissions.
It also alerts the driver, by turning on
the warning light
Uon the instru-
ment panel (together with relevant
message on the multifunction display,
where provided) (see section “Warn-
ing lights and messages”), when these
components are no longer in peak
conditions.
The objective is:
❒to keep the system efficiency un-
der control;
❒to warn when a fault causes emis-
sion levels to increase;
❒to signal the need to replace worn
components. EBD failure
EBD failure is indicated by the turn-
ing on warning lights >andxon
the instrument panel, together with
the message (where provided) shown
on the multifunctional display (see
section “Warning lights and mes-
sages”).
In this case, the rear wheels may sud-
denly lock and the car may swerve.
Drive carefully to the nearest Lancia
Dealership to have the system
checked.
When the ABS intervenes,
a slight pulsing of the
brake pedal is felt. Do not lessen
the pressure of your foot on the
pedal; maintain pressure on the
brake without hesitation; this will
ensure that you stop in the shortest
possible space allowed by the road
conditions.
WARNING
If the warning lightxon
the instrument panel goes
on (and a message, were provided,
is shown in the multifunctional
display), stop the car immediately
and contact your nearest Lancia
Dealership. Leakage of hydraulic
fluid from the braking system will
compromise functionality of the
braking system, either of the con-
ventional type or with ABS.
WARNING
038-094 MUSA 3ed GB 12-11-2007 11:35 Pagina 86

89
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ELECTRICAL/ELECTRONIC
DEVICE INSTALLATION
The electric/electronic devices in-
stalled subsequent to the purchase of
the car and included in the after-sales
service must be marked:
Fiat Auto S.p.A. authorises the in-
stallation of transceiver devices on
condition that such installations are
carried out in a workmanlike fashion,
following the manufacturer’s instruc-
tions, at a specialised centre.
IMPORTANT Traffic police may not
allow the car on the road in the event
of assembly of devices which imply
modifications to the features of the
car. This may also cause lapse of war-
ranty in relation to faults caused by
the change or either directly or indi-
rectly related to it.
Fiat Auto S.p.A. shall not be liable for
damage caused by the installation of
accessories either not supplied or rec-
ommended by Fiat Auto S.p.A.
and/or installed in compliance with
the provided instructions.“DUALDRIVE”
ELECTRIC POWER
STEERING SYSTEM
The car is provided with the electri-
cally controlled power steering system
called “Dualdrive” working only with
ignition key at MARand engine run-
ning, that can be customised by the
driver according to the driving condi-
tions.
ACTIVATION/DEACTIVATION
(CITY function)
To enable/disable the function, press
the button fig. 119located on the
central area of the instrument dash-
board.
The enabling of the function is sig-
nalled by the displaying of the word
CITY on the multifunctional display.
With CITY function on, wheel effort
is lighter, easing parking manoeuvres:
The function is particularly helpful
while driving in city centres. TRANSCEIVERS AND MOBILE
PHONES
Radio transceiver equipment (e.g.: e-
tacs mobile phones, HAM radio sys-
tems and the like) shall not be used
inside the car unless a separate aerial
is mounted on the roof.
The use of similar devices inside the
passenger compartment (without sep-
arate aerial) produces radio-frequency
electromagnetic fields which, ampli-
fied by the resonance effects inside the
passenger compartment, may cause
electrical systems equipping the car to
malfunction. This could compromise
safety in addition to constituting a po-
tential hazard for the passengers.
In addition, transmission and recep-
tion of these devices may be affected
by the shielding effect of the car body.
As concerns EC-approved mobile
phones (GSM, GPRS, UMTS), strictly
comply with the instructions for use
provided by the mobile phone’s man-
ufacturer.
038-094 MUSA 3ed GB 12-11-2007 11:36 Pagina 89

90
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IMPORTANT When making ma-
noeuvres requiring maximum steering
efforts, the steering wheel may be-
come hard to turn; this is normal and
is due to the intervention of the steer-
ing control electric motor overheating
protection system. No repairs are,
therefore, required. The power steer-
ing system will return to normal op-
eration the next time the car is used.
fig. 119L0D0419m
Under no circumstances
should after-market oper-
ations involving steering system or
steering column modifications (e.g.:
installation of anti-theft device) be
carried out, because they could
badly affect performance and
safety, cause the lapse of the war-
ranty and also result in car non-
compliance with homologation re-
quirements.
WARNING
FAILURE INDICATIONS
Any failure of the power steering is in-
dicated by instrument panel warning
light
gcoming on together with the
message on the multifunction display
(see section “Warning lights and mes-
sages”).
In the event of a failure of the electric
power steering, the car continues in
any case to be manoeuvrable with
mechanical steering so that it can be
taken soon as possible to a Lancia
Dealership.
Before servicing the car,
switch off the engine and
remove the key from the ignition
device, activating the steering lock,
especially when car wheels do not
touch the ground. If this is not pos-
sible (if the key must be on MAR or
the engine must be running), re-
move the main fuse which protects
the electric power steering.
WARNING
038-094 MUSA 3ed GB 12-11-2007 11:36 Pagina 90

94
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
peratures, etc.) and it will then calcu-
late the amount of particulates trapped
by the filter. Since this filter physically
traps particulates, it shall be cleaned
(reclaimed) at regular intervals by
burning carbon particles. The regener-
ation procedure is controlled automat-
ically by the engine control unit ac-
cording to the filter conditions and the
conditions of use of the car. During the
regeneration procedure, the following
situations may occur: limited increase
of idle speed, activation of electric fan,
limited increase of smoke, high tem-
peratures at the exhaust. These are not
anomalies; they do not impair car be-
haviour and the environment. If the
dedicated message is displayed, refer to
section “Warning lights and messages”.PROTECTING THE
ENVIRONMENT
The devices for curtailing petrol engine
emissions are the following:
❒three-way catalytic converter;
❒Lambda sensors;
❒fuel evaporation prevention system.
In addition, do not let the engine run,
even for a test, with one or more spark
plugs disconnected.
The devices for curtailing diesel fuel en-
gine emissions are the following:
❒oxidising catalytic converter;
❒exhaust gas recirculation system
(E.G.R.);
❒diesel particulate filter (DPF)
DIESEL PARTICULATE
FILTER (DPF)
(for 1.3 Multijet 90 CV versions)
The Diesel Particulate Filter is a me-
chanical filter, integral with the exhaust
system, that physically traps particu-
lates present in the exhaust gases of
Diesel engines. The diesel particulate
filter has been adopted to eliminate al-
most totally particulates in compliance
with current / future law regulations.
During normal use of the car, the en-
gine control unit records a set of data
(e.g.: travel time, type of route, tem- During refuelling, attach the cap to
the device on the inside of the flap, as
shown in the figure.
IMPORTANT The sealing of the tank
may cause light pressuring in the
tank. A little breathing off, while
slackening the cap, is absolutely nor-
mal.
After refuelling, tighten the cap by
turning it clockwise until you hear one
or more clicks. Then turn the key
clockwise and remove it and close the
flap.
Do not place naked flames
or lit cigarettes near to the
fuel filler: fire risk. Keep your face
away from the fuel filler to prevent
breathing in harmful vapours.
WARNING
The catalytic converter de-
velops high temperature
during operation. Do not park on
grass, dry leaves, pine needles or
other flammable material: fire
risk.
WARNING
038-094 MUSA 3ed GB 12-11-2007 11:36 Pagina 94

110
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

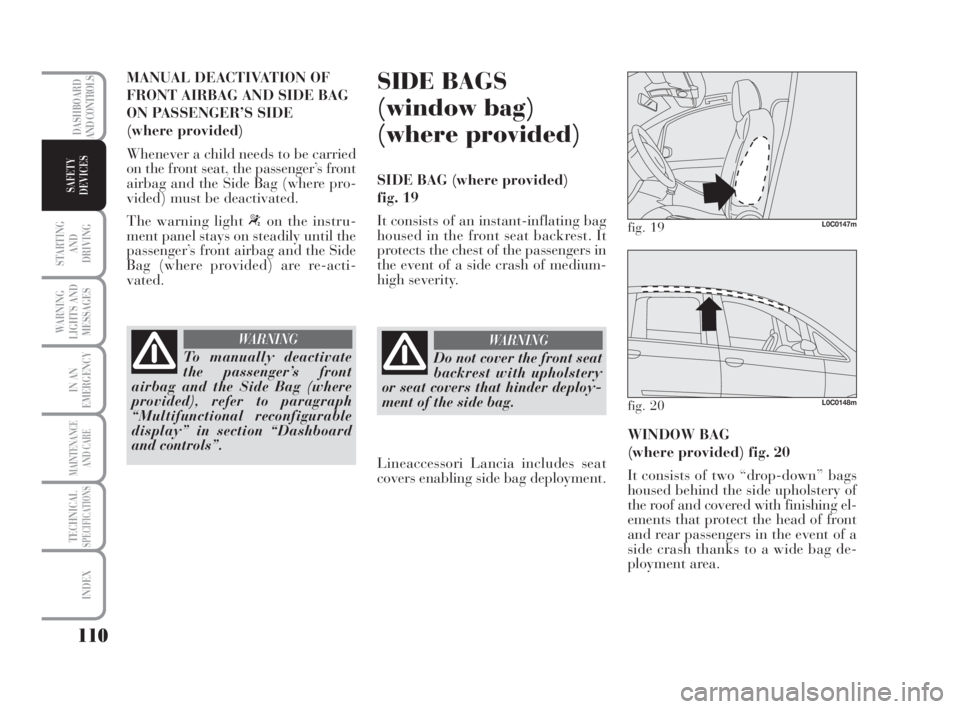

MANUAL DEACTIVATION OF
FRONT AIRBAG AND SIDE BAG
ON PASSENGER’S SIDE
(where provided)
Whenever a child needs to be carried
on the front seat, the passenger’s front
airbag and the Side Bag (where pro-
vided) must be deactivated.
The warning light “on the instru-
ment panel stays on steadily until the
passenger’s front airbag and the Side
Bag (where provided) are re-acti-
vated.SIDE BAGS
(window bag)
(where provided)
SIDE BAG (where provided)
fig. 19
It consists of an instant-inflating bag
housed in the front seat backrest. It
protects the chest of the passengers in
the event of a side crash of medium-
high severity.
To manually deactivate
the passenger’s front
airbag and the Side Bag (where
provided), refer to paragraph
“Multifunctional reconfigurable
display” in section “Dashboard
and controls”.
WARNING
Do not cover the front seat
backrest with upholstery
or seat covers that hinder deploy-
ment of the side bag.
WARNING
fig. 19L0C0147m
fig. 20L0C0148m
WINDOW BAG
(where provided) fig. 20
It consists of two “drop-down” bags
housed behind the side upholstery of
the roof and covered with finishing el-
ements that protect the head of front
and rear passengers in the event of a
side crash thanks to a wide bag de-
ployment area. Lineaccessori Lancia includes seat
covers enabling side bag deployment.
095-112 MUSA 3ed GB 12-11-2007 11:37 Pagina 110

126
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
GENERAL WARNINGS
Lighting of a warning light is associated
to a specific message and/or buzzer
when applicable. These indications are
brief and precautionary and as such
must not be considered as exhaustive
and/or alternative to the information
contained in the Owner’s Handbook,
which you are recommended to read
carefully in all cases. Always refer to
the information in this chapter in
the event of a failure indication.
IMPORTANT Failure indications on
the display fall into either of two cat-
egories:seriousfailure and less se-
riousfailure.
Seriousfailures indicate a “cycle” of
warning messages that stay on until
the cause of the failure is eliminated.
Less seriousfailures are indicated by
a limited warning “cycle”.
PressMODEto stop the warning cy-
cle in both cases. The warning light
on the instrument panel will stay on
until the cause of the failure is elimi-
nated.LOW BRAKE FLUID
LEVEL (red)
HANDBRAKE ON (red)
When the ignition key is moved to
MARthe warning light turns on and
should go off after a few seconds.
Low brake fluid level
The warning light turns on when the
level of the brake fluid in the reservoir
falls below the minimum level due to
possible leaks in the circuit.
The display will show the dedicated
message.
x
Handbrake on
The warning light turns on when the
handbrake is on.
On certain versions, if the car is mov-
ing the buzzer also triggers.
IMPORTANT If the warning light
turns on when travelling, check that
the handbrake is not engaged.
AIRBAG FAILURE (red)
When the ignition key is
moved to MAR, the warn-
ing light turns on and should
go off after a few seconds.
The warning light stays on steady if
there is a failure in the airbag system.
The display will show the dedicated
message.
¬
If the warning light x
turns on when the car is
travelling (together with the mes-
sage on the display on certain ver-
sions) stop the engine immediately
and contact a Lancia Dealership.
WARNING
125-134 MUSA 3ed GB 12-11-2007 11:38 Pagina 126
