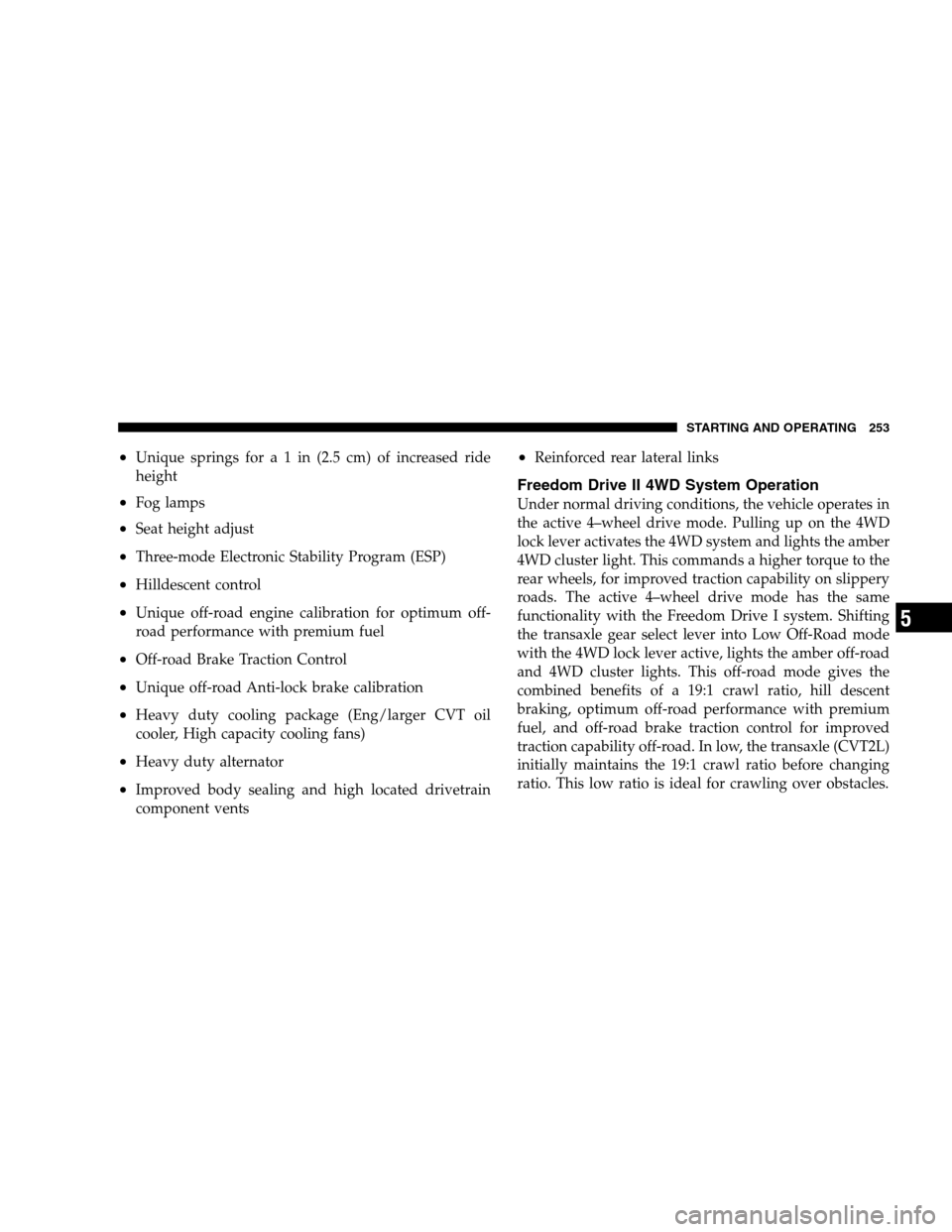

•Unique springs fora1in(2.5cm)ofincreased ride
height
•Fog lamps
•Seat height adjust
•Three-mode Electronic Stability Program (ESP)
•Hilldescent control
•Unique off-road engine calibration for optimum off-
road performance with premium fuel
•Off-road Brake Traction Control
•Unique off-road Anti-lock brake calibration
•Heavy duty cooling package (Eng/larger CVT oil
cooler, High capacity cooling fans)
•Heavy duty alternator
•Improved body sealing and high located drivetrain
component vents
•Reinforced rear lateral links
Freedom Drive II 4WD System Operation
Under normal driving conditions, the vehicle operates in
the active 4–wheel drive mode. Pulling up on the 4WD
lock lever activates the 4WD system and lights the amber
4WD cluster light. This commands a higher torque to the
rear wheels, for improved traction capability on slippery
roads. The active 4–wheel drive mode has the same
functionality with the Freedom Drive I system. Shifting
the transaxle gear select lever into Low Off-Road mode
with the 4WD lock lever active, lights the amber off-road
and 4WD cluster lights. This off-road mode gives the
combined benefits of a 19:1 crawl ratio, hill descent
braking, optimum off-road performance with premium
fuel, and off-road brake traction control for improved
traction capability off-road. In low, the transaxle (CVT2L)
initially maintains the 19:1 crawl ratio before changing
ratio. This low ratio is ideal for crawling over obstacles.
STARTING AND OPERATING 253
5
