2008 JEEP PATRIOT windshield wipers

Windshield Wipers And Washers...........127
▫Windshield Wiper Operation.............127
▫Intermittent Wiper System...............128
▫Windshield Washers...................128
▫Mist Feature.........................129

Tilt Steering Column....................130

Electronic Speed Control — If Equipped......130
▫To Activate..........................131
▫To Set At A Desired Speed...............131
▫To Deactivate........................132
▫To Resume Speed.....................132
▫To Vary The Speed Setting...............132
▫Manual Transaxle.....................132▫To Accelerate For Passing...............133

Anti-Lock Brake System (ABS) —
If Equipped...........................133

Electronic Brake Control System............134
▫Anti-Lock Brake System (ABS)............134
▫Brake Assist System (BAS)...............135
▫Traction Control System (TCS)............136
▫Electronic Roll Mitigation (ERM)..........136
▫Hill Descent Control (HDC) — If Equipped . . . 137
▫Electronic Stability Program (ESP).........138

Garage Door Opener — If Equipped.........142
▫Programming HomeLink...............144
▫Gate Operator/Canadian Programming.....147
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 75
3

WINDSHIELD WIPERS AND WASHERS
The wipers and washers are operated by a switch
on the control lever. The lever is located on the
right side of the steering column.
Windshield Wiper Operation
Turn the end of the handle to select the desired wiper
speed.
Wiper Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127
3

Intermittent Wiper System
Use the intermittent wiper when weather conditions
make a single wiping cycle, with a variable pause be-
tween cycles, desirable. Select the delay interval by
turning the end of the lever. Rotate the knob upward
(clockwise) to decrease the delay time and downward
(counterclockwise) to increase the delay time. The delay
can be regulated from a maximum of approximately 18
seconds between cycles, to a cycle every second.
Windshield Washers
To use the washer, pull the control lever toward you and
hold while spray is desired. If the lever is pulled while in
the delay range, the wiper will operate in low speed for
two wipe cycles after the lever is released, and then
resume the intermittent interval previously selected.
If the lever is pulled while in the off position, the wipers
will operate for two wipe cycles, then turn off.
Washer Control
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Mist Feature
Push down on the wiper control lever to activate a single
wipe to clear the windshield of road mist or spray from
a passing vehicle. As long as the lever is held down, the
wipers will continue to operate.CAUTION!
In cold weather, always turn off the wiper switch and
allow the wipers to return to the park position before
turning off the engine. If the wiper switch is left on
and the wipers freeze to the windshield, damage to
the wiper motor may occur when the vehicle is
restarted.
Mist Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129
3

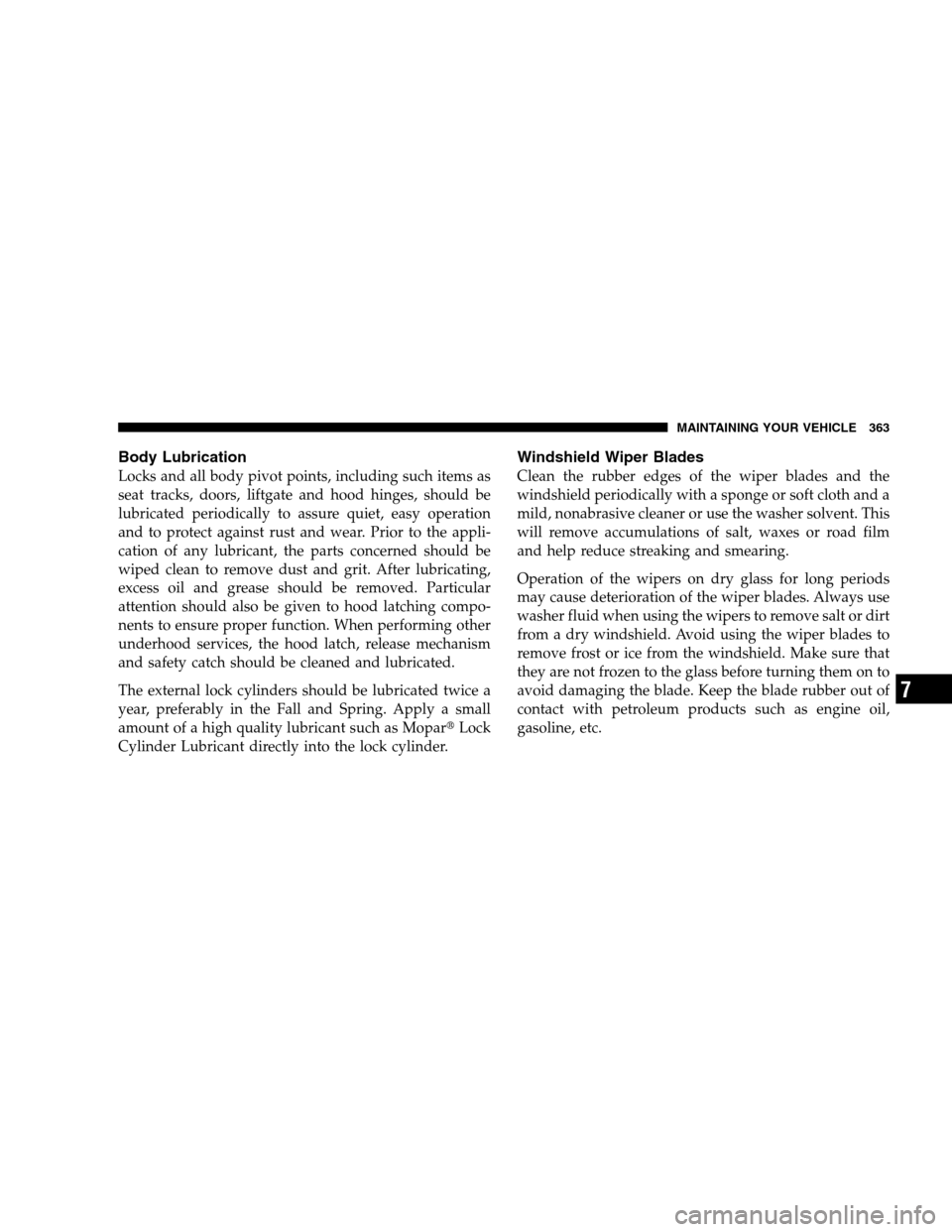

Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, doors, liftgate and hood hinges, should be
lubricated periodically to assure quiet, easy operation
and to protect against rust and wear. Prior to the appli-
cation of any lubricant, the parts concerned should be
wiped clean to remove dust and grit. After lubricating,
excess oil and grease should be removed. Particular
attention should also be given to hood latching compo-
nents to ensure proper function. When performing other
underhood services, the hood latch, release mechanism
and safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant such as MoparLock
Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild, nonabrasive cleaner or use the washer solvent. This
will remove accumulations of salt, waxes or road film
and help reduce streaking and smearing.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield. Avoid using the wiper blades to
remove frost or ice from the windshield. Make sure that
they are not frozen to the glass before turning them on to
avoid damaging the blade. Keep the blade rubber out of
contact with petroleum products such as engine oil,
gasoline, etc.
MAINTAINING YOUR VEHICLE 363
7

Pressure Cap......................... 367
Selection of Coolant (Antifreeze)........... 366
Corrosion Protection..................... 376
Crankcase Emission Control System.......... 358
CruiseLight ........................... 177
Cupholders............................ 155
Customer Assistance..................... 409
Data Recorder, Event...................... 58
Dealer Service.......................... 352
Defroster, Rear Window................... 163
Defroster, Windshield................... 70,228
Delay (Intermittent) Wipers................. 128
Diagnostic System, Onboard................ 349
Dimmer Switch, Headlight................. 124
Disposal
Antifreeze (Engine Coolant)............... 368
Engine Oil........................... 355
Door Locks............................. 26Door Locks, Automatic.................... 27
Door Opener, Garage..................... 142
Downshifting.......................... 243
DriveBelts ............................ 356
Driver’s Seat Back Tilt.................... 112
Driving
Off-Pavement......................... 252
Off-Road............................ 252
On Slippery Surfaces.................... 275
Electric Remote Mirrors.................... 80
Electrical Power Outlets................... 152
Electronic Brake Control System............. 134
Anti-Lock Brake System................. 134
Brake Assist System.................... 135
Electronic Roll Mitigation................ 136
Electronic Stability Program............... 138
Traction Control System................. 136
Electronic Speed Control (Cruise Control)...... 130
INDEX 421
10

Unleaded Gasoline....................... 311
Vacuum/Vapor Harnesses................. 370
VanityMirrors ........................... 82
Variance, Compass....................... 191
Vehicle Identification Number (VIN)............ 7
Vehicle Loading......................288,317
Vehicle Modifications/Alterations.............. 8
Vehicle Storage......................... 385
Vehicle Theft Alarm (Security Alarm).......... 18
Warning Lights
(Instrument Cluster Description)............. 172
Warning, Roll Over........................ 4
Warnings and Cautions..................... 7
Warranty Information..................... 412
Washer, Adding Fluid..................... 163Washers, Windshield..................... 128
Washing Vehicle......................... 377
Wheel Alignment and Balance............... 300
Wheel and Wheel Trim.................... 378
Wheel and Wheel Trim Care................ 378
WindBuffeting ......................... 152
Window Airbag (Side Curtain)............. 49,54
Window Fogging........................ 233
Windows.............................. 32
Power............................... 32
Windshield Washers...................127,128
Windshield Wipers....................127,363
Wiper Blade Replacement.................. 364
Wipers, Intermittent...................... 128
YES EssentialsFabric Cleaning Procedure...... 378
434 INDEX
