WARNING CHIME SYSTEMWCS-7
< FUNCTION DIAGNOSIS >
C
DE
F
G H
I
J
K L
M B A
O P
LIGHT REMINDER WARNING CHIM E : Component Parts LocationINFOID:0000000004872526
LIGHT REMINDER WARNING CHIME : Component DescriptionINFOID:0000000001697660
SEAT BELT WARNING CHIME
AWNIA0211ZZ

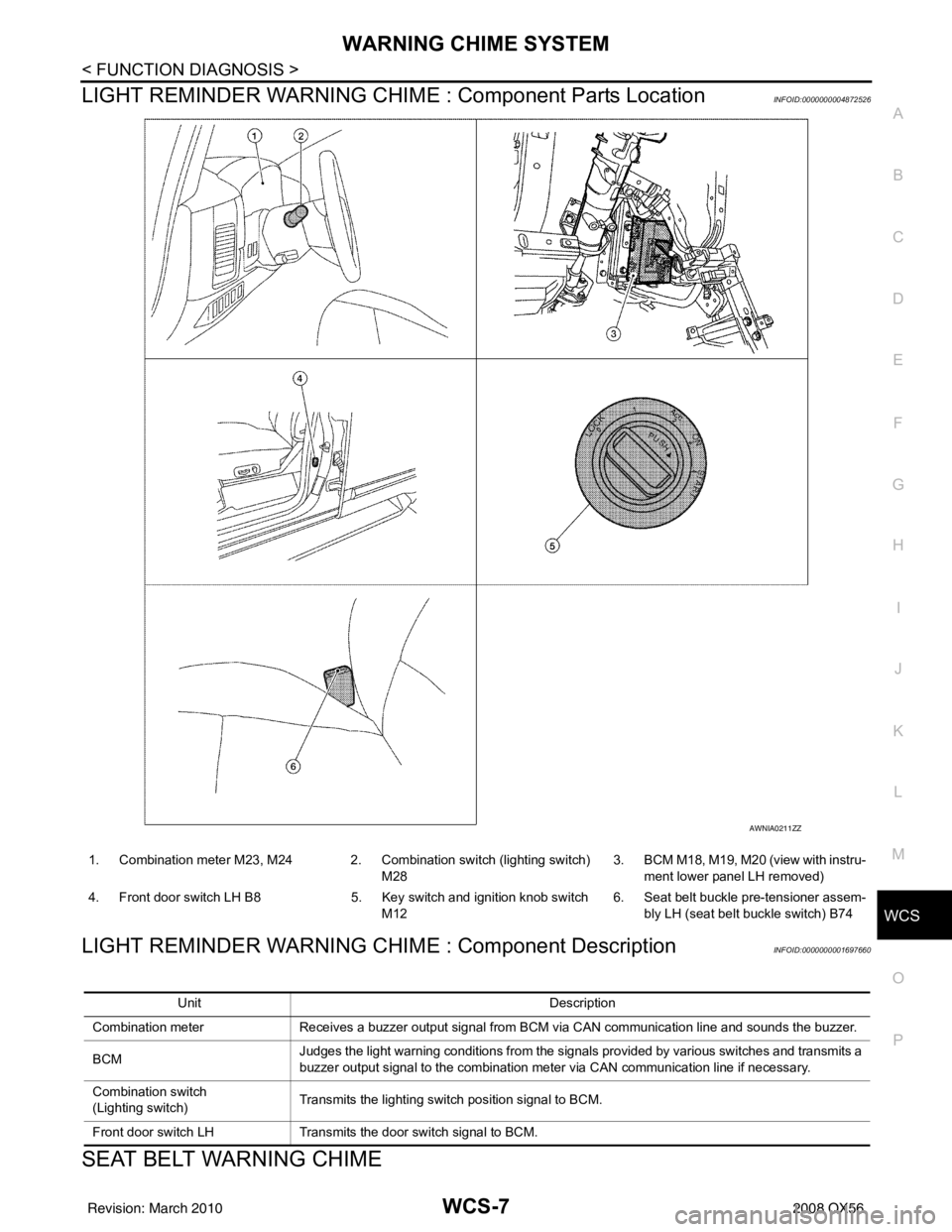

1. Combination meter M23, M24 2. Combination switch (lighting switch)
M283. BCM M18, M19, M20 (view with instru-
ment lower panel LH removed)
4. Front door switch LH B8 5. Key switch and ignition knob switch
M12 6. Seat belt buckle pre-tensioner assem-
bly LH (seat belt buckle switch) B74
Unit Description
Combination meter Receives a buzzer output signal from BCM via CAN communication line and sounds the buzzer.
BCM Judges the light warning conditions from the signals provided by various switches and transmits a
buzzer output signal to the combination meter via CAN communication line if necessary.
Combination switch
(Lighting switch) Transmits the lighting switch position signal to BCM.
Front door switch LH Transmits the door switch signal to BCM.
Revision: March 2010 2008 QX56

WCS
WARNING CHIME SYSTEMWCS-9
< FUNCTION DIAGNOSIS >
C
DE
F
G H
I
J
K L
M B A
O P
SEAT BELT WARNING CHIME : Component Parts LocationINFOID:0000000004872527
SEAT BELT WARNING CHIME : Component DescriptionINFOID:0000000001697664
AWNIA0211ZZ
1. Combination meter M23, M24 2. Combination switch (lighting switch)
M283. BCM M18, M19, M20 (view with instru-
ment lower panel LH removed)
4. Front door switch LH B8 5. Key switch and ignition knob switch
M12 6. Seat belt buckle pre-tensioner assem-
bly LH (seat belt buckle switch) B74
Unit Description
Combination meter • Receives the seat belt buckle switch signal from the seat belt buckle switch and transmits it to
BCM via CAN communication line.
• Receives a buzzer output signal from BCM via CAN communication line and sounds the buzzer.
BCM Judges the seat belt warning condition from the seat belt buckle switch signal received from the
combination meter and transmits a buzzer output signal to the combination meter via CAN commu-
nication line if necessary.
Seat belt buckle pre-tensioner
assembly LH (seat belt buckle
switch) Transmits seat belt buckle switch signal to combination meter.
Revision: March 2010
2008 QX56

WCS-10
< FUNCTION DIAGNOSIS >
WARNING CHIME SYSTEM
KEY WARNING CHIME
KEY WARNING CHIME : System DiagramINFOID:0000000001697665
KEY WARNING CHIME : System DescriptionINFOID:0000000001697666
WHEN MECHANICAL KEY IS USED
With the key inserted into the key switch, and the ignition switch in the LOCK or ACC position, when driver's
door is opened, the warning chime will sound.
• BCM detects key inserted into the ignition switch, and sends key warning signal to combination meter with CAN communication line.
• When combination meter receives key warning signal, it sounds the warning chime.
WHEN INTELLIGENT KEY IS CARRIED WITH THE DRIVER
Refer to DLK-6, "Work Flow".
WKIA5464E
Revision: March 2010 2008 QX56

WCS
WARNING CHIME SYSTEMWCS-11
< FUNCTION DIAGNOSIS >
C
DE
F
G H
I
J
K L
M B A
O P
KEY WARNING CHIME : Co mponent Parts LocationINFOID:0000000004872564
KEY WARNING CHIME : Component DescriptionINFOID:0000000001697668
AWNIA0211ZZ
1. Combination meter M23, M24 2. Combination switch (lighting switch)
M283. BCM M18, M19, M20 (view with instru-
ment lower panel LH removed)
4. Front door switch LH B8 5. Key switch and ignition knob switch
M12 6. Seat belt buckle pre-tensioner assem-
bly LH (seat belt buckle switch) B74
Unit Description
Combination meter Receives key warning signal from BCM via CAN communication line and sounds the buzzer.
BCM Judges the key warning condition using the door switch signal received from the front door switch
LH, and the key switch signal received from the key switch and ignition knob switch. It then transmits
a buzzer output signal to the combination meter via CAN communication line if necessary.
Front door switch LH Transmits door switch signal to BCM.
Key switch and ignition knob
switch Transmits key switch signal to BCM.
Revision: March 2010
2008 QX56

WCS-14
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (METER)
X: Applicable
Display item [Unit]MAIN
SIGNALS SELECTION
FROM MENU Description
SPEED METER [km/h] or [mph] X X Displays the value of vehicle speed signal.
SPEED OUTPUT [km/h] or [mph] X XDisplays the value of vehicle speed signal, which is transmitted to
each unit with
CAN communication.
TACHO METER [rpm] XX Displays the value of engine speed signal, which is input from ECM.
FUEL METER [lit.] XXDisplays the value, which processes a resistance signal from fuel
gauge.
W TEMP METER [ °C] or [° F] X XDisplays the value of engine coolant temperature signal, which is in-
put from ECM.
ABS W/L [ON/OFF] X Displays [ON/OFF] condition of ABS warning lamp.
VDC/TCS IND [ON/OFF] X Displays [ON/OFF] condition of VDC OFF indicator lamp.
SLIP IND [ON/OFF] X Displays [ON/OFF] condition of SLIP indicator lamp.
BRAKE W/L [ON/OFF] X Displays [ON/OFF] condition of brake warning lamp.*
DOOR W/L [ON/OFF] X Displays [ON/OFF] condition of door warning lamp.
TRUNK W/L [ON/OFF] X Displays [ON/OFF] condition of glass hatch warning lamp.
HI-BEAM IND [ON/OFF] X Displays [ON/OFF] condition of high beam indicator.
TURN IND [ON/OFF] X Displays [ON/OFF] conditio n of turn indicator.
OIL W/L [ON/OFF] X Displays [ON/OFF] condition of oil pressure warning lamp.
C-ENG W/L [ON/OFF] X Displays [ON/OFF] condition of malfunction indicator lamp.
CRUISE IND [ON/OFF] X Displays [ON/OFF] condition of CRUISE indicator.
SET IND [ON/OFF] X Displays [ON/OFF] condition of SET indicator.
AT CHECK W/L [ON/OFF] X Displays [ON/OFF] condition of AT CHECK warning lamp.
FUEL W/L [ON/OFF] XX Displays [ON/OFF] condition of low-fuel warning lamp.
AIR PRES W/L [ON/OFF] X Displays [ON/OFF] condition of tire pressure warning lamp.
KEY G W/L [ON/OFF] X Displays [ON/OFF] condition of key green warning lamp.
KEY R W/L [ON/OFF] X Displays [ON/OFF] condition of key red warning lamp.
KEY KNOB W/L [ON/OFF] X Displays [ON/OFF] condition of key knob warning lamp.
M RANGE SW [ON/OFF] XX Displays [ON/OFF] condition of manual mode range switch.
NM RANGE SW [ON/OFF] XXDisplays [ON/OFF] condition of except for manual mode range
switch.
AT SFT UP SW [ON/OFF] XX Displays [ON/OFF] condition of A/T shift-up switch.
AT SFT DWN SW [ON/OFF] XX Displays [ON/OF F] condition of A/T shift-down switch.
DISTANCE [km] or [mile] XXDisplays the value, which is calculated by vehicle speed signal, fuel
gauge and fuel consumption from ECM.
BUZZER [ON/OFF] XX Displays [ON/ OFF] condition of buzzer.
BRAKE SW [ON/OFF] X Indicates [ON/OFF] condition of parking brake switch.
AT-M GEAR [1, 2, 3, 4, 5] XX Indicates [1, 2, 3, 4, 5] condition of A/T manual mode gear position.
P RANGE IND [ON/OFF] XX Indicates [ON/OFF] condition of A/T shift P range indicator.
R RANGE IND [ON/OFF] XX Indicates [ON/OFF] condition of A/T shift R range indicator.
N RANGE IND [ON/OFF] XX Indicates [ON/OFF] condition of A/T shift N range indicator.
D RANGE IND [ON/OFF] XX Indicates [ON/OFF] condition of A/T shift D range indicator.
4 RANGE IND [ON/OFF] XX Indicates [ON/OFF] condition of A/T shift 4 range indicator.
3 RANGE IND [ON/OFF] XX Indicates [ON/OFF] condition of A/T shift 3 range indicator.
2 RANGE IND [ON/OFF] XX Indicates [ON/OFF] condition of A/T shift 2 range indicator.
1 RANGE IND [ON/OFF] XX Indicates [ON/OFF] condition of A/T shift 1range indicator.
Revision: March 2010 2008 QX56

WCS-16
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (BCM)
DIAGNOSIS SYSTEM (BCM)
BUZZER
BUZZER : CONSULT-III Function (BCM - BUZZER)INFOID:0000000004872980
DATA MONITOR
ACTIVE TEST
Monitor Item[Unit] Description
IGN ON SW [ON/OFF] Ignition switch (ON) st atus judged by ignition power supply input
KEY ON SW [ON/OFF] Key switch status
DOOR SW -DR [ON/OFF] Front door switch (driver side) status judged by BCM
LIGHT SW 1ST [ON/OFF] Lighting switch status judged by the lighting switch signal read with combination switch reading func-
tion
BUCKLE SW [ON/OFF] Seat belt buckle switch status
Test Item Description
LIGHT WARN ALM The light reminder warning operation can be checked by operating the relevant function (On/Off).
IGN KEY WARN ALM The key reminder warning operation can be checked by operating the relevant function (On/Off).
SEAT BELT WARN TEST The seat belt warning operation can be checked by operating the relevant function (On/Off).
DOOR WARNING IND The door open warning operation can be checked by operating the relevant function (On/Off).
Revision: March 2010 2008 QX56

WCS-22
< COMPONENT DIAGNOSIS >
KEY SWITCH SIGNAL CIRCUIT
KEY SWITCH SIGNAL CIRCUIT
DescriptionINFOID:0000000001697685
Transmits a key switch signal to the BCM.
Component Function CheckINFOID:0000000001697686
1.CHECK BCM INPUT SIGNAL
Select “DATA MONITOR” for “BCM” and check the “KEY ON SW” monitor value.
>> Inspection End.
Diagnosis ProcedureINFOID:0000000001697687
1.CHECK FUSE
Check if the key switch and ignition knob switch 10A fuse (No. 62, located in the fuse and relay box) is blown.
Is the fuse blown?
YES >> Be sure to repair the cause of malfunction before installing new fuse.
NO >> GO TO 2
2.CHECK BCM INPUT SIGNAL
Check voltage between BCM harness connector and ground.
Is the inspection result normal?
YES >> Inspection End.
NO >> GO TO 3
3.CHECK KEY SWITCH CIRCUIT
1. Disconnect BCM and key switch and ignition knob switch con- nectors.
2. Check continuity between BCM harness connector M18 (A) and key switch and ignition knob switch harness connector M12 (B).
3. Check continuity between BCM harness connector M18 (A) and ground.KEY ON SW
When key is inserted into key cylinder : ON
When key is removed from key cylinder : OFF
Te r m i n a l s
ConditionVo l ta g e
(Approx.)
(+)
(−)
BCM
connector Te r m i n a l
M18 37 Ground Key is inserted Battery voltage
Key is removed
0
PKIC0721E
AB
Continuity
Connector Terminal Connector Terminal
M183 7M 12 4 Y es
A GroundContinuity
Connector Terminal
M18 37 No
AWNIA0159ZZ
Revision: March 2010 2008 QX56

WCS
KEY SWITCH SIGNAL CIRCUITWCS-23
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
M B A
O P
Is the inspection result normal?
YES >> GO TO 4
NO >> Repair harness or connector.
4.CHECK KEY SWITCH POWER SUPPLY CIRCUIT
Check voltage between key switch and ignition knob switch harness
connector and ground.
Is the inspection result normal?
YES >> Replace key switch and ignition knob switch.
NO >> Repair harness or connector.
Component InspectionINFOID:0000000001697688
1.CHECK KEY SWITCH
1. Turn ignition switch OFF.
2. Disconnect key switch and i gnition knob switch connector.
3. Check continuity between key switch and ignition knob switch terminals 3 and 4.
Is the inspection result normal?
YES >> Inspection End.
NO >> Replace key switch and ignition knob switch.
Te r m i n a l s Vo l ta g e
(Approx.)
(+)
(−)
Key switch and ignition
knob switch connector Te r m i n a l
M12 3Ground Battery voltage
AWNIA0160ZZ
3 – 4
When key is inserted
into key cylinder : Continuity should exist.
When key is removed
from key cylinder : Continuity should not exist.
AWNIA0158ZZ
Revision: March 2010
2008 QX56
