DLK-202
< SYMPTOM DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
DOOR LOCK FUNCTION SYMPTOMS
INTELLIGENT KEY
INTELLIGENT KEY : Symptom TableINFOID:0000000001539067
REMOTE KEYLESS ENTRY FUNCTION MALFUNCTION
NOTE:
• Before performing the diagnosis in the following table, check “Trouble Diagnosis Procedure”. Refer to
DLK-
6, "Work Flow".
• Make sure that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and
check each symptom.
• If the following “symptoms” are detected, check syst ems shown in the “Diagnosis/service procedure” column
in this order.
Conditions of Vehicle (Operating Conditions)
• Ignition switch is not depressed.
• All doors are closed.
Auto lock function does not operate properly. 1.
Check “AUTO RELOCK TIMER” setting in “WORK SUP-
PORT”. DLK-48
2. Key switch check (BCM).
D L K - 111
3. Ignition knob switch check.DLK-112
4. Door switch check. DLK-67
5. Replace Intelligent Key unit.SEC-116
Key reminder function does not operate properly.1.
Check “ANTI KEY LOCK IN FUNCTION” setting in
“WORK SUPPORT”.
DLK-48
2. Door switch check.
DLK-67
3a. Inside key antenna 1 (rear of center console) check. DLK-56
3b. Inside key antenna 2 (luggage compartment) check.DLK-58
3c. Inside key antenna 3 (front of center console) check.DLK-60
3d. Inside key antenna 4 (overhead console area) check. DLK-62
4. Front door lock actuator LH (door unlock sensor) check.DLK-77
5. Intelligent Key battery and function inspection.DLK-102
6. Replace Intelligent Key unit.SEC-116
SymptomDiagnosis/service procedureReference page
Symptom Diagnosis/service procedureReference
page
All of the remote keyless entry functions do not
operate. 1. Intelligent Key battery and function inspection.
DLK-102
2. Remote Keyless Entry function check. DLK-99
3. Replace Intelligent Key unit.SEC-116
Selective unlock function does not operate by In-
telligent Key remote control button.1.
Check “SELECT UNLOCK FUNCTION” setting in “WORK SUP-
PORT”. DLK-48
2. Intelligent Key battery inspection.
DLK-102
3. Replace Intelligent Key unit.SEC-116
Auto lock function does not operate properly.1. Check “AUTO RELOCK TIMER” setting in “WORK SUPPORT”.
DLK-48
2. Key switch check (BCM).D L K - 111
3. Ignition knob switch check.DLK-112
4. Door switch check. DLK-67
5. Replace Intelligent Key unit.SEC-116
Revision: March 2010 2008 QX56

DLK-204
< SYMPTOM DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
BACK DOOR OPENER FUNCTION
BACK DOOR OPENER FUNCTION
BACK DOOR OPENER SWITCH
BACK DOOR OPENER SWITCH : Symptom TableINFOID:0000000001539068
TRUNK OPEN FUNCTION MALFUNCTION
NOTE:
• Before performing the diagnosis in the following table, check “WORK FLOW”. Refer to
DLK-6, "
Work Flow".
• Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and
check each symptom.
• If the following symptoms” are detected, check systems shown in the “Diagnosis/service procedure” column in this order.
Conditions of Vehicle (Operating Conditions)
• Vehicle is in park.
BACK DOOR SWITCH
Symptom Suspect systemsRefer to
Automatic operations are not executed from the back door fully
closed or fully open position.
(Auto closure operates normally). Power liftgate switch system inspection
DLK-137
Park switch —
Power window serial link —
Pinch strip system inspection DLK-129
Automatic operations are not carried out together with open/close
operations.
(Manual operations are normal). Power liftgate switch system inspection
DLK-137Back door close switch system inspectionDLK-133
Auto back door power supply and ground cir-
cuit system inspection. DLK-65
The auto closure function does not operate.
(Stops at the halfway position for auto closing operations).
Pinch strip system inspection
DLK-129
During auto closing operations, if obstruction is detected, the door
does not operate in reverse. Back door motor assembly
DLK-236
During close or cinch operations, the door does not operate in re-
verse if the back door handle is operated. Handle switch system
DLK-136
When the keyfob is operated, the back door does not operate au-
tomatically. Remote keyless entry system inspection
DLK-99Power window serial link —
Pinch strip system inspection DLK-129
Auto closure does not operate. Half-latch switch system
DLK-131Cinch latch motor systemDLK-135
Handle switch systemDLK-136
The back door does not open.
(Closure motor rotation is not reversed). Open switch system
DLK-132
Handle switch systemDLK-136
Warning chime does not sound. Back door warning chime systemDLK-130
Auto closure operation works, but the back door is not fully closed Close switch system
DLK-133
Handle switch systemDLK-136
Cinch latch motor systemDLK-135
Back door latch assembly mechanism dam-
aged or worn.DLK-236
Auto open operation releases lock, but does not fully open back
door. Glass hatch ajar switch check
DLK-125
Glass hatch lock actuator does not operate
(Right front door must be unlocked for normal operation) Glass hatch switch check
DLK-123Glass hatch lock actuator check DLK-88
Replace BCMBCS-55
Revision: March 2010 2008 QX56

SEC-6
< BASIC INSPECTION >[WITH INTELLIGENT KEY SYSTEM]
PRE-INSPECTION FOR DIAGNOSTIC
PRE-INSPECTION
FOR DIAGNOSTIC
Basic InspectionINFOID:0000000004807932
The engine start function, door lock function, power distribution system and NATS-IVIS/ NVIS in the Intelligent
Key system are closely related to each other regarding control. Narrow down the functional area in question
by performing basic inspection to identify which function is malfunctioning. The vehicle security function can
operate only when the door lock and power distribution system are operating normally. Therefore, it is easy to
identify any factor unique to the vehicle security syst em by performing the vehicle security operation check
after basic inspection.
1.CHECK DOOR LOCK OPERATION
Check the door lock for normal operation with the In telligent Key controller and door request switch.
Successful door lock operation with the Intelligent Key and request SW indicates that the remote keyless entry
receiver and inside key antenna required for engine start are functioning normally.
Identify the malfunctioning point by referring to the DLK section if the door cannot be unlocked.
Can the door be locked with the Intelligent Key and door request switch?
YES >> GO TO 2.
NO >> Refer to DLK-200, "
Symptom Table".
2.CHECK ENGINE STARTING
Check that the engine starts when operating with the Intelligent Key.
Does the engine start?
YES >> GO TO 3.
NO >> Refer to S E C - 111 , "
Symptom Table".
3.CHECK STEERING LOCK
Does the steering lock when operating door switch after switching the power supply from ON position (or ACC
position) to LOCK position?
If door switch is malfunctioning, BC M cannot lock the steering. If BCM does not detect DTC, steering lock unit
is normal.
Does steering lock?
YES >> GO TO 4.
NO >> Refer to DLK-67, "
ComponentFunctionCheck".
4.CHECK IGNITION KNOB SWITCH OPERATION
Press ignition knob to check switch operation.
Does the combination meter display any message?
YES >> GO TO 5.
NO >> Refer to SEC-44, "
Ignition Knob Switch Check".
5.CHECK VEHICLE SECURITY SYSTEM
Check the vehicle security system for normal operation.
The vehicle security function can operate only when the door lock and power distribution functions are operat-
ing normally.
Therefore, it is easy to identify any factor unique to the vehicle security by performing the vehicle security
operation check after this basic inspection.
>> Go to SEC-6, "
Vehicle Security Operation Check".
Vehicle Security Operation CheckINFOID:0000000004807933
1.INSPECTION START
Turn ignition switch OFF”.
NOTE:
Before starting operation check, open front windows.
>> GO TO 2.
Revision: March 2010 2008 QX56

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTIONSEC-11
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P

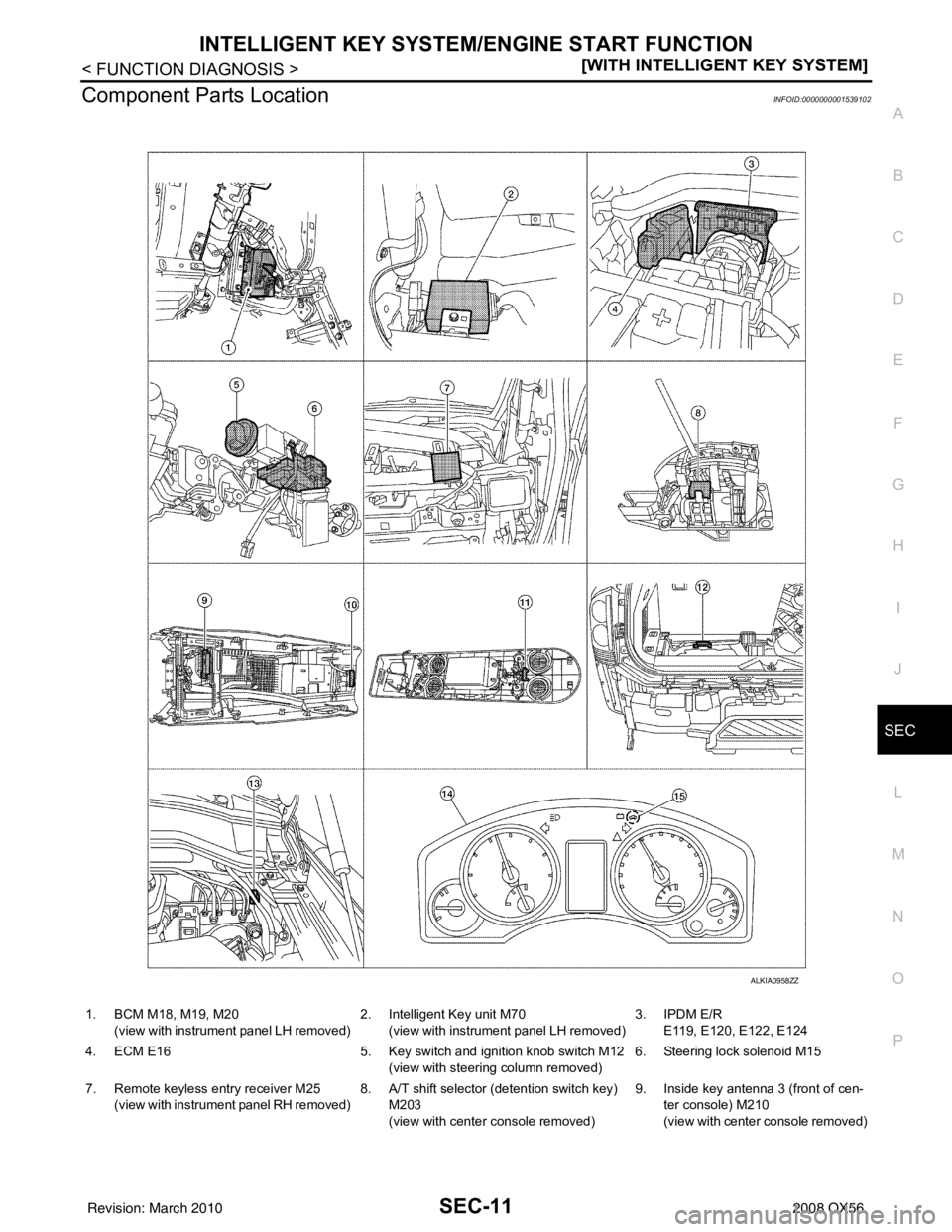

Component Parts LocationINFOID:0000000001539102
ALKIA0958ZZ
1. BCM M18, M19, M20 (view with instrument panel LH removed) 2. Intelligent Key unit M70
(view with instrument panel LH removed) 3. IPDM E/R
E119, E120, E122, E124
4. ECM E16 5. Key switch and ignition knob switch M12
(view with st eering column removed) 6. Steering lock solenoid M15
7. Remote keyless entry receiver M25 (view with instrume nt panel RH removed) 8. A/T shift selector (detention switch key)
M203
(view with center console removed) 9. Inside key antenna 3 (front of cen-
ter console) M210
(view with center console removed)
Revision: March 2010 2008 QX56

SEC-12
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
Component Description
INFOID:0000000001539103
10. Inside key antenna 1 (rear of center con- sole) M209 11. Inside key antenna 4 (overhead console
area) R210
(view with overhead console removed) 12. Inside key antenna 2 (luggage
compartment) B76
(view with rear carpet removed)
13. Intelligent Key warning buzzer E25 14. Combination meter M23, M24 15. Vehicle security indicator lamp
Item Function
Intelligent Key unit Receives lock/unlock signal from remote keyless entry receiver, and then transmits to BCM.
BCM Verifies the received signal from Intelligent Key, then informs ECM whether to allow engine start.
Remote keyless entry receiver Receives lock/unlock signal from th e Intelligent Key, and then transmits to Intelligent Key unit.
Intelligent Key Transmits button operation to remote keyless entry receiver.
Steering lock solenoid Locks the steering wheel when the ignition key is off and the Intelligent Key is outside the vehicle.
Inside key antenna Detects if Intelligent Key is inside the vehicle.
Intelligent Key warning buzzer Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.
A/T shift selector (detention key
switch) Detects whether the shift lever is in park.
Revision: March 2010
2008 QX56

SEC-14
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
NVIS (NISSAN VEHICLE I
MMOBILIZER SYSTEM-NATS)
- Mechanical key
- Intelligent Key unit
- Remote keyless entry receiver
- Steering lock solenoid
• NATS trouble diagnosis, system initialization and additional registration of other mechanical key IDs must be
carried out using CONSULT-III.
When NATS initialization has been completed, the ID of the inserted mechanical key or mechanical key IDs
can be carried out.
• Possible symptom of NATS malfunction is “Engine cannot start”. Identify the possible causes according to
“Work Flow”, Refer to SEC-3, "
Work Flow".
• If ECM other than Genuine NISSAN is installed, t he engine cannot be started. For ECM replacement proce-
dure, refer to SEC-8, "
ECM RE-COMMUNICATING FUNCTION : Description".
PRECAUTIONS FOR KEY REGISTRATION
• The key registration is a procedure that erases the current NATS ID once, and then re-registers a new ID.
Therefore the registered Intelligent Key is necessary fo r this procedure. Before starting the registration oper-
ation collect all registered Intelligent Keys from the customer.
• The NATS ID registration is the procedure that regi sters the ID stored into the transponder (integrated in
mechanical key) to BCM.
The Intelligent Key ID registration is the procedur e that registers the ID to Intelligent Key unit.
• When performing the Intelligent Key system registration only, the engine cannot be started by inserting the key into the key cylinder. When performing the NATS registration only, the engine cannot be started by using
the mechanical key.
SECURITY INDICATOR
• Always flashes with ignition knob released (ignition knob switch: LOCK) condition on ignition knob LOCKposition.
• Always flashes with ignition knob released (ignition knob switch: LOCK) condition on mechanical key removed position.
MAINTENANCE INFORMATION
CAUTION:
It is necessary to perform NATS ID registration when replacing any of the following part.
If it's not (or fail to do so), the electrical system may not operate properly.
• Intelligent Key unit
• BCM
•ECM
• Mechanical key
• Steering lock solenoid
• NATS antenna amp.
Revision: March 2010 2008 QX56
