2008 INFINITI FX35 Brake System

EC-636
< SERVICE INFORMATION >[VK45DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
*1: 1st trip DTC No. is
the same as DTC No.
*2: This number is prescribed by SAE J2012.
*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.
*4: The troubleshooting for this DTC needs CONSULT-III.
*5: When the fail-safe operations for both self-diagnoses occur, the MIL illuminates. ASCD SW P1564 1564 — 1 —
EC-1047
(Models
with ICC)
EC-1053
(Models
with ASCD)
ACC COMMAND VALUE*
6P1568 1568 — 1 — EC-1059
ASCD BRAKE SW P1572 1572 — 1 — EC-1060
(Models
with ICC)
EC-1068
(Models
with ASCD)
ASCD VHL SPD SEN P1574 1574 — 1 — EC-1075
(Models
with ICC)
EC-1077
(Models
with ASCD)
LOCK MODE P1610 1610 — 2 — BL-4
ID DISCORD, IMM-ECM P1611 1611 — 2 —BL-4
CHAIN OF ECM-IMMU P1612 1612 — 2 —BL-4
CHAIN OF IMMU-KEY P1614 1614 — 2 —BL-4
DIFFERENCE OF KEY P1615 1615 — 2 —BL-4
IN PULY SPEED P1715 1715 — 2 —EC-1079
A/T INTERLOCK P1730 1730 — 1×AT- 1 3 9
I/C SOLENOID/CIRC P1752 1752 — 1 ×AT- 1 4 3
FR/B SOLENOID/CIRC P1757 1757 — 1 ×AT- 1 4 5
D/C SOLENOID/CIRC P1762 1762 — 1 ×AT- 1 4 7
HLR/C SOL/CIRC P1767 1767 — 1 ×AT- 1 4 9
LC/B SOLENOID/CIRC P1772 1772 — 1 ×AT- 1 5 1
LC/B SOLENOID FNCT P1774 1774 — 1 ×AT- 1 5 3
VIAS S/V-1 P1800 1800 — 2 — EC-1080
BRAKE SW/CIRCUIT P1805 1805 — 2 —EC-1084
ETC MOT PWR-B1 P2100 2100 — 1×EC-1088
ETC FNCTN/CIRC-B1 P2101 2101 — 1 ×EC-1092
ETC MOT PWR P2103 2103 — 1 ×EC-1088
ETC MOT-B1 P2118 2118 — 1 ×EC-1098
ETC ACTR-B1 P2119 2119 — 1 ×EC-1102
APP SEN 1/CIRC P2122 2122 — 1 ×EC-1104
APP SEN 1/CIRC P2123 2123 — 1 ×EC-1104
APP SEN 2/CIRC P2127 2127 — 1 ×E C - 111 0
APP SEN 2/CIRC P2128 2128 — 1 ×E C - 111 0
TP SENSOR-B1 P2135 2135 — 1 ×E C - 111 6
APP SENSOR P2138 2138 — 1 ×EC-1122
A/F SENSOR1 (B1) P2A00 2A00 — 2 ×EC-1129
A/F SENSOR1 (B2) P2A03 2A03 — 2 ×EC-1129
Items
(CONSULT-III screen terms) DTC*
1
SRT code Trip MIL Reference page
CONSULT-III
GST*
2ECM*3
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

BASIC SERVICE PROCEDUREEC-663
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON and wait at least 2 seconds.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and wait at least 2 seconds.
5. Turn ignition switch OFF and wait at least 10 seconds.
Throttle Valve Closed Position LearningINFOID:0000000001326520
DESCRIPTION
Throttle Valve Closed Position Learning is an operation to l
earn the fully closed position of the throttle valve by
monitoring the throttle position sensor output signal . It must be performed each time harness connector of
electric throttle control ac tuator or ECM is disconnected.
OPERATION PROCEDURE
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
Make sure that throttle valve moves during above 10 seconds by confirming the operating sound.
Idle Air Volume LearningINFOID:0000000001326521
DESCRIPTION
Idle Air Volume Learning is an operation to learn the idle air volume that keeps each engine within the specific
range. It must be performed under any of the following conditions:
 Each time electric throttle control actuator or ECM is replaced.
 Idle speed or ignition timing is out of specification.
PREPARATION
Before performing Idle Air Volume Learning, make sure that all of the following conditions are satisfied.
Learning will be cancelled if any of the following conditions are missed for even a moment.
 Battery voltage: More than 12.9V (At idle)
 Engine coolant temperature: 70 - 99 °C (158 - 210 °F)
 PNP switch: ON
 Electric load switch: OFF (Air conditioner, headlamp, rear window defogger)
On vehicles equipped with daytime light systems, if the parking brake is applied before the engine is
started the headlamp will not be illuminated.
 Steering wheel: Neutral (Straight-ahead position)
 Vehicle speed: Stopped
 Transmission: Warmed-up
- With CONSULT-III: drive vehicle unt il “ATF TEMP SE 1” in “DATA MONITOR” mode of “A/T” system indi-
cates less than 0.9V.
- Without CONSULT-III: driv e vehicle for 10 minutes.
OPERATION PROCEDURE
With CONSULT-III
1. Perform EC-662, "Accelerator Pedal Released Position Learning".
2. Perform EC-663, "
Throttle Valve Closed Position Learning".
3. Start engine and warm it up to normal operating temperature.
4. Check that all items listed under the topic PREP ARATION (previously mentioned) are in good order.
5. Select “IDLE AIR VOL LEA RN” in “WORK SUPPORT” mode.
6. Touch “START” and wait 20 seconds.
7. Make sure that “CMPLT” is displayed on CONSULT-III screen. If “CMPLT” is not displayed, Idle Air Vol-
ume Learning will not be carried out successfully. In this case, find the cause of the incident by referring to
the DIAGNOSTIC PROCEDURE below.
8. Rev up the engine two or three times and make sure that idle speed and ignition timing are within the specifications.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSISEC-671
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Fail-Safe ChartINFOID:0000000001326525
When the DTC listed below is detected, the EC
M enters fail-safe mode and the MIL lights up.
Priority Detected items (DTC)
1  U1000 U1001 CAN communication line  U1010 CAN communication
 P0101 P0102 P0103 Mass air flow sensor
 P0112 P0113 P0127 Intake air temperature sensor
 P0117 P0118 P0125 Engine coolant temperature sensor
 P0122 P0123 P0222 P0223 P1225 P1226 P2135 Throttle position sensor
 P0128 Thermostat function
 P0181 P0182 P0183 Fuel tank temperature sensor
 P0327 P0328 P0332 P0333 Knock sensor
 P0335 Crankshaft position sensor (POS)
 P0340 Camshaft posi tion sensor (PHASE)
 P0460 P0461 P0462 P0463 Fuel level sensor
 P0500 Vehicle speed sensor
 P0605 ECM
 P0643 Sensor power supply
 P0700 TCM
 P0705 Park/neutral position (PNP) switch
 P0850 Park/neutral position (PNP) switch
 P1610 - P1615 NATS
 P2122 P2123 P2127 P2128 P2138 Accelerator pedal position sensor
2  P0031 P0032 P0051 P0052 Air fuel ratio (A/F) sensor 1 heater  P0037 P0038 P0057 P0058 Heated oxygen sensor 2 heater
 P0075 P0081 Intake valve timing control solenoid valve
 P0130 P0131 P0132 P0133 P0150 P0151 P0152 P0153 P2A00 P2A03 Air fuel ratio (A/F) sensor 1
 P0137 P0138 P0139 P0157 P0158 P0159 Heated oxygen sensor 2
 P0441 EVAP control system purge flow monitoring
 P0443 P0444 P0445 EVAP canister purge volume control solenoid valve
 P0447 P0448 EVAP canister vent control valve
 P0451 P0452 P0453 EVAP control system pressure sensor
 P0550 Power steering pressure sensor
 P0603 ECM power supply
 P0710 P0717 P0720 P0731 P0732 P0733 P0734 P0735 P0740 P0744 P0745 P1730 P1752 P1757 P1762 P1767
P1772 P1774 A/T related sensors, solenoid valves and switches
 P1140 P1145 Intake valve timing control position sensor
 P1217 Engine over temperature (OVERHEAT)
 P1805 Brake switch
 P2100 P2103 Throttle control motor relay
 P2101 Electric throttle control function
 P2118 Throttle control motor
3  P0011 P0021 Intake valve timing control  P0171 P0172 P0174 P0175 Fuel injection system function
 P0300 - P0308 Misfire
 P0420 P0430 Three way catalyst function
 P0442 P0456 EVAP co ntrol system (SMALL LEAK, VERY SMALL LEAK)
 P0455 EVAP control system (GROSS LEAK)
 P0506 P0507 Idle speed control system
 P1148 P1168 Closed loop control
 P1211 TCS control unit
 P1212 TCS communication line
 P1421 Cold start control
 P1564 ICC steering switch / ASCD steering switch
 P1568 ICC command value
 P1572 ICC brake switch / ASCD brake switch
 P1574 ICC vehicle speed sensor / ASCD vehicle speed sensor
 P1715 Turbine revolution sensor
 P1800 VIAS control solenoid valve
 P2119 Electric throttle control actuator
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSISEC-681
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

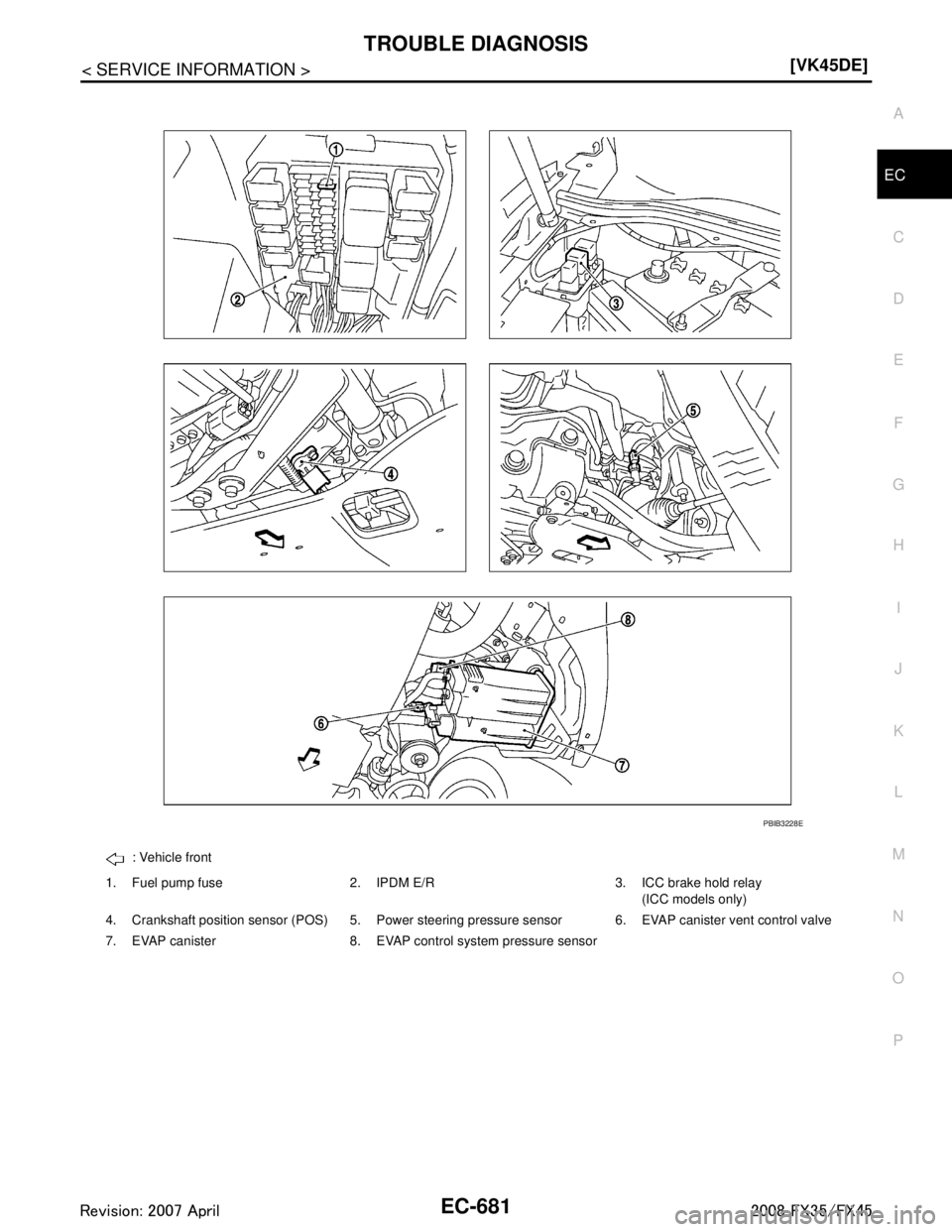

: Vehicle front
1. Fuel pump fuse 2. IPDM E/R 3. ICC brake hold relay (ICC models only)
4. Crankshaft position sensor (POS) 5. Power steering pressure sensor 6. EVAP canister vent control valve
7. EVAP canister 8. EVAP control system pressure sensor
PBIB3228E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-694
< SERVICE INFORMATION >[VK45DE]
TROUBLE DIAGNOSIS
99 G/YICC steering switch
(models with ICC system) [Ignition switch: ON]
 ICC steering switch: OFF
Approximately 4.3V
[Ignition switch: ON]
 MAIN switch: Pressed Approximately 0V
[Ignition switch: ON]
 CANCEL switch: Pressed Approximately 1.3V
[Ignition switch: ON]
 RESUME/ACCELERATE switch: Pressed Approximately 3.7V
[Ignition switch: ON]
 SET/COAST switch: Pressed Approximately 3V
[Ignition switch: ON]
 DISTANCE switch: Pressed Approximately 2.2V
99 G/Y ASCD steering switch
(models with ASCD system) [Ignition switch: ON]
 ASCD steering switch: OFF
Approximately 4V
[Ignition switch: ON]
 MAIN switch: Pressed Approximately 0V
[Ignition switch: ON]
 CANCEL switch: Pressed Approximately 1V
[Ignition switch: ON]
 RESUME/ACCELERATE switch: Pressed Approximately 3V
[Ignition switch: ON]
 SET/COAST switch: Pressed Approximately 2V
101 P/L Stop lamp switch [Ignition switch: OFF]
 Brake pedal: Fully released
Approximately 0V
[Ignition switch: OFF]
 Brake pedal: Slightly depressed BATTERY VOLTAGE
(11 - 14V)
102 LG/B PNP switch [Ignition switch: ON]
 Selector lever: P or N
Approximately 0V
[Ignition switch: ON]
 Selector lever: Except above BATTERY VOLTAGE
(11 - 14V)
104 L/OR Throttle co ntrol motor relay[Ignition switch: OFF]
BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON] 0 - 1.0V
106 OR Accelerator pedal position
sensor 1 [Ignition switch: ON]
 Engine stopped
 Accelerator pedal: Fully released
0.5 - 1.0V
[Ignition switch: ON]
 Engine stopped
 Accelerator pedal: Fully depressed 3.9 - 4.7V
107 PU/W Fuel tank temperature sen-
sor [Engine is running] Approximately 0 - 4.8V
Output voltage varies with fuel
tank temperature.
108 SB ICC brake switch (models
with ICC system)
ASCD brake switch (models
with ASCD system) [Ignition switch: ON]
 Brake pedal: Slightly depressed
Approximately 0V
[Ignition switch: ON]
 Brake pedal: Fully released BATTERY VOLTAGE
(11 - 14V)
109 W/L Ignition switch [Ignition switch: OFF]
0V
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
TER-
MI-
NAL NO. WIRE
COLOR
ITEM CONDITION DATA (DC Voltage)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-696
< SERVICE INFORMATION >[VK45DE]
TROUBLE DIAGNOSIS
ItemDIAGNOSTIC TEST MODE
WORK
SUPPORT SELF-DIAGNOSTIC
RESULTS DATA
MONI-
TOR ACTIVE
TEST DTC & SRT
CONFIRMATION
DTC*1 FREEZE
FRAME
DATA*2 SRT STA-
TUS DTC
WORK
SUP-
PORT
ENGINE CONTROL COMPONENT PARTS
INPUT
Crankshaft position sensor (POS) ×××
Camshaft position sensor (PHASE) ×××
Mass air flow sensor ××
Engine coolant temperature sensor ××××
Air fuel ratio sensor 1 ××××
Heated oxygen sensor 2 ××××
Wheel sensor ×××
Accelerator pedal position sensor ××
Throttle position sensor ×××
Fuel tank temperature sensor ×××
EVAP control system pressure sen-
sor ××
Intake air temperature sensor ×××
Knock sensor ×
Refrigerant pressure sensor ×
Closed throttle position switch (ac-
celerator pedal position sensor sig-
nal) ×
Air conditioner switch ×
Park/neutral position (PNP) switch ××
St op la mp sw i tc h ××
Power steering pressure sensor ××
Battery voltage ×
Load signal ×
Snow mode switch ×
Intake valve timing control position
sensor ××
Fuel level sensor ××
ICC steering switch ××
ASCD steering switch ××
ICC brake switch ××
ASCD brake switch ××
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-700
< SERVICE INFORMATION >[VK45DE]
TROUBLE DIAGNOSIS
FUEL T/TMP SE
°C or °F  The fuel temperature (determined by the signal
voltage of the fuel tank temperature sensor) is
displayed.
INT/A TEMP SE °C or °F  The intake air temperature (determined by the
signal voltage of the intake air temperature sen-
sor) is indicated.
EVAP SYS PRES V  The signal voltage of EVAP control system pres-
sure sensor is displayed.
FUEL LEVEL SE V  The signal voltage of the fuel level sensor is dis-
played.
START SIGNAL ON/OFF  Indicates start signal status [ON/OFF] computed
by the ECM according to the signals of engine
speed and battery voltage.  After starting the engine, [OFF] is dis-
played regardless of the starter signal.
CLSD THL POS ON/OFF  Indicates idle position [ON/OFF] computed by
ECM according to the accelerator pedal position
sensor signal.
AIR COND SIG ON/OFF  Indicates [ON/OFF] condition of the air condi-
tioner switch as determined by the air condition-
er signal.
P/N POSI SW ON/OFF  Indicates [ON/OFF] condition from the park/neu-
tral position (PNP) switch signal.
PW/ST SIGNAL ON/OFF  [ON/OFF] condition of the power steering sys-
tem (determined by the signal voltage of the
power steering pressure sensor signal) is indi-
cated.
LOAD SIGNAL ON/OFF  Indicates [ON/OFF] condition from the electrical
load signal.
ON: Rear window defogger switch is ON and/or
lighting switch is in 2nd position.
OFF: Both rear window defogger switch and
lighting switch are OFF.
IGNITION SW ON/OFF  Indicates [ON/OFF] condition from ignition
switch signal.
HEATER FAN SW ON/OFF  Indicates [ON/OFF] condition from the heater
fan switch signal.
BRAKE SW ON/OFF  Indicates [ON/OFF] condition from the stop
lamp switch signal.
INJ PULSE-B1 msec  Indicates the actual fuel injection pulse width compensated by ECM according to the input
signals.  When the engine is stopped, a certain
computed value is indicated.
INJ PULSE-B2 msec
IGN TIMING BTDC  Indicates the ignition timing computed by ECM
according to the input signals.  When the engine is stopped, a certain
value is indicated.
CAL/LD VALUE [%] %  “Calculated load value” indicates the value of
the current air flow divided by peak air flow.
MASS AIRFLOW g·m/s  Indicates the mass air flow computed by ECM
according to the signal voltage of the mass air
flow sensor.
PURG VOL C/V %  Indicates the EVAP canister purge volume con-
trol solenoid valve control value computed by
the ECM according to the input signals.
 The opening becomes larger as the value in- creases.
INT/V TIM (B1) °CA
 Indicates [ °CA] of intake camshaft advanced an-
gle.
INT/V TIM (B2) °CA
Monitored item Unit Description Remarks
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-82
< SERVICE INFORMATION >[VQ35DE]
TIMING CHAIN
e. Further tighten by 90 degrees. (Angle tightening)
 Check the tightening angle by referencing to the notches. Theangle between two notches is 90 degrees.
19. Rotate crankshaft pulley in normal direction (clock wise when viewed from front) to confirm it turns
smoothly.
20. For the following operations, perform steps in the reverse order of removal.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak. Before starting engine, check oil/fluid levels incl uding engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to GI-44, "
Recommended Chemical Product and Sealant".
 Use procedure below to check for fuel leakage.
- Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-
age at connection points.
- Start engine. With engine speed increased, che ck again for fuel leakage at connection points.
 Run engine to check for unusual noise and vibration. NOTE:
If hydraulic pressure inside chain tensioner drops af ter removal/installation, slack in guide may generate a
pounding noise during and just after the engine start. However, this does not indicate an unusualness. Noise
will stop after hydraulic pressure rises.
 Warm up engine thoroughly to make sure there is no leakage of fuel, or any oil/fluids including engine oil and engine coolant.
 Bleed air from lines and hoses of applic able lines, such as in cooling system.
 After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the specified level, if necessary.
Summary of the inspection items:
*: Transmission/transaxle/CVT fluid. power steering fluid, brake fluid, etc.
PBIC4821E
Items Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
