1FEATURES OF YOUR HYUNDAI58
B340C03E-AATHeadlight SwitchTo operate the headlights, turn the barrel on the
end of the multi-function switch. The first posi-
tion turns on the parking lights, sidelights, tail
lights and instrument panel lights. The second
position turns on the headlights.NOTE:The ignition must be in the "ON" position
to turn on the headlight.
HGK2074
MULTI-FUNCTION LIGHT SWITCHB340A01A-AATCombination Turn Signal, Headlight and
High-beam Switch
Turn signal operationPulling down on the lever causes the turn
signals on the left side of the car to blink. Pushing
upwards on the lever causes the turn signals on
the right side of the car to blink. As the turn is
completed, the lever will automatically return to
the center position and turn off the turn signals
at the same time. If either turn signal indicator
light blinks more rapidly than usual, goes on but
does not blink, or does not go on at all, there is
a malfunction in the system. Check for a burned-
out fuse or bulb or see your Hyundai dealer.
B340B01A-AATLane Change SignalTo indicate a lane change, move the lever up or
down to a point where it begins flashing.
The lever will automatically return to the center
position when released.
HGK2079

6
DO-IT-YOURSELF MAINTENANCE
24
OGK076047
5. Turn the plastic cover counterclockwise
and remove it.
G270A01GK-AATHeadlight and Front Turn Signal Light1. Allow the bulb to cool. Wear eye protection.
2. Open the engine hood.
3. Always grasp the bulb by its plastic base,
avoid touching the glass.4. Disconnect the power cord from the bulb
base in the back of the headlight.
OGK076066N
REPLACEMENT OF LIGHT BULBS!
G260A01MC-AATBefore attempting to replace a light bulb, be sure
the switch is turned to the "OFF" position.
The next paragraph shows how to reach the
light bulbs so they may be changed. Be sure to
replace the burned-out bulb with one of the
same number and wattage rating.
See page 6-27 for the wattage descriptions.
CAUTION:
o Keep the lamps out of contact with
petroleum products, such as oil, gaso-
line, etc.
o If you don't have necessary tools, the
correct bulbs and the expertise, consult
your authorized Hyundai dealer.
OGK076048
6. Disconnect the connector from the bulb
base in the back of the headlight.

6
DO-IT-YOURSELF MAINTENANCE
25
8. Remove the protective cap from the re-
placement bulb and install the new bulb by
matching the plastic base with the headlight
hole. Reattach the bulb spring and recon-
nect the connector.
9. Use the protective cap and carton to prompt-
ly dispose of the old bulb.
10.Check for proper headlight aim.
OGK076050
OGK076049
7. Push the bulb spring to remove the headlight
bulb.
OGK076052
11.To replace the front turn signal light bulb,
remove from the bulb holder and install the
new bulb.

6
DO-IT-YOURSELF MAINTENANCE
27
OGK076041
3. Remove the nut (8mm) with a socket wrench.
4. To detach the rear combination light tap it
strongly with your hand.
5. To replace the rear combination light (stop/
tail light, back-up light, turn signal light, side
mark light), take it out from the bulb holder by
turning it counterclockwise.
6. Install the new bulb.
(1) Stop/Tail light
(2) Back-up light
(3) Turn signal light
(4) Side mark light
OGK076042
2. To remove the cover of the rear luggage trim,
turn the knobs by hand to the counterclock-
wise.
OGK076040

6
DO-IT-YOURSELF MAINTENANCE
29

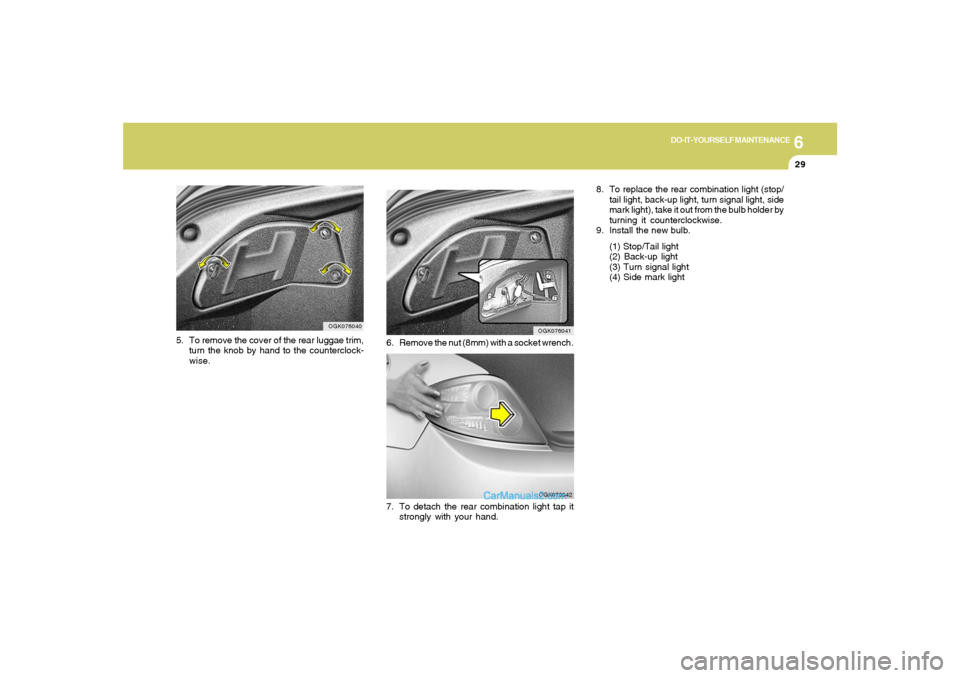

8. To replace the rear combination light (stop/
tail light, back-up light, turn signal light, side
mark light), take it out from the bulb holder by
turning it counterclockwise.
9. Install the new bulb.
(1) Stop/Tail light
(2) Back-up light
(3) Turn signal light
(4) Side mark light
OGK076040
5. To remove the cover of the rear luggae trim,
turn the knob by hand to the counterclock-
wise.
OGK076041
6. Remove the nut (8mm) with a socket wrench.
OGK076042
7. To detach the rear combination light tap it
strongly with your hand.

6
DO-IT-YOURSELF MAINTENANCE
33
Part Name
Luggage Compartment Light
High Mounted Rear
Stop Light
Rear
Combination
Light
License Plate Light
BULB WATTAGEG280A04GK-AATNo.
1
2
3
4
5
6
7
8Part Name
Head Light (Low)
Front Position Light
Map Light
Front Turn Signal Light
Front Fog Light (If installed)
Head Light (High)
Front Side Marker Light
Side Repeater
Front Door Edge Warning LightWattage
55
8
10
28
51
55
5
5
5No.
9
10
11
12
13
14
15Wattage
5
2.4 (LED)
3.5 (LED)
16
5
27
27/8
5
OGK066009N
Socket type
PGJ 19-2
BAY15d
W2.1 X 9.5D
BAY15d
P22d
Px26d
W2.1 X 9.5d
W2.1 X 9.5d
W2.1 X 9.5dWith spoiler
Without spoiler
Back-up Light
Rear Side Marker Light
Turn Signal Light
Stop/Tail LightSocket type
S8.5 / 8.5
W2.1 X 9.5d
-
W2.1 X 9.5d
BA15s
BA15s
BAY15d
W2.1 X 9.6d

10
