2008 Hyundai Azera Owner's Manual

1
FEATURES OF YOUR HYUNDAI
163163
NOTE:Tracks stored on Mark Memory will be
automatically erased after you eject CDs
that contain those tracks.10. REPEAT (RPT) Buttono To repeat the track you are currently
listening to, press the RPT button. To
cancel, press it again. If it pressed for
more than one second, it will be re-
peated all tracks within currently played
CD.
o To repeat the music within currently
played folder, press the RPT button for
more than one second. Then it will be
repeated in sequential order within the
currently played folder. To cancel, press
it again. (MP3 CD only)
o If you do not release RPT operation
when the track ends, it will automati-
cally be replayed. This process will be
continued until you push the button
again.
11. RANDOM (RDM) Buttono For listen to the music in random order,
press the RDM Button with beep sound
for more than one second. To cancel,
press it again.
o For listen to the music within the cur-
rently played folder in random order,
press the RDM Button within one sec-
ond. To cancel, press it again within one
second. If it pressed for more than one
second, it will be played all in random
order within currently played CD (MP3
CD only).12. DISC UP/DOWN Buttono By pressing "DISC
"/"DISC
" while
CD changer is playing, you can move to
the previews/next disc and playback
automatically begins.
o If any of the slots does not contain a CD,
your car audio will skip empty slot and
plays only slot that contains a CD. When
switching CD’s, the LCD displays the
selected CD’s number.
13. FILE SEARCH Knob
(TUNE SELECT Knob)o You can move through the track by
turning the FILE SEARCH knob clock-
wise or counterclockwise.
o After moving the desired file, press the
FILE SEARCH knob to playback in the
selected file.
o If you do not press the FILE SEARCH
knob within five seconds, the file search-
ing function will be released.14. CHANGE DIRECTORY(DIR) But-
tono You can move through the folder by
pushing the DIR button to up (
) and
down (
).
o After moving the desired folder, press
the FILE SEARCH knob to play back in
the the selected folder.
If you do not press the FILE SEARCH
knob within 5 seconds, the folder search-
ing function will be released. It is not
operated in a single folder.

1FEATURES OF YOUR HYUNDAI
164
CAUTION
o Do not insert warped or poor quality
discs into the CD player as damage to
the unit may occur.
o Do not insert anything like coins into
the player slot as damage to the unit
may occur.
!
NOTE:o To assure proper operation of the
unit, keep the vehicle interior tem-
perature within a normal range by
using the vehicle’s air conditioning or
heating system.
o When replacing the fuse, replace it
with a fuse having the correct capac-
ity.
o All stored bookmarks are all erased
when the car battery is disconnected
or power to the vehicle is lost. If this
occurs, the bookmarks will have to be
reset.
o Do not add any oil to the rotating parts.
Keep magnets, screwdrivers and
other metallic objects away from the
tape mechanism and head.
o Do not place beverages close to the
audio system. The playback mecha-
nism may be damaged if you spill
them.
o Do not strike or allow anything to im-
pact the audio system, damage to the
system mechanisms could occur.
o Off-road or rough surface driving may
cause the compact disc to skip. Do
not use the compact disc when driv-
ing in such conditions as damage to
the compact disc face could occur.
o Do not attempt to grab or pull the
compact disc out while the disc is
being pulled into the audio unit by the
self-loading mechanism. Damage to
the audio unit and compact disc could
occur.
o This equipment is designed to be used
only in a 12 volt DC battery system
with negative ground.
o This unit is made of precision parts.
Do not attempt to disassemble or ad-
just any parts.o When driving your vehicle, be sure to
keep the volume of the unit set low
enough to allow you to hear sounds
coming from the outside.
o Do not expose this equipment (includ-
ing the speakers and tape) to water or
excessive moisture.
o Avoid using home-made recorded
compact discs in your audio unit. Origi-
nal compact discs are recommended.
o The unit may not play CD-RW
(Rewritable) discs.

1
FEATURES OF YOUR HYUNDAI
165165

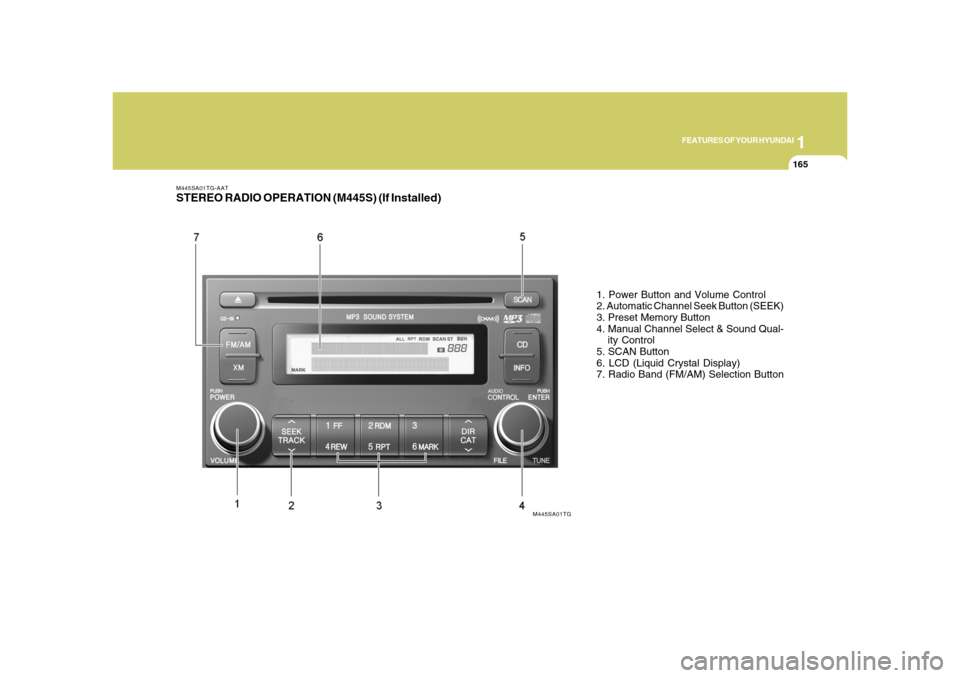

M445SA01TG-AATSTEREO RADIO OPERATION (M445S) (If Installed)
1. Power Button and Volume Control
2. Automatic Channel Seek Button (SEEK)
3. Preset Memory Button
4. Manual Channel Select & Sound Qual-
ity Control
5. SCAN Button
6. LCD (Liquid Crystal Display)
7. Radio Band (FM/AM) Selection Button
M445SA01TG

1FEATURES OF YOUR HYUNDAI
166
M445SB01TG-AAT1. Power Button and Volume Controlo Used for turning on/off the audio sys-
tem.
o Press this button when using the audio
system to turn off the power.
o Turn the volume control clockwise to
increase volume and counterclockwise,
to decrease. (The volume level is dis-
played when adjusting the volume.)2. Automatic Channel Seek Button
(SEEK)Press this button to automatically find and
tune to next available channel.
(Press [
] to automatically seek next avail-
able channel in higher frequencies and
[
] in lower frequencies.)
NOTE:If the channel is not received well, use
the manual control (4).
3. Preset Memory ButtonPress this button and hold for less than 0.8
seconds to easily listen to the channel
memorized to the button. Also, when you
are listening to the channel other than the
channel memorized to the button using
TUNE or SEEK, press the button you wish
to memorize current channel to and hold
for more than 0.8 seconds until it beeps to
memorize the channel.4. Manual Channel Select & Sound
Quality Controlo When listening to a radio channel, ro-
tate this control to manually adjust the
frequency. Turn this control to the right
to increase the frequency and left, to
decrease.
o This selects all functions related with
audio quality.
o When listening to the audio system,
press this button to select following
sound qualities in respective order.
BASS → MIDDLE → TREBLE →
FADER→BALANCE→EQUALIZER →
Current State
FM1 → FM2→ AM
o Rotate the control to adjust the sound
mode when adjusting sound quality.5. SCAN ButtonPress this button to tune to all available
channels for 5 seconds each. (LCD will
display "SCAN") Press the button once
again to cancel scanning.6. LCD (Liquid Crystal Display)It displays the state of the system when
listening to the radio such as AM, FM1,
FM2, Stereo(ST), preset number, fre-
quency received, EQ mode (CLASSIC,
POP, ROCK, JAZZ) and SCAN status.7. Radio Band (FM/AM) Selection
Buttono This selects FM/AM and the radio band
will change in the following order every
time you press the button.

1
FEATURES OF YOUR HYUNDAI
167167
CAUTION:
o Do not place beverages close to the
audio system. The playback mecha-
nism may be damaged if you spill
them.
o Do not impact on the audio system, or
the playback mechanism could be
damaged.
!
o Press this button when CD or XM is on
to automatically change to radio mode.
o If the ignition switch of the automobile is
set to ACC (1st notch) or ON (2nd notch),
the system will be turned on and auto-
matically play the radio when you press
this button even if the power of the audio
system is off.

1FEATURES OF YOUR HYUNDAI
168

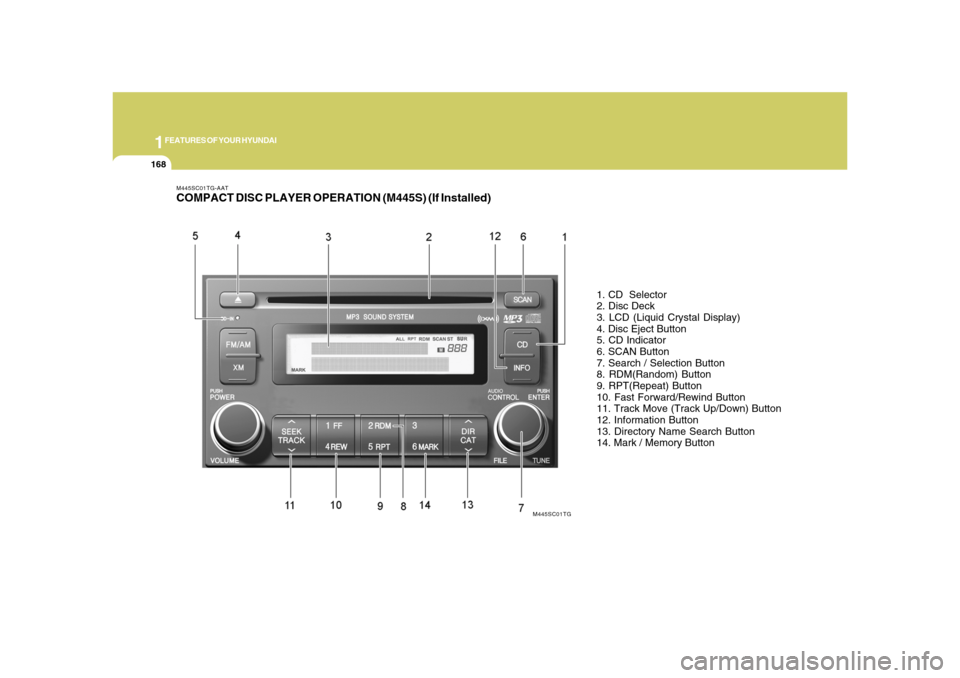

M445SC01TG-AATCOMPACT DISC PLAYER OPERATION (M445S) (If Installed)
1. CD Selector
2. Disc Deck
3. LCD (Liquid Crystal Display)
4. Disc Eject Button
5. CD Indicator
6. SCAN Button
7. Search / Selection Button
8. RDM(Random) Button
9. RPT(Repeat) Button
10. Fast Forward/Rewind Button
11. Track Move (Track Up/Down) Button
12. Information Button
13. Directory Name Search Button
14. Mark / Memory Button
M445SC01TG

1
FEATURES OF YOUR HYUNDAI
169169
M445SD02TG-AAT1. CD Selectoro The system will start playing the CD
when you press this button while radio
or XM is on. (If no CD is found, the LCD
will display "NO DISC" for 3 seconds.)
o If the ignition switch of the automobile is
set to ACC (1st notch) or ON (2nd notch),
the system will be turned on and auto-
matically play the CD from the last played
part when you press this button even if
the power of the audio system is off.
(However, only when the disc is placed
inside the system)NOTE:o Do not stick paper or tape etc., on the
label side or the recording side of any
discs, as it may cause a malfunction.
o The unit cannot play a CDR (Record-
able CD) and CDRW (Rewritable CD)
that is not finalized. Please refer to the
manual of CDR/ CD-RW recorder or
CD-R/CDRW software for more infor-
mation on finalization process.
o Depending on the recording status,
some CD-Rs/CD-RWs may not be
played on this unit.o Playback of MP3 and WMA file for-
mats are supported. Load to play time
for these formats may be longer due
to the compressed nature of these
discs.
2. Disc DeckThis is the place you insert or eject the CD.
When the ignition switch of the automobile
is set to ACC (1st notch) or ON (2nd notch),
if you push the disc in, the power will be
turned on and the CD will be played. The
CD player can play both 12cm and 8cm
audio discs. If you insert a video CD or
Data CD then the LCD will display "ER-
ROR7" and it will turn to the previous mode
(radio or XM).NOTE:Make sure the printed side of the disc
faces upward when you insert the disc.3. LCD (Liquid Crystal Display)It displays the state of the song currently
played as well as the information of the
disc including the track, number, CD, RPT,
RDM, SCAN, runtime, and EQ mode
(CLASSIC, POP, ROCK, JAZZ).
4. Disc Eject ButtonPress this button to eject the disc when the
disc is in the deck. If no CD is in the deck,
LCD will display "NO DISC" for 3 seconds.
(The disc will be ejected when you press
this button even when the ignition switch
(ACC) of the automobile is set to OFF or
when the power of the audio system is off.)NOTE:Forced Eject: When you press and hold
this button for more than 3 seconds, the
disc will be ejected by all means. (Use
this function only when the disc is not
ejected in the abnormal state.)5. CD IndicatorThis indicator light will be on if the CD is
inside the deck whether the audio system
is on or off if the ignition switch of the
automobile is set to ACC (1st notch) or ON
(2nd notch). This light will go off when the
CD is ejected.

1FEATURES OF YOUR HYUNDAI
170
6. SCAN ButtonWhen you press this button, the player will
play 10 seconds of each track (LCD will
display “SCAN”). Press it again to cancel
scanning.7. Search / Selection ButtonTurn the search control to the left or right
while playing CD then the track number on
the LCD will change correspondingly.
When you find the track you want to listen
to, press the button to play the selected
song. (The search will be canceled when
you do not select the track within 5 seconds
after searching the track.)8. RDM(Random) ButtonPress this button to play the songs in ran-
dom order regardless of the order of tracks
(LCD will display “RDM”). Press it again to
cancel random play.
9. RPT ButtonThis lets you listen to the song or CD you
like repeatedly. Simply press this button
when the song or the CD you want to
repeat is played.(LCD will display “RPT”)
Press this button again to cancel repeti-
tion.10. Fast Forward/Rewind ButtonPress and hold "FF" button while the CD is
played to quickly search through the latter
part of the song and "REW", the front part.
When you release the button, the song will
be played from current position.11. Track Move (Track Up/Down) But-
tono Press [
] (Track Up) button while play-
ing CD to play from the beginning of the
next song. (If you hold this button, it will
continue to move to the next song.)
o Press [] (Track Down) button while
playing CD to move to the beginning of
the song and press again to move to the
beginning of the previous song. (If you
hold this button, it will continue to move
to the previous song.)
12. Information ButtonIf the song title is long while playing an MP3
file, press this button to scroll the song title
to the end.13. Directory Name Search ButtonPress "DIR
"(Directory Up) button while
playing an MP3 file to display the next
available folder name and "DIR
"(Direc-
tory Down) button, the previous folder name.
Find the folder you searched for and press
7 to play the songs inside the folder from
the top of the list. (If you do not take any
action after searching for the folder for 5 or
more seconds, this search will be can-
celed.)
14. Mark / Memory ButtonYou can choose only the songs you want
to listen to and play them in respective
order. (Refer to the operation method.)
Press again to cancel.
