2008 GMC SIERRA Tire Pressure System

number is molded onto the tire’s sidewall near the tire
size. If the tires have an all-season tread design, the
TPC spec number will be followed by a MS, for mud and
snow. SeeTire Sidewall Labeling on page 5-67for
additional information.
GM recommends replacing tires in sets of four
(or six if your vehicle has dual rear wheels). This is
because uniform tread depth on all tires will help keep
your vehicle performing most like it did when the tires
were new. Replacing less than a full set of tires can affect
the braking and handling performance of your vehicle.
SeeTire Inspection and Rotation on page 5-81for
information on proper tire rotation.
{CAUTION:
Mixing tires could cause you to lose
control while driving. If you mix tires of
different sizes, brands, or types (radial
and bias-belted tires) the vehicle may not
handle properly, and you could have a
crash. Using tires of different sizes,
brands, or types may also cause damage to
your vehicle. Be sure to use the correct
size, brand, and type of tires on your
vehicle’s wheels.
{CAUTION:
If you use bias-ply tires on your vehicle,
the wheel rim anges could develop
cracks after many miles of driving. A tire
and/or wheel could fail suddenly, causing
a crash. Use only radial-ply tires with the
wheels on your vehicle.
If you must replace your vehicle’s tires with those that
do not have a TPC Spec number, make sure they are
the same size, load range, speed rating, and construction
type (radial and bias-belted tires) as your vehicle’s
original tires.
Vehicles that have a tire pressure monitoring system
could give an inaccurate low-pressure warning if
non-TPC Spec rated tires are installed on your vehicle.
Non-TPC Spec rated tires may give a low-pressure
warning that is higher or lower than the proper warning
level you would get with TPC Spec rated tires. See
Tire Pressure Monitor System on page 5-76.
Your vehicle’s original equipment tires are listed on the
Tire and Loading Information label. SeeLoading Your
Vehicle on page 4-36, for more information about the
Tire and Loading Information label and its location on
your vehicle.
5-85

MaintenanceI— Use MaintenanceIif the
CHANGE ENGINE OIL SOON message comes
on within 10 months since the vehicle was purchased
or MaintenanceIIwas performed.MaintenanceII— Use MaintenanceIIif the previous
service performed was MaintenanceI. Always use
MaintenanceIIwhenever the message comes on
10 months or more since the last service or if the
message has not come on at all for one year.
Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil (Gasoline Engine) on page 5-15.
Reset oil life system. SeeEngine Oil Life System on page 5-18.An Emission
Control Service.••
Allison Transmission
®only: Replace external transmission lter at the rst
maintenance service performed on the vehicle.
Lubricate chassis components.See footnote #.••
Visually check for any leaks or damage.See footnote (j).••
Inspect engine air cleaner lter or change indicator (if equipped). If
necessary, replace lter. SeeEngine Air Cleaner/Filter (Gasoline Engines) on
page 5-19.See footnote (p).•
Rotate tires and check ination pressures and wear. SeeTire Inspection and
Rotation on page 5-81and “Tire Wear Inspection” inAt Least Once a Month
on page 6-12.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid
as needed.••
6-5

Engine Oil Level Check
Notice:It is important to check the engine oil
regularly and keep it at the proper level. Failure to
keep the engine oil at the proper level can cause
damage to the engine not covered by your warranty.
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil (Gasoline Engine) on
page 5-15.
Engine Coolant Level Check
Check the engine coolant level and add DEX-COOL®
coolant mixture if necessary. SeeEngine Coolant
on page 5-28.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in the windshield
washer uid reservoir and add the proper uid if
necessary.
At Least Once a Month
Tire Ination Check
Inspect your vehicle’s tires and make sure they are
inated to the correct pressures. Do not forget to check
the spare tire. SeeInflation - Tire Pressure on
page 5-74. Check to make sure the spare tire is stored
securely. SeeChanging a Flat Tire on page 5-92.
Tire Wear Inspection
Tire rotation may be required for high mileage highway
drivers prior to the Engine Oil Life System service
notication. Check the tires for wear and, if necessary,
rotate the tires. SeeTire Inspection and Rotation on
page 5-81.
6-12

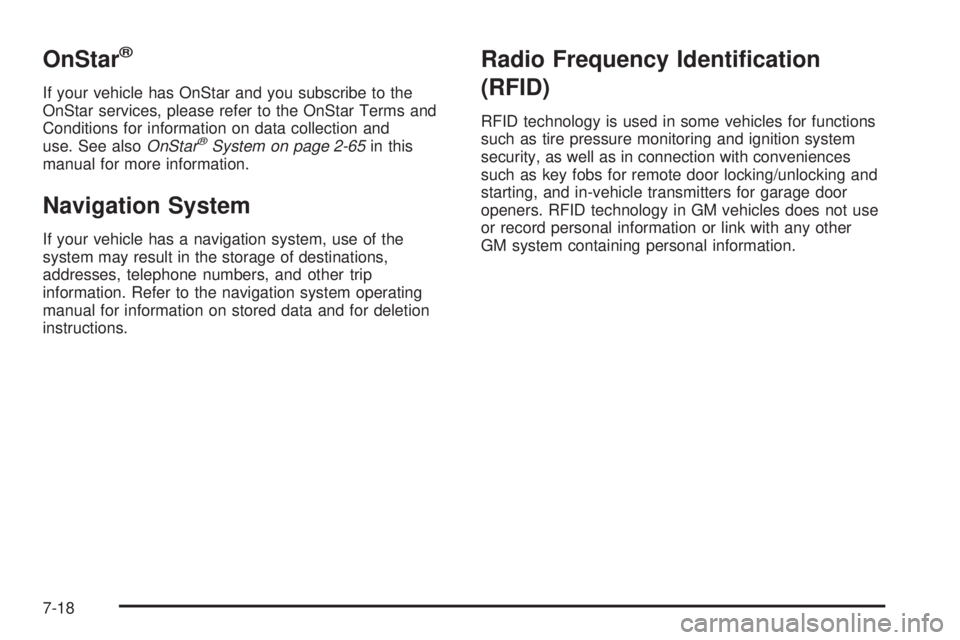

OnStar®
If your vehicle has OnStar and you subscribe to the
OnStar services, please refer to the OnStar Terms and
Conditions for information on data collection and
use. See alsoOnStar
®System on page 2-65in this
manual for more information.
Navigation System
If your vehicle has a navigation system, use of the
system may result in the storage of destinations,
addresses, telephone numbers, and other trip
information. Refer to the navigation system operating
manual for information on stored data and for deletion
instructions.
Radio Frequency Identication
(RFID)
RFID technology is used in some vehicles for functions
such as tire pressure monitoring and ignition system
security, as well as in connection with conveniences
such as key fobs for remote door locking/unlocking and
starting, and in-vehicle transmitters for garage door
openers. RFID technology in GM vehicles does not use
or record personal information or link with any other
GM system containing personal information.
7-18

Center High-Mounted Stoplamp (CHMSL) and
Cargo Lamp...............................................5-61
Center Seat...................................................1-12
Chains, Tire...................................................5-90
Charging System Light....................................3-43
Check
Engine Light...............................................3-48
Checking Things Under the Hood......................5-12
Chemical Paint Spotting.................................5-120
Child Restraints
Child Restraint Systems...............................1-42
Infants and Young Children...........................1-38
Lower Anchors and Tethers for Children..........1-45
Older Children.............................................1-35
Securing a Child Restraint in a Rear
Seat Position...........................................1-55
Securing a Child Restraint in the Center
Front Seat Position...................................1-57
Securing a Child Restraint in the Right Front
Seat Position...........................1-58, 1-62, 1-66
Where to Put the Restraint...........................1-44
Cigarette Lighter.............................................3-24
Cleaning
Aluminum or Chrome-Plated Wheels.............5-118
Exterior Lamps/Lenses................................5-116
Fabric/Carpet............................................5-114
Finish Care...............................................5-116
Instrument Panel, Vinyl, and Other Plastic
Surfaces...............................................5-115Cleaning (cont.)
Interior.....................................................5-112
Leather....................................................5-114
Tires........................................................5-119
Underbody Maintenance.............................5-119
Washing Your Vehicle.................................5-116
Weatherstrips............................................5-115
Windshield and Wiper Blades......................5-117
Climate Control System...........................3-25, 3-27
Dual Automatic............................................3-28
Outlet Adjustment........................................
3-33
Clock, Setting.................................................3-81
Collision Damage Repair..................................7-11
Compass...............................................2-55, 2-57
Content Theft-Deterrent....................................2-18
Control of a Vehicle.......................................... 4-3
Coolant
Engine Temperature Gage............................3-46
Heater, Engine............................................2-26
Surge Tank Pressure Cap.............................5-30
Cooling System..............................................5-34
Cruise Control................................................3-14
Cruise Control Light........................................3-52
Cupholder(s)..................................................2-75
Customer Assistance Information
Courtesy Transportation.................................. 7-9
Customer Assistance for Text
Telephone (TTY) Users............................... 7-5
Customer Assistance Offices........................... 7-5

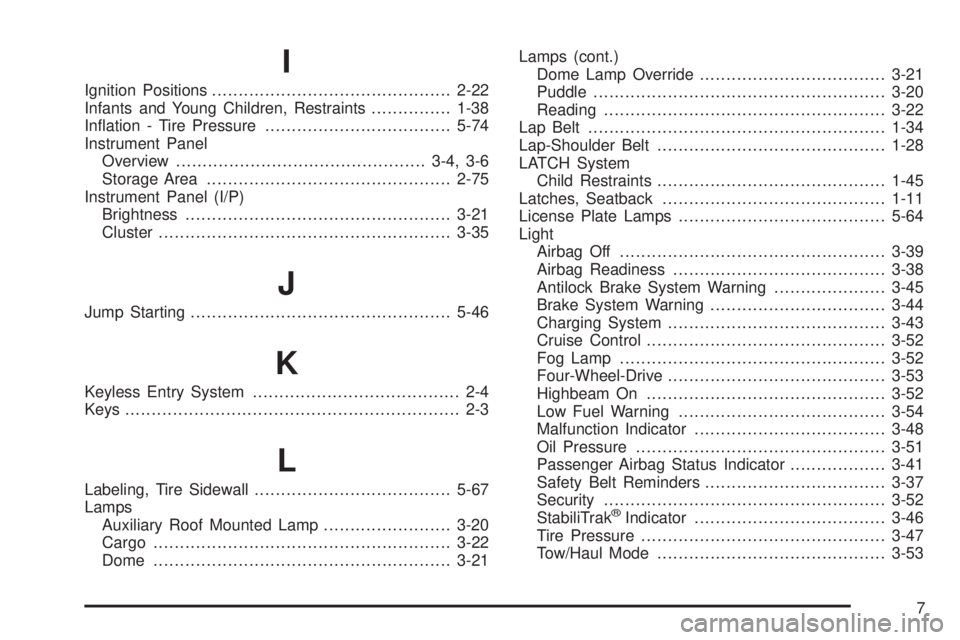

3

I
Ignition Positions.............................................2-22
Infants and Young Children, Restraints...............1-38
Ination - Tire Pressure...................................5-74
Instrument Panel
Overview...............................................3-4, 3-6
Storage Area..............................................2-75
Instrument Panel (I/P)
Brightness..................................................3-21
Cluster.......................................................3-35
J
Jump Starting.................................................5-46
K
Keyless Entry System....................................... 2-4
Keys............................................................... 2-3
L
Labeling, Tire Sidewall.....................................5-67
Lamps
Auxiliary Roof Mounted Lamp........................3-20
Cargo........................................................3-22
Dome........................................................3-21Lamps (cont.)
Dome Lamp Override...................................3-21
Puddle.......................................................3-20
Reading.....................................................3-22
Lap Belt........................................................1-34
Lap-Shoulder Belt...........................................1-28
LATCH System
Child Restraints...........................................1-45
Latches, Seatback..........................................1-11
License Plate Lamps.......................................5-64
Light
Airbag Off..................................................3-39
Airbag Readiness........................................3-38
Antilock Brake System Warning.....................3-45
Brake System Warning.................................3-44
Charging System.........................................3-43
Cruise Control.............................................3-52
Fog Lamp..................................................3-52
Four-Wheel-Drive.........................................3-53
Highbeam On.............................................3-52
Low Fuel Warning.......................................3-54
Malfunction Indicator....................................3-48
Oil Pressure...............................................3-51
Passenger Airbag Status Indicator..................3-41
Safety Belt Reminders..................................3-37
Security.....................................................3-52
StabiliTrak
®Indicator....................................3-46
Tire Pressure..............................................3-47
Tow/Haul Mode...........................................3-53
7

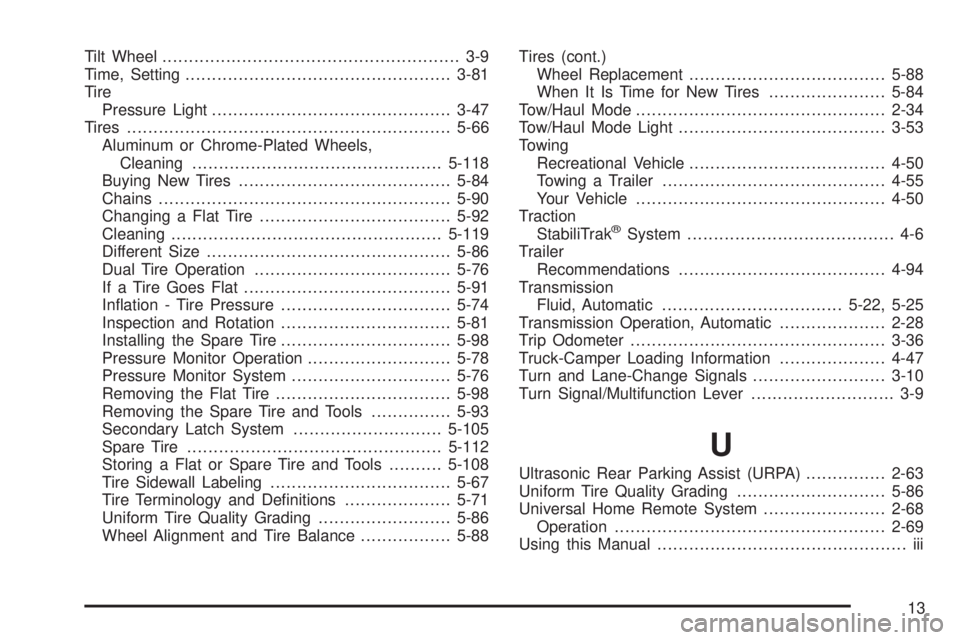

Tilt Wheel........................................................ 3-9
Time, Setting..................................................3-81
Tire
Pressure Light.............................................3-47
Tires.............................................................5-66
Aluminum or Chrome-Plated Wheels,
Cleaning...............................................5-118
Buying New Tires........................................5-84
Chains.......................................................5-90
Changing a Flat Tire....................................5-92
Cleaning...................................................5-119
Different Size..............................................5-86
Dual Tire Operation.....................................5-76
If a Tire Goes Flat.......................................5-91
Ination - Tire Pressure................................5-74
Inspection and Rotation................................5-81
Installing the Spare Tire................................5-98
Pressure Monitor Operation...........................5-78
Pressure Monitor System..............................5-76
Removing the Flat Tire.................................5-98
Removing the Spare Tire and Tools...............5-93
Secondary Latch System............................5-105
Spare Tire................................................5-112
Storing a Flat or Spare Tire and Tools..........5-108
Tire Sidewall Labeling..................................5-67
Tire Terminology and Denitions....................5-71
Uniform Tire Quality Grading.........................5-86
Wheel Alignment and Tire Balance.................5-88Tires (cont.)
Wheel Replacement.....................................5-88
When It Is Time for New Tires......................5-84
Tow/Haul Mode...............................................2-34
Tow/Haul Mode Light.......................................3-53
Towing
Recreational Vehicle.....................................4-50
Towing a Trailer..........................................4-55
Your Vehicle...............................................
4-50
Traction
StabiliTrak
®System....................................... 4-6
Trailer
Recommendations.......................................4-94
Transmission
Fluid, Automatic..................................5-22, 5-25
Transmission Operation, Automatic....................2-28
Trip Odometer................................................3-36
Truck-Camper Loading Information....................4-47
Turn and Lane-Change Signals.........................3-10
Turn Signal/Multifunction Lever........................... 3-9
U
Ultrasonic Rear Parking Assist (URPA)...............2-63
Uniform Tire Quality Grading............................5-86
Universal Home Remote System.......................2-68
Operation...................................................2-69
Using this Manual............................................... iii
13
