2008 GMC SIERRA Owner's Manual

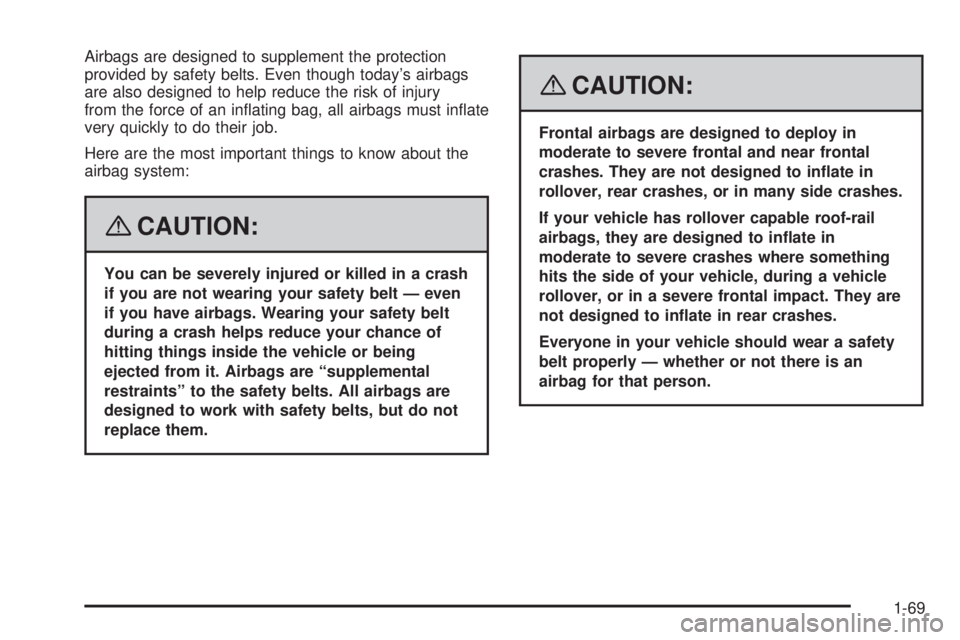

Airbags are designed to supplement the protection
provided by safety belts. Even though today’s airbags
are also designed to help reduce the risk of injury
from the force of an inating bag, all airbags must inate
very quickly to do their job.
Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash
if you are not wearing your safety belt — even
if you have airbags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being
ejected from it. Airbags are “supplemental
restraints” to the safety belts. All airbags are
designed to work with safety belts, but do not
replace them.
{CAUTION:
Frontal airbags are designed to deploy in
moderate to severe frontal and near frontal
crashes. They are not designed to inate in
rollover, rear crashes, or in many side crashes.
If your vehicle has rollover capable roof-rail
airbags, they are designed to inate in
moderate to severe crashes where something
hits the side of your vehicle, during a vehicle
rollover, or in a severe frontal impact. They are
not designed to inate in rear crashes.
Everyone in your vehicle should wear a safety
belt properly — whether or not there is an
airbag for that person.
1-69

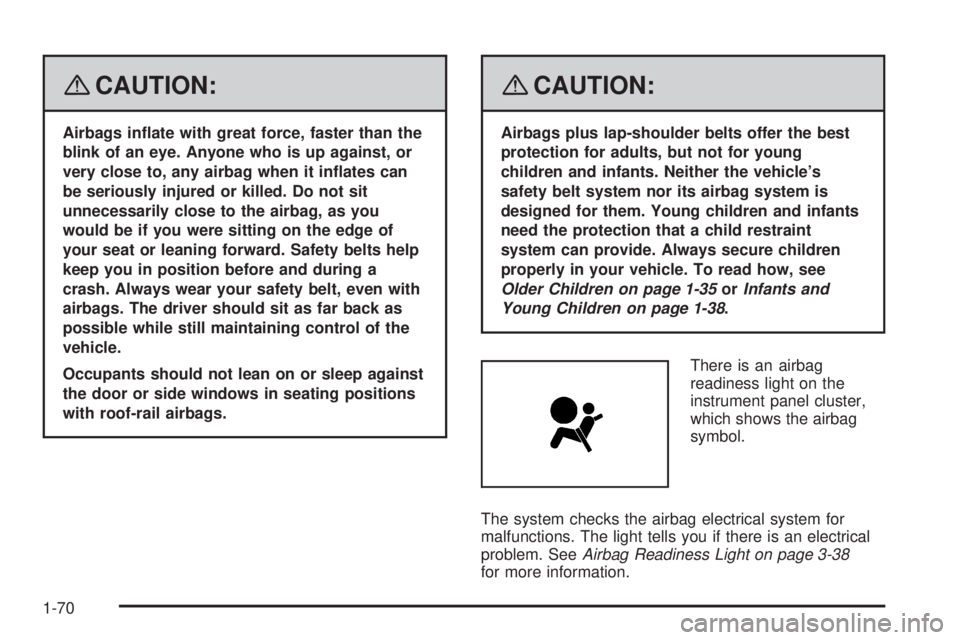

{CAUTION:
Airbags inate with great force, faster than the
blink of an eye. Anyone who is up against, or
very close to, any airbag when it inates can
be seriously injured or killed. Do not sit
unnecessarily close to the airbag, as you
would be if you were sitting on the edge of
your seat or leaning forward. Safety belts help
keep you in position before and during a
crash. Always wear your safety belt, even with
airbags. The driver should sit as far back as
possible while still maintaining control of the
vehicle.
Occupants should not lean on or sleep against
the door or side windows in seating positions
with roof-rail airbags.
{CAUTION:
Airbags plus lap-shoulder belts offer the best
protection for adults, but not for young
children and infants. Neither the vehicle’s
safety belt system nor its airbag system is
designed for them. Young children and infants
need the protection that a child restraint
system can provide. Always secure children
properly in your vehicle. To read how, see
Older Children on page 1-35orInfants and
Young Children on page 1-38.
There is an airbag
readiness light on the
instrument panel cluster,
which shows the airbag
symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-38
for more information.
1-70

Where Are the Airbags?
The driver’s airbag is in the middle of the steering
wheel.The right front passenger’s airbag is in the instrument
panel on the passenger’s side.
1-71

If your vehicle has roof-rail airbags for the driver, right
front passenger, and second row outboard passengers,
they are in the ceiling above the side windows.
{CAUTION:
If something is between an occupant and an
airbag, the airbag might not inate properly or
it might force the object into that person
causing severe injury or even death. The path
of an inating airbag must be kept clear. Do
not put anything between an occupant and an
airbag, and do not attach or put anything on
the steering wheel hub or on or near any other
airbag covering.
If your vehicle has roof-rail airbags, never
secure anything to the roof of your vehicle by
routing the rope or tie down through any door
or window opening. If you do, the path of an
inating roof-rail airbag will be blocked. Driver Side shown, Passenger Side similar
1-72

When Should an Airbag Inate?
Frontal airbags are designed to inate in moderate to
severe frontal or near-frontal crashes to help reduce the
potential for severe injuries mainly to the driver’s or
right front passenger’s head and chest. However, they
are only designed to inate if the impact exceeds a
predetermined deployment threshold. Deployment
thresholds are used to predict how severe a crash is
likely to be in time for the airbags to inate and
help restrain the occupants.
Whether your frontal airbags will or should deploy is not
based on how fast your vehicle is traveling. It depends
largely on what you hit, the direction of the impact,
and how quickly your vehicle slows down.
Frontal airbags may inate at different crash speeds.
For example:
If the vehicle hits a stationary object, the airbags
could inate at a different crash speed than if the
vehicle hits a moving object.
If the vehicle hits an object that deforms, the
airbags could inate at a different crash speed than
if the vehicle hits an object that does not deform.
If the vehicle hits a narrow object (like a pole), the
airbags could inate at a different crash speed
than if the vehicle hits a wide object (like a wall).
If the vehicle goes into an object at an angle, the
airbags could inate at a different crash speed
than if the vehicle goes straight into the object.
Thresholds can also vary with specic vehicle design.
Frontal airbags are not intended to inate during vehicle
rollovers, rear impacts, or in many side impacts.
If the GVWR (Gross Vehicle Weight Rating) of your
vehicle is 8,500 lb (3 855 kg) or above, your vehicle has
single stage airbags. If the GVWR is below 8,500 lb
(3 855 kg) then your vehicle has dual stage airbags. You
can nd the GVWR on the certication label on the
rear edge of the driver’s door. SeeLoading Your Vehicle
on page 4-36for more information.
In addition, your vehicle may have dual-stage frontal
airbags. Dual-stage airbags adjust the restraint
according to crash severity. Your vehicle has electronic
frontal sensors, which help the sensing system
distinguish between a moderate frontal impact and a
more severe frontal impact. For moderate frontal
impacts, dual-stage airbags inate at a level less than
full deployment. For more severe frontal impacts,
full deployment occurs.
1-73

Vehicles with dual stage airbags also have seat position
sensors which enables the sensing system to monitor
the position of the driver’s seat. The seat position sensor
provides information that is used to determine if the
airbags should deploy at a reduced level or at full
deployment.
Your vehicle may or may not have roof-rail airbags. See
Airbag System on page 1-68. Roof-rail airbags are
intended to inate in moderate to severe side crashes.
In addition, these roof-rail airbags are intended to
inate during a rollover or in a severe frontal impact.
Roof-rail airbags will inate if the crash severity is above
the system’s designed threshold level. The threshold
level can vary with specic vehicle design.
Roof-rail airbags are not intended to inate in rear
impacts. Both roof-rail airbags will deploy when either
side of the vehicle is struck, or if the sensing system
predicts that the vehicle is about to roll over, or in
a severe frontal impact.
In any particular crash, no one can say whether an
airbag should have inated simply because of the
damage to a vehicle or because of what the repair costs
were. For frontal airbags, ination is determined by
what the vehicle hits, the angle of the impact, and how
quickly the vehicle slows down. For roof-rail airbags,
deployment is determined by the location and severity of
the side impact. In a rollover event, roof-rail airbag
deployment is determined by the direction of the roll.What Makes an Airbag Inate?
In a deployment event, the sensing system sends an
electrical signal triggering a release of gas from
the inator. Gas from the inator lls the airbag causing
the bag to break out of the cover and deploy. The
inator, the airbag, and related hardware are all part of
the airbag module.
Frontal airbag modules are located inside the steering
wheel and instrument panel. For vehicles with
roof-rail airbags, there are airbag modules in the ceiling
of the vehicle, near the side windows that have
occupant seating positions.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel or
the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle.
Airbags supplement the protection provided by safety
belts. Frontal airbags distribute the force of the
impact more evenly over the occupant’s upper body,
stopping the occupant more gradually. Roof-rail airbags
distribute the force of the impact more evenly over
the occupant’s upper body.
1-74

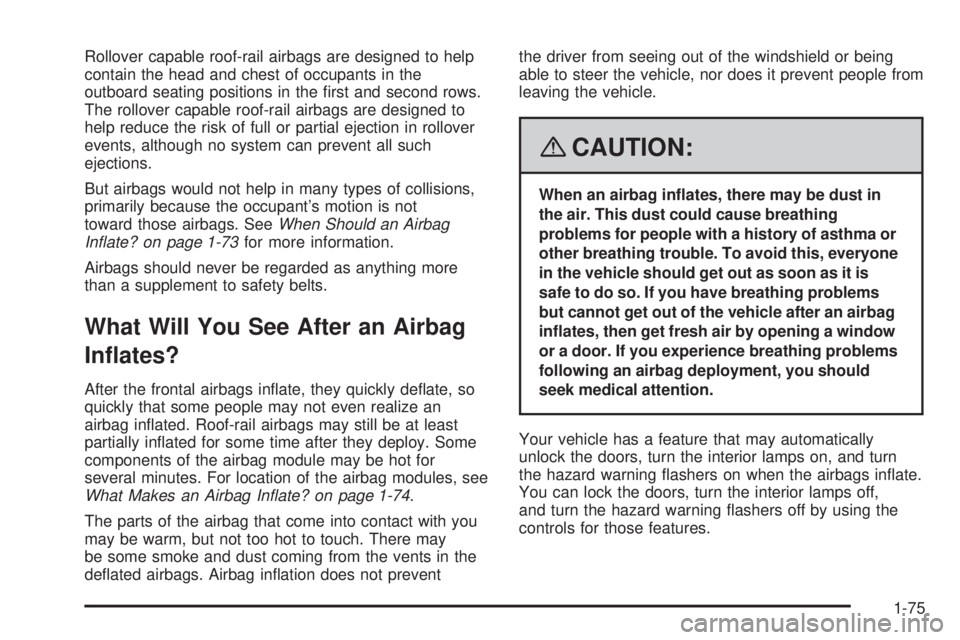

Rollover capable roof-rail airbags are designed to help
contain the head and chest of occupants in the
outboard seating positions in the rst and second rows.
The rollover capable roof-rail airbags are designed to
help reduce the risk of full or partial ejection in rollover
events, although no system can prevent all such
ejections.
But airbags would not help in many types of collisions,
primarily because the occupant’s motion is not
toward those airbags. SeeWhen Should an Airbag
Inflate? on page 1-73for more information.
Airbags should never be regarded as anything more
than a supplement to safety belts.
What Will You See After an Airbag
Inates?
After the frontal airbags inate, they quickly deate, so
quickly that some people may not even realize an
airbag inated. Roof-rail airbags may still be at least
partially inated for some time after they deploy. Some
components of the airbag module may be hot for
several minutes. For location of the airbag modules, see
What Makes an Airbag Inflate? on page 1-74.
The parts of the airbag that come into contact with you
may be warm, but not too hot to touch. There may
be some smoke and dust coming from the vents in the
deated airbags. Airbag ination does not preventthe driver from seeing out of the windshield or being
able to steer the vehicle, nor does it prevent people from
leaving the vehicle.
{CAUTION:
When an airbag inates, there may be dust in
the air. This dust could cause breathing
problems for people with a history of asthma or
other breathing trouble. To avoid this, everyone
in the vehicle should get out as soon as it is
safe to do so. If you have breathing problems
but cannot get out of the vehicle after an airbag
inates, then get fresh air by opening a window
or a door. If you experience breathing problems
following an airbag deployment, you should
seek medical attention.
Your vehicle has a feature that may automatically
unlock the doors, turn the interior lamps on, and turn
the hazard warning ashers on when the airbags inate.
You can lock the doors, turn the interior lamps off,
and turn the hazard warning ashers off by using the
controls for those features.
1-75

In many crashes severe enough to inate the airbag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur from the
right front passenger airbag.
Airbags are designed to inate only once. After an
airbag inates, you will need some new parts for
the airbag system. If you do not get them, the airbag
system will not be there to help protect you in
another crash. A new system will include airbag
modules and possibly other parts. The service
manual for your vehicle covers the need to replace
other parts.
Your vehicle has a crash sensing and diagnostic
module which records information after a crash.
SeeVehicle Data Recording and Privacy on
page 7-16andEvent Data Recorders on page 7-17.
Let only qualied technicians work on the airbag
systems. Improper service can mean that an
airbag system will not work properly. See your
dealer/retailer for service.
Airbag Off Switch
If one of the switches pictured in the following
illustrations is located in your glove box, your vehicle
has an airbag on-off switch that you can use to manually
turn on or off the right front passenger’s airbag. Your
switch may vary slightly.
If your vehicle does not have an airbag off switch, it
may have a passenger sensing system. SeePassenger
Sensing System on page 1-80. United States
Canada
1-76
