2008 GEELY FC audio

Change..........................................................
234
Condenser Assembly...........................................
236
Inspection on the automobile.......................
236
Overhaul........................................................
236
Supplemental restraint system
Note....................................................................
239
Malfunction treatment.........................................
244
Repair.................................................................
247
Inspection...........................................................
249
Remove malfunction...........................................
251
Malfunction table............................................
251
Diagnosis of impacted automobile.................
260
Disassemble and assemble...............................
261
Electronic control unit of safety airbag (ECU)..
261
Safety airbag assembly at the side of driver..
261
Safety airbag assemble at the side of passenger....263
Scrap treatment for safety airbag..................
264
Safety belt
Safety belt..........................................................
270
Note...............................................................
270
Treatment.......................................................
270
Subassembly.................................................
273
Change..........................................................
274
Rear safety belt..................................................
275
Subassembly.................................................
275
Change..........................................................
277
Light
Light System.......................................................
279
Notes..............................................................
279
The phenomena table....................................
279
Inspect the car...............................................
281
Inspect...........................................................
283
Front combination light (LH)..............................
286
Subassembly................................................
286
Change..........................................................
287Adjustments..................................................
287
Front fog light.....................................................
289
Components.................................................
289
Change..........................................................
290
Adjustment....................................................
290
Side turning light................................................
291
Components.................................................
291
Rear combination light (LH)..............................
292
Components.................................................
292
Change..........................................................
293
Rear fog light......................................................
294
Components.................................................
294
Change..........................................................
295
Number plate light.............................................
296
Change..........................................................
296
High brake light assembly.................................
297
Change..........................................................
297
Left combination switch.....................................
298
Change..........................................................
298
Wiper and cleaner
Wiper and cleaner system.................................
299
Malfunction phenomena table......................
299
Inspect the car...............................................
299
Inspect...........................................................
300
Right combination switch.................................
302
Change..........................................................
302
Wiper motor.......................................................
303
Change..........................................................
303
Wiper..................................................................
305
Change..........................................................
305
Cleaner nozzle...................................................
306
Adjustments..................................................
306
Audio system
Audio system.....................................................
307
Notes.............................................................
307
Radio assembly.................................................
308

Audio system
Audio system
Notes
1. Observe notes for disposal and operation
(a) Please explain to customers: when take battery’s negative terminal off, the memory broadcasting
station on the audio AM/FM set on the radio will be deleted. So, before taking battery
s negative
terminal off ,note the station’s information according to your need. After taking back negative terminal,
set former station again.
(b) Before disassemble/assemble the radio, inspect and take cassette and CD out in.
Clues on: the malfunction of disassemble/assemble the radio is because the tape or CD can
not take out. Do not take it out by force. Drive the car to the service station.
(c) Do not touch the audio film of loudhailer
2. Refer to instructions about using and maintaining audio system
Audio system--Audio system
 307

Audio system--Radio assembly
Radio assembly
Change
1. Disassemble the CD machine assembly (referring to page 342)
2. Disassemble radio assembly
(a) Disassemble four bolts as the drawing.
(b) Take the joint apart, then disassemble radio assembly.
 308

Left front door loudhailer
Change
1. Disassemble left front door control panel assembly
[68000142]
2. Disassemble left front door inner guard board as-
sembly [68010049]
3. Disassemble left front door water screen assembly
[68000140]
4. Disassemble left front door loudhailer assembly
[67000127]
(a) Disassemble three rivets.
(b) Disassemble the joint, then disassemble left front loudhailer.
5. Diasassemble left front door loudhailer assembly
[67000127]
(a) Use three new rivets to assemble new left front door
loudhailer assembly.
(b) Connect the joint.
6.Replace right front door loudhailer,just as upper
method
Audio system--Left front door loudhailer
 309

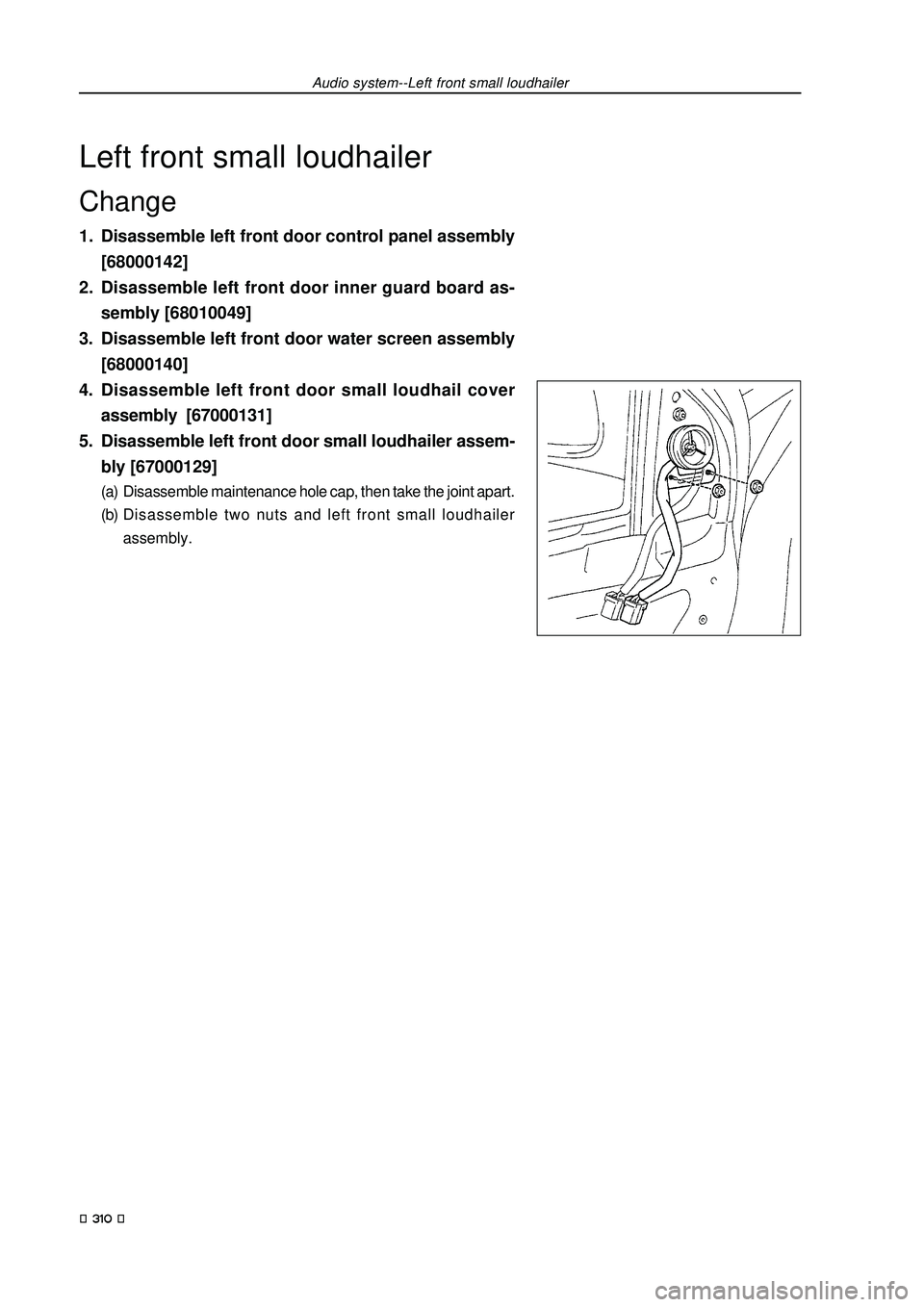

Audio system--Left front small loudhailer
Left front small loudhailer
Change
1. Disassemble left front door control panel assembly
[68000142]
2. Disassemble left front door inner guard board as-
sembly [68010049]
3. Disassemble left front door water screen assembly
[68000140]
4. Disassemble left front door small loudhail cover
assembly [67000131]
5. Disassemble left front door small loudhailer assem-
bly [67000129]
(a) Disassemble maintenance hole cap, then take the joint apart.
(b) Disassemble two nuts and left front small loudhailer
assembly.
 310

Rear loudhailer
Change
1. Disassemble rear platform sun blind assembly [68010032] (referring to page 277)
2. Disassemble rear loudhailer assembly [67000133]
Disassemble eight tapping screws and two loudhailers.
Audio system--Rear loudhailer
 311

Audio system--Outdoor antenna
Outdoor antenna
Change
1. Disassemble battery negative wire
2. Put the front tyre forward
3. Disassemble safety airbag assembly at the side of the driver
4. Disassemble steering wheel
5. Disassemble integration instrument cap
6. Disassemble integration instrument
7. Disassemble panel NO.3 air outlet
8. Disassemble panel NO.1 air outlet
9. Disassemble panel center air outlet trim board
10. Disassemble glove box
11. Disassemble right front pillar trim board
12. Disassemble left front pillar trim board.
13. Disassemble the joint of the safety airbag at the side of the passenger
14. Disassemble panel
15. Disassemble right front door trim board.
16. Disassemble right side trim board.
17. Disassemble antenna assembly [67000136]
(a) Take removable antenna pillar plug apart from radio.
18. Assemble antenna assembly [67000136]
19. Assemble panel
20. Assemble helix cable.
21. Assemble steering wheel
22. Inspect steering wheel whether it dead against the center.
23. Inspect horn button.
24 Assemble horn button
25. Inspect SRS warning light
 312

Circuitry--Power supply
1. ST startup system
2. HEAD MAIN light system
3. spare
4. ECU instrument travel
computer (Aldine)
5. horn
6. turn light, alarm light
7. charging system
8. air condition system
9. electric injection system
10. audio system, air condition,
instrument, room light, trunk
light, door light
11. AM2 startup system
12. spare safety
13. spare safety
14. spare safety
15. spare safety
16. electric chair (Aldine)
17. electric fan
18. ABS system
19. ABS system20. left distance headlight
21. right distantce headlight
22. left low beams
23. right low beams
 314
