2008 GEELY FC wheel

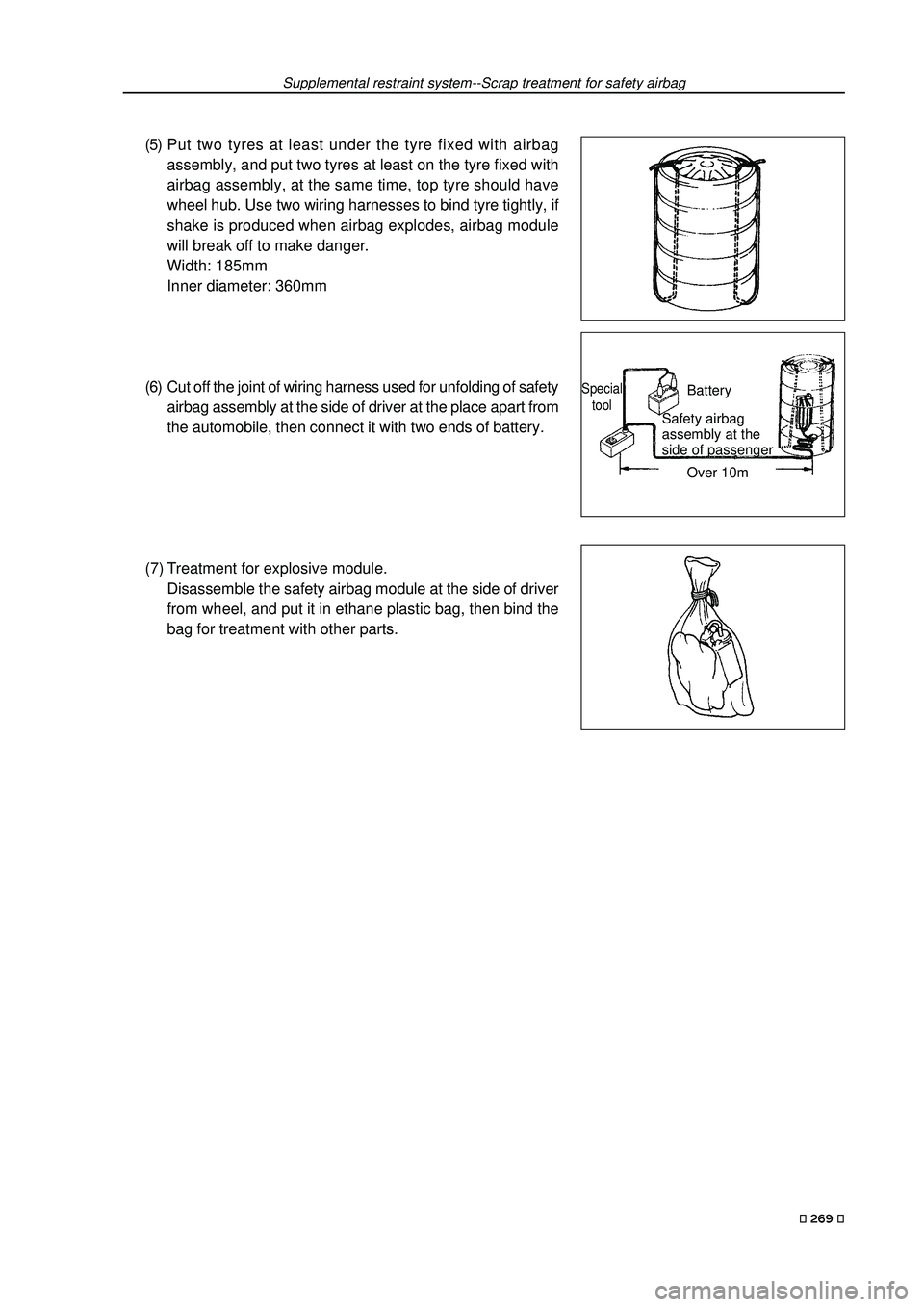

Supplemental restraint system--Scrap treatment for safety airbag
Special
tool
Safety airbag
assembly at the
side of passengerBattery
Over 10m
(5) Put two tyres at least under the tyre fixed with airbag
assembly, and put two tyres at least on the tyre fixed with
airbag assembly, at the same time, top tyre should have
wheel hub. Use two wiring harnesses to bind tyre tightly, if
shake is produced when airbag explodes, airbag module
will break off to make danger.
Width: 185mm
Inner diameter: 360mm
(6) Cut off the joint of wiring harness used for unfolding of safety
airbag assembly at the side of driver at the place apart from
the automobile, then connect it with two ends of battery.
(7) Treatment for explosive module.
Disassemble the safety airbag module at the side of driver
from wheel, and put it in ethane plastic bag, then bind the
bag for treatment with other parts.
 269

Audio system--Outdoor antenna
Outdoor antenna
Change
1. Disassemble battery negative wire
2. Put the front tyre forward
3. Disassemble safety airbag assembly at the side of the driver
4. Disassemble steering wheel
5. Disassemble integration instrument cap
6. Disassemble integration instrument
7. Disassemble panel NO.3 air outlet
8. Disassemble panel NO.1 air outlet
9. Disassemble panel center air outlet trim board
10. Disassemble glove box
11. Disassemble right front pillar trim board
12. Disassemble left front pillar trim board.
13. Disassemble the joint of the safety airbag at the side of the passenger
14. Disassemble panel
15. Disassemble right front door trim board.
16. Disassemble right side trim board.
17. Disassemble antenna assembly [67000136]
(a) Take removable antenna pillar plug apart from radio.
18. Assemble antenna assembly [67000136]
19. Assemble panel
20. Assemble helix cable.
21. Assemble steering wheel
22. Inspect steering wheel whether it dead against the center.
23. Inspect horn button.
24 Assemble horn button
25. Inspect SRS warning light
 312

Panel/combination instrument-- panel
CodeShape
CodeShape
CodeShape
<>
=4.8
=13
2204813<>
=4.8
=19
2754819<>
=6
=20
1740620
<>
=4.8
=9.5
2754895<>
=6
=16
1400616<>
=6
=20
1400620
Panel
Preparation
1. Automobile prepares to equip with SRS airbag and safety belt pre-tension crimper.
Parking disassembling and assembling works in this chapter might influence SRS airbag. Before imple-
menting these works, it is necessary to read the notes in SRS chapter.
Change
1. Schedule for bolt, screw and screw cap
Note: when using screw driver to unclench fixing clasp or fixing clamp, it is necessary to wrap
the needled top of wrench with adhesive tape.
Hint: when disassembling or assembling panel, if necessary, use the figure and code in following
table to choose bolt, screw and screw cap.
2. Preparation
3. Disassemble leading wire of battery cathode
4. Turn front wheel to face the front
 340
mm

Panel/combination instrument-- panel
3 Fixing clamp
4 Fixing clasp
5. Disassemble safety airbag assembly at the side of
driver [67010011] (Referring to page 261)
6. Disassemble steering wheel assembly [67010001]
(referring to page 194)
7. Disassemble Combination instrument cover
[68000077]
(a) Disassemble fixing clamp.
(b) Use screw driver to unclench three fixing clamps and four
fixing clasps, then disassemble Combination instrument.
Hint: before using screw driver, it is necessary to wrap
its needled top with adhesive tape.
8. Disassemble Combination instrument assembly
[67000081]
(a) Disassemble A screw.
(b) Liking that shown in figure, unclench two fixing clamps.
(c) Disassemble the joint, then disassemble Combination in-
strument assembly.
9. Disassemble panel left ventilation hole assembly
[68010010]
Use disassembling tool for trim tape to disassemble panel left
ventilation hole assembly.
Hint: before using screw driver, it is necessary to wrap its
needled top with adhesive tape.
10. Disassemble panel right ventilation hole assembly
[68010011]
11. Disassemble front ashtray
12. Disassemble shift organization trim board assem-
bly [68000076]
(a) Use screw driver to unclench six fixing clamps.
Hint: before using screw driver, it is necessary to wrap
its needled top with adhesive tape.
(b) Disassemble the joint, then disassemble shift organization
trimmain board.
 341
4 Fixing clasp
6 Fixing clamp

Panel/combination instrument--panel
(b) Assemble CD machine assembly and panel central ventila-
tion hole assembly.
36. Assemble helix cable assembly (referring to page
261)
37. Assemble steering wheel assembly [67010001]
(referring to page 194)
38. Check the central position of steering wheel.
39. Check the safety airbag assembly at the side of
driver [67010011] (referring to page 249)
40. Assemble the safety airbag assembly at the side of
driver [67010011]
41. Check the warning light of SRS airbag
Fixing
clamp
4 Fixing
clamp
 346

Exterior/inner trim board--Front bumper
Exterior/inner trim board
Front bumper
Subassembly
Inner gasket of
right front wheel
Inner gasket of
left front wheel Fixing pedestal of
radar probe
Radar probe head
Radar probe head
Fixing pedestal of
radar probe head
Front fog light assemblyRadiator cover
assembly
Front bumper
Equipping with fog light
 379

Exterior/inner trim board--Front bumper
Change
Hint:
zWhen assembling, please work by the sequence which is opposite with disassembling
sequence; if necessary, it will have assembling instruction.
zPlease refer to subassembly figure of front bumper on page 379.
1. Disassemble radiator cover assembly [68000094]
(a) Disassemble the bolt and radiator cover assembly.
2. Disassemble inner gasket of left front wheel [68000225]
(a) Use disassembling tool for fixing clamp to disassemble two fixing clamps.
(b) Disassemble the screw and a part of inner gasket of left front wheel.
Hint: Disassemble the fixing clamp of screw and inner gasket of left front wheel in the scope of
front bumper which could be disassembled.
3. Disassemble inner gasket of right front wheel [68000228]
4. Disassemble front bumper [68000005]
(a) Disassemble four screws and two fixing clamps.
(b) Disassemble fixing clasp and front bumper.
(c) Equipping with fog light: disassemble two joints of fog light.
(d) Equipping with radar probe head: disassemble two radar probe heads (luxury type).
5. Disassemble reversing radar probe head assembly.
(a) Disassemble two fixing pedestals of radar probe head and two radar probe heads.
6. Disassemble left front fog light assembly [67000098]
(a) Disassemble fixing clasp and left front fog light assembly.
7. Disassemble right front fog light assembly [67000099]
 380

Rear bumper
Subassembly
Exterior/inner trim board--Rear bumper
Equipping with
reversing radar:
reversing radar
probe headEquipping with
reversing radar:
reversing radar
probe head Equipping with radar:
fixing pedestal of radar
probe head Left decoration of
luggage cas
Right decoration of trunk
Rear trim board of
trunk
Trim board of right
rear wheel
Mudguard of left
rear wheelRear bumper
Mudguard of right
rear wheel Trim board of left
rear wheel
 381
