2008 FORD F350 Owners Manual

Item Capacity Ford part nameFord part number /
Ford specification
Hinges, latches, striker
plates, fuel filler door
hinge and seat tracks— Multi-Purpose GreaseXG–4 or XL-5 /
ESB-M1C93–B
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 / None
Transmission / parking
brake linkages and
pivots, brake and clutch
pedal shaft (if
equipped)—Motorcraft Premium
Long-Life GreaseXG-1-C or XG-1-K /
WSD-M1C227-A
Power steering fluidKeep fluid level
between MIN and
MAX on reservoirMERCON
V Automatic
Transmission FluidXT-5-QMC / MERCON

V
Transfer case fluid 2.0 quarts (1.9L)Motorcraft Transfer Case
FluidXL-12 / —
Manual transmission
fluid5.8 quarts (5.5L)
4
Motorcraft Full Synthetic
Manual Transmission
FluidXT-M5-QM /
WSS-M2C200–C
Automatic transmission
fluid
3
17.5 quarts
(16.6L)
5(includes
remote filter
element change)Motorcraft MERCON
SP
AT FXT-6–QSP/MERCON
SP
2008 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
385
ProCarManuals.com

Item Capacity Ford part nameFord part number /
Ford specification
Windshield washer fluid 3.5 quarts (3.3L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32–A /
WSB-M8B16–A2
1Add 8 oz. (236 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford Specification
EST-M2C118–A for complete refill of limited slip Ford axles. Ford design rear axles contain a
synthetic lubricant that does not require changing unless the axle has been submerged in water.2Add the coolant type originally equipped in your vehicle.3Ensure the correct automatic transmission fluid is used. Transmission fluid requirements are
indicated on the dipstick blade or the dipstick handle. Check the container to verify the fluid being
added is of the correct type. Refer to yourscheduled maintenance informationto determine the
correct service interval.
Automatic transmissions that require MERCON
SP should only use MERCON
SP fluid.
Use of a dual usage fluid in an automatic transmission requiring MERCON
SP may cause
transmission damage. Use of any fluid other than the recommended fluid may cause
transmission damage.4Service refill capacity is determined by filling the transmission to the bottom of the filler hole with
the vehicle on a level surface. The 6–speed manual transmission is equipped with an in-tank cooler.
Verify the fluid level after operating vehicle to ensure correct fluid level.5Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.6Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.
2008 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
386
ProCarManuals.com

ENGINE DATA
Engine 5.4L V8 engine 6.8L V10 engine
Cubic inches 330 415
Required fuel 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Spark plug gap1.02–1.28mm
(0.040–0.050 inch)*1.02–1.28mm
(0.040–0.050 inch)*
Ignition system Coil on plug Coil on plug
Compression ratio 9.8:1 9.2:1
*The 5.4L 3V and 6.8L 3V spark plug gap CANNOT be adjusted.
Drivebelt routing
5.4L V8/6.8L V10 engines
2008 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
387
ProCarManuals.com

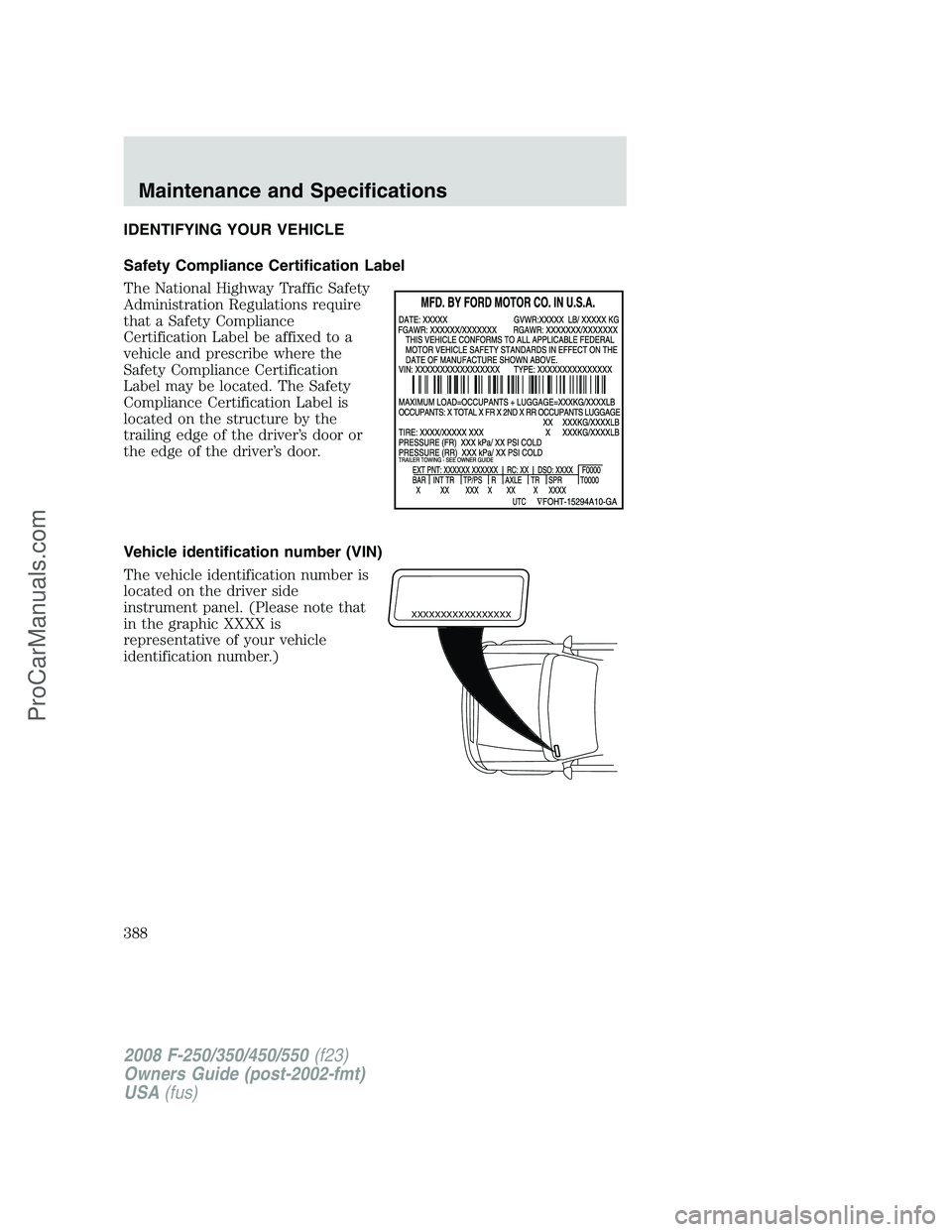

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure by the
trailing edge of the driver’s door or
the edge of the driver’s door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
XXXXXXXXXXXXXXXXX
2008 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
388
ProCarManuals.com

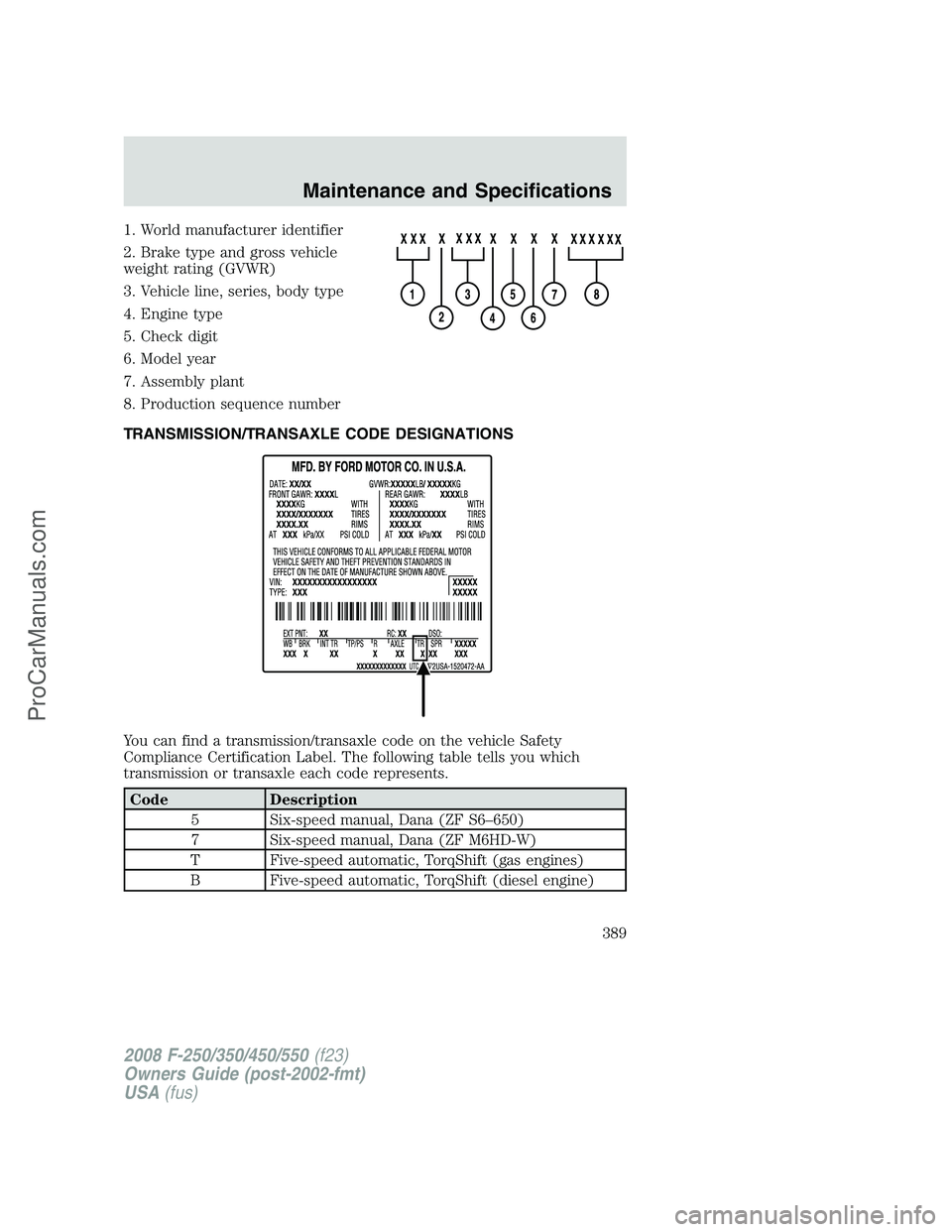

1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a transmission/transaxle code on the vehicle Safety
Compliance Certification Label. The following table tells you which
transmission or transaxle each code represents.
Code Description
5 Six-speed manual, Dana (ZF S6–650)
7 Six-speed manual, Dana (ZF M6HD-W)
T Five-speed automatic, TorqShift (gas engines)
B Five-speed automatic, TorqShift (diesel engine)
2008 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
389
ProCarManuals.com

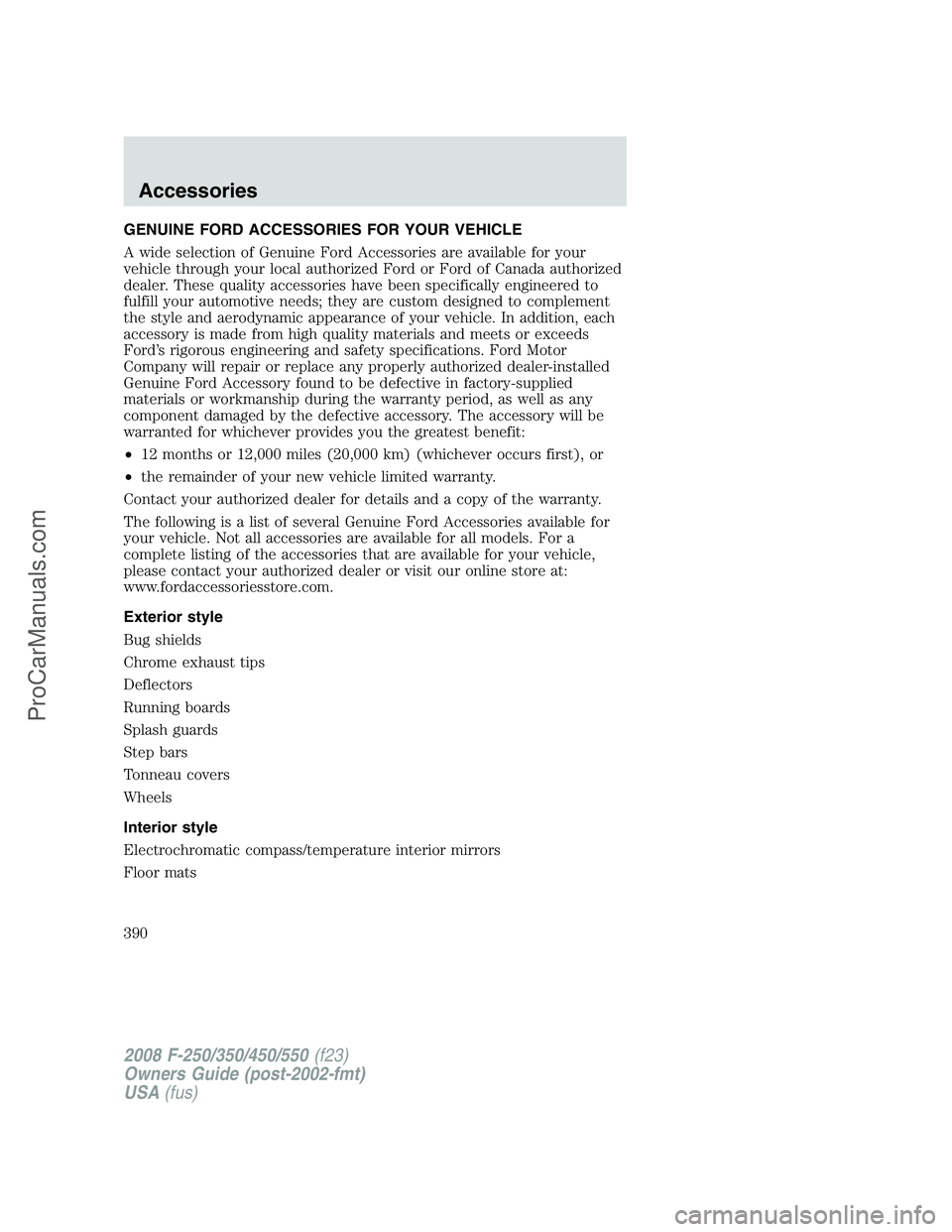

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local authorized Ford or Ford of Canada authorized
dealer. These quality accessories have been specifically engineered to
fulfill your automotive needs; they are custom designed to complement
the style and aerodynamic appearance of your vehicle. In addition, each
accessory is made from high quality materials and meets or exceeds
Ford’s rigorous engineering and safety specifications. Ford Motor
Company will repair or replace any properly authorized dealer-installed
Genuine Ford Accessory found to be defective in factory-supplied
materials or workmanship during the warranty period, as well as any
component damaged by the defective accessory. The accessory will be
warranted for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your authorized dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories available for
your vehicle. Not all accessories are available for all models. For a
complete listing of the accessories that are available for your vehicle,
please contact your authorized dealer or visit our online store at:
www.fordaccessoriesstore.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Running boards
Splash guards
Step bars
Tonneau covers
Wheels
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
2008 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
390
ProCarManuals.com

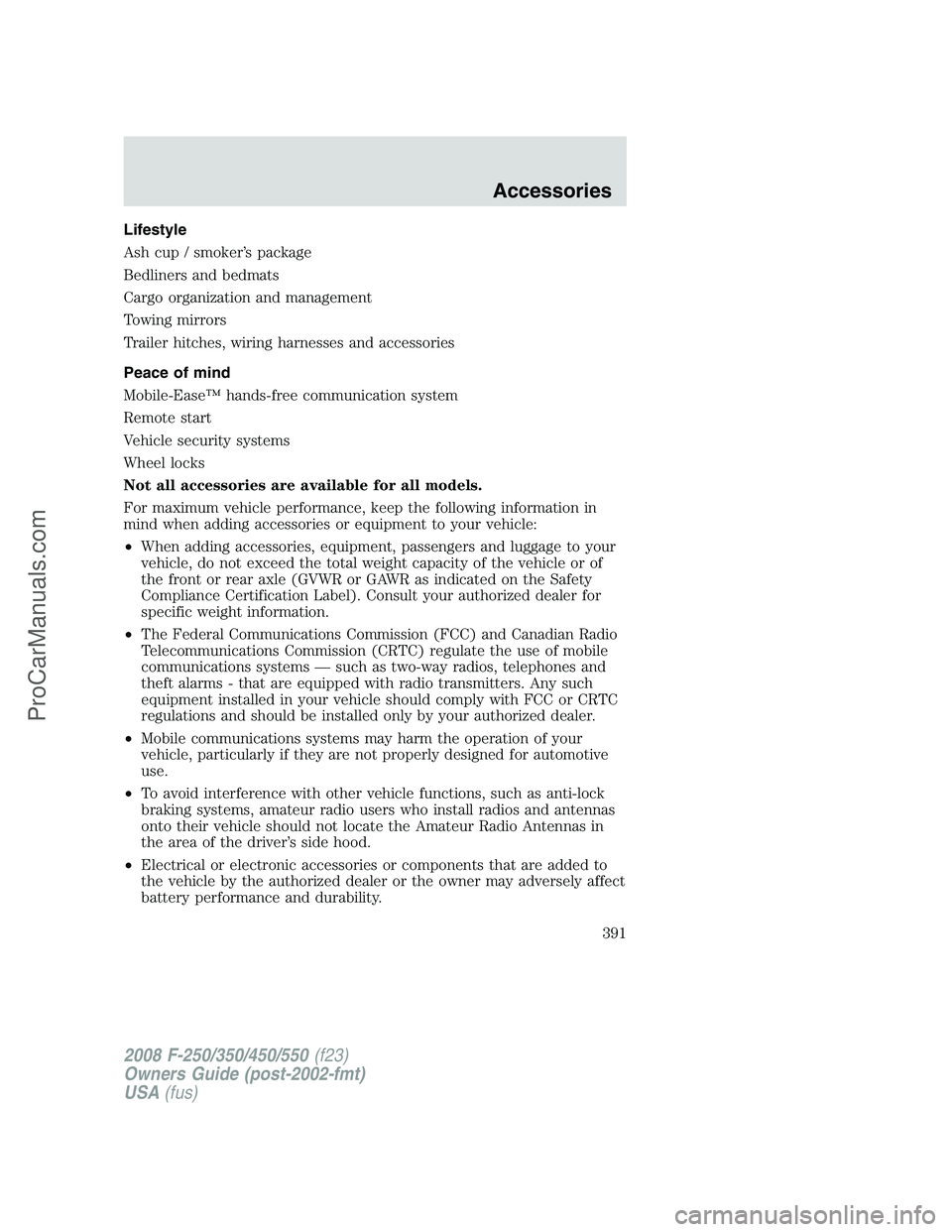

Lifestyle
Ash cup / smoker’s package
Bedliners and bedmats
Cargo organization and management
Towing mirrors
Trailer hitches, wiring harnesses and accessories
Peace of mind
Mobile-Ease™ hands-free communication system
Remote start
Vehicle security systems
Wheel locks
Not all accessories are available for all models.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification Label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by your authorized dealer.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2008 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
391
ProCarManuals.com

A
Accessory delay ........................103
Air cleaner filter ...............380, 382
Air conditioning ..........................80
Airbag supplemental restraint
system ........................................184
and child safety seats ............185
description ..............................184
disposal ....................................188
driver airbag ............................186
indicator light .........................187
operation .................................186
passenger airbag .....................186
passenger deactivation
switch ......................................188
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................356
Anti-lock brake system
(see Brakes) ......................260–261
Anti-theft system ......................159
arming the system ..................160
Audio system
(see Radio) ......................23, 25, 32
Automatic transmission ............265
driving an automatic
overdrive .................................267
fluid, adding ............................375
fluid, checking ........................375
fluid, refill capacities ..............383
Auxiliary Input Jack ...................40
Auxiliary power point ...............100
Axle
refill capacities ........................383
traction lok ..............................264
B
Battery .......................................354acid, treating emergencies .....354
jumping a disabled battery ....322
maintenance-free ....................354
replacement, specifications ...382
servicing ..................................354
Belt-Minder
.............................179
Brakes ........................................260
anti-lock ...........................260–261
anti-lock brake system (ABS)
warning light ...........................261
fluid, checking and adding ....374
fluid, refill capacities ..............383
parking ....................................261
shift interlock ..........................265
trailer .......................................246
Break-in period .............................5
Bulbs ............................................91
C
Capacities for refilling fluids ....383
Cassette tape player ...................23
Cell phone use ..............................7
Child safety restraints ..............193
child safety belts ....................193
Child safety seats ......................196
attaching with tether straps ..200
in front seat ............................197
in rear seat ..............................197
Cleaning your vehicle
engine compartment ..............338
instrument panel ............340–341
interior .....................................342
plastic parts ............................340
safety belts ..............................342
washing ....................................337
waxing .....................................337
wheels ......................................338
wiper blades ............................340
2008 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Index
392
