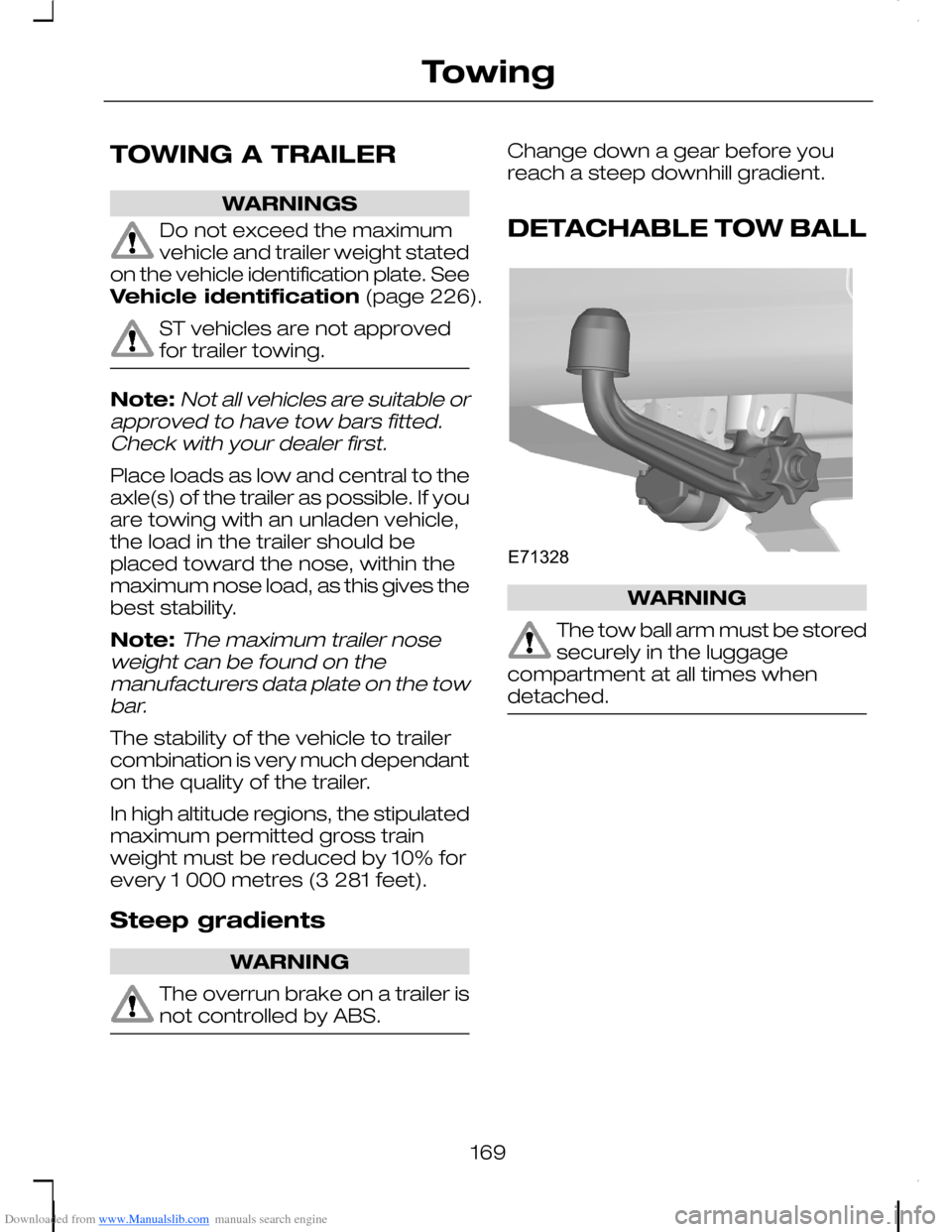

Downloaded from www.Manualslib.com manuals search engine TOWING A TRAILER
WARNINGS
Do not exceed the maximumvehicle and trailer weight statedon the vehicle identification plate. SeeVehicle identification (page 226).
ST vehicles are not approvedfor trailer towing.
Note:Not all vehicles are suitable orapproved to have tow bars fitted.Check with your dealer first.
Place loads as low and central to theaxle(s) of the trailer as possible. If youare towing with an unladen vehicle,the load in the trailer should beplaced toward the nose, within themaximum nose load, as this gives thebest stability.
Note:The maximum trailer noseweight can be found on themanufacturers data plate on the towbar.
The stability of the vehicle to trailercombination is very much dependanton the quality of the trailer.
In high altitude regions, the stipulatedmaximum permitted gross trainweight must be reduced by 10% forevery 1 000 metres (3 281 feet).
Steep gradients
WARNING
The overrun brake on a trailer isnot controlled by ABS.
Change down a gear before youreach a steep downhill gradient.
DETACHABLE TOW BALL
WARNING
The tow ball arm must be storedsecurely in the luggagecompartment at all times whendetached.
169
TowingE71328

Downloaded from www.Manualslib.com manuals search engine 1.Insert the tow ball arm verticallyand press it upwards until itengages. Do not hold your handnear the handwheel.
2.To lock: Turn the key clockwiseand remove the key.
Insert the end of the protection capinto the keyhole.
Driving with a trailer
WARNING
If any of the below conditionscannot be met, do not use thetow bar and have it inspected by anexpert.
Before starting your journey, ensurethe tow ball arm is properly locked.Check that:
•The green mark on thehandwheel is next to the white doton the tow ball arm.
•The handwheel A is pushed inagainst the tow ball arm.
•The key B has been removed.
•Secure positioning of the towballarm. (Must remain perfectly inplace when jerked.)
Removing the tow ball arm
1.Remove the protection capcovering the keyhole. Insert thekey and turn it anticlockwise tounlock.
2.Hold the towball arm. Pull out thehandwheel and turn it clockwiseuntil it clicks and pull the towballarm downwards.
3.Remove the tow ball arm.
Release the handwheel.
When unlocked in this way, the towball arm can be reinserted at anytime.
171
TowingE71331AB 31E713322

Downloaded from www.Manualslib.com manuals search engine Insert your finger into the hole on theunderside of the cover and prise offthe cover. On vehicles with a bodystyling kit, insert your fingers into thehole in the bezel and pull off thecomplete bezel. Install the towingeye.
Rear towing eye
Mount for rear towing eyeA
Note:On vehicles with a tow bar,the towing eye cannot be installed atthe rear of the vehicle. Use the towbar to tow a vehicle.
TOWING THE VEHICLE
ON FOUR WHEELS
All vehicles
WARNINGS
Switch the ignition on when yourvehicle is being towed. Thesteering lock will engage and thedirection indicators and brake lampswill not work if you do not.
The brake servo and the powersteering pump do not operateunless the engine is running. Pressthe brake pedal harder and allow forincreased stopping distances andheavier steering.
CAUTIONS
Too much tension in the towrope could cause damage toyour vehicle or the vehicle that istowing.
Do not use a rigid tow bar on thefront towing eye.
Drive off slowly and smoothly withoutjerking the vehicle that is towing.
186
Vehicle recoveryE78367 E78368
