Downloaded from www.Manualslib.com manuals search engine TECHNICAL SPECIFICATIONS
Vehicle fluids
SpecificationRecommended fluidItem
WSS-M2C913-B
Ford or MotorcraftFormula E SAE 5W-30
Engine Oil*Engine oil
WSS-M2C204-A2Ford or MotorcraftPower Steering FluidPower steering fluid
WSS-M97B44-DMotorcraft SuperPlusAntifreezeAntifreeze
ESD-M6C57-AFord or Motorcraft SuperDOT 4 Brake FluidBrake fluid
* You can use an alternative SAE 5W-30 engine oil, providing it meets the
specification defined by WSS-M2C913-B.
Note:If you operate your vehicle in temperatures below -20°C, you mustnot use SAE 10W-40 engine oil.
Topping up the oil: If you are unable to find an oil that meets thespecification defined by WSS-M2C913-B, you must use SAE 5W-30(preferred), SAE 5W-40 (except Flexfuel vehicles) or SAE 10W-40 thatmeets the specification defined by either ACEA A1/B1 (preferred) or ACEAA3/B3. Using these oils can result in longer engine cranking periods, reducedengine performance, reduced fuel economy and increased emission levels.
Capacities
Capacity in litres(gallons)ItemVariant
MAX-markPower assisted steeringfluidAll
55 (12.1)Fuel tankVehicles with a petrolengine
55 (12.1)Fuel tankVehicles with a dieselengine
204
Maintenance

Downloaded from www.Manualslib.com manuals search engine 17.Immediately drive approximatelythree kilometres (two miles) sothat the sealant can seal thedamaged area.
Note:When pumping in the sealantthrough the tyre valve, the pressuremay rise up to 6 bar (87 psi) but willdrop again after about 30 seconds.
WARNING
If you experience heavyvibrations, unsteady steeringbehaviour or noises while driving,reduce your speed and drive withcaution to a place where it is safe foryou to stop the vehicle. Recheck thetyre and its pressure. If the tyrepressure is less than 1.3 bar (19 psi)or if there are any cracks, bumps orsimilar damage visible, do notcontinue driving with this tyre.
Checking the tyre pressure
1.Stop the vehicle after drivingapproximately three kilometres(two miles). Check, and wherenecessary, adjust the pressure ofthe damaged tyre.
2.Attach the kit and read the tyrepressure from the pressure gaugeF.
3.If the pressure of the sealant-filledtyre is 1.3 bar (19 psi) or more,adjust it to the specified pressure.See Technical specifications(page 224).
4.Follow the inflation procedureonce again to top up the tyre.
5.Check the tyre pressure againfrom the pressure gauge F. If thetyre pressure is too high, deflatethe tyre to the specified pressureusing the pressure relief valve B.
6.Once you have inflated the tyre toits correct tyre pressure, movethe compressor switch H toposition 0, remove the powerplug G from the socket, unscrewthe hose C, fasten the valve capand replace the protective cap A.
7.Leave the sealant bottle K in thebottle holder E and store the kitaway safely in its original location.
8.Drive to the nearest tyre specialistto get the damaged tyre replaced.Before the tyre is removed fromthe rim, inform your tyre dealerthat the tyre contains sealant.Renew the kit as soon as possibleafter it has been used once.
Note:Remember that emergencyroadside tyre repair kits only providetemporary mobility. Regulationsconcerning tyre repair after usage oftyre repair kit may differ from countryto country. You should consult a tyrespecialist for advice.
WARNING
Before driving, make sure thetyre is adjusted to therecommended inflation pressure.See Technical specifications(page 224). Monitor the tyre pressureuntil the sealed tyre is replaced.
222
Wheels and tyres

Downloaded from www.Manualslib.com manuals search engine Empty sealant bottles can bedisposed of together with normalhousehold waste. Return remains ofsealant to your dealer or dispose ofit in compliance with local wastedisposal regulations.

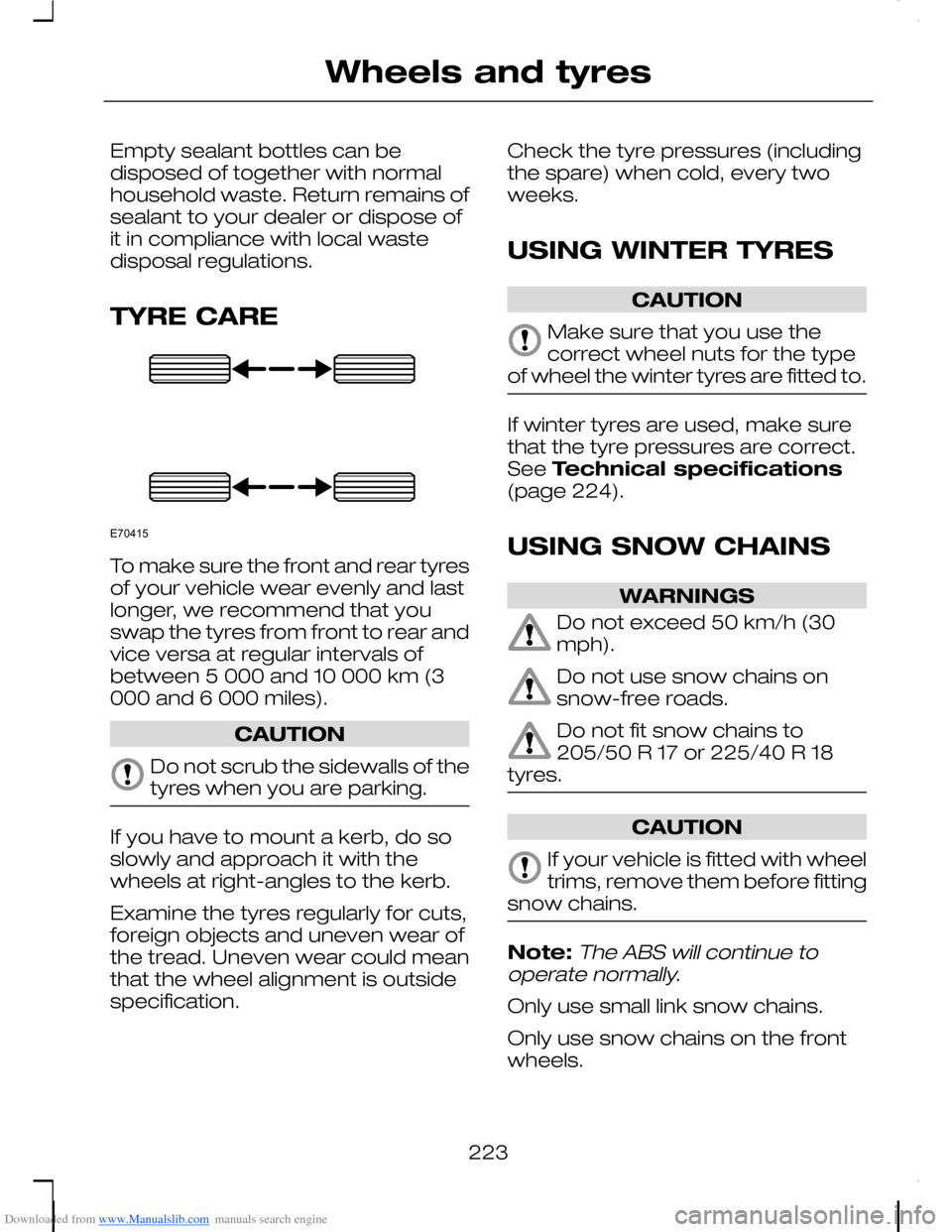

TYRE CARE
To make sure the front and rear tyresof your vehicle wear evenly and lastlonger, we recommend that youswap the tyres from front to rear andvice versa at regular intervals ofbetween 5 000 and 10 000 km (3000 and 6 000 miles).
CAUTION
Do not scrub the sidewalls of thetyres when you are parking.
If you have to mount a kerb, do soslowly and approach it with thewheels at right-angles to the kerb.
Examine the tyres regularly for cuts,foreign objects and uneven wear ofthe tread. Uneven wear could meanthat the wheel alignment is outsidespecification.
Check the tyre pressures (includingthe spare) when cold, every twoweeks.
USING WINTER TYRES
CAUTION
Make sure that you use thecorrect wheel nuts for the typeof wheel the winter tyres are fitted to.
If winter tyres are used, make surethat the tyre pressures are correct.See Technical specifications(page 224).
USING SNOW CHAINS
WARNINGS
Do not exceed 50 km/h (30mph).
Do not use snow chains onsnow-free roads.
Do not fit snow chains to205/50 R 17 or 225/40 R 18tyres.
CAUTION
If your vehicle is fitted with wheeltrims, remove them before fittingsnow chains.
Note:The ABS will continue tooperate normally.
Only use small link snow chains.
Only use snow chains on the frontwheels.
223
Wheels and tyresE70415

Downloaded from www.Manualslib.com manuals search engine Vehicles with stabilitycontrol (ESP)
Vehicles with stability control (ESP)may exhibit some unusual drivingcharacteristics which can be avoidedby switching the system off. SeeStability control (page 160).
TECHNICAL SPECIFICATIONS
Wheel nut torque
130 NmSteel wheel nuts
130 NmFive spoke steel wheel nuts
130 NmAlloy wheel nuts
Up to 160 km/h (100 mph)
Tyre pressures
Full loadNormal load
Tyre sizeVariantRearFrontRearFront
bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)bar(lbf/in²)
4.24.24.24.2T125/85 R162
All - temporaryspare tyre - 80km/h (50 mph)MAX
2.82.42.32.1195/65 R 15All
2.82.42.32.3225/40 R 18All
2.82.42.32.1205/55 R 16Vehicles with apetrol engine
2.82.42.32.1205/50 R 17Vehicles with apetrol engine
2.82.42.32.3205/55 R 16Vehicles with adiesel engine
224
Wheels and tyres

Downloaded from www.Manualslib.com manuals search engine TECHNICAL SPECIFICATIONS
Vehicle dimensions
Dimension in mm(inches)Dimension descriptionItem
4372 - 4391 (170.6 -172.9)Maximum lengthA
2022 - 2023 (79.6 -79.7)Overall width - incl. exterior mirrorsB
1564 - 1596 (61.6 -62.8)Overall height - EC kerb weightC
2640 (103.9)WheelbaseD
228
Technical specificationsE78157

Downloaded from www.Manualslib.com manuals search engine Dimension in mm(inches)Dimension descriptionItem
1535 - 1545 (60.4 -60.8)Front trackE
1531 - 1541 (60.3 -60.7)Rear trackE
Towing equipment dimensions
229
Technical specificationsE78158

Downloaded from www.Manualslib.com manuals search engine Dimension in mm(inches)Dimension descriptionItem
103 (4.1)Bumper – end of tow ball - vehicle with fixedtow ballA
146 (5.7)Bumper – end of tow ball - vehicle withdetachable tow ballA
32 (1.3)Attachment point – centre of tow ballB
898 (35.4)Wheel centre – centre of tow ball - vehiclewith fixed tow ballC
941 (37.0)Wheel centre – centre of tow ball - vehiclewith detachable tow ballC
517 (20.4)Centre of tow ball – side memberD
1034 (40.7)Inner side of side memberE
400 (15.7)Centre of tow ball – centre 1. attachment point- vehicle with fixed tow ballF
443 (17.4)Centre of tow ball – centre 1. attachment point- vehicle with detachable tow ballF
699 (27.5)Centre of tow ball – centre 2. attachmentpoint - vehicle with fixed tow ballG
742 (29.2)Centre of tow ball – centre 2. attachmentpoint - vehicle with detachable tow ballG
230
Technical specifications
