GETTING TO KNOW YOUR CAR
92
Neutral (N)
It corresponds to the neutral posi-
tion of a traditional mechanic gear.Reverse (R)
To engage the reverse
the vehicle must be sta-
tionary, the engine idling
and the accelerator pedal re-
leased. Then follow the instruc-
tions given in “Engine starting”
paragraph in this chapter.
When the engine is at Rit is not pos-
sible to start the engine.Parking (P)
Pposition locks drive wheels.
Engage this gear only when the ve-
hicle is stationary and apply also the
handbrake. Then follow the instruc-
tions given in “Engine starting” para-
graph in this chapter.
IMPORTANTIf the lever is not
positioned correctly, the last stable en-
gaged gear flashes on the display. To move the lever from
N, release the accelerator
pedal, let the engine idling
and follow the instructions given
in “Engine starting” paragraph in
this chapter.
When the lever is at N it is possible
to start the engine.

GETTING TO KNOW YOUR CAR
94
SEQUENCE DRIVING MODE
Shift the lever from Dto the right,
into M position:
• if the lever is shifted to +: higher
gear engaged;
• if the lever is shifted to –: lower
gear engaged.
Each gear shift can be viewed on the
display and any mistake is automati-
cally excluded by the control unit
which allows to engage a lower gear
only if the engine revolutions make it
possible.
With sequence driving the automat-
ic electronic gearbox works as a fixed
gearbox controlled in sequence mode.
The electronic control shifts the gear
when the engine revolutions are low-
er than the rpm allowed.AUTOMATIC DRIVING MODE
It is possible to select Din any dri-
ving condition.
The optimal gear shift is selected by
the control unit according to the
speed and the engine load (position of
the accelerator pedal).
When no power is required by the
engine, longer gear shifts are selected
so that consumption is reduced.
When the accelerator pedal is
pressed, more power is required, thus
lower gear shifts are selected and the
car performance is improved in terms
of acceleration and pickup: in this case
consumption raises.For a rapid car pickup:
– press the accelerator pedal fully un-
til the kick-down device is activated so
that maximum performance is reached
(obviously, consumption raises).
IMPORTANTWhen driving on
roads covered in snow, ice, etc. (low
grip) do not activate the kick-down
device.

GETTING TO KNOW YOUR CAR
95

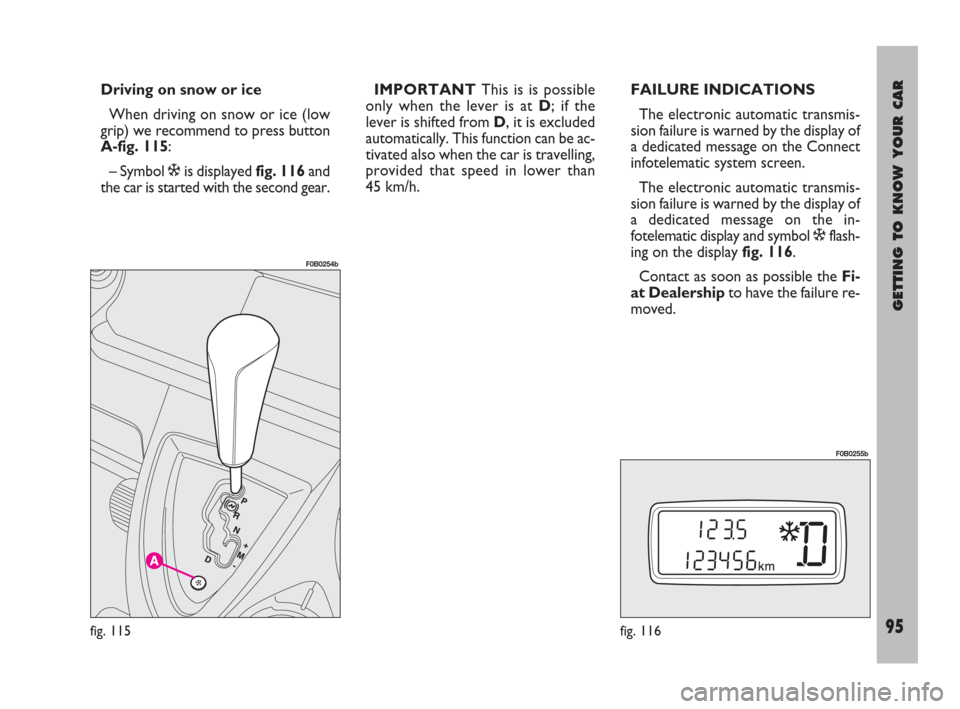

Driving on snow or ice
When driving on snow or ice (low
grip) we recommend to press button
A-fig. 115:
– Symbol òis displayed fig. 116and
the car is started with the second gear.IMPORTANTThis is is possible
only when the lever is at D; if the
lever is shifted from D, it is excluded
automatically. This function can be ac-
tivated also when the car is travelling,
provided that speed in lower than
45 km/h.FAILURE INDICATIONS
The electronic automatic transmis-
sion failure is warned by the display of
a dedicated message on the Connect
infotelematic system screen.
The electronic automatic transmis-
sion failure is warned by the display of
a dedicated message on the in-
fotelematic display and symbol òflash-
ing on the display fig. 116.
Contact as soon as possible the Fi-
at Dealershipto have the failure re-
moved.
fig. 115
F0B0254b
fig. 116
F0B0255b

GETTING TO KNOW YOUR CAR
97
UPPER RETRACTABLE
COMPARTMENTS fig. 119-120
Press button Ato open the com-
partments.CENTRAL GLASS/CAN
HOLDER fig. 121
Open it following the direction
shown by the arrow. The compart-
ment is glass/can-shaped inside A.
Do not travel with the
compartments open as
this could cause injury in
the event of an accident.
Do not travel with the
glove compartment open
as this could cause injury
in the event of an accident.
fig. 118
F0B0293b
fig. 120
F0B0257b
fig. 121
F0B0090bfig. 119
F0B0256b
AUDIO-VIDEO SOCKET
(where fitted)
Inside the glove compartment
there is a pre-arranged AUDIO-
VIDEO A-fig. 118outlet for con-
necting a TV camera to the CON-
NECT infotelematic System (this
function is not currently available).
This connection will enable directly
displaying previously filmed images
on the screen itself.

GETTING TO KNOW YOUR CAR
113
To close the bonnet:
– keep the bonnet up with one hand
and with the other remove the sup-
port rod from the recess and replace
it in its clip;
– Lower the bonnet at approx. 20
cm from the engine compartment and
then let it drop, ensuring that it is ful-
ly closed and not just held in position
by the safety catch. If the bonnet does
not close properly do not push it
down but open it again and repeat the
above procedure.LUGGAGE
AND SKI RACKS
(where fitted) fig. 163
To use them, proceed as follows:
– hooks are arranged in a special run-
ner along the roof of the vehicle;
– attach the roof rack with the brack-
ets Aplaced at the rack inside base
(2 for each bar). Absolutely prevent
shoes, ties and loose gar-
ments from coming into
contact with moving parts: they
could become entangled and
cause body harm.
If the engine is hot, be
very careful when you put
your hands under the
bonnet as you risk burning your-
self. Remember that while the
engine is hot, the electric fan can
start up and cause injury. Wait
for the engine to cool.
For safety reasons the
bonnet shall always be
perfectly closed when
travelling. Always check for prop-
er bonnet locking. If the bonnet
is left inadvertently open, stop
the car immediately and close
the bonnet.Always make sure the
bonnet is closed properly
so as to prevent it from
opening while travelling.
“Bonnet open” indication
(only available together with
alarm optional)
If, with engine running, the bonnet
is not shut properly, the multifunction
display will show a dedicated message
and the buzzer will sound.
fig. 163
F0B0179b

Cars with ESP may only
be fitted with tyres of the
same make, model and
size and be in good conditions.
GETTING TO KNOW YOUR CAR
120
ESP SYSTEM ACTION
The ESP system action is signalled by
warning light
ñflashing to inform the
driver that the vehicle stability and grip
are critical.
ESP failure indication
In the event of an ESP system failure,
it turns off automatically and warning
light
ñcomes on together with the
relative message on the multifunction
display.
In the event of an ESP system failure,
the vehicle behaves as the version
without this type of system. We rec-
ommend you to contact a Fiat Deal-
ership as soon as possible. The ESP main components are:
– an electronic control unit which
processes the sensor signals and ap-
plies the best strategy;
– an angle sensor which detects the
steering position;
– four sensors which detect each
wheel rotation speed;
– a braking system pressure sensor;
– a yawing sensor which detects the
vehicle spinning around a vertical axis;
– a sensor which detects side accel-
eration (centrifugal force).
The ESP heart is the control unit
which processes the centrifugal forces
deriving from cornering on the basis
of the data coming from the sensors
installed on the vehicle. The yawing
sensor detects the vehicle spinning
around its vertical axis. Centrifugal
forces resulting from cornering are de-
tected by a highly sensible side accel-
eration sensor.
The ESP stabilising action is based on
the control unit processing of data
coming from the steering wheel rota-
tion sensors, side acceleration sensors
and wheel rotation speed sensors.These signals make the control unit
recognise the driver’s manoeuvre
when he/she turns the steering wheel.
The control unit processes such in-
formation and is able to detect the ve-
hicle position at any time and compare
it with the driver’s wished direction. If
they do not match, the control unit is
able to adjust the vehicle’s position in-
stantly, by choosing the best strategy:
it can brake one or more wheels with
different force and reduce the engine
power, if needed.
Adjustments are made for continu-
ously adapting to the driver’s wished
travelling direction.
The ESP system action improves the
vehicle safety in many critical situations
and is useful especially when the
roadbed grip changes.

The T.P.M.S. system
does not exempt the dri-
ver to check tyre and
space-saver spare wheel pressure
at regular intervals.
GETTING TO KNOW YOUR CAR
123
IMPORTANTTyre pressure
should be checked with tyres rested
and cold. Should it become necessary
for whatever reason to check pres-
sure with hot tyres, do not reduce
pressure although it is higher than the
prescribed value but repeat the check
when tyres are cold.IMPORTANT NOTES ABOUT
THE T.P.M.S. SYSTEM
Failure indications will not be stored
and therefore will not be displayed
when turning the engine off and on
again. If failure persists, the control
unit will send warning indications to
the instrument panel only after a few
seconds when the car is moving.
IMPORTANTT.P.M.S. system can-
not indicate sudden tyre pressure
drops (e.g.: tyre burst). In this event,
brake the car cautiously and avoid sud-
den steering.
IMPORTANTReplacing standard
tyres with winter tyres and vice ver-
sa involves T.P.M.S. system set-up that
shall be performed at Fiat Dealer-
ships only.
IMPORTANT The T.P.M.S. system
requires special equipment. Consult
Fiat Dealership to know what type
of accessories are compatible with the
system (wheels, wheel caps, etc.). Us-
ing other accessories could cause sys-
tem malfunctioning.IMPORTANTTyre pressure could
change according to outside temper-
ature. For this reason the T.P.M.S. sys-
tem could temporarily indicate low
tyre pressure. In this event check pres-
sure with cold tyres and restore prop-
er inflation values if required.
IMPORTANTIf the car is fitted
with T.P.M.S. system, tyre and/or rim
removal and refitting operations in-
volve special precautions; to prevent
damages or wrong sensor refitting,
contact Fiat Dealership to have tyre
and/or rim changed.
IMPORTANTIf the car is fitted
with T.P.M.S. system, when changing a
tyre, change also the rubber seal of the
valve. Contact a Fiat Dealership.
IMPORTANT Strong radio-fre-
quency disturbances could inhibit
proper TPMS system operation. This
condition is indicated by a dedicated
massage on the display. This indication
will go off automatically as soon as the
radio-frequency disturbance ceases.

GETTING TO KNOW YOUR CAR
130
PARKING SENSORS
(where fitted)
Parking sensors inform the driver
about the presence of obstacles be-
hind the vehicle.
They are a valid support to identify
fences, walls, poles, plant-pots and
alike, together with children playing
behind the car.
The system uses the four sensors on
the bumper fig. 171to detect the dis-
tance between the vehicle and possi-
ble obstacles. When the reverse is en-
gaged, the system is automatically
turned on with a sound signal
(“beep”).
The driver is therefore warned that
the distance between the vehicle and
the rear obstacle is getting reduced by
the increasing of the sound warning
frequency.The sound warning becomes contin-
uous when the distance between the
vehicle and the obstacle is lower than
25 cm.
The sound warning stops as soon as
the distance increases. The sequence
of sound warnings remains constant
if the distance is not changed.
If the car features the CONNECT
Nav+ infotelematic system, the park-
ing sensor buzzer will be completed
with graphic information on the colour
display.
IMPORTANTIn the event a the
system failure, the driver is informed
of it by a repeated alarm consisting of
a short sound followed by long one; in
this case contact aFiat Dealership.
If the sensor detects more than one
obstacle, the control unit signals the
obstacle having the shortest distance
from the vehicle. The airbag is set to be
fired in the event of colli-
sions which are greater
than the pretensioner settings.
Consequently, for collisions in the
bracket between the two thresh-
olds, it is normal for only the pre-
tensioners to be fired.
The air bag does not
substitute the seat belts,
but only increases their
effectiveness. Moreover, since
the air bag does not come into
operation in the event of front
impact at low speed, side colli-
sions, bumps from behind or
overturning, in these circum-
stances the occupants would be
only be protected by the seat
belts which must therefore al-
ways be fastened.
