IMPORTANT
❒Never use the “4WD LOCK” mode
when driving on dry paved roads.
Avoid using the “4WD LOCK” mode
when driving on wet paved roads as
much as possible. Use of the “4WD
LOCK” mode in above conditions will
apply excessive force to the driving
system and may cause a critical failure.
Also, the tires may wear faster and fu-
el consumption may be affected ad-
versely.
❒Note that 4WD vehicles are not al-
laround vehicles. Be sure to observe
following instructions when driving
your vehicle.
– Do not drive through water like
crossing a river.
– Do not drive continuously where
front wheels tend to race such as in
the sand and mud.
– When any wheel is in the air for such
reason as running off the road, do
not race it needlessly.
❒If the “4WD AUTO” and the “4WD
LOCK” indicator lights stay on and
come on simultaneously when driving,
there may be something wrong the
4WD system. Have the system in-
spected by an authorized Fiat Dealer-
ship.IMPORTANT Unevenly worn tires can
cause problems in the operation of the
2WD/4WD switch. Be sure to rotate the
tires according to the maintenance sched-
ule. Refer to “Tires” and “Maintenance
Schedule” in the “INSPECTION AND
MAINTENANCE” section for proper tire
rotation procedures.
❒While making turns or accelerating and
decelerating, operating the 2WD/
4WD switch or turning off the key
switch in the “4WD AUTO” or “4WD
LOCK” mode may cause a shock, but
this is not a system malfunction.
❒While driving in the “4WD LOCK”
mode, as the vehicle speed increases,
the driving mode changes to the “4WD
AUTO” mode automatically. Even
when the vehicle speed reduces, on the
other hand, the driving mode does not
return to the “4WD LOCK” mode au-
tomatically. You should press the
“4WD LOCK” switch according to the
driving conditions.
❒Any forcible operation while driving of-
froad in the sand or water or when a
wheel has run off the road, the differ-
ence of the revolution between front
wheels and rear wheels increases
(wheels run idle). If this state continues,
the oil temperature of the driving sys-
tem parts rises.
In such case, the “4WD AUTO” indi-
cator light blinks and the driving mode
changes to the 2WD mode to protect
the driving system parts.
When you operate your vehicle in the
4WD mode continuously, park the ve-
hicle at a safe place and run the engine
idle. After some time, the “4WD AU-
TO” indicator light turns on again and
the driving mode returns to the “4WD
AUTO” mode.
149-166 Fiat16 New GB 3-09-2008 8:15 Pagina 159

169

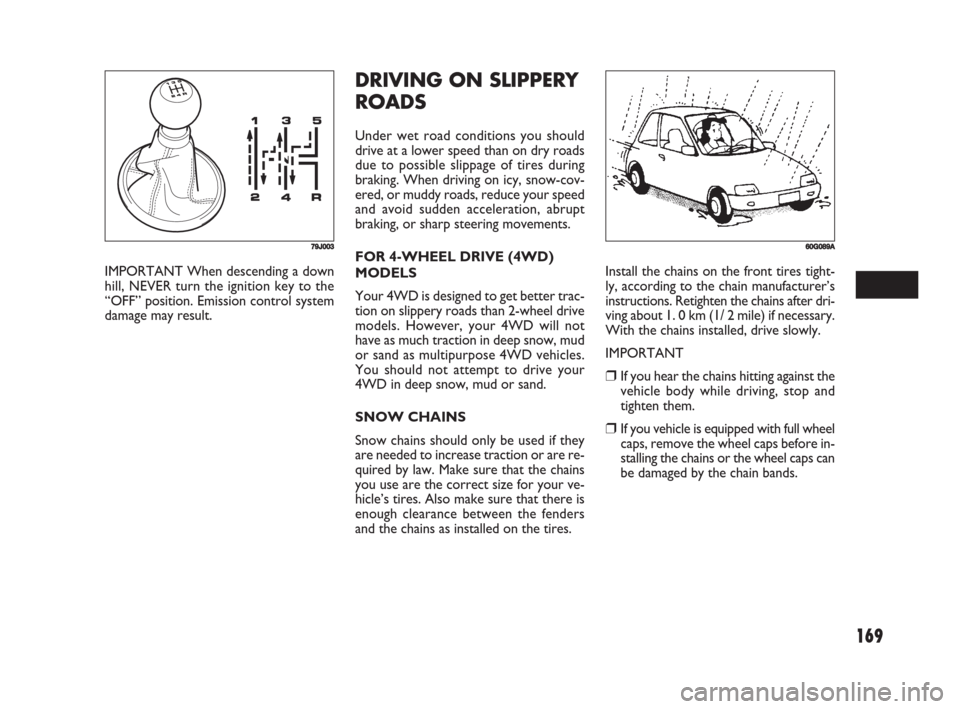

DRIVING ON SLIPPERY
ROADS
Under wet road conditions you should
drive at a lower speed than on dry roads
due to possible slippage of tires during
braking. When driving on icy, snow-cov-
ered, or muddy roads, reduce your speed
and avoid sudden acceleration, abrupt
braking, or sharp steering movements.
FOR 4-WHEEL DRIVE (4WD)
MODELS
Your 4WD is designed to get better trac-
tion on slippery roads than 2-wheel drive
models. However, your 4WD will not
have as much traction in deep snow, mud
or sand as multipurpose 4WD vehicles.
You should not attempt to drive your
4WD in deep snow, mud or sand.
SNOW CHAINS
Snow chains should only be used if they
are needed to increase traction or are re-
quired by law. Make sure that the chains
you use are the correct size for your ve-
hicle’s tires. Also make sure that there is
enough clearance between the fenders
and the chains as installed on the tires.Install the chains on the front tires tight-
ly, according to the chain manufacturer’s
instructions. Retighten the chains after dri-
ving about 1. 0 km (1/ 2 mile) if necessary.
With the chains installed, drive slowly.
IMPORTANT
❒If you hear the chains hitting against the
vehicle body while driving, stop and
tighten them.
❒If you vehicle is equipped with full wheel
caps, remove the wheel caps before in-
stalling the chains or the wheel caps can
be damaged by the chain bands. IMPORTANT When descending a down
hill, NEVER turn the ignition key to the
“OFF” position. Emission control system
damage may result.
79J00360G089A
167-170 Fiat16 New GB 3-09-2008 8:15 Pagina 169

179
79J130

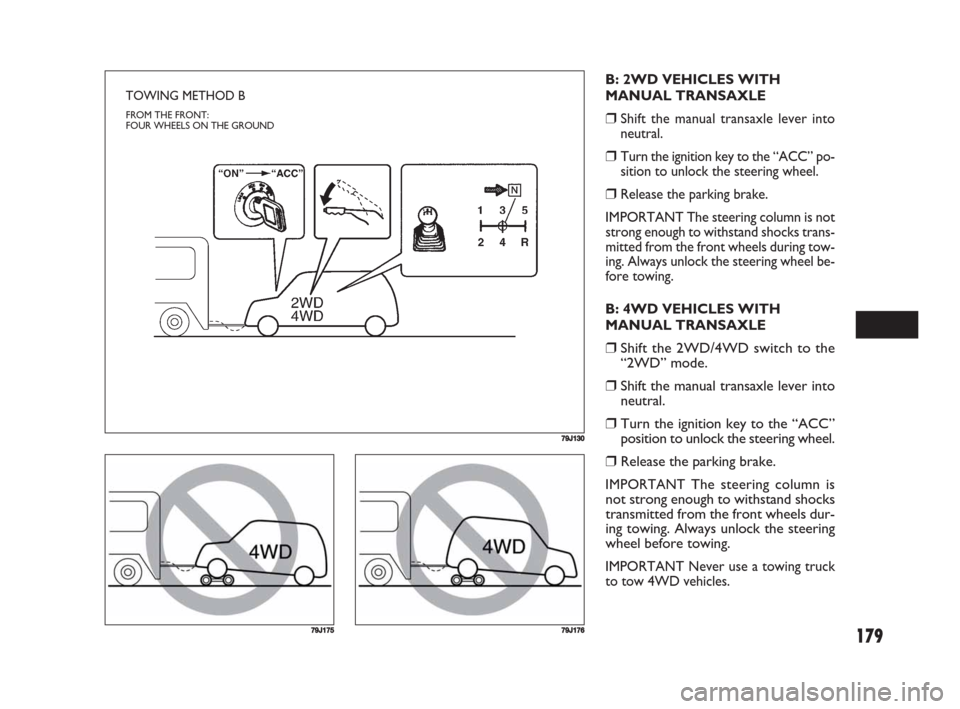

TOWING METHOD B
FROM THE FRONT:
FOUR WHEELS ON THE GROUND
B: 2WD VEHICLES WITH
MANUAL TRANSAXLE
❒Shift the manual transaxle lever into
neutral.
❒Turn the ignition key to the “ACC” po-
sition to unlock the steering wheel.
❒Release the parking brake.
IMPORTANT The steering column is not
strong enough to withstand shocks trans-
mitted from the front wheels during tow-
ing. Always unlock the steering wheel be-
fore towing.
B: 4WD VEHICLES WITH
MANUAL TRANSAXLE
❒Shift the 2WD/4WD switch to the
“2WD” mode.
❒Shift the manual transaxle lever into
neutral.
❒Turn the ignition key to the “ACC”
position to unlock the steering wheel.
❒Release the parking brake.
IMPORTANT The steering column is
not strong enough to withstand shocks
transmitted from the front wheels dur-
ing towing. Always unlock the steering
wheel before towing.
IMPORTANT Never use a towing truck
to tow 4WD vehicles.
79J17579J176
171-180 Fiat16 New GB 3-09-2008 8:42 Pagina 179

229
IMPORTANT The steering column is not
strong enough to withstand shocks trans-
mitted from the front wheels during tow-
ing. Always unlock the steering wheel be-
fore towing.
4-WHEEL DRIVE (4WD)
Your vehicle should be towed under one
of the following conditions:
❒With all four wheels on a flat-bed truck.
❒With the front or rear wheels lifted and
a dolly under the other wheels.
IMPORTANT Towing your vehicle with
front and/ or rear wheels on the ground
can result in damage to the automatic
transaxle and/ or the 4WD drive system.
IF THE STARTER DOES
NOT OPERATE
❒Try turning the ignition switch to the
“START” position with the headlights
turned on to determine the battery
condition. If the headlights go exces-
sively dim or go off, it usually means
that either the battery is flat or the bat-
tery terminal contact is poor. Recharge
the battery or correct battery terminal
contact as necessary.
❒If the headlights remain bright, check
the fuses. If the reason for failure of the
starter is not obvious, there may be a
major electrical problem. Have the ve-
hicle inspected by your authorized
Fiat Dealership.
TOWING
If you need to have your vehicle towed,
contact a professional service. Your deal-
er can provide you with detailed towing
instructions.
IMPORTANT To help avoid damage to
your vehicle during towing, proper equip-
ment and towing procedures must be
used.
2-WHEEL DRIVE (2WD)
MANUAL TRANSAXLE
Manual transaxle vehicles may be towed
using either of the following methods.
❒From the front, with the front wheels
lifted and the rear wheels on the
ground. Before towing, make sure that
the parking brake is released.
❒From the rear, with the rear wheels lift-
ed and the front wheels on the ground,
provided the steering and drivetrain are
in operational condition. Before tow-
ing, make sure that transaxle is in neu-
tral, the steering wheel is unlocked (the
ignition key should be in the “ACC” po-
sition), and the steering wheel is se-
cured with a clamping device designed
for towing service.
225-232 Fiat16 New GB 3-09-2008 8:44 Pagina 229

252
DECLARATION OF CONFORMITY
We, Calsonic Kansei Corp. hereby declare, at our sole responsibility, that the following product conforms to the Essential
Requirements of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC in accordance with the tests
conducted to the appropriate requirements of the relevant standards, as listed herewith.
Product: Controller of Intelligent Key System (Keyless Start System)
Model/Type Number: S62J1
Year of affixing CE marking: 2004
DECLARATION OF CONFORMITY
We, Calsonic Kansei Corp. hereby declare, at our sole responsibility, that the following product conforms to the
Essential Requirements of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC in accordance with
the tests conducted to the appropriate requirements of the relevant standards, as listed herewith.
Product: Controller of Intelligent Key System (Keyless Start System)
Model/Type Number: TS001
Year of affixing CE marking: 2004
249-256 Fiat16 New GB 3-09-2008 8:26 Pagina 252

253
DECLARATION OF CONFORMITY
We, Calsonic Kansei Corp. hereby declare, at our sole responsibility, that the following product conforms to the Essential
Requirements of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC in accordance with the tests
conducted to the appropriate requirements of the relevant standards, as listed herewith.
Product: Transmitter of Keyless Entry System
Model/Type Number: TS002
Year of affixing CE marking: 2004
DECLARATION OF CONFORMITY
We, Calsonic Kansei Corp. hereby declare, at our sole responsibility, that the following product conforms to the Essential
Requirements of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC in accordance with the tests
conducted to the appropriate requirements of the relevant standards, as listed herewith.
Product: Transmitter of Keyless Entry System
Model/Type Number: R62J1
Year of affixing CE marking: 2004
249-256 Fiat16 New GB 3-09-2008 8:26 Pagina 253

DECLARATION OF CONFORMITY
We, Calsonic Kansei Corp. hereby declare, at our sole responsibility, that the following product conforms to the Essential
Requirements of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC in accordance with the tests
conducted to the appropriate requirements of the relevant standards, as listed herewith.
Product: Receiver of Keyless Entry System
Model/Type Number: R51K0
Year of affixing CE marking: 2007
249-256 Fiat16 New GB 3-09-2008 8:26 Pagina 254

257
Battery .......................................210-245
Before driving.................................. 9
Bodywork care................................ 233
Brake fluid ............................................ 202
Brake system ....................................... 159
Brakes
– Brake fluid ..................................... 202
– Brake pedal .............................131-203
– Brake system ................................ 246
– Parking brake lever ...............130-204
– Vacuum brake ............................... 160
Bulbs
– Replacement ................................. 217
– Type ................................................ 245
Can holder .......................................... 142
Capacities ......................................10-248
Catalytic converter ............................ 165
Child-proof locks ................................ 22
Children
– Child-proof locks ......................... 22
– Child restraint systems ............... 37
– Installation with Isofix
type anchorages ........................... 42
– Installation with lap-shoulder
seat belts ........................................ 42
Cigar lighter ......................................... 90Clock ..................................................... 98
Clutch .............................................131-205
CO
2emissions .................................... 241
Cup holder ........................................... 142
Daily inspection checklist ................ 150
Dimensions .......................................... 247
Dipped beam headlights .................... 63
– Bulb replacement ......................... 219
Doors
– Central door locking
system ........................................13-19
– Child-proof locks ......................... 22
– Dead lock ...................................... 14
– Keyless Start ................................. 15
– Opening/closing ............................ 12
Drive belt (servicing) ......................... 189
Driving tips....................................... 167
– Driving on hills ............................. 168
– Driving on slippery roads ........... 169
– Highway driving ............................ 168
Emergency service....................... 225
Engine
– Air cleaner ..................................... 198
– Engine coolant .............................. 195
– Engine oil and filter ...................... 189
– If the engine is flooded ............... 230
ABS ...................................................... 160
Air bags ................................................. 47
– Front ............................................... 48
– How the system works .............. 52
– Servicing ......................................... 54
– Side ................................................. 50
Air cleaner ........................................... 198
Air conditioning ...........................99-224
Ashtray ................................................. 90
Assist grips ........................................... 140
Audio systems
– Antenna ...................................112-147
– Anti-theft system ......................... 121
– Cautions on handling .................. 110
– CD Changer ................................. 118
– CD player ...................................... 116
– Error display messages ............... 125
– General .......................................... 112
– Radio .............................................. 113
– RDS (Radio Data System) .......... 115
– Steering wheel controls ............. 126
– System ............................................ 109
– Troubleshooting .......................... 123
Automatic heating and air
conditioning system ......................... 104
– Maintenance ...........................109-224
I I
N N
D D
E E
X X
14
257-264 Fiat16 New GB 3-09-2008 8:25 Pagina 257
