This Owner Handbook describes all Fiat SEDICI versions. As a consequence, you should consider only the
information which is related to the engine and bodywork version of the vehicle you purchased.
Dear Customer,
Thank you for selecting Fiat and congratulations on your choice of a Fiat SEDICI.
We have written this handbook to help you get to know all your new vehicle features and use it in the best possible way.
You should read it right through before taking the road for the first time.
You will find information, tips and important warnings regarding the driving of your vehicle to help you derive the maximum from
your Fiat SEDICI technological features.
The enclosed Warranty Booklet lists the services that Fiat offers to its Customers:
❒the Warranty Certificate with terms and conditions for maintaining its validity
❒the range of additional services available to Fiat Customers.
Best regards and good motoring!
001-008 Fiat16 New GB 2-09-2008 11:40 Pagina 1

3

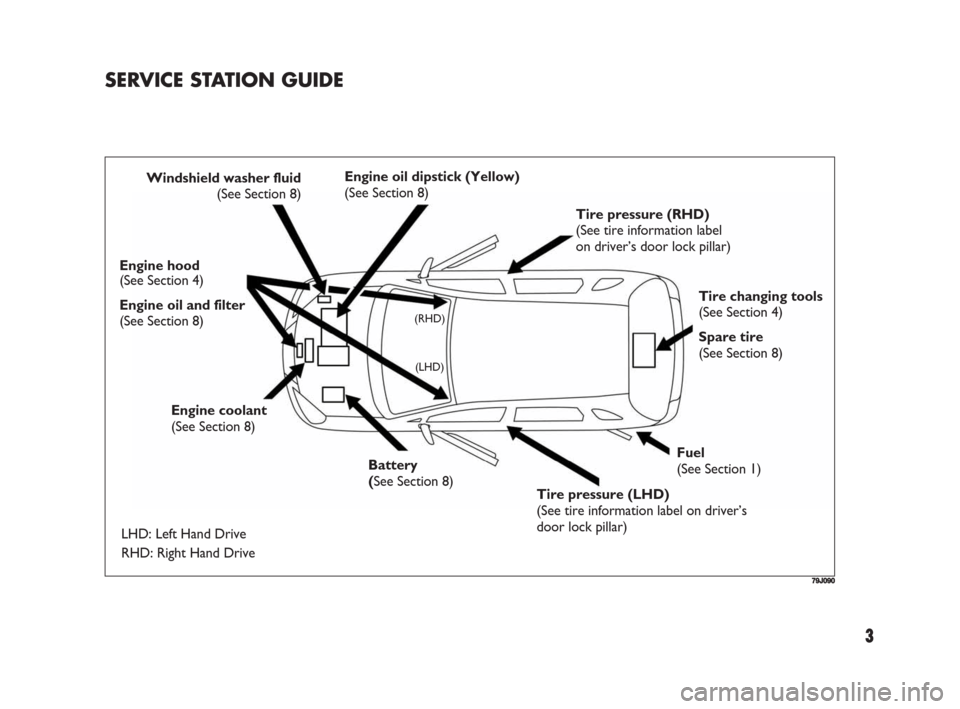

SERVICE STATION GUIDE
79J090
Windshield washer fluid
(See Section 8)Engine oil dipstick (Yellow)
(See Section 8)
Tire pressure (RHD)
(See tire information label
on driver’s door lock pillar)
Tire changing tools
(See Section 4)
Spare tire
(See Section 8)
Fuel
(See Section 1)
Tire pressure (LHD)
(See tire information label on driver’s
door lock pillar) Battery
(See Section 8) Engine coolant
(See Section 8) Engine hood
(See Section 4)
Engine oil and filter
(See Section 8)
LHD: Left Hand Drive
RHD: Right Hand Drive
(RHD)
(LHD)
001-008 Fiat16 New GB 2-09-2008 11:40 Pagina 3

10
Gasoline/ Ethanol blends
Blends of unleaded gasoline and ethanol
(grain alcohol), also known as gasohol, are
commercially available in some areas.
Blends of this type may be used in your ve-
hicle if they are no more than 10%
ethanol. Make sure this gasoline- ethanol
blend has octane ratings no lower than
those recommended for gasoline.
Gasoline/ Methanol blends
Blends of unleaded gasoline and methanol
(wood alcohol) are also commercially avail-
able in some areas. DO NOT USE fuels
containing more than 5% methanol under
any circumstances. Fuel system damage or
vehicle performance problems resulting
from the use of such fuels are not the re-
sponsibility of Fiat and may not be covered
under the New Vehicle Warranty. Fuels containing 5% or less methanol may
be suitable for use in your vehicle if they
contain cosolvents and corrosion in-
hibitors.
NOTE If you are not satisfied with the dri-
veability or fuel economy of your vehicle
when you are using a gasoline/ alcohol
blend, you should switch back to unlead-
ed gasoline containing no alcohol.
IMPORTANT Be careful not to spill fuel
containing alcohol while refueling. Fuels
containing alcohol can cause paint damage,
which is not covered under the New Ve-
hicle Limited Warranty.
DIESEL ENGINE
The diesel fuel should be with Cetane In-
dex higher than 50 and sulfur content less
than 50 ppm (parts per million). You
should use the diesel fuel conformable to
EN590 that corresponded to Euro IV
emission control. Do not use marine
diesel fuel, heating oils and so forth. If you
use improper diesel fuel, it may cause se-
rious engine damage.
FUEL
RECOMMENDATION

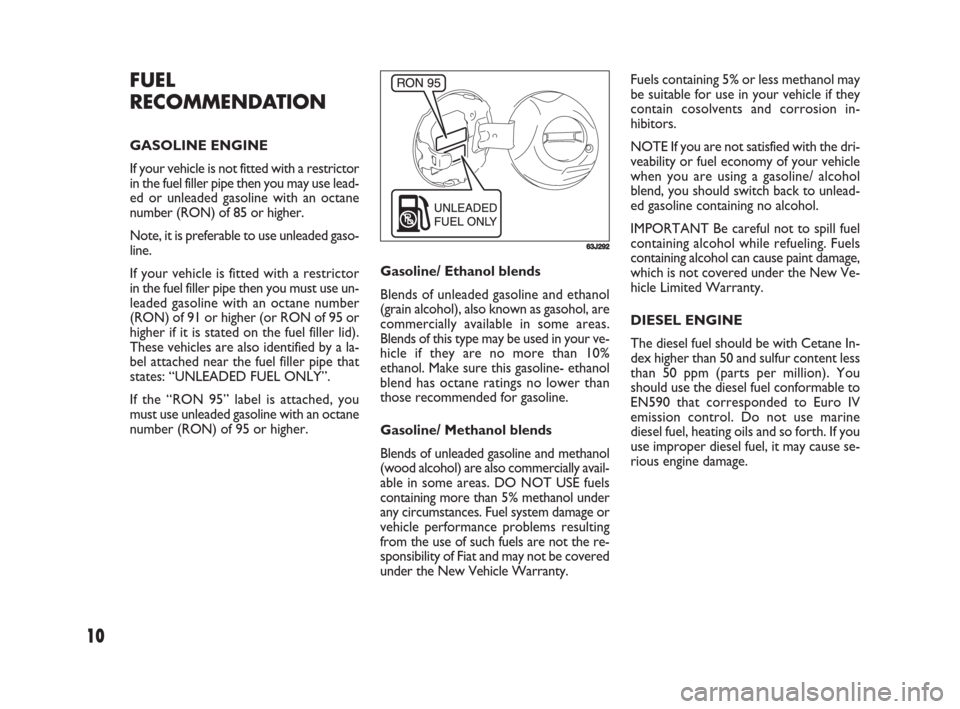

GASOLINE ENGINE
If your vehicle is not fitted with a restrictor
in the fuel filler pipe then you may use lead-
ed or unleaded gasoline with an octane
number (RON) of 85 or higher.
Note, it is preferable to use unleaded gaso-
line.
If your vehicle is fitted with a restrictor
in the fuel filler pipe then you must use un-
leaded gasoline with an octane number
(RON) of 91 or higher (or RON of 95 or
higher if it is stated on the fuel filler lid).
These vehicles are also identified by a la-
bel attached near the fuel filler pipe that
states: “UNLEADED FUEL ONLY”.
If the “RON 95” label is attached, you
must use unleaded gasoline with an octane
number (RON) of 95 or higher.
63J292
009-056 Fiat16 New GB 3-09-2008 8:38 Pagina 10

11
IMPORTANT The vehicle must only be
filled with diesel fuel for motor vehicles,
in compliance with European Standard
EN590. The use of other products or mix-
tures may irreparably damage the engine
with invalidation of the warranty due to
the damage caused. In the event of acci-
dentally filling with another type of fuel, do
not start the engine and empty the tank.
If the engine has been run even for only a
very short time, in addition to the tank,
it is also necessary to drain out the whole
fuel circuit.
IMPORTANT The fuel tank has an air
space to allow for fuel expansion in hot
weather. If you continue to add fuel after
the filler nozzle has automatically shut off
or an initial blowback occurs, the air
chamber will become full. Exposure to
heat when fully fuelled in this manner will
result in leakage due to fuel expansion. To
prevent such fuel leakage, stop filling af-
ter the filler nozzle has automatically shut
off, or when using an alternative non au-
tomatic system, initial vent blowback oc-
curs.
Do not put naked flames or
lighted cigarettes near the
fuel filler hole as there is a danger of
fire. Do not bend too close to the hole
either so as not to breathe in harmful
vapours.
WARNING
Fiat CODE - Immobilizer System
(if equipped)
This system is designed to help prevent
vehicle theft by electronically disabling the
engine starting system.
The engine can be started only with your
vehicle’s original immobilizer ignition key
which has an electronic identification code
programmed into it. The key communi-
cates the identification code to the vehi-
cle when the key is turned to the “ON”
position. If you need to make spare keys,
see your Fiat Dealership. The vehicle must
be programmed with the correct identi-
fication code for the spare keys. A key
made by an ordinary locksmith will not
work.
KEYS
Your vehicle comes with a pair of identi-
cal keys. One key can open all of the locks
on the vehicle. Keep the spare key in a safe
place.
The key identification number is stamped
on a metal tag provided with the keys or
on the keys. Keep the tag (if equipped) in
a safe place. If you lose your keys, you will
need this number to have new keys made.
IMPORTANT All the keys and the metal
tag must be handed over to the new own-
er when selling the vehicle.
79J020
009-056 Fiat16 New GB 3-09-2008 8:38 Pagina 11

12
DOOR LOCKS
SIDE DOOR LOCKS
To lock a front door from outside the ve-
hicle:
❒Insert the key and turn the top of the
key toward the rear of the vehicle, or
❒Turn the lock knob forward and hold
the door handle up as you close the
door.
To unlock a front door from outside the
vehicle, insert the key and turn the top of
the key toward the front of the vehicle.
To lock a rear door from outside the ve-
hicle, turn the lock knob forward and
close the door.
To lock a door from inside the vehicle,
turn the lock knob forward. Turn the lock
knob rearward to unlock the door.
NOTE Be sure to hold the door handle
up when you close a locked front door, or
the door will not remain locked.
❒In case of attaching any metal objects
to the immobilizer key, it may not start
the engine.
IMPORTANT The immobilizer key is a
sensitive electronic instrument. To avoid
damaging the immobilizer key:
❒Do not expose it to impacts, moisture
or high temperature such as on the
dashboard under direct sunlight.
❒Keep the immobilizer key away from
magnetic objects.
IMPORTANT The electronic components
inside the key may be damaged if the key
is submitted to sharp knocks.
This immobilizer system, model 5WK49181
and 5WK49182 for gasoline engine or
model 5WK49183 and 5WK49184 for
diesel engine are in compliance with the
essential requirements and other provi-
sions of the Directive 1999/5/EC.
Ignition Key Reminder
(if equipped)
A buzzer sounds intermittently to remind
you to remove the ignition key if it is in
the ignition switch when the driver’s door
is opened. If the immobilizer system light (1) for gaso-
line engine or service vehicle soon (SVS)
light (2) for diesel engine blinks when the
ignition switch is in the “ON” position, the
engine will not start.
NOTE
If this light blinks, turn the ignition switch
to the “LOCK” position, then turn it back
to the “ON” position. If the light still blinks
with the ignition switch turned to the
“ON” position, there may be something
wrong with your key or with the immo-
bilizer system. Ask your Fiat dealer to in-
spect the system.
NOTE
❒If you lose your Immobilizer ignition
key, see your Fiat Dealership as soon
as possible to have the lost one deac-
tivated, then have the new key made by
them.
❒If you own other vehicles with immo-
bilizer keys, keep those keys away from
the ignition switch when using your Fi-
at, or the engine may not be started be-
cause they may interfere with your Fi-
at’s immobilizer system.
(1) (2)
62J127
009-056 Fiat16 New GB 3-09-2008 8:38 Pagina 12

15
To release this system:
To unlock all the side doors, insert the key
in the driver’s door lock and turn the top
of the key toward the front of the vehi-
cle twice.
To unlock only the driver’s door, insert
the key in that door lock and turn the top
of the key toward the front of the vehi-
cle once.
83E105
Rear
Front
❒When the remote controller is placed
near an electric appliance such as per-
sonal computer.
The Keyless Start System, controller mod-
el S62J1 and key model TS001 are in com-
pliance with the essential requirements
and other provisions of Directive
1999/5/EC.
NOTE
❒Make sure the ignition key is stowed
in the remote controller. If the remote
controller becomes unreliable, you can
not lock or unlock the doors and start
the engine.
❒Be sure that the driver always carries
the remote controller.
❒If you lose your remote controller, see
your Fiat Dealership as soon as possi-
ble to have the lost one deactivated.
❒You can use up to four remote con-
trollers and ignition keys for your ve-
hicle. Ask your Fiat Dealership for de-
tails.
❒The battery life of the remote con-
troller is about two years, but it can
very depending on usage conditions. KEYLESS START SYSTEM
(if equipped)
The keyless start system enables the fol-
lowing operations:
❒You can lock or unlock the doors by
pushing the request switch on the door
handle. For details, refer to the expla-
nation in this section.
❒You can start the engine without using
an ignition key. For details, refer to “Ig-
nition Switch” in the “STEERING COL-
UMN CONTROLS” section and
“Starting the Engine” in the “OPERAT-
ING YOUR VEHICLE” section.
❒You can lock or unlock the doors by
operating the LOCK/ UNLOCK but-
tons on the remote controller. Refer
to “Keyless Entry System” in the “BE-
FORE DRIVING” section.
NOTE The keyless start system may not
function correctly depending on the en-
vironment or operating conditions as fol-
lows:
❒When there are strong signals coming
from a television, power station or a
cellular phone with you.
❒When the remote controller is in con-
tact with or covered by a metal object.
❒When the radio wave type remote key-
less entry is used nearby.
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 15

55
GENERAL WARNINGS
Never travel with objects on
your lap, in front of your
chest or with a pipe, pencil, etc. be-
tween your lips; injury may result in
the event of the air bag being trig-
gered.
WARNING
Remember that with the key
engaged and at ON, even if
the engine is not running, the air bags
may be triggered on a stationary ve-
hicle if it is bumped by another mov-
ing car. Therefore, never seat children
on the front seat even when the ve-
hicle is stationary. On the other hand
remember that if the key is at LOCK,
no safety system (air bags or preten-
sioners) is triggered in the event of an
impact; in this case, failure to come
into action cannot be considered as a
sign that the system is not working
properly.
WARNING
If the vehicle has been stolen
or an attempt to steal it has
been made, if it has been subjected to
vandals or floods, have the air bag
system checked by Fiat Dealership.
WARNING
Do not wash the seat back
rest with pressurised water
or steam (by hand or at automatic
seat washing stations).
WARNING
The front air bag is triggered
for shocks greater in magni-
tude that the pretensioners. For im-
pacts between these two thresholds,
it is therefore normal that only the
pretensioners are triggered.
WARNING
009-056 Fiat16 New GB 3-09-2008 8:41 Pagina 55

58

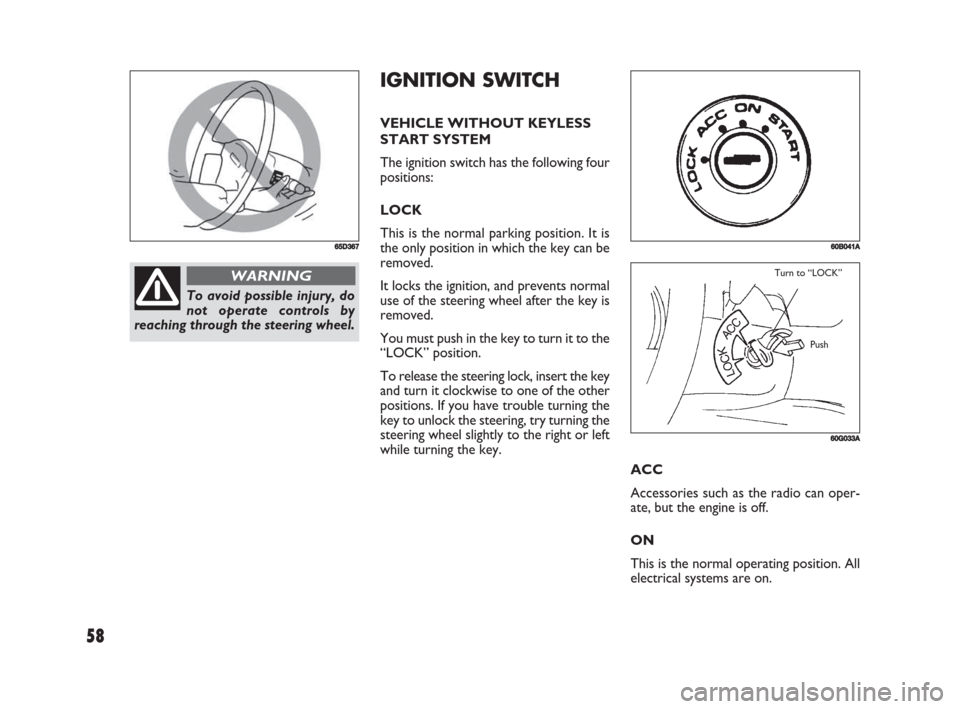

IGNITION SWITCH
VEHICLE WITHOUT KEYLESS
START SYSTEM
The ignition switch has the following four
positions:
LOCK
This is the normal parking position. It is
the only position in which the key can be
removed.
It locks the ignition, and prevents normal
use of the steering wheel after the key is
removed.
You must push in the key to turn it to the
“LOCK” position.
To release the steering lock, insert the key
and turn it clockwise to one of the other
positions. If you have trouble turning the
key to unlock the steering, try turning the
steering wheel slightly to the right or left
while turning the key.
65D367
To avoid possible injury, do
not operate controls by
reaching through the steering wheel.
WARNING
60G033A
Turn to “LOCK”
Push
60B041A
ACC
Accessories such as the radio can oper-
ate, but the engine is off.
ON
This is the normal operating position. All
electrical systems are on.
057-068 Fiat16 New GB 3-09-2008 8:13 Pagina 58
