2008 FIAT SEDICI key

18
KEYLESS ENTRY SYSTEM
(if equipped)
(1) “LOCK” button
(2) “UNLOCK” button
There are two ways to lock or unlock all
doors simultaneously by operating the
transmitter/ remote controller near the
vehicle. If the remote controller is left in the ve-
hicle and you lock the door in the follow-
ing manner, the driver’s door or the front
passenger’s door will be automatically un-
locked.
❒You open the driver’s door and lock
the door by turning the lock knob for-
ward or pushing the power door lock-
ing switch, the driver’s door will be au-
tomatically unlocked.
❒You open the door (s) except the dri-
ver’s door and lock the front passen-
ger’s door by turning the lock knob for-
ward or pushing the power door lock-
ing switch, the front passenger’s door
will be automatically unlocked.
NOTE
❒The reminder will not operate when
the remote controller is on the instru-
ment panel, in the glove box, in the
door pocket, in the sun visor or on the
floor etc.
❒Be sure that the driver always carries
the remote controller.
❒Do not leave the remote controller in
the vehicle when departing from the ve-
hicle.
(1)
(2)
81A184
Type 1
Reminder function
If the remote controller is not in the vehi-
cle under the following condition, a buzzer
sounds intermittently for about 2 seconds
and the keyless start system indicator light
on the instrument cluster blinks in red:
❒When the vehicle speed is over 10 km/h.
❒When the door (s) has (have) opened
and later all doors are closed with the
ignition switch in a position other than
LOCK.
The red indicator light will turn off within
several seconds after the remote controller
is returned in the vehicle except in the rear
luggage area.
79J186
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 18

19

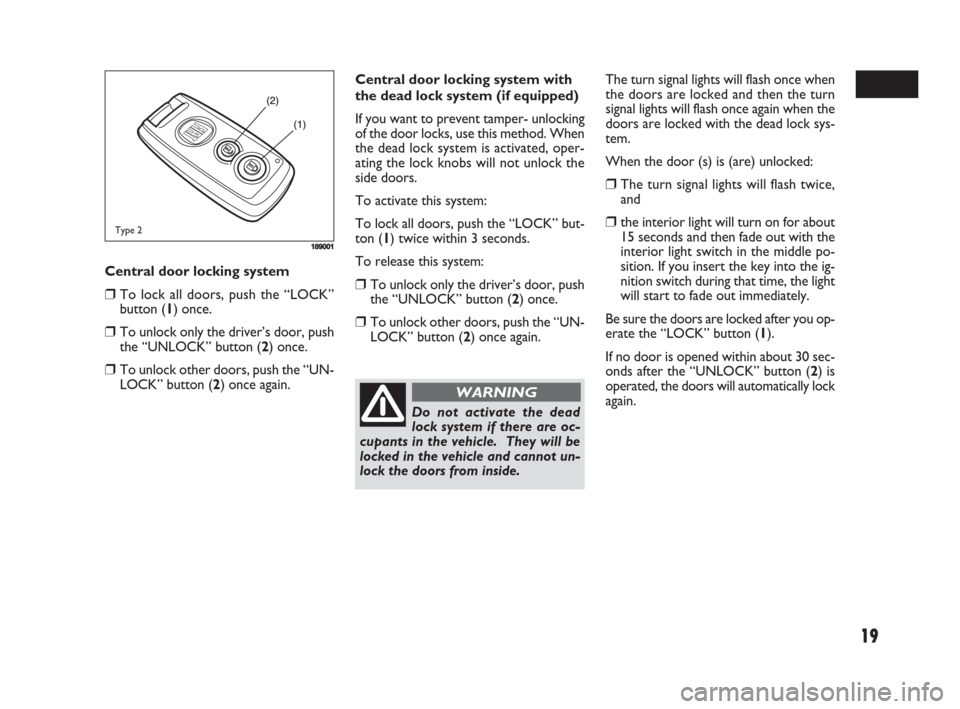

Central door locking system
❒To lock all doors, push the “LOCK”
button (1) once.
❒To unlock only the driver’s door, push
the “UNLOCK” button (2) once.
❒To unlock other doors, push the “UN-
LOCK” button (2) once again.
Type 2
The turn signal lights will flash once when
the doors are locked and then the turn
signal lights will flash once again when the
doors are locked with the dead lock sys-
tem.
When the door (s) is (are) unlocked:
❒The turn signal lights will flash twice,
and
❒the interior light will turn on for about
15 seconds and then fade out with the
interior light switch in the middle po-
sition. If you insert the key into the ig-
nition switch during that time, the light
will start to fade out immediately.
Be sure the doors are locked after you op-
erate the “LOCK” button (1).
If no door is opened within about 30 sec-
onds after the “UNLOCK” button (2) is
operated, the doors will automatically lock
again. Central door locking system with
the dead lock system (if equipped)
If you want to prevent tamper- unlocking
of the door locks, use this method. When
the dead lock system is activated, oper-
ating the lock knobs will not unlock the
side doors.
To activate this system:
To lock all doors, push the “LOCK” but-
ton (1) twice within 3 seconds.
To release this system:
❒To unlock only the driver’s door, push
the “UNLOCK” button (2) once.
❒To unlock other doors, push the “UN-
LOCK” button (2) once again.
Do not activate the dead
lock system if there are oc-
cupants in the vehicle. They will be
locked in the vehicle and cannot un-
lock the doors from inside.
WARNING
189001
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 19

20
Replacement of the battery
If the transmitter/ remote controller be-
comes unreliable, replace the battery.
To replace the battery for the
transmitter of the keyless entry
❒Remove the screw (1), and open the
transmitter cover.
❒Remove the transmitter (2). Type 1
The Keyless Entry System, Transmitter
model TS002 and Receiver model R62J1
or R51K0 are in compliance with the es-
sential requirements and other provisions
of Directive 1999/5/EC.
Type 2
The Keyless Start System, controller mod-
el S62J1 and key model TS001 are in com-
pliance with the essential requirements
and other provisions of Directive
1999/5/EC.
IMPORTANT The transmitter/remote
controller is a sensitive electronic instru-
ment. To avoid damaging the transmit-
ter/remote controller:
❒Do not expose it to impacts, moisture
or high temperature such as on the
dashboard under direct sunlight.
❒Keep the transmitter/remote con-
troller away from magnetic objects
such as a television.
(1)
(2)
81A185
NOTE
❒The maximum operating distance is
about 5 meter (16 ft.), but this can vary
depending on the surroundings, espe-
cially near other transmitting devices
such as radio towers or CB (Citizen’s
Band) radios.
❒The door locks can not be operated
with the transmitter/ remote con-
troller:
– if the ignition switch is in a position
other than “LOCK” or the ignition
key is inserted in the ignition switch,
or
– if any door is open or incompletely
closed.
❒If you lose your transmitter/ remote
controller, ask your Fiat Dealership as
soon as possible for a replacement and
to have the lost one deactivated.
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 20

21
❒Put the edge of a coin or a flat blade
screw driver in the slot of the trans-
mitter (2) and pry it open.
❒Replace the battery (3) (Lithium disc-
type CR1620 or equivalent) so its +
terminal faces the “+” mark of the
transmitter.
❒Close the transmitter and install it in-
to the transmitter holder.
❒Close the transmitter cover, install and
tighten the screw (1).
❒Make sure the door locks can be op-
erated with the transmitter.
❒Dispose of the used battery properly
according to applicable rules or regula-
tions. Do not dispose of lithium bat-
teries with ordinary household trash.
(2)
(3)
81A186
To replace the battery for the
remote controller of the keyless
start system
❒Insert a flat blade screw driver covered
with a soft cloth in the slit of the re-
mote controller and pry it open.
❒Replace the battery (1) (Lithium disc
type CR2032 or equivalent) so its +
terminal faces the bottom of the case
as shown in the illustration.
❒Close the remote controller firmly.
❒Make sure the door locks can be op-
erated with the remote controller.
❒Dispose of the used battery properly
according to applicable rules or regula-
tions. Do not dispose of lithium bat-
teries with ordinary household trash.
189002189003
Swallowing a lithium battery
may cause serious internal
injury. Do not allow anyone to swal-
low a lithium battery. Keep lithium
batteries away from children and
pets. If swallowed, contact physician
immediately.
WARNING
IMPORTANT The transmitter/ remote
controller is a sensitive electronic instru-
ment. To avoid damaging it, do not expose
it to dust or moisture or tamper with in-
ternal parts.
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 21

23

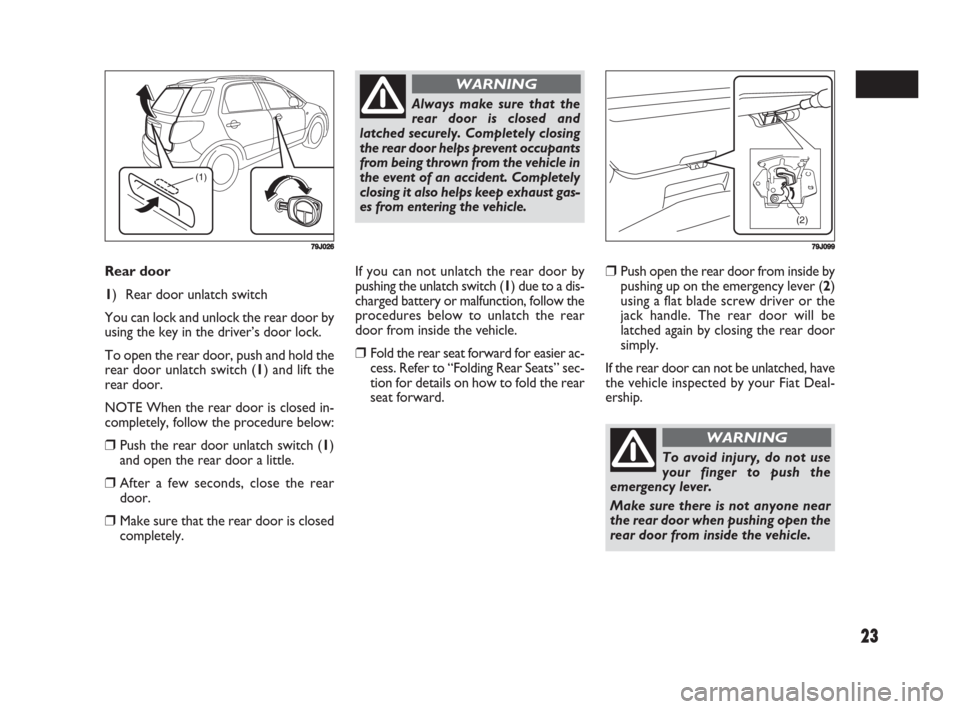

Rear door
1) Rear door unlatch switch
You can lock and unlock the rear door by
using the key in the driver’s door lock.
To open the rear door, push and hold the
rear door unlatch switch (1) and lift the
rear door.
NOTE When the rear door is closed in-
completely, follow the procedure below:
❒Push the rear door unlatch switch (1)
and open the rear door a little.
❒After a few seconds, close the rear
door.
❒Make sure that the rear door is closed
completely.If you can not unlatch the rear door by
pushing the unlatch switch (1) due to a dis-
charged battery or malfunction, follow the
procedures below to unlatch the rear
door from inside the vehicle.
❒Fold the rear seat forward for easier ac-
cess. Refer to “Folding Rear Seats” sec-
tion for details on how to fold the rear
seat forward.
(1)
79J026
Always make sure that the
rear door is closed and
latched securely. Completely closing
the rear door helps prevent occupants
from being thrown from the vehicle in
the event of an accident. Completely
closing it also helps keep exhaust gas-
es from entering the vehicle.
WARNING
❒Push open the rear door from inside by
pushing up on the emergency lever (2)
using a flat blade screw driver or the
jack handle. The rear door will be
latched again by closing the rear door
simply.
If the rear door can not be unlatched, have
the vehicle inspected by your Fiat Deal-
ership.
(2)
79J099
To avoid injury, do not use
your finger to push the
emergency lever.
Make sure there is not anyone near
the rear door when pushing open the
rear door from inside the vehicle.
WARNING
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 23

26

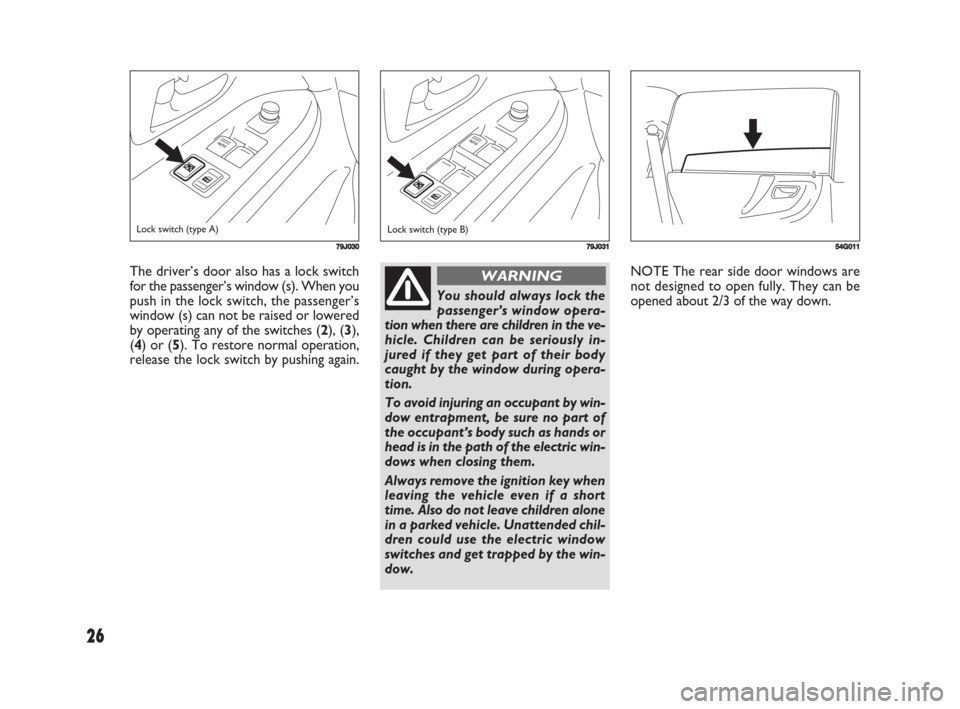

NOTE The rear side door windows are
not designed to open fully. They can be
opened about 2/3 of the way down.
54G011
The driver’s door also has a lock switch
for the passenger’s window (s). When you
push in the lock switch, the passenger’s
window (s) can not be raised or lowered
by operating any of the switches (2), (3),
(4) or (5). To restore normal operation,
release the lock switch by pushing again.
79J03079J031
Lock switch (type A)Lock switch (type B)
You should always lock the
passenger’s window opera-
tion when there are children in the ve-
hicle. Children can be seriously in-
jured if they get part of their body
caught by the window during opera-
tion.
To avoid injuring an occupant by win-
dow entrapment, be sure no part of
the occupant’s body such as hands or
head is in the path of the electric win-
dows when closing them.
Always remove the ignition key when
leaving the vehicle even if a short
time. Also do not leave children alone
in a parked vehicle. Unattended chil-
dren could use the electric window
switches and get trapped by the win-
dow.
WARNING
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 26

35

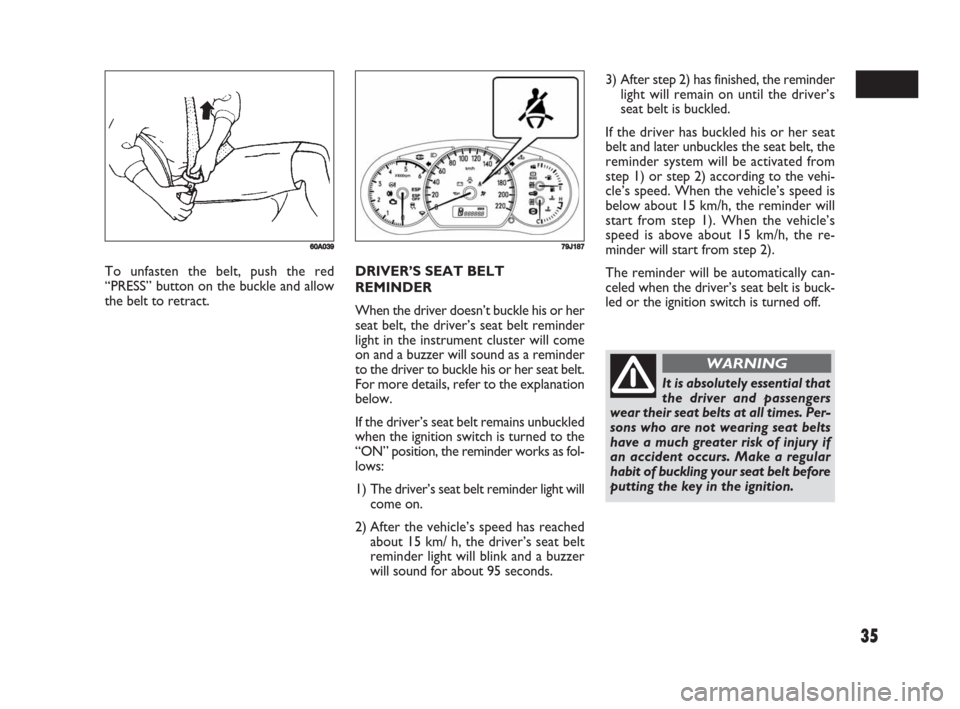

DRIVER’S SEAT BELT
REMINDER
When the driver doesn’t buckle his or her
seat belt, the driver’s seat belt reminder
light in the instrument cluster will come
on and a buzzer will sound as a reminder
to the driver to buckle his or her seat belt.
For more details, refer to the explanation
below.
If the driver’s seat belt remains unbuckled
when the ignition switch is turned to the
“ON” position, the reminder works as fol-
lows:
1) The driver’s seat belt reminder light will
come on.
2) After the vehicle’s speed has reached
about 15 km/ h, the driver’s seat belt
reminder light will blink and a buzzer
will sound for about 95 seconds.3) After step 2) has finished, the reminder
light will remain on until the driver’s
seat belt is buckled.
If the driver has buckled his or her seat
belt and later unbuckles the seat belt, the
reminder system will be activated from
step 1) or step 2) according to the vehi-
cle’s speed. When the vehicle’s speed is
below about 15 km/h, the reminder will
start from step 1). When the vehicle’s
speed is above about 15 km/h, the re-
minder will start from step 2).
The reminder will be automatically can-
celed when the driver’s seat belt is buck-
led or the ignition switch is turned off. To unfasten the belt, push the red
“PRESS” button on the buckle and allow
the belt to retract.
60A03979J187
It is absolutely essential that
the driver and passengers
wear their seat belts at all times. Per-
sons who are not wearing seat belts
have a much greater risk of injury if
an accident occurs. Make a regular
habit of buckling your seat belt before
putting the key in the ignition.
WARNING
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 35

40
X
X
X
X
XX
X
X
X
XU(only left)
U(only left)
U(only left) *
UF(only left)
UF(only left)NA
NA
NA
NA
NANA
NA
NA
NA
NA

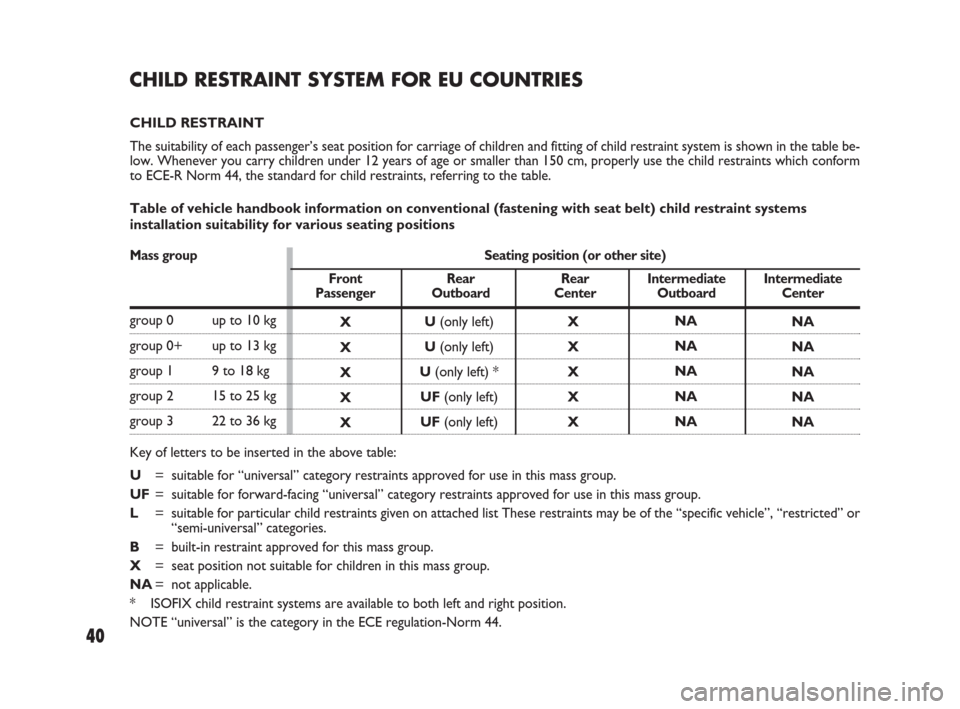

CHILD RESTRAINT SYSTEM FOR EU COUNTRIES
CHILD RESTRAINT
The suitability of each passenger’s seat position for carriage of children and fitting of child restraint system is shown in the table be-
low. Whenever you carry children under 12 years of age or smaller than 150 cm, properly use the child restraints which conform
to ECE-R Norm 44, the standard for child restraints, referring to the table.
Table of vehicle handbook information on conventional (fastening with seat belt) child restraint systems
installation suitability for various seating positions
Mass group Seating position (or other site)
Front Rear Rear Intermediate Intermediate
Passenger Outboard Center Outboard Center
group 0 up to 10 kg
group 0+ up to 13 kg
group 1 9 to 18 kg
group 2 15 to 25 kg
group 3 22 to 36 kg
Key of letters to be inserted in the above table:
U= suitable for “universal” category restraints approved for use in this mass group.
UF= suitable for forward-facing “universal” category restraints approved for use in this mass group.
L= suitable for particular child restraints given on attached list These restraints may be of the “specific vehicle”, “restricted” or
“semi-universal” categories.
B= built-in restraint approved for this mass group.
X= seat position not suitable for children in this mass group.
NA= not applicable.
* ISOFIX child restraint systems are available to both left and right position.
NOTE “universal” is the category in the ECE regulation-Norm 44.
009-056 Fiat16 New GB 3-09-2008 8:40 Pagina 40
