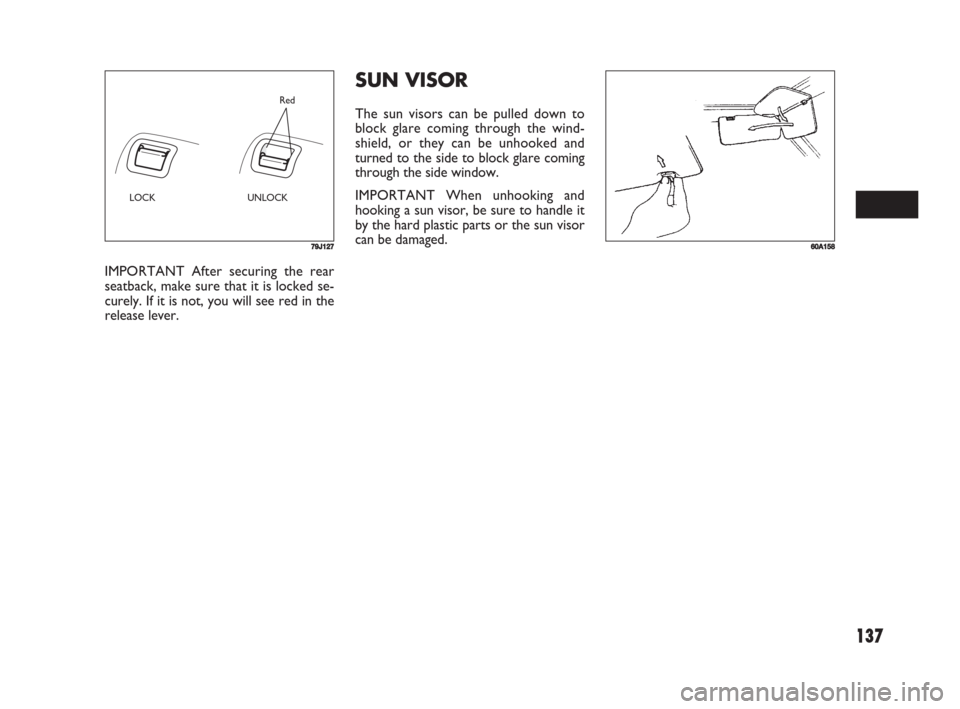

SUN VISOR
The sun visors can be pulled down to
block glare coming through the wind-
shield, or they can be unhooked and
turned to the side to block glare coming
through the side window.
IMPORTANT When unhooking and
hooking a sun visor, be sure to handle it
by the hard plastic parts or the sun visor
can be damaged.
IMPORTANT After securing the rear
seatback, make sure that it is locked se-
curely. If it is not, you will see red in the
release lever.
60A15879J127
LOCK UNLOCKRed
129-148 Fiat16 New GB 3-09-2008 8:16 Pagina 137

150
DAILY INSPECTION
CHECKLIST
BEFORE DRIVING
❒Make sure that windows, mirrors,
lights, and reflectors are clean and un-
obstructed.
❒Visually check the tires for the fol-
lowing points:
– the depth of the tread groove
– abnormal wear, cracks and damage
– loose wheel bolts
– existence of foreign material such as
nails, stones, etc.
Refer to “Tires” in “INSPECTION AND
MAINTENANCE” section for details.
❒Look for fluid and oil leaks.
NOTE It is normal for water to drip from
the air conditioning system after use.
❒Make sure the hood is fully closed and
latched.
❒Check the headlights, turn signal lights,
brake lights and horn for proper oper-
ation.
EXHAUST GAS
WARNING
52D147
Avoid breathing exhaust gas-
es. Exhaust gases contain
carbon monoxide, a potentially lethal
gas that is colorless and odorless.
Since carbon monoxide is difficult to
detect by itself, be sure to take the
following precautions to help prevent
carbon monoxide from entering your
vehicle.
Do not leave the engine running in
garages or other confined areas.
Do not park with the engine running
for a long period of time, even in an
open area. If it is necessary to sit for
a short time in a parked vehicle with
the engine running, make sure the air
intake selector is set to “FRESH AIR”
and the fan is at high speed.
Avoid operating the vehicle with the
tail gate or trunk open. If it is neces-
sary to operate the vehicle with the
tail gate or trunk open, make sure the
sunroof (if equipped) and all windows
are closed, and the blower is at high
speed with the air intake selector set
to “FRESH AIR”.
WARNING
To allow proper operation
of your vehicle’s ventilation
system, keep the air inlet grille in
front of the windshield clear of snow,
leaves, or other obstructions at all
times.
Keep the exhaust tailpipe area clear
of snow and other material to help
reduce the buildup of exhaust gases
under the vehicle. This is particular-
ly important when parked in blizzard
conditions.
Have the exhaust system inspected
periodically for damage and leaks.
Any damage or leaks should be re-
paired immediately.
WARNING
149-166 Fiat16 New GB 3-09-2008 8:15 Pagina 150

181
I I
N N
S S
P P
E E
C C
T T
I I
O O
N N
A A
N N
D D
M M
A A
I I
N N
T T
E E
N N
A A
N N
C C
E E E
60G410
MAINTENANCE SCHEDULE ........................................... 183
MAINTENANCE RECOMMENDED UNDER SEVERE
DRIVING CONDITIONS .................................................... 188
DRIVE BELT .......................................................................... 189
ENGINE OIL AND FILTER ................................................ 189
GEAR OIL .............................................................................. 193
ENGINE COOLANT .......................................................... 195
WINDSHIELD WASHER FLUID ...................................... 198
AIR CLEANER ...................................................................... 198
SPARK PLUGS (Petrol engine).......................................... 199
FUEL FILTER (Diesel engine)............................................. 201
BRAKES .................................................................................. 202
STEERING .............................................................................. 204
CLUTCH PEDAL ................................................................. 205
TIRES ....................................................................................... 205
BATTERY ............................................................................... 210
FUSES ...................................................................................... 212
BULB REPLACEMENT ........................................................ 218
WINDSCREEN - REAR WINDOW WASHER /
WIPERS .................................................................................. 223
AIR CONDITIONING SYSTEM ....................................... 224
8
181-224 Fiat16 New GB 3-09-2008 8:17 Pagina 181

213
(1) (2)
(3)
(4)
(5)
62J085
(28) (27) (26) (25) (6) (7) (9) (11)
(12) (13) (14) (15) (16) (17) (18) (19)
(24)
(8) (10)
(22) (21)
(23) (20)
79J092
80A
50A
50A
80A
80A
15A
15A
15A
60A
40A
30A
30A
FUSES IN THE ENGINE COMPARTMENT
Petrol engine
Main fuse / Primary fuse
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)All electric load
Power window, Ignition Wiper, Starter
Tail light, Rear defogger, Door lock, Hazard/
Horn, Dome
Heater, Air compressor, Power steering
Radiator fan, Front fog light, Head light
Head light (Right) fuse
Head light (Left) fuse
Front fog light fuse
Power steering control module fuse
ABS control module fuse
Radiator fan fuse
ABS control module fuse
181-224 Fiat16 New GB 3-09-2008 8:18 Pagina 213

217
15A
15A
10A
10A
15A
15A
30A
30A
10A
15A
10A
10A
15A
20A
15A
10A
15A
10A
10A
15A
30A
15A
10A
79J093
79J011
FUSES UNDER THE DASH BOARD
Main fuse / Primary fuse
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
(22)
(23)Rear wiper
Ignition coil
Back-up light
Meter
Accessory
Accessory 2
Power window
Wiper
IG1 SIG
Air bag
Anti-lock brake system
Tail light
Stop light
Door lock
4WD light
ST SIG
Seat heater
IG 2 SIG
Rear fog lamp
Dome
Rear defogger
Horn / Hazard
Fiat CODE (Immobilizer)
181-224 Fiat16 New GB 3-09-2008 8:18 Pagina 217

223
❒Squeeze lock (1) towards wiper arm (2)
and remove the wiper frame from the
arm as shown.
54G130
WINDSCREEN - REAR
WINDOW WASHER /
WIPERS
If the wiper blades become brittle or dam-
aged, or make streaks when wiping, re-
place the wiper blades.
To install new wiper blades, follow the
procedures below.
IMPORTANT To avoid scratching or
breaking the window, do not let the wiper
arm strike the window while replacing the
wiper blade.
NOTE Some wiper blades may be differ-
ent from the ones described here de-
pending on vehicle specifications. If so,
consult your Fiat Dealership for proper
replacement method.
For windscreen wipers
❒Hold the wiper arm away from the win-
dow.
54G129
70G119ADriving with worn wiper
blades is a serious hazard,
because visibility is reduced in bad
weather.
WARNING
181-224 Fiat16 New GB 3-09-2008 8:18 Pagina 223

224
For rear window / wiper
❒Hold the wiper arm away from the win-
dow.
❒Remove the wiper frame from the arm
as shown.
❒Slide the blade out as shown.
80G146
AIR CONDITIONING
SYSTEM
If you do not use the air conditioner for
a long period, such as during winter, it may
not give the best performance when you
start using it again. To help maintain op-
timum performance and durability of your
air conditioner, it needs to be run peri-
odically.Operate the air conditioner at least once
a month for one minute with the engine
idling. This circulates the refrigerant and
oil and helps protect the internal compo-
nents.
181-224 Fiat16 New GB 3-09-2008 8:18 Pagina 224

258
– Fuel filter........................................... 201
– Fuel filler cap ................................... 132
– Fuel gauge ........................................ 84
– Improving fuel economy .............. 166
– Instantaneous fuel
consumption (gauge) ......................... 92
Fuel filler cap .......................................... 132
Fuel gauge ............................................... 84
Fuses ........................................................ 212
Gear oil
– Changing .................................193-248
– Level check .................................... 194
– Specifications.................................. 193
General information.................... 239
Glove box ............................................ 91
Hazard warning lights ....................... 85
Hazard warning lights ........................ 85
Head restraints ................................... 30
Headlight levelling switch .................. 87
Headlights
– Bulb replacement ......................... 220
– Headlight levelling switch ........... 87
Heated rear window .......................... 88
Heating and air conditioning
system .........................................99-224
Heating system .............................99-104
Horn ...................................................... 68
Identification data .............................. 230
Ignition switch ..................................... 58
Information display ......................91-94
– Illumination cancel switch .......... 89
Inspection and maintenance.... 181
– Maintenance schedule ................. 183
– Severe driving conditions ........... 188
Instrument cluster .............................. 71
– Meter illumination
(control) ..................................82-87
Instrument panel........................... 69
Interior lights ................................138-219
Isofix type child restraint system
(installation)........................................ 42
Jack ......................................................... 144
Jacking instructions.............................. 226
Jump starting instructions.................. 227
Keys ....................................................... 11
– Battery replacement..................... 20
– Keyless Entry................................. 18
Luggage compartment
– Capacity/volume .......................... 247
– Extension (folding rear seats)..... 134
– Luggage compartment cover ..... 146
– Luggage compartment light ....... 146
– Luggage restraint loops .............. 145
– Rear door opening ...................... 23
Luggage compartment light .............. 146 – If the engine overheats ............... 230
– If the starter does not operate .. 229
– Jump starting ................................. 227
– Serial number ............................... 240
– Spark plugs .................................... 199
– Starting ........................................... 165
– Technical specifications .............. 244
– Temperature gauge ..................... 84
Engine coolant ..................................... 195
Engine coolant temperature gauge .. 84
Engine hood ......................................... 140
Engine oil consumption ..................... 152
Engine oil
– Changing .................................191-248
– Level check .................................... 190
– Specifications ................................ 189
Engine oil filter (change) .................... 191
ESP (Electronic Stability Program) ... 161
Exhaust gas ........................................... 150
External lights ...............................63-219
Eyeglasses holder ................................ 142
Fiat CODE (Immobilizer system) .... 11
Frame hooks .......................................... 143
Front fog lights ....................................... 89
Fuel
– Capacities/refuelling ...............10-248
– Consumption .................................. 241
257-264 Fiat16 New GB 3-09-2008 8:25 Pagina 258
