2008 FIAT GRANDE PUNTO LPG Supplement Manual

17
FIAT PUNTO LPG
ENGINE
ENGINE CODE - BODYWORK VERSIONS
IDENTIFICATION PLATE (STAGE 2)
Following the installation of the LPG system components, a plate (Stage 2) is fitted to the left side of the luggage compartment rear
floor, that contains the following information:
– Name of manufacturer;
– Homologation number (Stage 2);
– Vehicle type identification codes;
– Vehicle weights;
– Engine type;
– Bodywork version code.
Engine code Bodywork version
3 door/4 seater 3 door/5 seater 5 door/5 seater
1.4350A1000 199AXB1A G02L 199AXB1A G02H 199AXB1A G03G
604.39.942 Grande Punto GPL GB.qxp:603.39.944 Grande Punto GPL IT 15-12-2008 9:01 Pagina 17

18
FIAT PUNTO LPG
LPG FUEL SYSTEM
Electronic injection with special LPG injec-
tors.
Type: Phased, sequential, multipoint.
Stoichiometric metering of the air/gas mix-
ture.
Engine idle speed:
700 ± 50 rpm
The LPG injection system is controlled by
a dedicated control unit (connected to the
petrol one) using the sensors already on
the car.
IGNITION
Static advance, electronic, integrated with
the injection.
PERFORMANCE
Top speed in km/h.
Running on petrol: 165
Running on LPG: 165
Modifications or repairs to
the fuel feed system that are
not carried out properly or do not
take the system’s technical specifica-
tions into account can cause mal-
functions leading to the risk of fire.
WARNING
INTRODUCTION 1.4
Engine identification code 350A1000
Cycle Otto
Number of cylinders and position 4 in line
Piston diameter and stroke mm 72 x 84
Total capacity cm31368
Compression ratio 11.1 : 1
LPG Petrol
kW 57 57
Max power CEE bhp 77 77
at a speed of rpm 6000 6000
Nm 115 115
Max torque CEE kgm 11.7 11.7
at a speed of rpm 3000 3000
Spark plugs NGK ZKR7A-10
Fuel
LPGGreen petrol
unleaded
95 RON
604.39.942 Grande Punto GPL GB.qxp:603.39.944 Grande Punto GPL IT 15-12-2008 9:01 Pagina 18

19
FIAT PUNTO LPG
WEIGHTS
(1) In the presence of optional equipment the unladen weight increases and, as a result, the payload decreases in relation to the max-
imum permitted loads.
(2) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/on load carrying plat-
form within the maximum permitted loads.
Weights (kg) for versions
Unladen weight (with all fluids, fuel tank
filled to 90% and without optional equipment):
Payload including the driver (1):
Maximum permitted loads (2)
– front axle:
– rear axle:
– total:
Towable loads
- braked trailer:
- non braked trailer:
Maximum permitted load on the roof:
Maximum load on the ball:1.4
3 door 3 door 5 door
4 seater 5 seater 5 seater
1025 1025 1040
480 560 560
850 850 850
850 850 850
1505 1585 1600
1000 1000 1000
400 400 400
75 75 75
60 60 60
604.39.942 Grande Punto GPL GB.qxp:603.39.944 Grande Punto GPL IT 15-12-2008 9:01 Pagina 19

20
FIAT PUNTO LPG
F0M0369m

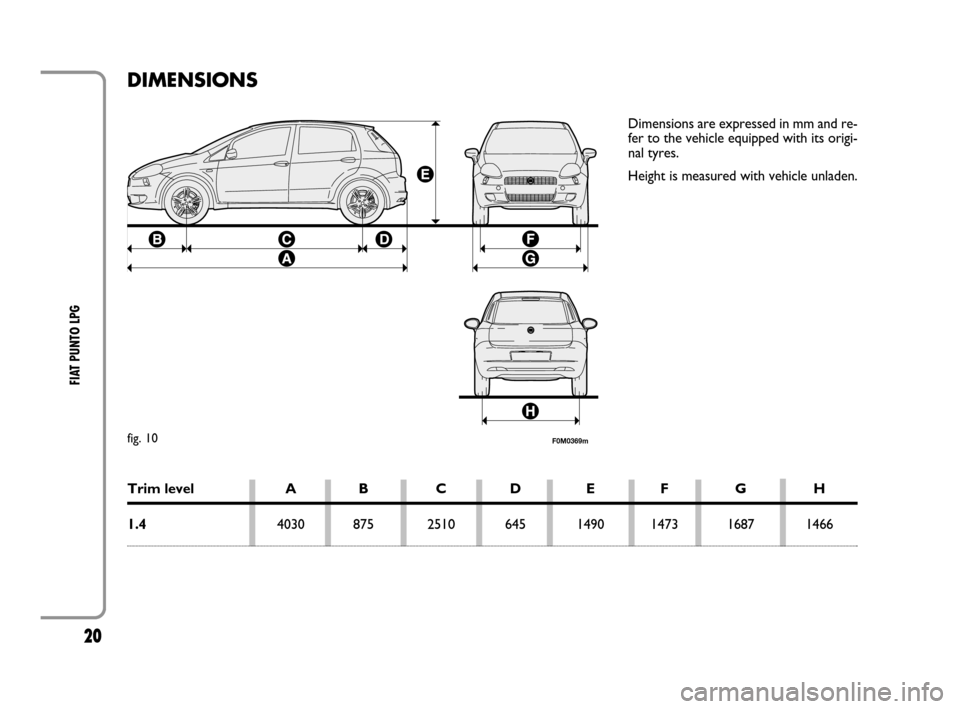

DIMENSIONS
fig. 10
Trim level A B C D E F G H
1.44030 875 2510 645 1490 147316871466 Dimensions are expressed in mm and re-
fer to the vehicle equipped with its origi-
nal tyres.
Height is measured with vehicle unladen.
604.39.942 Grande Punto GPL GB.qxp:603.39.944 Grande Punto GPL IT 15-12-2008 9:01 Pagina 20

21
FIAT PUNTO LPG

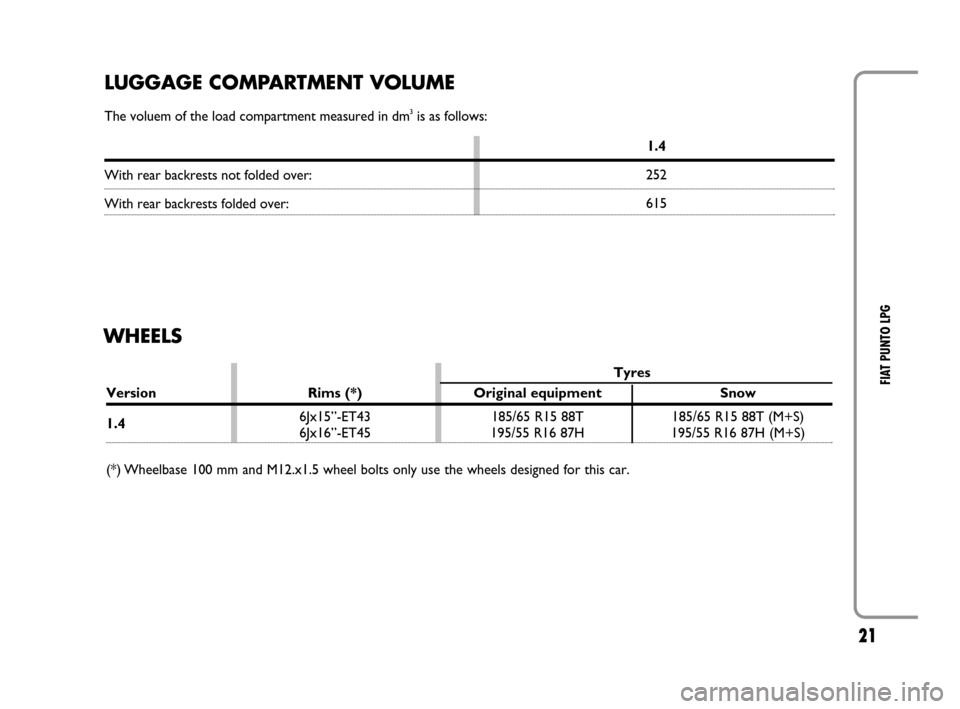

LUGGAGE COMPARTMENT VOLUME
The voluem of the load compartment measured in dm3is as follows:
With rear backrests not folded over:
With rear backrests folded over:1.4
252
615
WHEELS
Tyres
Version Rims (*) Original equipment Snow
1.46Jx15”-ET43 185/65 R15 88T 185/65 R15 88T (M+S)
6Jx16”-ET45 195/55 R16 87H 195/55 R16 87H (M+S)
(*) Wheelbase 100 mm and M12.x1.5 wheel bolts only use the wheels designed for this car.
604.39.942 Grande Punto GPL GB.qxp:603.39.944 Grande Punto GPL IT 15-12-2008 9:01 Pagina 21

22
FIAT PUNTO LPG
CAPACITIES
Petrol
Petrol . . . . . . . . . . . . . . . . . litres 45
- including a reserve of . . . . . . 5-7 litres
LPG
– maximum refuelling
capacity (*) . . . . . . . . . . . . . . litres 38
(*) The figure already takes into account
the 80% tank filling limit and the residual
fluid required for the pump and the max-
imum permitted capacity. There may be
slight variations to this figure as a re-
sult of: differences between the supply
pressures of pumps in the network,
pumps with different supply/cut off
specifications, tank not completely in
reserve condition..Note than when using a fuel such as LPG,
the range is very variable because, in ad-
dition to the vehicle driving and mainte-
nance conditions, it also depends on the
composition of the gas which may vary,
not only seasonally, but also from suppli-
er to supplier. LPG is, in effect, a compo-
sition of gas (butane and propane) mixed
in a way that may not be standardized.
During LPG operation, the “Instant con-
sumption” and “Average consumption”
readings are not significant, but remain
valid for all other functions.
IMPORTANT Only use LPG for mo-
tor vehicles. If, when refuelling with LPG,
the tank is filled with more
than the 38 litres, seek assis-
tance immediately from a Fi-
at Dealer. Periodically (at least once
every six months) it is advisable to let
the LPG in the tank run out and, at the
first refuelling, check that it does not
exceed the maximum capacity of 38
litres.
604.39.942 Grande Punto GPL GB.qxp:603.39.944 Grande Punto GPL IT 15-12-2008 9:01 Pagina 22

23
FIAT PUNTO LPG
FUEL CONSUMPTION
The fuel consumption figures given in the
table below are determined on the basis
of the homologation tests laid down by
specific European Directives.
The procedures below are followed for
measuring consumption:
– urban cycle: cold starting followed by
driving that simulates urban use of the car;
– extra-urban cycle: driving simulating the
use of the vehicle in a non-urban situation
with frequent acceleration in all gears; the
speed varies between 0 and 120 km/h;
– combined consumption: about 37% of
the urban cycle and around 63% of the
non-urban cycle.IMPORTANT The type of route, traffic sit-
uations, weather conditions, driving style,
general conditions of the car, trim lev-
el/equipment/accessories, use of the cli-
mate control system, vehicle load, roof
rack and other situations that affect air
drag may lead to different fuel consump-
tion levels than those measured.(see
“Saving fuel” in the “Starting and
driving” chapter in the handbook).
LPG range
With reference to the combined con-
sumption figures, the range running on
LPG is 520 km.
Fuel consumption according to Directive 2004/3/EC
CO2EMISSIONS
The CO2emission figures in the table be-
low refer to combined fuel consumption.
CO
2emissions according to directive
2004/3/EC (g/km)
LPG . . . . . . . . . . . . . . . . . . . . . . . . . 119
Petrol . . . . . . . . . . . . . . . . . . . . . . . 139
Saloon Petrol LPG
(litres x 100 km) (litres x 100 km)
Urban 7.5 9.4
Extraurban 5.0 6.2
Combined 5.9 7.4
604.39.942 Grande Punto GPL GB.qxp:603.39.944 Grande Punto GPL IT 15-12-2008 9:01 Pagina 23

Fiat Group Automobiles S.p.A. - Customer Services - Technical Services - Service Engineering
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print no. 604.39.942 -12/2008 -1
stEdition
