2008 DODGE SPRINTER display

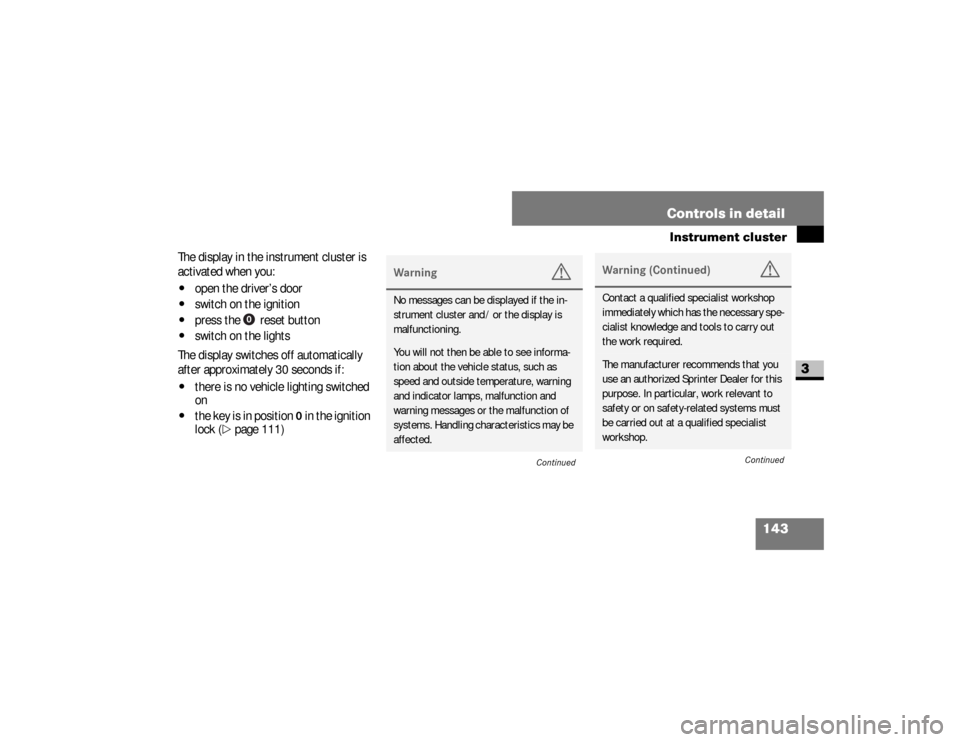

143 Controls in detail
Instrument cluster
3
The display in the instrument cluster is
activated when you:\4
open the driver’s door
\4
switch on the ignition
\4
press the reset button
\4
switch on the lights
The display switches off automatically
after approximately 30 seconds if:
\4
there is no vehicle lighting switched
on
\4
the key is in position
0 in the ignition
lock
(\2
page 111)
Warning
G
No messages can be displayed if the in-
strument cluster and / or the display is
malfunctioning.You will not then be able to see informa-
tion about the vehicle status, such as
speed and outside temperature, warning
and indicator lamps, malfunction and
warning messages or the malfunction of
systems. Handling characteristics may be
affected.
Continued
Warning (Continued)
G
Contact a qualified specialist workshop
immediately which has the necessary spe-
cialist knowledge and tools to carry out
the work required.The manufacturer recommends that you
use an authorized Sprinter Dealer for this
purpose. In particular, work relevant to
safety or on safety-related systems must
be carried out at a qualified specialist
workshop.
Continued
nf_BA.book Page 143 Friday, January 25, 2008 3:53 PM

146 Controls in detailInstrument cluster
3
Resetting the trip meter
\1
Vehicles with steering wheel but-
tons*: Make sure that the display is
showing the trip meter
(\2
page 157).
\1
Keep reset button
0 pressed until
the trip meter is set to
0.0
.
Fuel gauge1
Vehicles without steering wheel
buttons
2
Vehicles with steering wheel but-
tons*
3
Fuel filler flap location indicatorÖ
: The fuel filler cap is on the
left-hand side
4
Reserve fuel warning lamp
(\2
page 475)
Trip meter
nf_BA.book Page 146 Friday, January 25, 2008 3:53 PM

147 Controls in detail
Operating system without steering wheel buttons
3
\3 Operating system without steering wheel buttonsThe operating system is activated as
soon as you switch on the ignition. You
may perform the following using the op-
erating system:\4
Call up vehicle information
\4
Make settings
You can control the display and the set-
tings in the operating system using the
adjustment buttons on the instrument
cluster.Warning
G
Only use adjustment buttons , ,
or when traffic conditions permit. You
will otherwise be unable to observe road
and traffic conditions and could cause an
accident.
Continued
Warning (Continued)
G
Do not reach through the steering wheel to
press the adjustment buttons. This will
make the steering wheel much more diffi-
cult to control. Your attention will also be di-
verted from the road and traffic conditions.
This could cause you to lose control of the
vehicle and could lead to an accident.Do not rest your head or chest on the
steering wheel or dashboard when oper-
ating the adjustment buttons.
Continued
Warning (Continued)
G
See the safety precautions for airbags
(\2page 46).The operating system shows the informa-
tion in the display.
nf_BA.book Page 147 Friday, January 25, 2008 3:53 PM

148 Controls in detailOperating system without steering wheel buttons
3
Changing the standard display
\1
Switch on the ignition (
\2
page 111).
\1
Press and hold the menu button
for more than 1 second.
The information shown in the display
changes from the outside tempera-
ture to the digital speedometer.
Outside temperature display*
Standard display1
Odometer
2
Trip meter
3
Time
4
Outside temperature* or digital
speedometer
5
Fuel gauge (
\2
page 145)
6
Selector lever position or current
shift rangeN54.32-2281-31
Warning
G
Even if the temperature displayed is just
above freezing point, the road surface may
still be icy, especially in wooded areas or on
bridges. You could skid if you do not adopt
a suitable driving style. You should there-
fore always adapt your driving style and
speed to suit the weather conditions.
nf_BA.book Page 148 Friday, January 25, 2008 3:53 PM

149 Controls in detail
Operating system without steering wheel buttons
3
There may be a short delay before a low-
er outside temperature is displayed, for
example after leaving a garage. There
may also be a short delay before a rise in
the outside temperature is displayed.
This prevents you from seeing a temper-
ature display influenced by heat from
the engine when the vehicle is stationary
or moving slowly.
MenusFunction
Page
Calling up the service due
date*
411
Checking the engine oil level
322
Selecting/setting the auxiliary
heating switch-on time*
240
Tire pressure monitor
365
Setting the time
150
Setting the date
150
iTo return to the standard display:\4
press and hold menu button
for more than 1 second
\4
do not press a button for
10 seconds
The display accepts the changed set-
tings.
nf_BA.book Page 149 Friday, January 25, 2008 3:53 PM

150 Controls in detailOperating system without steering wheel buttons
3
Setting the time
\1
Switch on the ignition (
\2
page 111).
\1
Press menu button repeatedly
until the hours figure flashes.
\1
Set the hour using the or but-
ton.
\1
Press the reset button .
The minute display flashes.
\1
Set the minutes using the or
button.
Setting the date
\1
Switch on the ignition (
\2
page 111).
\1
Press menu button repeatedly
until the day flashes.
\1
Set the day using the or but-
ton.
\1
Press reset button.
The month display flashes.
\1
Set the month using the or
button.
\1
Press reset button.
The year display flashes.
\1
Set the year using the or but-
ton.
iIf you keep the button pressed, the
values will change continuously.
iIf you keep the button pressed, the
values will change continuously.
nf_BA.book Page 150 Friday, January 25, 2008 3:53 PM

151 Controls in detail
Operating system with steering wheel buttons*
3
\3 Operating system with steering wheel buttons*The operating system is activated as
soon as you switch on the ignition. You
may perform the following using the op-
erating system:\4
Call up vehicle information
\4
Make settings
You can use this not only to find out
when the next service is due, but also to
set the language for messages in the in-
strument cluster, for example, and much
more.
The operating system shows the infor-
mation in the display.You can control the display and the set-
tings in the operating system with the
buttons on the steering wheel.
Warning
G
Only use the operating system when road
and traffic conditions permit. You will oth-
erwise be unable to observe road and traf-
fic conditions and could cause an
accident.
Steering wheel with buttons
nf_BA.book Page 151 Friday, January 25, 2008 3:53 PM

152 Controls in detailOperating system with steering wheel buttons*
3
N46.10-2074-31
1
DisplayControlling the operating
system
2
Selects a submenu or adjusts the
volume+
-
Up / increases the volume
Down / decreases the
volume
3
Telephone* functionss
Accepts a call/starts dial-
ing
t
Ends a call / rejects an
incoming call
4
Jumps from one menu to anotherè
·
Forward
Back
5
Jumps from one submenu to
anotherj
k
Forward
Back
nf_BA.book Page 152 Friday, January 25, 2008 3:53 PM
