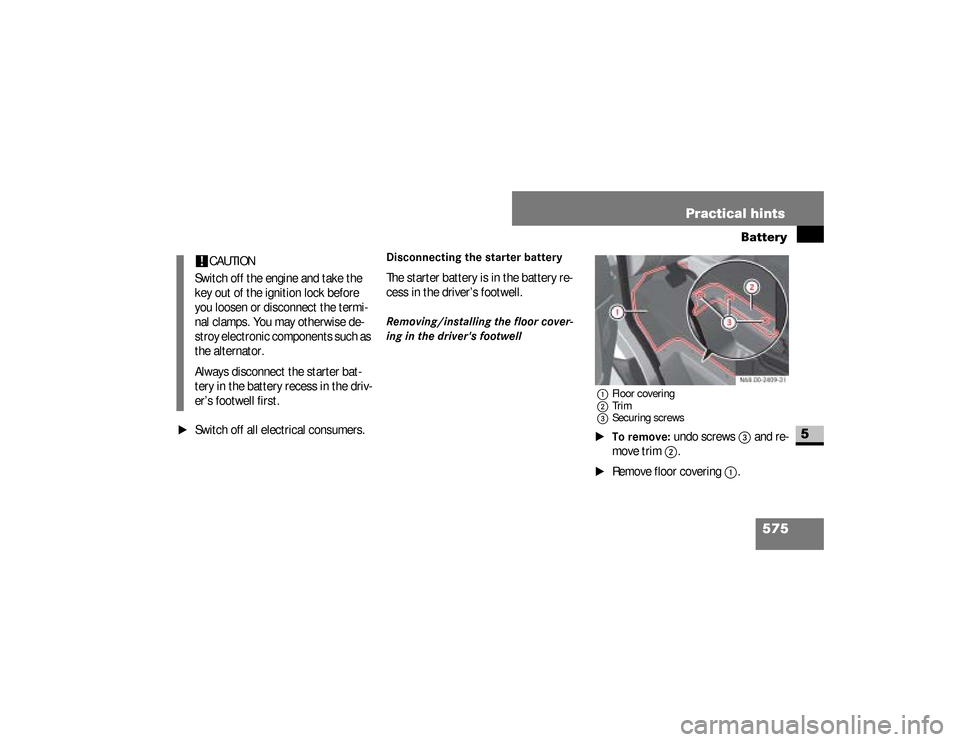

575 Practical hints
Battery
5
\1
Switch off all electrical consumers.
Disconnecting the starter batteryThe starter battery is in the battery re-
cess in the driver’s footwell.Removing/installing the floor cover-
ing in the driver's footwell
1Floor covering
2Trim
3Securing screws\1To remove:
undo screws
3
and re-
move trim
2
.
\1
Remove floor covering
1
.
!
CAUTION
Switch off the engine and take the
key out of the ignition lock before
you loosen or disconnect the termi-
nal clamps. You may otherwise de-
stroy electronic components such as
the alternator.
Always disconnect the starter bat-
tery in the battery recess in the driv-
er’s footwell first.
nf_BA.book Page 575 Friday, January 25, 2008 3:53 PM

577 Practical hints
Battery
5
\1
Remove cover
1
upward.
Starter battery in the driver’s footwell
\1
Loosen the negative terminal of the
battery first and remove it so that the
negative terminal cannot come into
contact with the pole terminal.
\1
Remove the cover from the positive
terminal.
\1
Loosen the positive terminal and fold
the positive terminal and the prefuse
box up to the side.
Disconnecting the auxiliary battery*
\1
Open the hood (
\2
page 318).
Auxiliary battery in the engine compart-
ment
nf_BA.book Page 577 Friday, January 25, 2008 3:53 PM

579 Practical hints
Battery
5
\1
Pull retainer
3
upward and slide the
battery out of its anchorage in the di-
rection of travel.
\1
Fold the clip upward and remove the
battery from the battery recess.
Auxiliary battery* in the engine com-
partment
\1
Disconnect the battery
(\2
page 577).
\1
Unscrew the bolts preventing the
battery from moving around in the
engine compartment.
\1
Remove the battery retainer and
take out the battery.
\1
Recharge the removed battery. Ob-
serve the notes in the operating in-
structions for your battery charger.
\1
Reinstall the battery in the reverse
order.Recharging the battery!
CAUTION
Only charge the installed battery us-
ing a battery charger tested and ap-
proved by the manufacturer. These
devices allow you to charge the bat-
tery while it is installed. The vehicle’s
electronics system may otherwise be
damaged.
nf_BA.book Page 579 Friday, January 25, 2008 3:53 PM

580 Practical hintsBattery
5
\1
Switch off all electrical consumers.
\1
Connect the positive terminal and
secure the cover.
\1
Connect the negative terminal.
Warning
G
Only charge the battery in well-ventilated
areas. As the battery is being charged,
gases can escape and generate minor ex-
plosions, which can injure you and others
and may cause damage to the paintwork
or permit acid corrosion on the vehicle.
During the charge procedure, there is a
risk of acid burns due to gases escaping
from the battery. Do not, therefore, lean
over the battery while it is being re-
charged.
iIt is also possible to charge the start-
er battery using the jump-starting
connection point in the engine com-
partment (
\2
page 581).
Reconnecting the battery!
CAUTION
Never swap the terminal clamps.
Otherwise, the vehicle’s electronics
system may be damaged. After re-
connecting the battery, you must re-
set the electric sliding door*
(\2
page 92).
nf_BA.book Page 580 Friday, January 25, 2008 3:53 PM

581 Practical hints
Jump-starting
5
\3 Jump-startingIf the starter battery in the battery re-
cess in the driver’s footwell is dis-
charged, the engine can be jump-started
from another vehicle using jump leads.
For this purpose, the vehicle is equipped
with a jump-starting connection point.
Please note:
\4
Jump-starting must only be per-
formed when the engine and catalyt-
ic converter are cold.
\4
Do not start the engine if the battery
has frozen. Let the battery thaw out
first.
\4
Only use a battery of the same rated
voltage and of approximately the
same capacity for jump-starting.
\4
Only use jumper cables of adequate
cross-section with insulated battery
terminal clamps.
iThe auxiliary battery* in the engine
compartment is not suitable for
jump-starting operations. Only use
the jump-starting connection in the
engine compartment if you require
jump-starting assistance or wish to
provide jump-starting assistance.
!
CAUTION
Avoid repeated and lengthy starting
attempts.
Never start the vehicle using a rapid
battery charger.
Warning
G
Avoid creating sparks. Keep naked flames
away from the battery, and do not smoke.
Comply with safety precautions and spe-
cial protective measures when handling
batteries (\2page 335).
nf_BA.book Page 581 Friday, January 25, 2008 3:53 PM

582 Practical hintsJump-starting
5
\1
Make sure that the two vehicles do
not touch.
\1
Apply the handbrake or move the se-
lector lever to position
P.
\1
Switch off all electrical consumers.
\1
Switch on the battery isolating
switch* if necessary (
\2
page 338).
\1
Remove the key from the ignition
lock.
\1
Open the hood (
\2
page 318).
The jump-starting connection point is on
the left-hand side of the air cleaner in
the engine compartment when looking
in the direction of travel.
Jump-starting connection point
1Positive terminal clamp of jumper cable\1
Remove the positive terminal cover
from the donor battery.
\1
Connect positive terminal of donor
battery
2
to jump-starting connec-
tion point 1
with the jumper cable.
Start with the donor battery.
\1
Using red positive terminal clamp
1

of the jumper cable, slide the red
protective cap of the jump-starting
connection point back with a clock-
wise turn and connect the positive
terminal clamp of the jumper cable
to the positive terminal of the jump-
starting connection point.
nf_BA.book Page 582 Friday, January 25, 2008 3:53 PM

583 Practical hints
Jump-starting
5
1Positive terminal of jump-starting con-
nection point (under cover)
2Positive terminal of donor battery
3Negative terminal of donor battery
4Ground contact of own vehicle
(negative terminal of your own battery)
\1
Run the other vehicle’s engine at
idling speed.
\1
Connect negative terminal
3
of the
donor battery to ground contact
4

of your own vehicle.
Start with the donor battery.
\1
Start the engine.
\1
Disconnect the jumper cable from
negative terminal
3
of the battery
and ground contact 4
first, then
from positive terminal 2
of the bat-
tery and jump-starting connection
point
1
.
The red protective cap springs back
to its initial position when the termi-
nal clamp is removed from the jump-
starting connection point.
\1
Have the battery checked at an
authorized Sprinter Dealer.
iDo not connect the jumper cable to
the auxiliary battery* in the engine
compartment. This is not suitable for
jump-starting operations.
nf_BA.book Page 583 Friday, January 25, 2008 3:53 PM

585 Practical hints
Towing
5
\3 Towing
Comply with legal regulations when tow-
ing.Having the vehicle carried away on a
transporter or trailer is preferable to
towing it away. We recommend the use
of a rigid towing bar if towing is neces-
sary.
The fixture for the front towing eye is lo-
cated behind the cover in the bumper on
the right-hand side when viewed in the
direction of travel.
Warning
G
Tow the vehicle using a rigid towing bar if:the engine is not running,there is a malfunction in the power supply
or the vehicle’s electrical system.There is no power assistance for the
steering and braking when the engine is
not running. You must then use signifi-
cantly greater force to steer the vehicle
and brake.
Continued
Warning (Continued)
G
Do not tow the vehicle if the key cannot
be turned in the ignition lock. The steering
is then locked and it will not be possible
to steer the vehicle.When towing another vehicle, its weight
should not be greater than the permissi-
ble gross weight of your vehicle.
Installing / removing the towing
eye
