2008 DODGE RAM 2500 DIESEL Owners Manual

If the WATER IN FUEL LIGHT comes on and a single
chime is heard while you are driving, or with the key in
the ON position, there may be a problem with your water
separator wiring or sensor. See your authorized dealer
for service.
Upon proper draining of the water from the fuel filter, the
WATER IN FUEL LIGHT will remain illuminated for
approximately 10 seconds. If the water was drained
while the engine was running, the water in fuel light may
remain on for approximately three minutes.
NOTE:Care should be taken in disposing of used fluids
from your vehicle. Used fluids, indiscriminately dis-
carded, can present a problem to the environment. Con-
tact your local authorized dealer, service station, or
government agency for advice on recycling programs
and for where used fluids and filters can be properly
disposed of in your area.Drain a small amount from the fuel/water separator
filter monthly or when the WATER IN FUEL LIGHT is
on. Turn the drain valve located on the bottom of the
filter counterclockwise and allow any accumulated water
to drain into an approved container. Leave the drain
valve open until all water and contaminants have been
removed. Close the drain valve by turning it clockwise
when clean fuel is visible.
NOTE:The Fuel / Water separator drain valve is
located on the bottom of the fuel filter housing.
If more than a couple ounces of fuel has been drained,
follow the directions below for ªPriming if the engine has
run out of fuel.º
MAINTAINING YOUR VEHICLE 423
7

WARNING!
Do not open the high pressure fuel system with the
engine running. Engine operation causes high fuel
pressure. High pressure fuel spray can cause serious
injury or death.
Priming if the engine has run out of fuel
1. Add a substantial quantity of fuel to the tank, approxi-
mately 5 to 10 gallons (19L to 38L).
2. Crank the engine for one to two seconds. If the engine
does not start, then release the key or starter button back
to the RUN position (do not turn the key back to the OFF
position). The electric fuel transfer pump will continue to
run and purge air from the system for about 25 seconds.
After 25 seconds, attempt to start the engine again.3. Start the engine using the normal starting procedure.
4. Repeat the procedure if the engine does not start.
CAUTION!
Do not engage the starter motor for more than 15
seconds at a time. Allow two minutes between the
cranking intervals.
NOTE:The engine may run rough until the air is forced
from all the fuel lines.
CAUTION!
Diesel fuel will damage black top paving surfaces.
Drain the filter into an appropriate container.
424 MAINTAINING YOUR VEHICLE

WARNING!
Do not use alcohol or gasoline as a fuel blending
agent. They can be unstable under certain conditions
and be hazardous or explosive when mixed with
diesel fuel.
CAUTION!
Due to lack of lubricants in alcohol or gasoline, the
use of these fuels can cause damage to the fuel
system.
NOTE:A maximum blend of 5% biodiesel, meeting
ASTM specification D-6751 may be used with your
CumminstDiesel equipped vehicle. Use of biodieselmixture in excess of 5% can negatively impact the on-
engine fuel filter's ability to separate water from the fuel,
resulting in high pressure fuel system corrosion or dam-
age.
NOTE:As sufficient testing has not been completed,
ethanol blends are not recommended or approved for use
with your CumminstDiesel equipped vehicle.
NOTE:In addition, commercially available fuel addi-
tives are not necessary for the proper operation of your
CumminstDiesel equipped vehicle.
Intervention Regeneration Strategy ± EVIC
Message Process Flow (Catalyst Full Message)
(6.7L Diesel Engines Only)
Your new Cummins 6.7L diesel meets all EPA Heavy
Duty Diesel Engine Emissions Standards, resulting in the
lowest emitting diesel engine ever produced.
MAINTAINING YOUR VEHICLE 425
7

To achieve these emission standards, your vehicle is
equipped with a state of the art engine and exhaust
system. The engine and exhaust aftertreatment system
work together to achieve the EPA Heavy Duty Diesel
Engine Emissions Standards. These systems are seam-
lessly integrated into your vehicle and managed by the
Cumminst6.7L engine Powertrain Control Module
(PCM). The PCM manages engine combustion to allow
the exhaust system's catalyst to trap and burn Particulate
Matter (PM) pollutants, with no input or interaction on
your part.
Additionally, the overhead console in your vehicle has
the ability to alert you to additional maintenance re-
quired on your truck or engine. Refer to the following
messages that may be displayed on your Electronic
Vehicle Information Center (EVIC):WARNING!
A hot exhaust system can start a fire if you park over
materials that can burn. Such materials might be
grass or leaves coming into contact with your exhaust
system. Do not park or operate your vehicle in areas
where your exhaust system can contact anything that
can burn.
Perform Service
The 6.7L Cumminstengine utilizes a Closed Crankcase
Ventilation (CCV) system, EGR valve and an EGR cooler.
This system filters and recycles gasses produced in the
crankcase during the normal combustion process. ªPer-
form Serviceº will be displayed on the overhead console
of your vehicle if the CCV filter, EGR valve and EGR
cooler are due for required maintenance. The CCV filter is
426 MAINTAINING YOUR VEHICLE

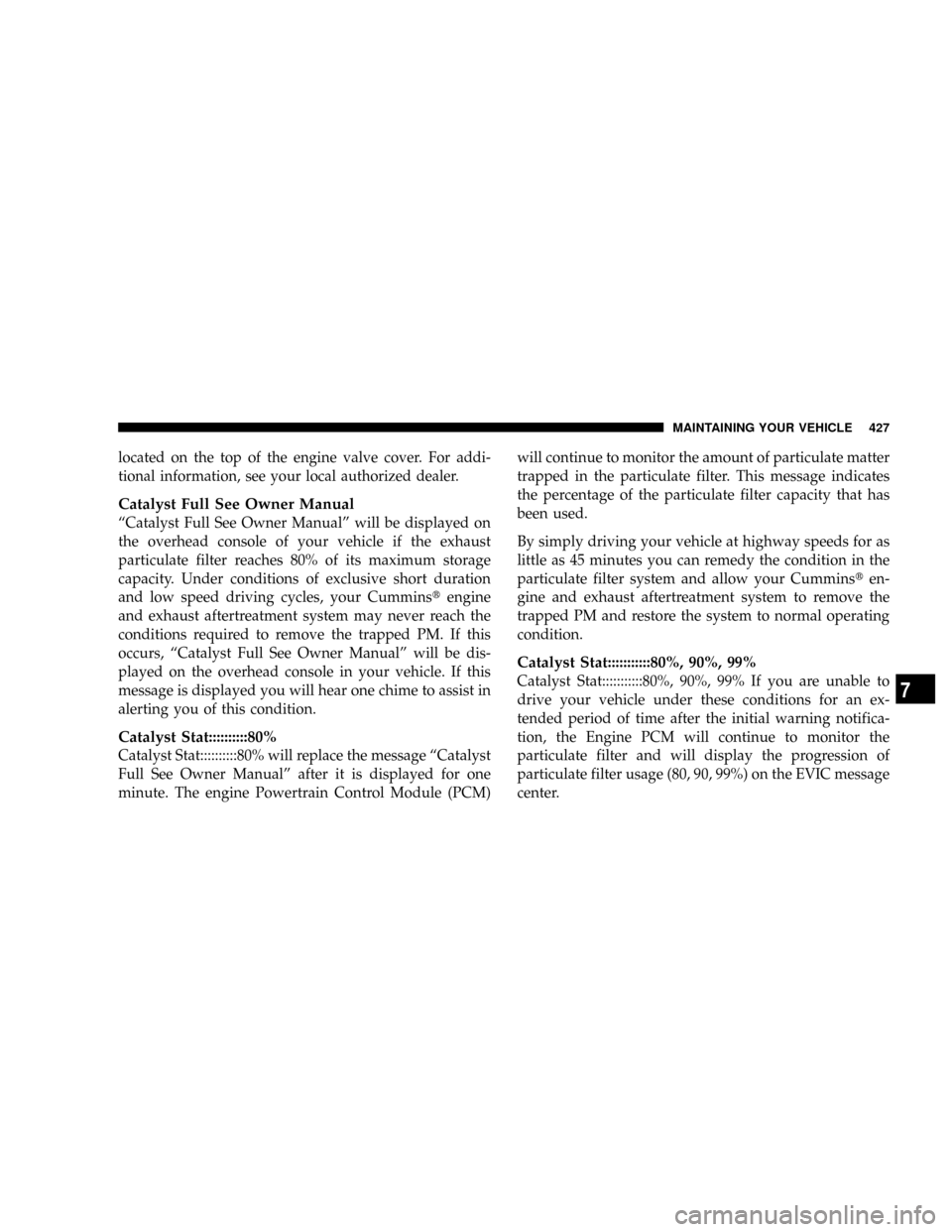

located on the top of the engine valve cover. For addi-
tional information, see your local authorized dealer.
Catalyst Full See Owner Manual
ªCatalyst Full See Owner Manualº will be displayed on
the overhead console of your vehicle if the exhaust
particulate filter reaches 80% of its maximum storage
capacity. Under conditions of exclusive short duration
and low speed driving cycles, your Cumminstengine
and exhaust aftertreatment system may never reach the
conditions required to remove the trapped PM. If this
occurs, ªCatalyst Full See Owner Manualº will be dis-
played on the overhead console in your vehicle. If this
message is displayed you will hear one chime to assist in
alerting you of this condition.
Catalyst Stat::::::::::80%
Catalyst Stat::::::::::80% will replace the message ªCatalyst
Full See Owner Manualº after it is displayed for one
minute. The engine Powertrain Control Module (PCM)will continue to monitor the amount of particulate matter
trapped in the particulate filter. This message indicates
the percentage of the particulate filter capacity that has
been used.
By simply driving your vehicle at highway speeds for as
little as 45 minutes you can remedy the condition in the
particulate filter system and allow your Cumminsten-
gine and exhaust aftertreatment system to remove the
trapped PM and restore the system to normal operating
condition.
Catalyst Stat:::::::::::80%, 90%, 99%
Catalyst Stat:::::::::::80%, 90%, 99% If you are unable to
drive your vehicle under these conditions for an ex-
tended period of time after the initial warning notifica-
tion, the Engine PCM will continue to monitor the
particulate filter and will display the progression of
particulate filter usage (80, 90, 99%) on the EVIC message
center.
MAINTAINING YOUR VEHICLE 427
7

CATALYST FULL SERVICE REQD
If the particulate filter reaches 99% of its capacity, the
overhead console in your vehicle will chime twice and
display the message CATALYST FULL SERVICE REQD.
At this point the engine PCM will register a fault code,
the instrument panel will display a MIL light and the
engine PCM will derate the truck, reducing its horse-
power and torque output.
The PCM derates the engine in order to limit the likeli-
hood of permanent damage to the aftertreatment system.
If this condition is not corrected and a dealer service is
not performed, extensive exhaust aftertreatment damage
can occur. In order to correct this condition it will be
necessary to have the truck serviced by your local
authorized dealer.
Maintenance Free Batteries
The top of the maintenance free batteries are perma-
nently sealed. You will never have to add water, nor is
periodic maintenance required.
NOTE:Replacement batteries should both be of equal
capacity to prevent damage to the vehicle's charging
system.
428 MAINTAINING YOUR VEHICLE

WARNING!
²Battery fluid is a corrosive acid solution and can
burn or even blind you. Don't allow battery fluid
to contact your eyes, skin or clothing. Don't lean
over a battery when attaching clamps. If acid
splashes in eyes or on skin, flush the area imme-
diately with large amounts of water.
²Battery gas is flammable and explosive. Keep
flame or sparks away from the battery. Don't use a
booster battery or any other booster source with an
output greater than 12 volts. Don't allow cable
clamps to touch each other.
²Battery posts, terminals and related accessories
contain lead and lead compounds. Wash hands
after handling.
CAUTION!
²It is essential when replacing the cables on the
battery that the positive cable is attached to the
positive post and the negative cable is attached to
the negative post. Battery posts are marked (+)
positive and (-) negative and identified on the
battery case.
²If a fast charger is used while the battery is in
vehicle, disconnect both vehicle battery cables
before connecting the charger to battery. Do not
use a fast charger to provide starting voltage.
MAINTAINING YOUR VEHICLE 429
7

Battery Blanket Usage
A battery loses 60% of its cranking power as the battery
temperature decreases to 0ÉF (-18ÉC). For the same de-
crease in temperature, the engine requires twice as much
power to crank at the same RPM. The use of 120 VAC
powered battery blankets will greatly increase starting
capability at low temperatures. Suitable battery blankets
are available from your authorized Mopartdealer.
Air Conditioner Maintenance
For best possible performance, your air conditioner
should be checked and serviced by an authorized dealer
at the start of each warm season. This service should
include cleaning of the condenser fins and a performance
test. Drive belt tension should also be checked at this
time.
WARNING!
²Use only refrigerants and compressor lubricants
approved by the manufacturer for your air condi-
tioning system. Some unapproved refrigerants are
flammable and can explode, injuring you. Other
unapproved refrigerants or lubricants can cause
the system to fail, requiring costly repairs. Refer to
Section 3 of the Warranty Information book for
further warranty information.
²The air conditioning system contains refrigerant
under high pressure. To avoid risk of personal
injury or damage to the system, adding refrigerant
or any repair requiring lines to be disconnected
should be done by an experienced repairman.
430 MAINTAINING YOUR VEHICLE
