2008 DODGE MAGNUM SRT buttons

If the alarm system is armed and the battery becomes
disconnected the system will remain armed when the
battery is reconnected. The exterior lights will flash, the
horn will sound, and the ignition will not start the
vehicle. If this occurs, disarm the system.
Tamper Alert
If something has triggered the system in your absence,
the horn will sound three times when you disarm the
system. Check the vehicle for tampering.
ILLUMINATED ENTRY SYSTEM
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter or open the
doors or liftgate.
The lights will fade to off after about 30 seconds or they
will immediately fade to off once the ignition switch is
turned ON from the LOCK position.NOTE:
•None of the courtesy lights will operate if the dimmer
control is in the “defeat” position (extreme downward
position), unless the overhead map/reading lights are
turned on manually.
REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors or
activate the Panic Alarm from distances up to about 35 ft
(11 m) using a hand-held radio transmitter. The transmit-
ter need not be pointed at the vehicle to activate the
system.
NOTE:Inserting the Fob with Integrated Key into the
ignition switch disables all buttons on that transmitter;
however, the buttons on the remaining transmitters will
continue to work. Driving at speeds 5 mph (8 km/h) and
above disables all transmitter buttons for all fobs.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

different electronic devices to connect to each other
without wires or a docking station, so UConnectworks
no matter where you stow your cellular phone (be it your
purse, pocket, or briefcase), as long as your phone is
turned on and has been paired to the vehicle’s
UConnectsystem. The UConnectsystem allows up to
seven cellular phones to be linked to the system. Only
one linked (or paired) cellular phone can be used with the
system at a time. The system is available in English,
Spanish, or French languages (as equipped).
PHONE Button
The rearview mirror contains the microphone
for the system (depending on the type of
mirror and radio equipped), and either the
radio or the mirror has the two control buttons
(PHONE Button and VOICE RECOGNITION button)
that will enable you to access the system.Voice Recognition Button
Actual button location may vary with radio.
The individual buttons are described in the
“Operation” section.
The UConnectsystem can be used with any Hands-Free
Profile certified Bluetoothcellular phone. See the
UConnectwebsite for supported phones. If your cellu-
lar phone supports a different profile (e.g., Headset
Profile) you may not be able to use any UConnect
features. Refer to your cellular service provider or the
phone manufacturer for details.
The UConnectsystem is fully integrated with the vehi-
cle’s audio system. The volume of the UConnectsystem
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

GARAGE DOOR OPENER — IF EQUIPPED
HomeLinkreplaces up to three remote controls (hand-
held transmitters) that operate devices such as garage
door openers, motorized gates, lighting, or home security
systems. The HomeLinkunit operates off your vehicle’s
battery.
The HomeLinkbuttons are located in the overhead
console, and contain one, two, or three dots/lines desig-
nating the different HomeLinkchannels.
NOTE:HomeLinkis disabled when the Vehicle Secu-
rity Alarm is active.
HomeLinkButtons
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143
3

WARNING!
Your motorized door or gate will open and close
while you are training the Universal Transceiver. Do
not train the transceiver if people or pets are in the
path of the door or gate. Only use this transceiver
with a garage door opener that has a “stop and
reverse” feature as required by federal safety stan-
dards. This includes most garage door opener models
manufactured after 1982. Do not use a garage door
opener without these safety features. Call toll-free
1–800–355–3515 or, on the Internet at
www.HomeLink.com for safety information or
assistance.
WARNING!
Vehicle exhaust contains carbon monoxide, a danger-
ous gas. Do not run your vehicle in the garage while
training the transceiver. Exhaust gas can cause seri-
ous injury or death.
Programming HomeLink
Before You Begin
If you have not trained any of the HomeLinkbuttons,
erase all channels before you begin training.
To do this, press and hold the two outside buttons for 20
seconds. The EVIC will display “CLEARING CHAN-
NELS.” Release the buttons when the EVIC message
states “CHANNELS CLEARED.”
It is recommended that a new battery be placed in the
hand-held transmitter of the device being programmed
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

to HomeLinkfor more efficient training and accurate
transmission of the radio-frequency signal.
Your vehicle should be parked outside of the garage
while training.
1. Turn the ignition switch to the ON/RUN position.
2. Place the hand-held transmitter 1 to 3 in (3 to 8 cm)
from the HomeLinkbuttons while keeping the EVIC
display in view.
For optimal training, point the battery end of the hand-
held transmitter away from the HomeLink.
3. Simultaneously, press and hold both the chosen
HomeLinkbutton and the hand-held transmitter button
until the EVIC display changes from “CHANNEL #
TRAINING” to “CHANNEL # TRAINED.”
Then release both the HomeLinkand hand-held trans-
mitter buttons.If the EVIC display states “DID NOT TRAIN” repeat Step
3. If the signal is too weak, replace the battery in the
original hand-held transmitter.
It may take up to 30 seconds, or longer, in rare cases. The
garage door may open and close while you train.
NOTE:Some gate operators and garage door openers
may require you to replace Step 3 with procedures noted
in the “Gate Operator/Canadian Programming” section.
4. Press and hold the just-trained HomeLinkbutton. If
the channel has been trained, the EVIC display will now
state “CHANNEL # TRANSMIT.”
If the EVIC display still states “CHANNEL # TRAIN-
ING” repeat Step 3.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145
3

NOTE:There are 30 seconds in which to initiate the next
step after the “Learn” button has been pressed.
7. Return to the vehicle and press the programmed
HomeLinkbutton twice (holding the button for two
seconds each time). If the device is plugged in and
activates, programming is complete.
If the device does not activate, press the button a third
time (for two seconds) to complete the training.
If you have any problems, or require assistance, please
call toll-free 1–800–355–3515 or, on the Internet at
www.HomeLink.com for information or assistance.
To program the remaining two HomeLinkbuttons,
repeat each step for each remaining button. DO NOT
erase the channels.Gate Operator/Canadian Programming
Canadian radio-frequency laws require transmitter sig-
nals to “time-out” (or quit) after several seconds of
transmission – which may not be long enough for
HomeLinkto pick up the signal during programming.
Similar to this Canadian law, some U.S. gate operators are
designed to “time-out” in the same manner.
It may be helpful to unplug the device during the cycling
process to prevent possible overheating of the garage
door or gate motor.
If you are having difficulties programming a garage door
opener or a gate operator, replace “Programming
HomeLink” Step 3 with the following:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147
3

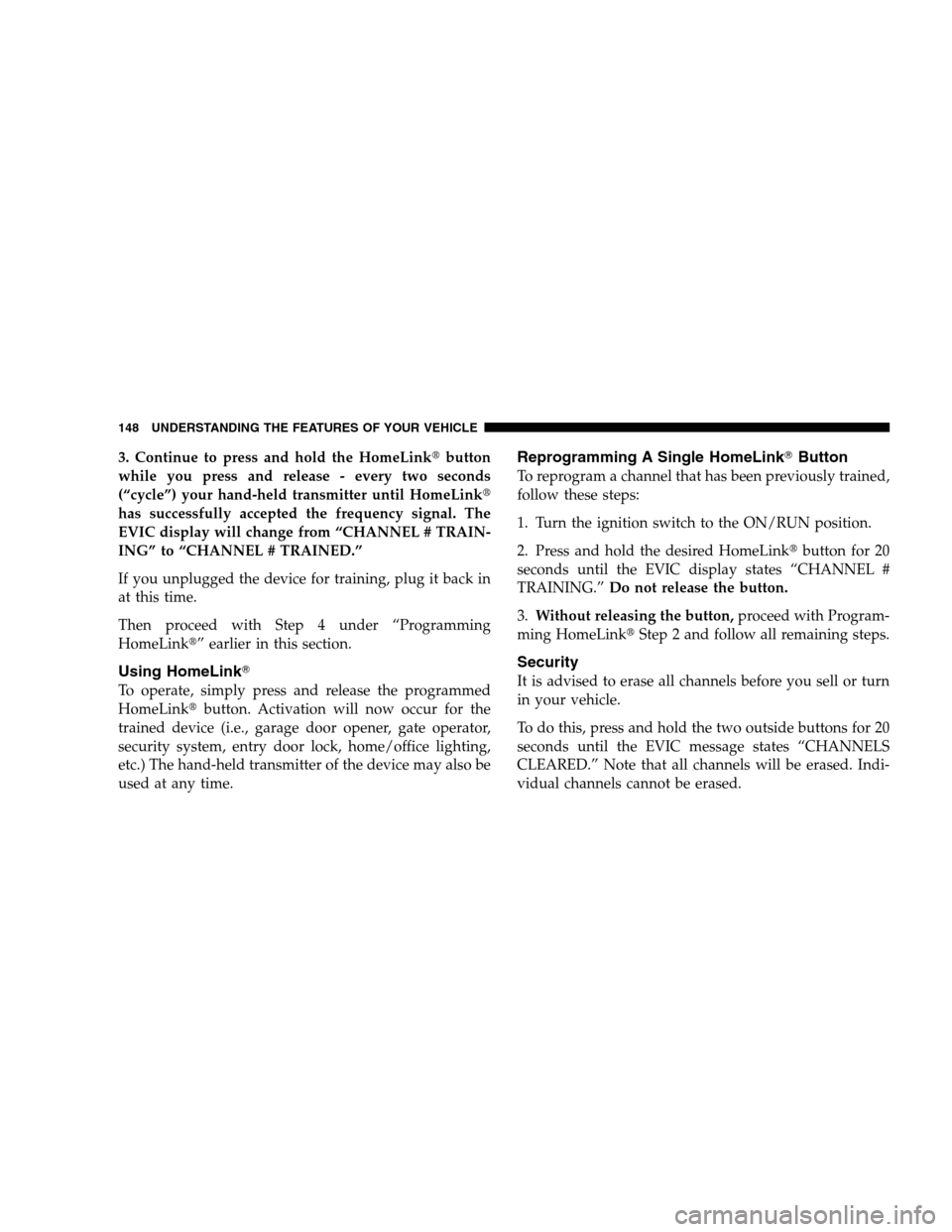

3. Continue to press and hold the HomeLinkbutton
while you press and release - every two seconds
(“cycle”) your hand-held transmitter until HomeLink
has successfully accepted the frequency signal. The
EVIC display will change from “CHANNEL # TRAIN-
ING” to “CHANNEL # TRAINED.”
If you unplugged the device for training, plug it back in
at this time.
Then proceed with Step 4 under “Programming
HomeLink” earlier in this section.
Using HomeLink
To operate, simply press and release the programmed
HomeLinkbutton. Activation will now occur for the
trained device (i.e., garage door opener, gate operator,
security system, entry door lock, home/office lighting,
etc.) The hand-held transmitter of the device may also be
used at any time.
Reprogramming A Single HomeLinkButton
To reprogram a channel that has been previously trained,
follow these steps:
1. Turn the ignition switch to the ON/RUN position.
2. Press and hold the desired HomeLinkbutton for 20
seconds until the EVIC display states “CHANNEL #
TRAINING.”Do not release the button.
3.Without releasing the button,proceed with Program-
ming HomeLinkStep 2 and follow all remaining steps.
Security
It is advised to erase all channels before you sell or turn
in your vehicle.
To do this, press and hold the two outside buttons for 20
seconds until the EVIC message states “CHANNELS
CLEARED.” Note that all channels will be erased. Indi-
vidual channels cannot be erased.
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Kicker13-Speaker High Performance Sound
System With Driver-Selectable Surround
(DSS) – If Equipped...................250
▫KickerMobile Surround (KMS1)–
If Equipped.........................250

Universal Consumer Interface (UCI) —
If Equipped...........................251
▫Connecting The iPodDevice............251
▫Controlling The iPodUsing Radio Buttons . . . 252
▫Play Mode..........................252
▫List Or Browse Mode..................254

Remote Sound System Controls.............255

CD/DVD Disc Maintenance...............257
Radio Operation And Cellular Phones........257

Climate Controls.......................258
▫Manual Air Conditioning And
Heating System......................258
▫Automatic Temperature Control —
If Equipped.........................260
▫Operating Tips.......................266

Rear Window Features...................269
▫Rear Wiper Operation..................269
▫Rear Washer Operation.................269
▫Adding Washer Fluid..................270
▫Electric Rear Window Defroster...........271
