THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS

A Word About Your Keys..................12
▫Wireless Ignition Node (WIN).............12
▫FOB With Integrated Key.................13
▫Tip Start Feature.......................14
▫Ignition Key Removal...................14
▫Key-In-Ignition Reminder................15

Sentry KeyImmobilizer System.............15
▫Replacement Keys......................16
▫Customer Sentry Key(FOB) Programming....17▫General Information....................18

Security Alarm System — If Equipped.........18
▫Rearming Of The System.................18
▫To Arm The System.....................19
▫To Disarm The System...................19

Illuminated Entry System..................20

Remote Keyless Entry (RKE)................20
▫To Unlock The Doors...................21
▫To Lock The Doors.....................22
2

▫Using The Panic Alarm..................22
▫Programming Additional Transmitters........23
▫Transmitter Battery Service...............23
▫General Information....................24

Remote Starting System — If Equipped........24
▫How To Use Remote Start................25

Door Locks............................27
▫Manual Door Locks.....................27
▫Power Door Locks.....................28
▫Child Protection Door Lock...............30

Windows.............................32
▫Power Windows.......................32
▫Wind Buffeting........................35
Liftgate...............................36

Occupant Restraints......................38
▫Lap/Shoulder Belts.....................39
▫Lap/Shoulder Belt Untwisting Procedure.....45
▫Seat Belt Pretensioners...................45
▫Enhanced Seat Belt Reminder System
(BeltAlert) ..........................46
▫Automatic Locking Mode — If Equipped.....47
▫Seat Belts And Pregnant Women............48
▫Seat Belt Extender......................48
▫Driver And Front Passenger Supplemental
Restraint System (SRS) - Airbag............48
▫Event Data Recorder (EDR)...............61
▫Child Restraint........................63
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Fob with Integrated Key
The Fob with Integrated Key operates the ignition switch.
It also contains the Remote Keyless Entry (RKE) trans-
mitter and a valet key, which stores in the rear of the Fob.
The valet key allows for entry into the vehicle should the
battery in the vehicle or the Fob go dead. The valet key is
also for locking the glove box. You can keep the valet key
with you when valet parking.
To remove the valet key from the Fob, slide the mechani-
cal latch at the top of the Fob sideways with your thumb
and then pull the key out of the Fob with your other
hand.
NOTE:You can insert the double-sided valet key into
the lock cylinders with either side up.
Valet Key Removal
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

NOTE:
•The Sentry KeyImmobilizer System is not compat-
ible with aftermarket remote starting systems. Use of
these systems may result in vehicle starting problems
and loss of security protection.
•Exxon/Mobil SpeedPass™, additional fobs, or any
other transponder-equipped components on the same
key chainwill notcause a fault unless the additional
part isphysically held against the fobbeing used to
start the vehicle. Cell phones, pagers, or other RF
electronics will not cause interference with this system.
All of the fobs provided with your new vehicle have been
programmed to the vehicle electronics.
Replacement Keys
NOTE:Only fobs that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a fob is programmed to a vehicle, it cannot be
programmed to any other vehicle.
CAUTION!
Always remove the Sentry Keyfrom the vehicle and
lock all doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of fobs. Du-
plication of fobs may be performed at an authorized
dealer or by using the Customer Key Programming
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

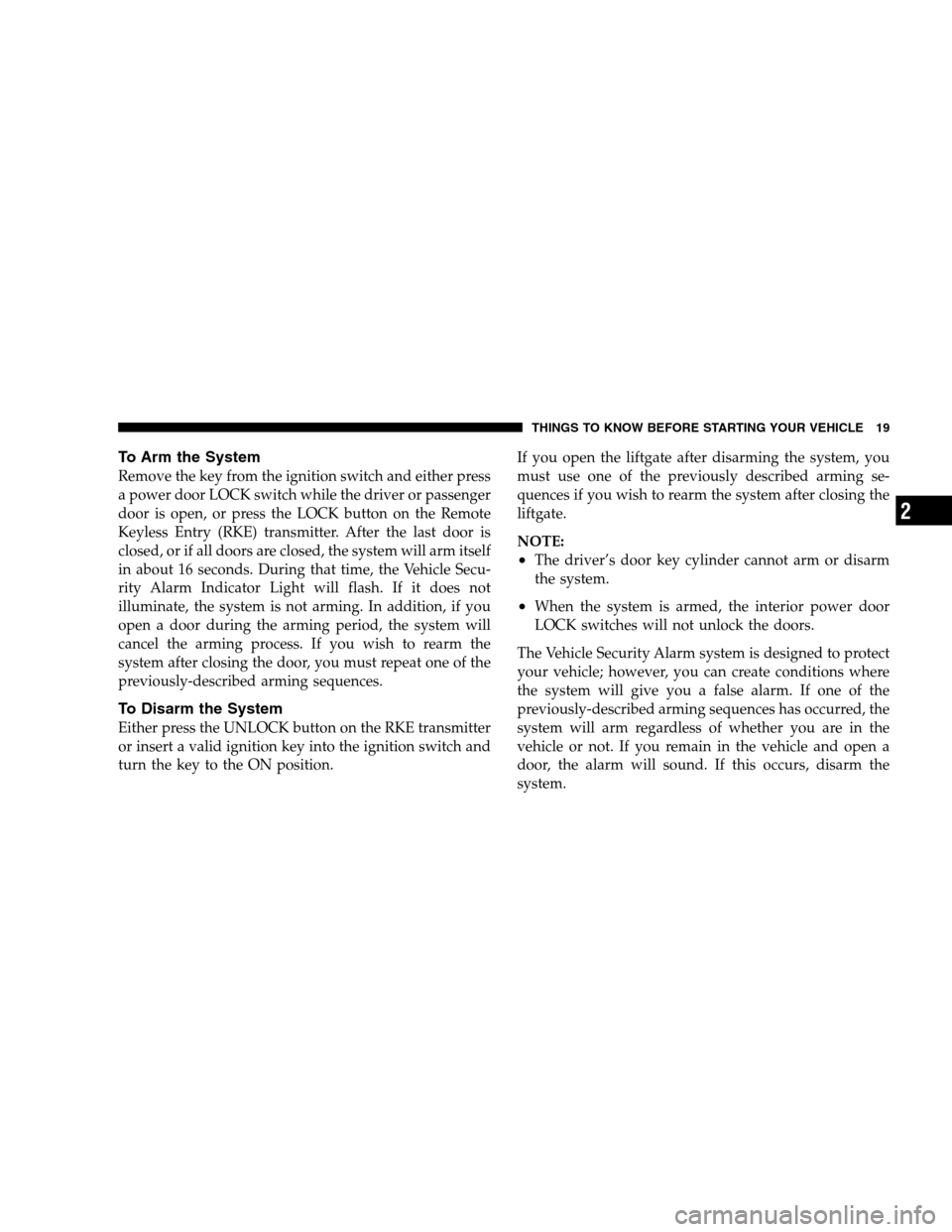

To Arm the System
Remove the key from the ignition switch and either press
a power door LOCK switch while the driver or passenger
door is open, or press the LOCK button on the Remote
Keyless Entry (RKE) transmitter. After the last door is
closed, or if all doors are closed, the system will arm itself
in about 16 seconds. During that time, the Vehicle Secu-
rity Alarm Indicator Light will flash. If it does not
illuminate, the system is not arming. In addition, if you
open a door during the arming period, the system will
cancel the arming process. If you wish to rearm the
system after closing the door, you must repeat one of the
previously-described arming sequences.
To Disarm the System
Either press the UNLOCK button on the RKE transmitter
or insert a valid ignition key into the ignition switch and
turn the key to the ON position.If you open the liftgate after disarming the system, you
must use one of the previously described arming se-
quences if you wish to rearm the system after closing the
liftgate.
NOTE:
•The driver’s door key cylinder cannot arm or disarm
the system.
•When the system is armed, the interior power door
LOCK switches will not unlock the doors.
The Vehicle Security Alarm system is designed to protect
your vehicle; however, you can create conditions where
the system will give you a false alarm. If one of the
previously-described arming sequences has occurred, the
system will arm regardless of whether you are in the
vehicle or not. If you remain in the vehicle and open a
door, the alarm will sound. If this occurs, disarm the
system.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

If the alarm system is armed and the battery becomes
disconnected the system will remain armed when the
battery is reconnected. The exterior lights will flash, the
horn will sound, and the ignition will not start the
vehicle. If this occurs, disarm the system.
Tamper Alert
If something has triggered the system in your absence,
the horn will sound three times when you disarm the
system. Check the vehicle for tampering.
ILLUMINATED ENTRY SYSTEM
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter or open the
doors or liftgate.
The lights will fade to off after about 30 seconds or they
will immediately fade to off once the ignition switch is
turned ON from the LOCK position.NOTE:
•None of the courtesy lights will operate if the dimmer
control is in the “defeat” position (extreme downward
position), unless the overhead map/reading lights are
turned on manually.
REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors or
activate the Panic Alarm from distances up to about 35 ft
(11 m) using a hand-held radio transmitter. The transmit-
ter need not be pointed at the vehicle to activate the
system.
NOTE:Inserting the Fob with Integrated Key into the
ignition switch disables all buttons on that transmitter;
however, the buttons on the remaining transmitters will
continue to work. Driving at speeds 5 mph (8 km/h) and
above disables all transmitter buttons for all fobs.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To unlock the doors:
Press and release the UNLOCK button on the transmitter
once to unlock the driver’s door, or twice within five
seconds to unlock all doors. The turn signal lights will
flash to acknowledge the unlock signal. The illuminated
entry system will also turn on.
Remote Key Unlock, Driver Door/All Doors First
This feature lets you program the system to unlock either
the driver’s door or all doors on the first press of the
UNLOCK button on the transmitter. Refer to “Remote
Key Unlock,” under “Personal Settings (Customer Pro-
grammable Features),” under “Electronic Vehicle Infor-
mation Center (EVIC)” in Section 4.
Flash Lights with Remote Key Lock
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the transmitter.
This feature can be turned on or turned off. Refer to
“Flash Lights with Remote Key Lock,” underPersonal
Settings (Customer Programmable Features),” under
“Electronic Vehicle Information Center (EVIC)” in Sec-
tion 4.
Remote Keyless Entry (RKE) Transmitter
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2

Turn Headlights On with Remote Key Unlock
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the transmitter. The
time for this feature is programmable. Refer to “Turn
Headlights On with Remote Key Unlock,” under “Per-
sonal Settings (Customer Programmable Features),” un-
der “Electronic Vehicle Information Center (EVIC)” in
Section 4.
To lock the doors:
Press and release the LOCK button on the transmitter to
lock all doors. The turn signal lights will flash and the
horn will chirp to acknowledge the signal.
Sound Horn with Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the transmitter. This feature can be
turned on or turned off. Refer to “Sound Horn withRemote Key Lock,” under “Personal Settings (Customer
Programmable Features),” under “Electronic Vehicle In-
formation Center (EVIC)” in Section 4.
Using The Panic Alarm:
To turn the Panic Alarm feature ON or OFF, press and
hold the PANIC button on the transmitter for at least one
second and release. When the Panic Alarm is on, the
headlights and park lights will flash, the horn will pulse
on and off, and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by either pressing the PANIC button a
second time or drive the vehicle at a speed of 15 mph (24
km/h) or greater.
NOTE:
•The interior lights will turn off if you turn the ignition
switch to the ACC or ON position while the Panic
Alarm is activated. However, the exterior lights and
horn will remain on.
