2008 DODGE CALIBER SRT Owners Manual

Fog Lights
1. Access lamp through the lower fascia cutout.
2. Rotate bulb and connector 1/4 turn counterclockwise.
3. Pull bulb off of connector.
Tail Lights, Rear Turn Signals And Backup Lights
Ð Replacement
1. Remove the two push-pins from the tail light housing.
Fog Light and Connector
Removing Push-Pins
328 MAINTAINING YOUR VEHICLE

2. Grasp the taillamp and pull firmly to disengage the
lamp from the aperture panel.
Push-Pins Removed
Pulling Lamp From Body
MAINTAINING YOUR VEHICLE 329
7

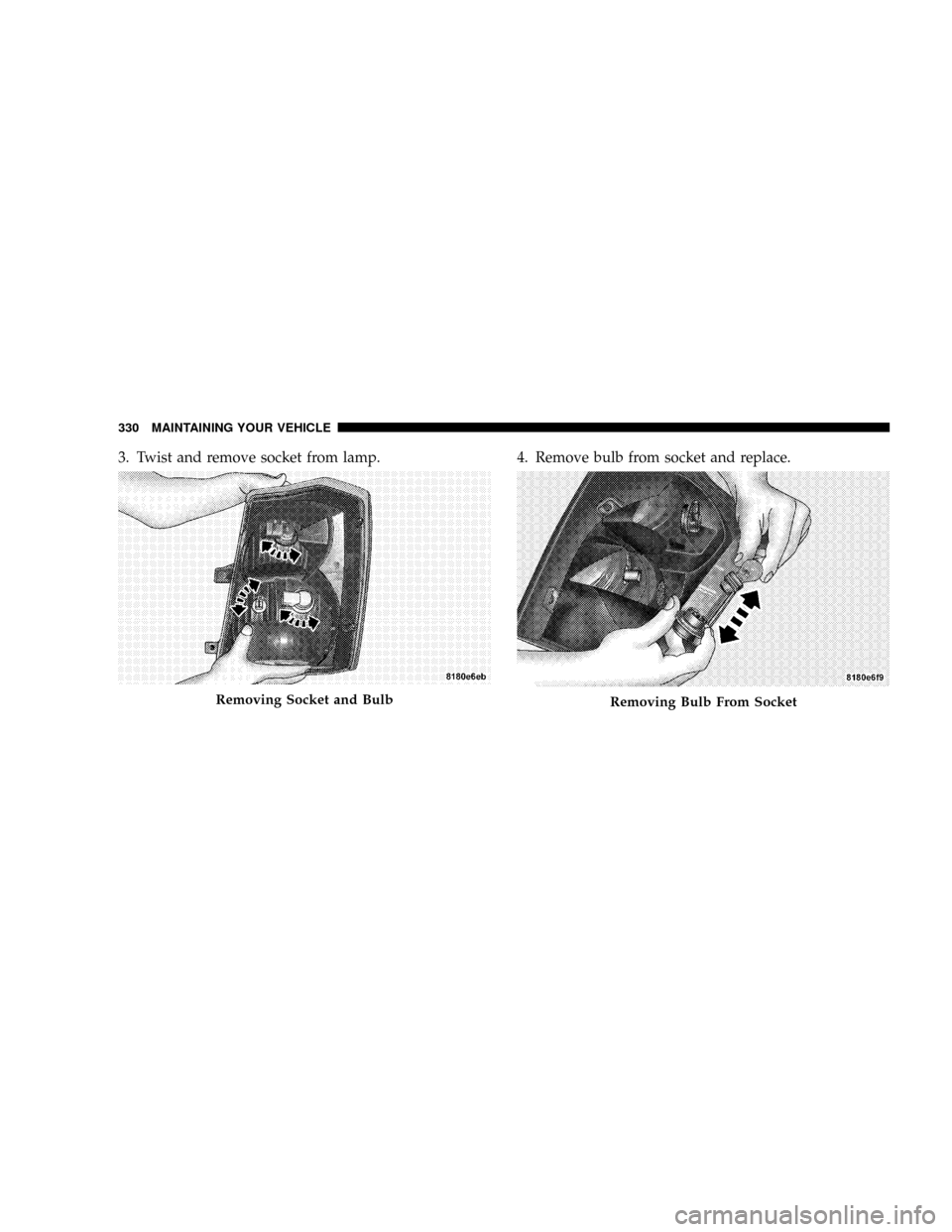

3. Twist and remove socket from lamp. 4. Remove bulb from socket and replace.
Removing Socket and BulbRemoving Bulb From Socket
330 MAINTAINING YOUR VEHICLE

License Lights
1. Use a screw driver to gently pry against the side of the
snap tab to remove the lamp from the liftgate.2. Rotate the socket 1/4 turn counterclockwise.
Prying Lamp from Liftgate
Removing Socket from Lamp
MAINTAINING YOUR VEHICLE 331
7

3. Pull bulb from socket.Center High-Mounted Stoplight
Light is an LED assembly. See your authorized dealer for
replacement.
Removing Bulb From Socket
332 MAINTAINING YOUR VEHICLE

FLUIDS AND CAPACITIES
U.S. Metric
Fuel (Approximate)13.5 Gallons 51.0 Liters
Engine Oil-With Filter5.0 Quarts 4.7 Liters
Cooling System *
MopartAntifreeze/Coolant 5 Year/100,000 Miles Formula), or
equivalent.7.5 Quarts 7.1 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
MAINTAINING YOUR VEHICLE 333
7

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component Fluids, Lubricants and Genuine Parts
Engine Coolant MopartAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Or-
ganic Additive Technology) or equivalent.
Engine Oil For best performance and maximum protection under all types of operating
conditions, the manufacturer only recommends full synthetic engine oils that
meet the requirements of DaimlerChrysler Material Standard MS-10725. The
manufacturer recommends the use of a full synthetic engine oil, such as Mo-
bil 1tSAE 0W-40 or equivalent. For additional information, refer to the ªEn-
gine Oil Selectionº and ªEngine Oil Viscosity (SAE Grade)º in the ªMainte-
nance Proceduresº section of this manual.
Engine Oil Filter Mopart04884899AB or equivalent.
Spark Plugs ZFR5AP (Gap 0.030º)
Fuel Selection Premium Unleaded 93 Octanerecommended.
334 MAINTAINING YOUR VEHICLE

Chassis
Component Fluids, Lubricants and Genuine Parts.
Manual Transaxle Fluid MopartATF+4 MS9602
Brake Master Cylinder MopartDOT 3, SAE J1703 should be used. If DOT 3, SAE J1703 brake fluid
is not available, then DOT 4 is acceptable. Use only recommended brake flu-
ids or equivalent.
Power Steering Reservoir MopartPower Steering Fluid +4 or MopartATF+4 Automatic Transmission
Fluid.
MAINTAINING YOUR VEHICLE 335
7
