2008 DODGE CALIBER light

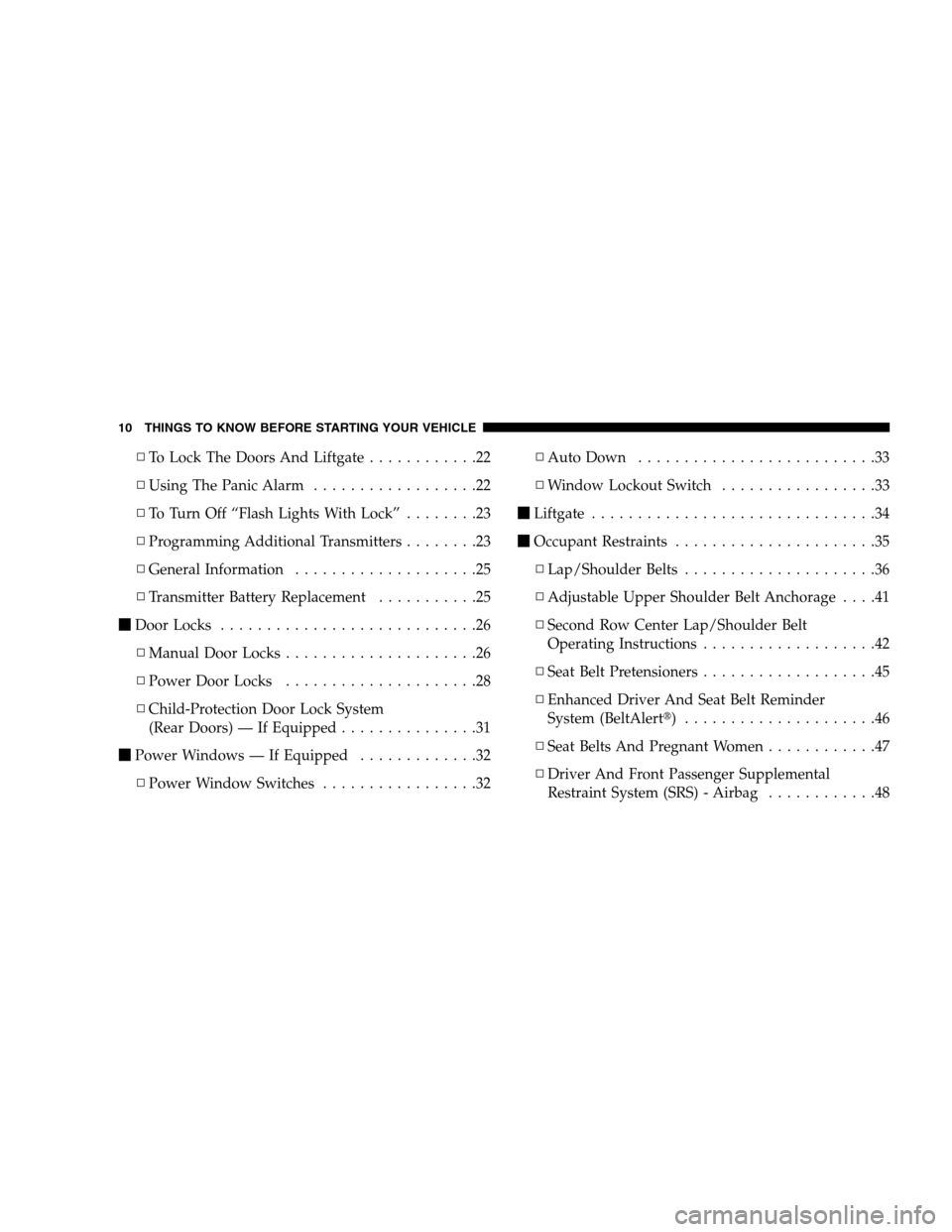

▫To Lock The Doors And Liftgate............22
▫Using The Panic Alarm..................22
▫To Turn Off “Flash Lights With Lock”........23
▫Programming Additional Transmitters........23
▫General Information....................25
▫Transmitter Battery Replacement...........25

Door Locks............................26
▫Manual Door Locks.....................26
▫Power Door Locks.....................28
▫Child-Protection Door Lock System
(Rear Doors) — If Equipped...............31

Power Windows — If Equipped.............32
▫Power Window Switches.................32▫Auto Down..........................33
▫Window Lockout Switch.................33

Liftgate...............................34

Occupant Restraints......................35
▫Lap/Shoulder Belts.....................36
▫Adjustable Upper Shoulder Belt Anchorage....41
▫Second Row Center Lap/Shoulder Belt
Operating Instructions...................42
▫Seat Belt Pretensioners...................45
▫Enhanced Driver And Seat Belt Reminder
System (BeltAlert) .....................46
▫Seat Belts And Pregnant Women............47
▫Driver And Front Passenger Supplemental
Restraint System (SRS) - Airbag............48
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Automatic Transmission — If Equipped
1. Place the shift lever in PARK.
2. Turn the ignition switch to the ACC position.
3. Push the key and cylinder inward and rotate the key to
the LOCK position
4. remove the key from the lock cylinder.
NOTE:If you try to remove the key before you place the
shift lever in PARK, the key may become trapped tem-
porarily in the ignition cylinder. If this occurs, rotate the
key to the right slightly, then remove the key as de-
scribed. If a malfunction occurs, the system will trap the
key in the ignition cylinder to warn you that this safety
Ignition Key Positions
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

STEERING WHEEL LOCK — MANUAL
TRANSMISSION ONLY
Your manual transmission vehicle is equipped with a
passive steering wheel lock. This lock prevents steering
the vehicle without the ignition key. If the steering wheel
is moved no more than one-half turn in either direction
and the key is not in the ignition switch, the steering
wheel will lock.
To Manually Lock The Steering Wheel
With the engine running, turn the steering wheel upside
down, turn off the engine and remove the key. Turn the
steering wheel slightly in either direction until the lock
engages.
To Release The Steering Wheel Lock
Insert the key in the ignition switch and start the engine.
If the key is difficult to turn, move the wheel slightly to
the right or left to disengage the lock.NOTE:If you turned the wheel to the right to engage
the lock, you must turn the wheel slightly to the right to
disengage it. If you turned the wheel to the left to engage
the lock, turn the wheel slightly to the left to disengage it.
SENTRY KEY
The Sentry KeyImmobilizer System prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to try to start the
engine.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

NOTE:A key that has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Alarm Indicator Light will
turn on for three seconds for a bulb check. If the light
remains on after the bulb check, it indicates that there is
a problem with the electronics. In addition, if the light
begins to flash after the bulb check, it indicates that
someone used an invalid key to try to start the engine.
Either of these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Alarm Indicator Light turns on
during normal vehicle operation (vehicle running for
longer than 10 seconds), it indicates that there is a fault in
the electronics. Should this occur, have the vehicle ser-
viced as soon as possible.NOTE:
•The Sentry KeyImmobilizer System is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
•Exxon/Mobil Speedpass™, additional Sentry Keys,
or any other transponder-equipped components on
the same key chain willnotcause a key-related
(transponder) fault unless the additional part isphysi-
cally held against the ignition keybeing used when
starting the vehicle. Cell phones, pagers, or other RF
electronics will not cause interference with this system.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON position within 15
seconds. After 10 seconds, a chime will sound. In addi-
tion, the Vehicle Security Alarm Indicator Light will
begin to flash. Turn the ignition switch to the LOCK
position and remove the second key.
4. Insert a blank Sentry Keyinto the ignition switch.
Turn the ignition switch to the ON position within 60
seconds. After 10 seconds, a single chime will sound. In
addition, the Vehicle Security Alarm Indicator Light will
stop flashing. To indicate that programming is complete,
the Vehicle Security Alarm Indicator Light will turn on
again for three seconds and then turn off.
The new Sentry Keyis programmed.The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key, contact your
authorized dealer for details.
NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be repro-
grammed.
General Information
The Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
SECURITY ALARM SYSTEM — IF EQUIPPED
This Security Alarm System monitors the doors, hood,
liftgate, and ignition switch for unauthorized operation.
If something triggers the Security Alarm, the Security
Alarm System will sound the horn for 30 seconds and
flash the lights for 60 seconds. If the triggering device is
not deactivated, the horn will sound again after a five
second delay for another 30 seconds. If the trigger
remains present, this cycle will repeat for up to five
minutes.
To Set The Security Alarm
1. Remove the key from the ignition switch and get out
of the vehicle.
2. Lock the door using either the power door LOCK
switch or the Remote Keyless Entry (RKE) transmitter
and close all doors.
3. The Security Alarm indicator light in the instrument
cluster will flash rapidly for 16 seconds. This shows that
the system is arming. During this period, if a door is
opened, the ignition switch is turned ON, or the power
door locks are unlocked in any manner, the Security
Alarm will automatically disarm. After 16 seconds, the
Security Alarm indicator light will flash slowly. This
shows that the Security Alarm System is fully armed.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

NOTE:The line of transmission must not be blocked
with metal objects.
To Unlock The Doors And Liftgate
Press and release the UNLOCK button on the RKE
transmitter once to unlock only the driver’s door or twice
to unlock all the doors and liftgate. When the UNLOCK
button is pressed, the illuminated entry will initiate, and
the parking lights will flash on twice. The time for this
feature is programmable on vehicles equipped with the
Electronic Vehicle Information Center (EVIC). Refer to
“Turn Headlamps on with Remote Key Unlock” under
“Electronic Vehicle Information Center (EVIC)” in Sec-
tion 4.
NOTE:The system can also be programmed to unlock
all doors on the first press of the UNLOCK button. On
EVIC equipped vehicles refer to “Remote Unlock Driv-
er’s Door 1st” under “Electronic Vehicle Information
Center (EVIC)” in Section 4.For vehicles not equipped with an EVIC, the system can
be programmed to unlock all the doors upon the first
UNLOCK button press by using the following procedure:
1. Press and hold the LOCK button on a programmed
key fob.
2. Continue to hold the LOCK button at least four
seconds, but not longer than 10 seconds, then press and
hold the UNLOCK button. A single chime will sound to
indicate that this feature has changed.
3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK buttons on the RKE trans-
mitter.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Security Alarm. Opening a door with the Security Alarm
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2

activated will cause the alarm to sound. Press the UN-
LOCK button to deactivate the Security Alarm.
5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
To Lock The Doors And Liftgate
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. The turn signal lights will flash and
the horn will chirp once to acknowledge the lock signal.
If desired, the “Sound Horn On Lock” feature can be
turned on or off. On EVIC equipped vehicles refer to
“Personal Settings” under “Electronic Vehicle Informa-
tion Center (EVIC)” in Section 4.
For vehicles not equipped with an EVIC, perform the
following steps:
1. Press the LOCK button for four to 10 seconds.
2. While the LOCK button is pressed (after four seconds),
press the PANIC button. Release both buttons.The “Sound Horn On Lock” and “Flash Lamps With
Lock” features can be reactivated by repeating this pro-
cedure.
Using The Panic Alarm
To turn the Panic Alarm feature ON or OFF, press and
hold the PANIC button on the RKE transmitter for at
least one second and release. When the Panic Alarm is on,
the headlights and park lights will flash, the horn will
pulse on and off and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by pressing the PANIC button a second
time or if the vehicle speed is 5 mph (8 km/h) or greater.
NOTE:When you turn off the Panic Alarm by pressing
the PANIC button a second time, you may have to be
closer to the vehicle due to the radio frequency noises of
the system.
