2008 DODGE AVENGER octane

5. Once you repair or replace the original road tire, and
reinstall it on the vehicle in place of the compact spare,
the TPMS will update automatically. In addition, the
TPM Telltale Light will turn OFF and the graphic in the
EVIC will display a new pressure value instead of dashes
(- -), as long no tire pressure is below the low-pressure
warning limit in any of the four active road tires. The
vehicle may need to be driven for up to 10 minutes above
15 mph (25 km/h) in order for the TPMS to receive this
information.
GENERAL INFORMATION
This device complies with part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
² This device may not cause harmful interference.
² This device must accept any interference received,
including interference that may cause undesired op-
eration. The tire pressure sensors are covered under one of the
following licenses:
United States ..................... KR5S120123
Canada ........................ 2671-S120123
FUEL REQUIREMENTS
2.4L AND 2.7L ENGINES
2.4L and 2.7L engines are designed to meet
all emission regulations and provide excel-
lent fuel economy and performance when
using high quality unleaded ªregularº
gasolines having an octane rating of 87.
The use of premium gasoline is not recom-
mended. Under normal conditions, the use of premium
gasoline will not provide a benefit over high quality
unleaded ªregularº gasolines, and in some circumstances
may result in poorer performance. STARTING AND OPERATING 319
5

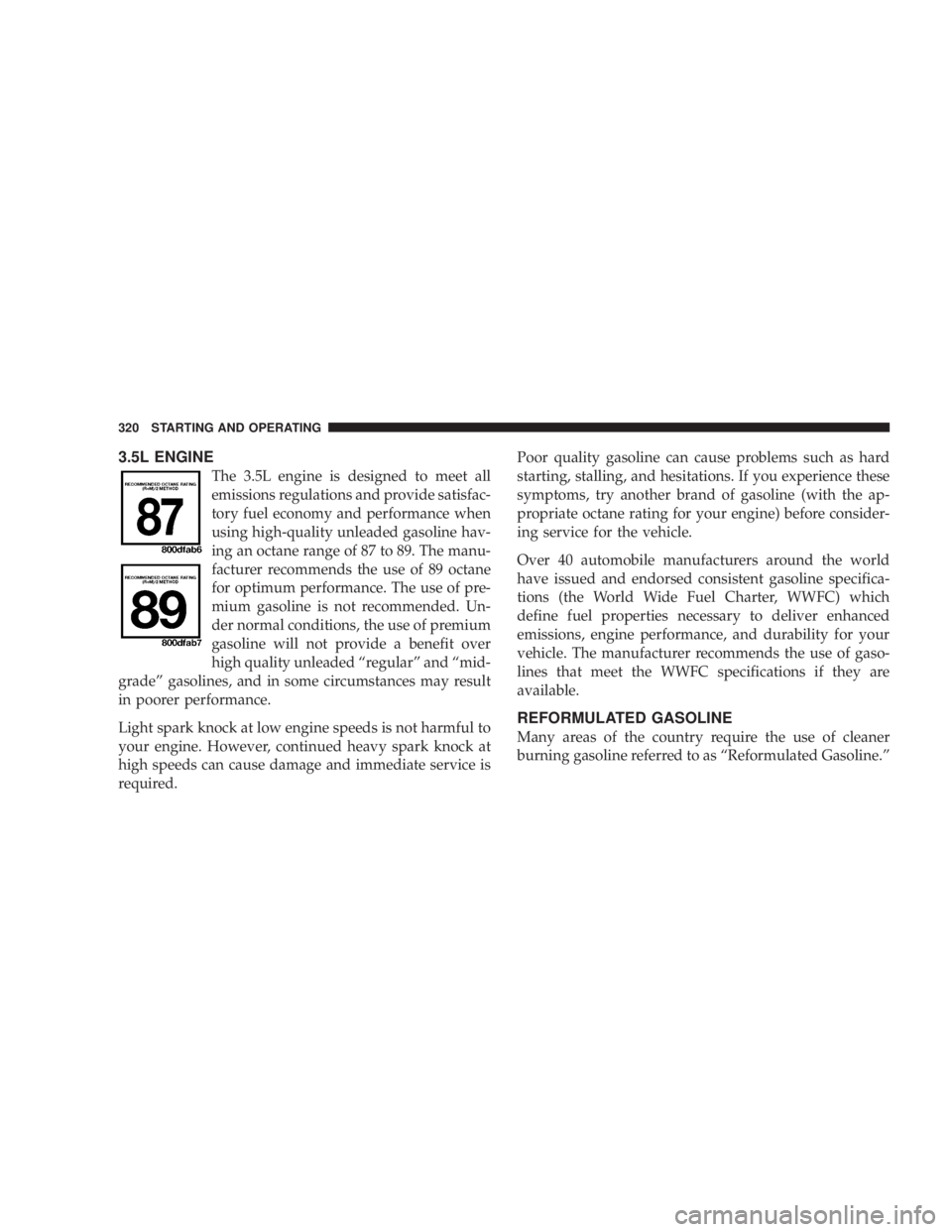

3.5L ENGINE
The 3.5L engine is designed to meet all
emissions regulations and provide satisfac-
tory fuel economy and performance when
using high-quality unleaded gasoline hav-
ing an octane range of 87 to 89. The manu-
facturer recommends the use of 89 octane
for optimum performance. The use of pre-
mium gasoline is not recommended. Un-
der normal conditions, the use of premium
gasoline will not provide a benefit over
high quality unleaded ªregularº and ªmid-
gradeº gasolines, and in some circumstances may result
in poorer performance.
Light spark knock at low engine speeds is not harmful to
your engine. However, continued heavy spark knock at
high speeds can cause damage and immediate service is
required. Poor quality gasoline can cause problems such as hard
starting, stalling, and hesitations. If you experience these
symptoms, try another brand of gasoline (with the ap-
propriate octane rating for your engine) before consider-
ing service for the vehicle.
Over 40 automobile manufacturers around the world
have issued and endorsed consistent gasoline specifica-
tions (the World Wide Fuel Charter, WWFC) which
define fuel properties necessary to deliver enhanced
emissions, engine performance, and durability for your
vehicle. The manufacturer recommends the use of gaso-
lines that meet the WWFC specifications if they are
available.
REFORMULATED GASOLINE
Many areas of the country require the use of cleaner
burning gasoline referred to as ªReformulated Gasoline.º320 STARTING AND OPERATING

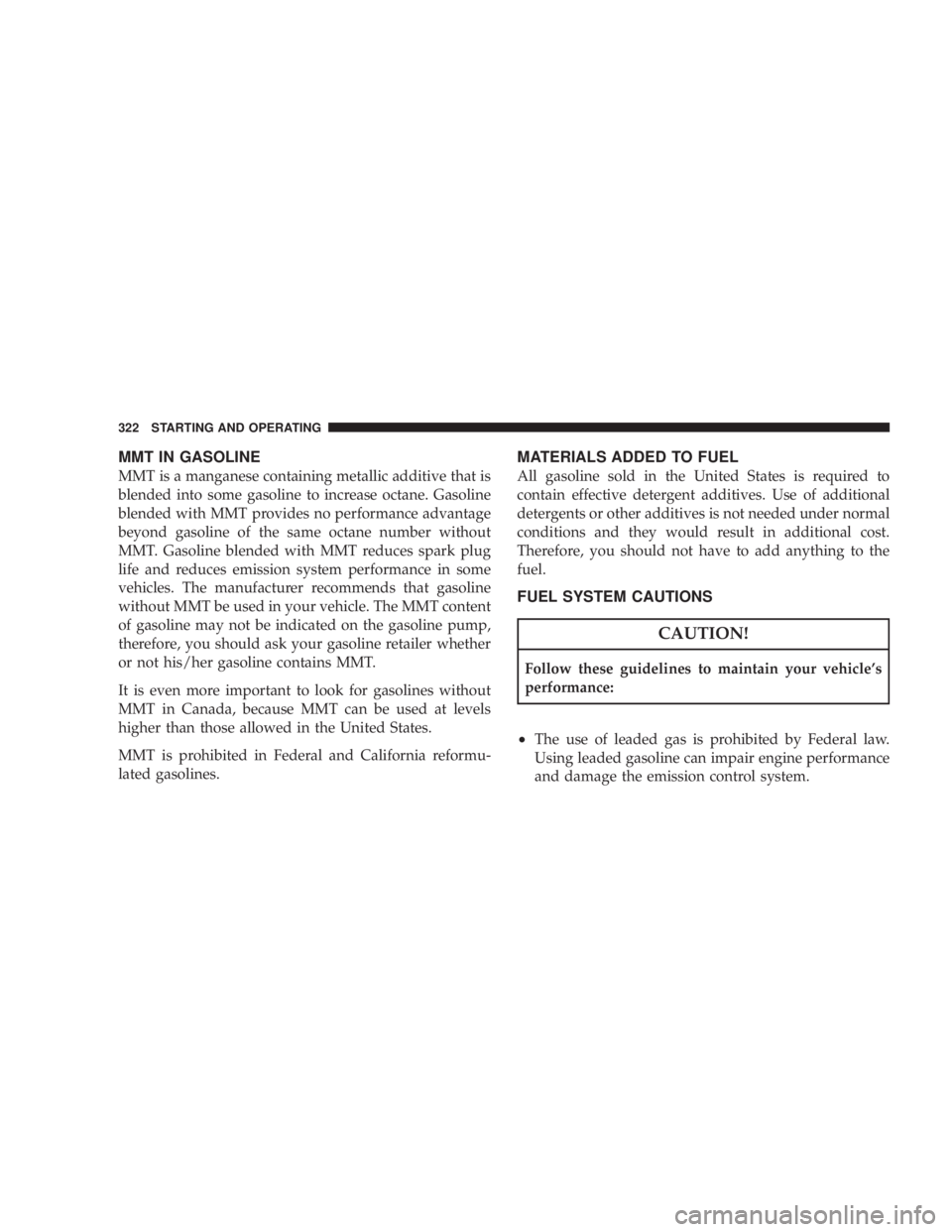

MMT IN GASOLINE
MMT is a manganese containing metallic additive that is
blended into some gasoline to increase octane. Gasoline
blended with MMT provides no performance advantage
beyond gasoline of the same octane number without
MMT. Gasoline blended with MMT reduces spark plug
life and reduces emission system performance in some
vehicles. The manufacturer recommends that gasoline
without MMT be used in your vehicle. The MMT content
of gasoline may not be indicated on the gasoline pump,
therefore, you should ask your gasoline retailer whether
or not his/her gasoline contains MMT.
It is even more important to look for gasolines without
MMT in Canada, because MMT can be used at levels
higher than those allowed in the United States.
MMT is prohibited in Federal and California reformu-
lated gasolines. MATERIALS ADDED TO FUEL
All gasoline sold in the United States is required to
contain effective detergent additives. Use of additional
detergents or other additives is not needed under normal
conditions and they would result in additional cost.
Therefore, you should not have to add anything to the
fuel.
FUEL SYSTEM CAUTIONS
CAUTION!Follow these guidelines to maintain your vehicle's
performance:
² The use of leaded gas is prohibited by Federal law.
Using leaded gasoline can impair engine performance
and damage the emission control system.322 STARTING AND OPERATING

² An out-of-tune engine, or certain fuel or ignition
malfunctions, can cause the catalytic converter to
overheat. If you notice a pungent burning odor or
some light smoke, your engine may be out of tune or
malfunctioning and may require immediate service.
Contact your authorized dealer for service assistance.
² The use of fuel additives, which are now being sold as
octane enhancers, is not recommended. Most of these
products contain high concentrations of methanol.
Fuel system damage or vehicle performance problems
resulting from the use of such fuels or additives is not
the responsibility of the manufacturer.
NOTE: Intentional tampering with emissions control
systems can result in civil penalties being assessed
against you. CARBON MONOXIDE WARNINGS
WARNING!Carbon monoxide (CO) in exhaust gases is deadly.
Follow the precautions below to prevent carbon
monoxide poisoning:
² Do not inhale exhaust gases. They contain carbon
monoxide, a colorless and odorless gas, which can kill.
Never run the engine in a closed area, such as a
garage, and never sit in a parked vehicle with the
engine running for an extended period. If the vehicle is
stopped in an open area with the engine running for
more than a short period, adjust the ventilation system
to force fresh, outside air into the vehicle. STARTING AND OPERATING 323
5

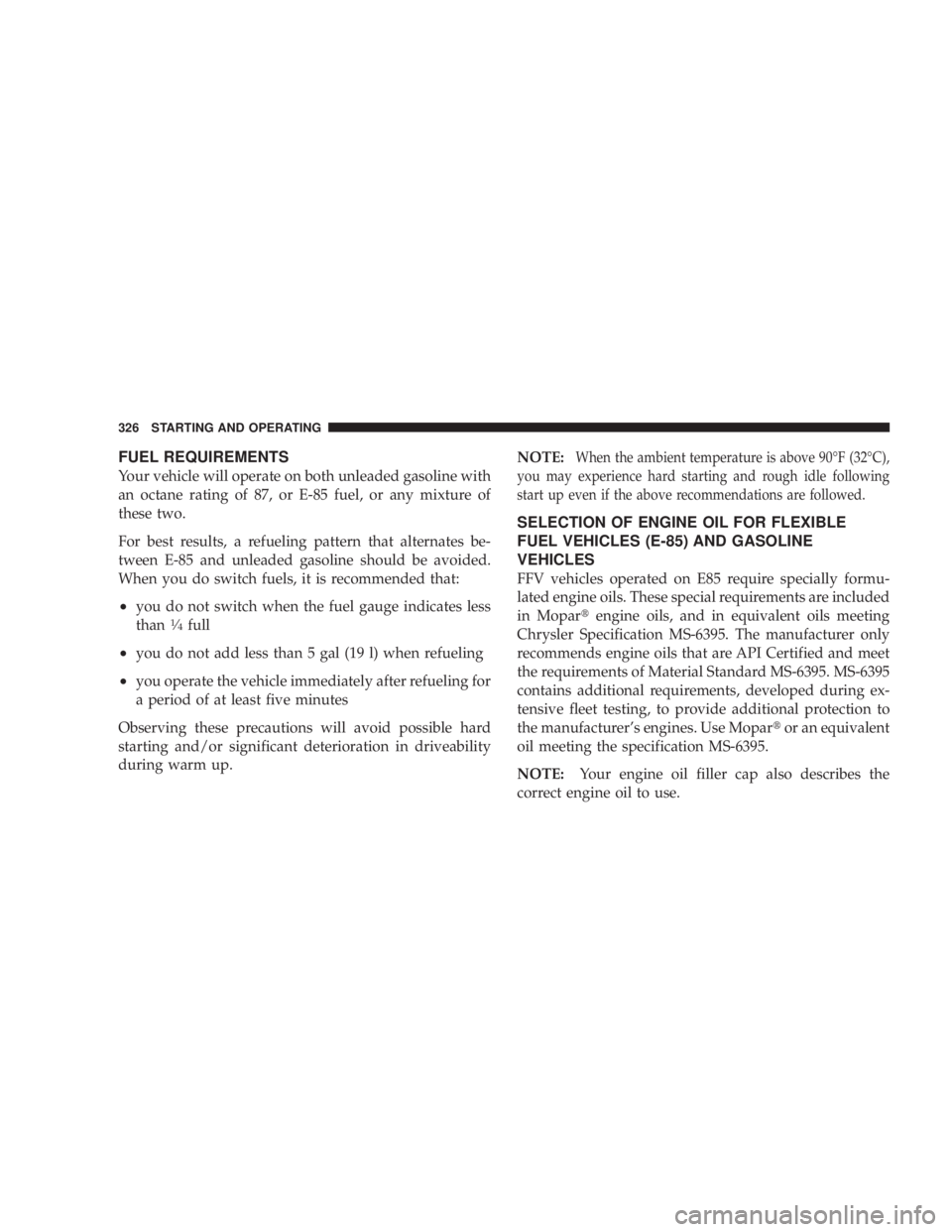

FUEL REQUIREMENTS
Your vehicle will operate on both unleaded gasoline with
an octane rating of 87, or E-85 fuel, or any mixture of
these two.
For best results, a refueling pattern that alternates be-
tween E-85 and unleaded gasoline should be avoided.
When you do switch fuels, it is recommended that:
² you do not switch when the fuel gauge indicates less
than 1
¤ 4
full
² you do not add less than 5 gal (19 l) when refueling
² you operate the vehicle immediately after refueling for
a period of at least five minutes
Observing these precautions will avoid possible hard
starting and/or significant deterioration in driveability
during warm up. NOTE:
When the ambient temperature is above 90ÉF (32ÉC),
you may experience hard starting and rough idle following
start up even if the above recommendations are followed.
SELECTION OF ENGINE OIL FOR FLEXIBLE
FUEL VEHICLES (E-85) AND GASOLINE
VEHICLES
FFV vehicles operated on E85 require specially formu-
lated engine oils. These special requirements are included
in Mopar t engine oils, and in equivalent oils meeting
Chrysler Specification MS-6395. The manufacturer only
recommends engine oils that are API Certified and meet
the requirements of Material Standard MS-6395. MS-6395
contains additional requirements, developed during ex-
tensive fleet testing, to provide additional protection to
the manufacturer's engines. Use Mopar t or an equivalent
oil meeting the specification MS-6395.
NOTE: Your engine oil filler cap also describes the
correct engine oil to use.326 STARTING AND OPERATING

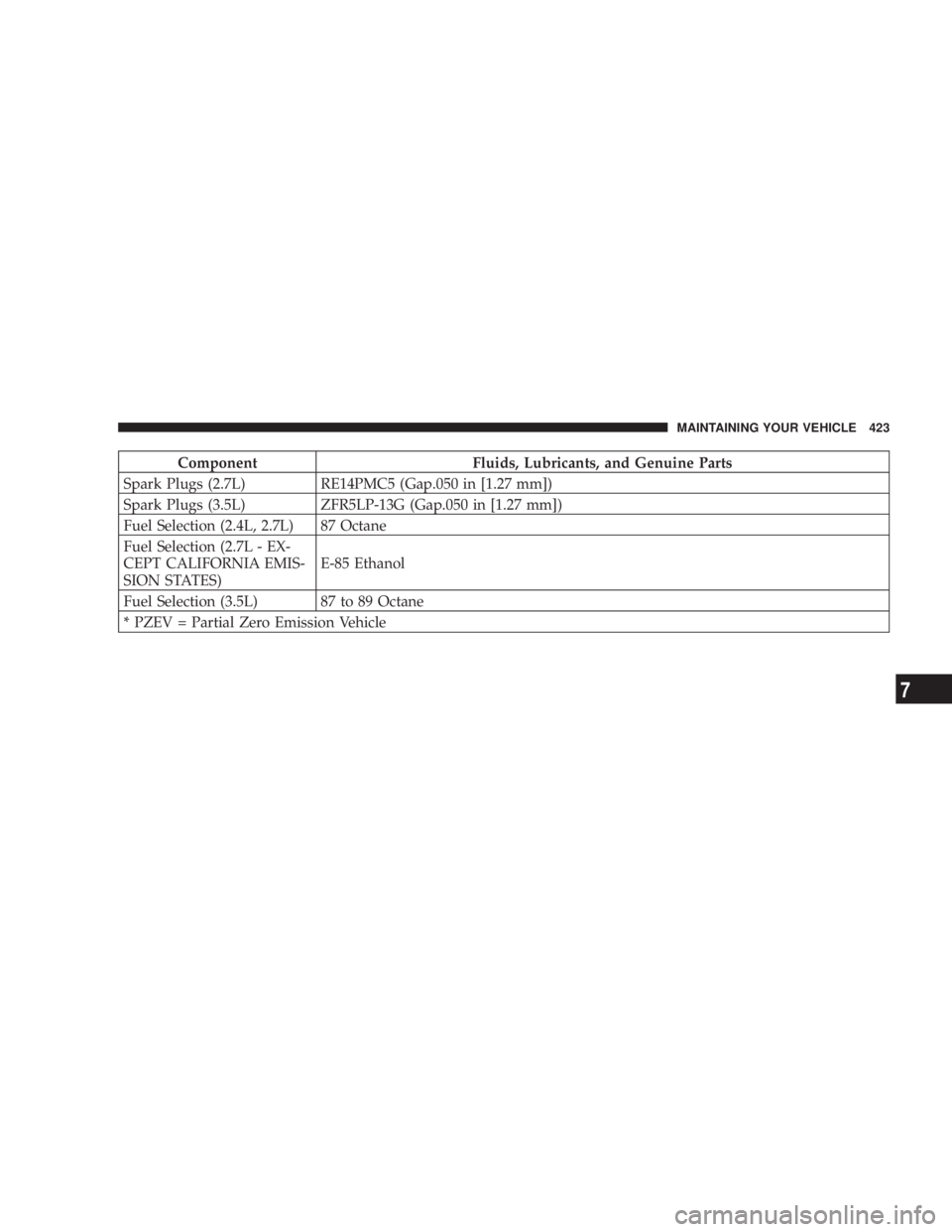

Component Fluids, Lubricants, and Genuine Parts
Spark Plugs (2.7L) RE14PMC5 (Gap.050 in [1.27 mm])
Spark Plugs (3.5L) ZFR5LP-13G (Gap.050 in [1.27 mm])
Fuel Selection (2.4L, 2.7L) 87 Octane
Fuel Selection (2.7L - EX-
CEPT CALIFORNIA EMIS-
SION STATES) E-85 Ethanol
Fuel Selection (3.5L) 87 to 89 Octane
* PZEV = Partial Zero Emission Vehicle MAINTAINING YOUR VEHICLE 423
7

Engine Oil ........................... 326
Fuel Requirements .................. 324,326
Maintenance ....................... 324,327
Replacement Parts ..................... 327
Starting ............................. 327
Flooded Engine Starting ................... 263
Floor Console .......................... 156
Fluid Capacities ......................... 420
Fluid Leaks ............................. 80
Fluid Level Checks
Automatic Transaxle ................. 397,398
Brake ............................ 396,424
Cooling System ....................... 389
Engine Oil ........................... 374
Power Steering ..................... 385,424
Fluids ................................ 422
Fluids, Lubricants and Genuine Parts .......... 422
Fog Lights ....................... 132,176,415
Folding Rear Seat ..................... 126,127 Freeing A Stuck Vehicle ................... 361
Front Wheel Bearings ..................... 400
Fuel ................................. 319
Adding ............................. 328
Additives ............................ 322
Clean Air ............................ 320
Ethanol ............................. 321
Filler Cap (Gas Cap) ................. 170,328
Filler Door (Gas Cap) ................... 170
Gasoline ............................ 319
Gauge .............................. 170
Hoses .............................. 394
Light ............................... 171
Materials Added ....................... 322
Methanol ............................ 321
Octane Rating ...................... 319,422
Requirements ...................... 319,420
Tank Capacity ........................ 420
Fuel, Flexible ............. See Flexible Fuel Vehicles450 INDEX

MP3 Player ......................... 220,223
MTBE/ETBE ........................... 321
Multi-Function Control Lever ............... 130
Navigation Radio ........................ 223
Navigation System ....................... 223
New Vehicle Break-In Period ................ 78
Occupant Restraints ..................... 59,62
Occupant Restraints (Sedan) ......... 40,54,55,59,60
Octane Rating, Gasoline (Fuel) .............. 319
Odometer ............................. 172
Trip ............................. 172,174
Oil Change Indicator ................ 173,184,426
Oil Change Indicator, Reset .............. 173,184
Oil, Engine ......................... 374,422
Capacity ............................ 420
Change Interval ............... 173,184,376,426
Checking ............................ 374 Dipstick ............................. 374
Disposal ............................ 378
Filter ............................ 378,422
Filter Disposal ........................ 378
Identification Logo ..................... 376
Materials Added to ..................... 378
Recommendation ................... 376,420
Synthetic ............................ 377
Viscosity .......................... 377,420
Oil Filter, Change ........................ 378
Oil Filter, Selection ....................... 378
Oil Pressure Light ....................... 171
Onboard Diagnostic System .............. 371,372
Opener, Garage Door (HomeLink t ) ........... 143
Operator Manual (Owner's Manual) ............ 4
Overdrive .......................... 271,272
Overheating, Engine ...................... 348
Owner's Manual (Operator Manual) ......... 4,440 INDEX 455
10
