FAMILIARISATION
5
Familiarisation

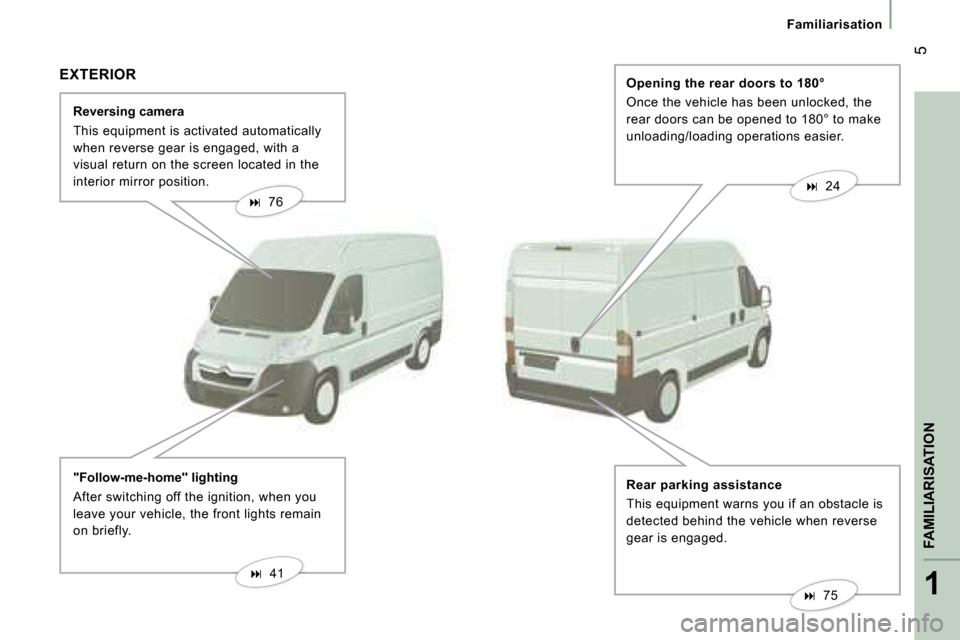

Reversing camera
This equipment is activated automatically
when reverse gear is engaged, with a
visual return on the screen located in the
interior mirror position.
 76

 75

 41
EXTERIOR
"Follow-me-home" lighting
After switching off the ignition, when you
leave your vehicle, the front lights remain
on briefly. Opening the rear doors to 180°
Once the vehicle has been unlocked, the
rear doors can be opened to 180° to make
unloading/loading operations easier.
Rear parking assistance
This equipment warns you if an obstacle is
detected behind the vehicle when reverse
gear is engaged.

 24

Familiarisation Sliding side door

Opening
Pull the handle towards you then towards
the rear.
Take care not to obstruct the guide space
on the floor in order for the door to slide
correctly.
Take care to open the door fully to lock the
device at the base of the door.
Do not drive with the sliding side door open.

 23
Locking of the vehicle.
Unlocking of the vehicle.
Locking/Unlocking of the load space.
Remote control key

2 buttons
Unfolding/Folding of the key.
Unlocking.
Locking.

3 buttons
Unfolding/Folding of the key.
Unlocking of the cab.
Unlocking of the load space.
Locking of the vehicle.

 18 Manual centralised controls

 25
OPEN

8
Familiarisation
INTERIOR Automatic air conditioning
This automatic air conditioning system
guarantees comfort and a suffi cient circulation
of air in the passenger compartment.
Cruise control
This system automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal. Audio and communication
systems
This equipment benefits from the
latest technology: MP3 compatible
audio equipment, Bluetooth hands-free
telephone, audio system.
Interior layout
- 12 V socket.
- Cooled glove box.
- Central storage tray with lock.

 50

 43
 80

 63

1
FAMILIARISATION
9
Familiarisation

1. Fuse box.

2. Programmable heating.

3. Cruise control switch.

4. MODE, configuration and
personalisation/lighting rheostat/
headlamp beam height adjustment.

5. Lights and direction indicators control.
6. Instrument panel with display.

7. Wipers/wash-wipe/trip computer
controls.

8. Storage compartment between 2
adjustable vents.

9. Audio equipment.

10. Manual air conditioning.

11. Movable ashtray.
12. Lighter.

13. 12 volt accessories socket (180 W max).

14. Controls bar:
- De-icing/demisting button.
- Front fog lamps button.
- Rear fog lamps button.
- Hazard warning lights button.
- Central locking button/alarm indicator light.
- Central unlocking of the doors and load space button.
- Dynamic stability control (ASR) button.

15. Gear lever.

16. Ignition switch.

17. Driver's air bag/horn.
INSTRUMENTS AND CONTROLS

1
FAMILIARISATION
11
Familiarisation
SIT COMFORTABLY

1. Unlocking of the lever.

2. Locking of the lever.

3. Adjustment of the depth of the steering
wheel.
Manual adjustment of the depth of the
steering wheel
Exterior mirror adjustment
The mirrors are divided into
two zones: A and B.

1. Driver's mirror:

A1 - Adjustment of the upper mirror.

B1 - Adjustment of the lower mirror.

2. Passenger's mirror:

A2 - Adjustment of the upper mirror.

B2 - Adjustment of the lower mirror.

 36
 69 Front seat belt
Fastening.

 104
Height adjustment.
 104

16
Familiarisation Child lock
This prevents opening of the sliding side
door from the inside. Two rings, located between the seat back
and the seat cushion permit the securing of
a child seat.
Isofix mountings

 23
 111
KEEP YOUR PASSENGERS SAFE

 72
To disarm the front passenger air bag, refer
to the "MODE" section of chapter 4, then on
the "Passenger air bag” menu, select OFF.
The air bag warning light on the instrument
panel comes on throughout the duration of
disarming.

18
REMOTE CONTROL
ACCESSES
Unlocking the cab
Press this button to unlock your
vehicle's cab. The diode on the
remote control is lit, the interior
courtesy light comes on briefly
and the direction indicators
flash twice. Unlocking the rear doors
Press this button to unlock the
side door and the rear doors of
the load space. The diode on the
remote control is lit. Central locking
Press this button briefly to lock all
of your vehicle's doors, cab and
load space. If one of the doors is
open or is not closed correctly,
the central locking will not work.
The direction indicators flash once.
The indicator light on the control
on the centre console comes on
then flashes.
Accesses

19
2
READY TO SET OFF
Deadlocking Press this button twice in
succession to deadlock the
vehicle. It is then impossible to
open the doors from the inside or
the outside.
The direction indicators flash three times.
Never leave anyone inside the vehicle when
it is deadlocked.
Folding/unfolding the key
Press this button to release the
key from its housing.
To fold the key, press the button
then fold the key into the housing.
If you do not press the button, the
mechanism may be damaged. Accesses
