Instruments and controls

Warning light is Solution - action Solution - action
Coolant
temperature on with the
needle in the red
zone.
an abnormal increase.
Park and switch off the ignition, allow the circui
t to cool.
Visually check the level.
on H in the red
zone. a coolant temperature. Refer to the "Levels" section of chapter 7. Consu
lt a
CITROËN dealer.
Engine oil
pressure on while driving. that the pressure is too low.
Park and switch off the ignition, allow the lubric
ation
circuit to cool in order to check its level. Refer to the
"Levels" section of chapter 7.
continuously on,
even though the
level is correct. a major fault. Consult a CITROËN dealer.
flashing, for a
few seconds,
with a message
on the display. that a service will soon be due.
Refer to the list of checks in the servicing boo
klet then
carry out the CITROËN service.
Battery charge on. a fault in the charging circuit.
Check the battery terminals… Refer to the "Battery
"
section of chapter 8.
continuously on,
in spite of the
checks. a circuit fault, an ignition or
injection malfunction.
Consult a CITROËN dealer.
Door or bonnet
open detection on.
that a door or the bonnet is not
closed correctly. Check that the cab doors, the rear and side doors
and
the bonnet are closed.
accompanied by
a message on
the display.

29
2
READY TO SET OFF
Instruments and controls

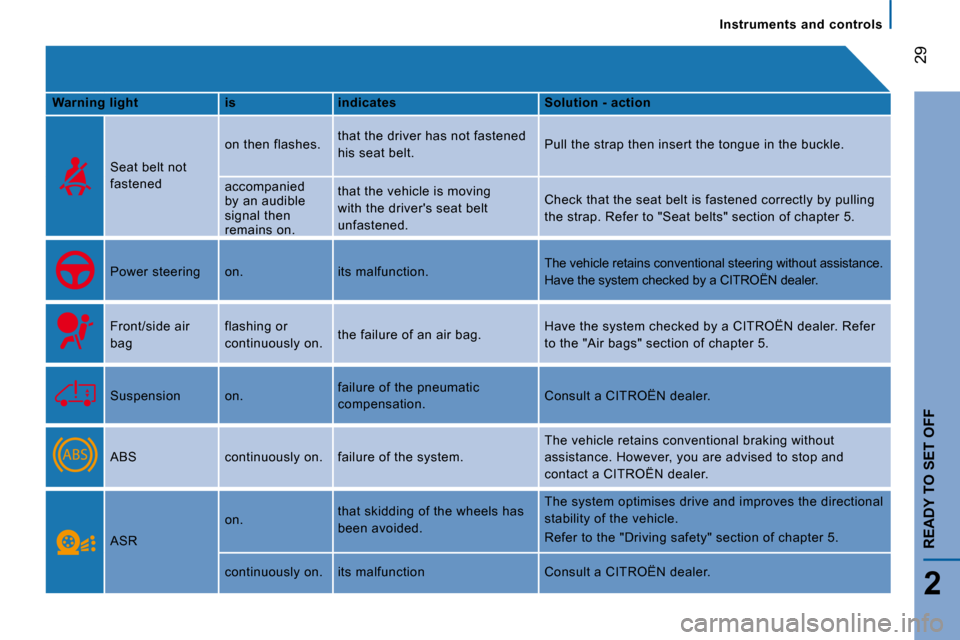

Warning light is indicates Solution - action
Seat belt not
fastened on then flashes.
that the driver has not fastened
his seat belt. Pull the strap then insert the tongue in the buckl
e.
accompanied
by an audible
signal then
remains on. that the vehicle is moving
with the driver's seat belt
unfastened.
Check that the seat belt is fastened correctly by
pulling
the strap. Refer to "Seat belts" section of chapter 5.
Power steering on. its malfunction. The vehicle retains conventional steering withou
t assistance.
Have the system checked by a CITROËN dealer.
Front/side air
bag flashing or
continuously on.
the failure of an air bag. Have the system checked by a CITROËN dealer. Ref
er
to the "Air bags" section of chapter 5.
Suspension on. failure of the pneumatic
compensation. Consult a CITROËN dealer.
ABS continuously on. failure of the system. The vehicle retains conventional braking without

assistance. However, you are advised to stop and
contact a CITROËN dealer.
ASR on.
that skidding of the wheels has
been avoided. The system optimises drive and improves the direct
ional
stability of the vehicle.
Refer to the "Driving safety" section of chapter 5.
continuously on. its malfunction Consult a CITR OËN dealer.

30
Instruments and controls

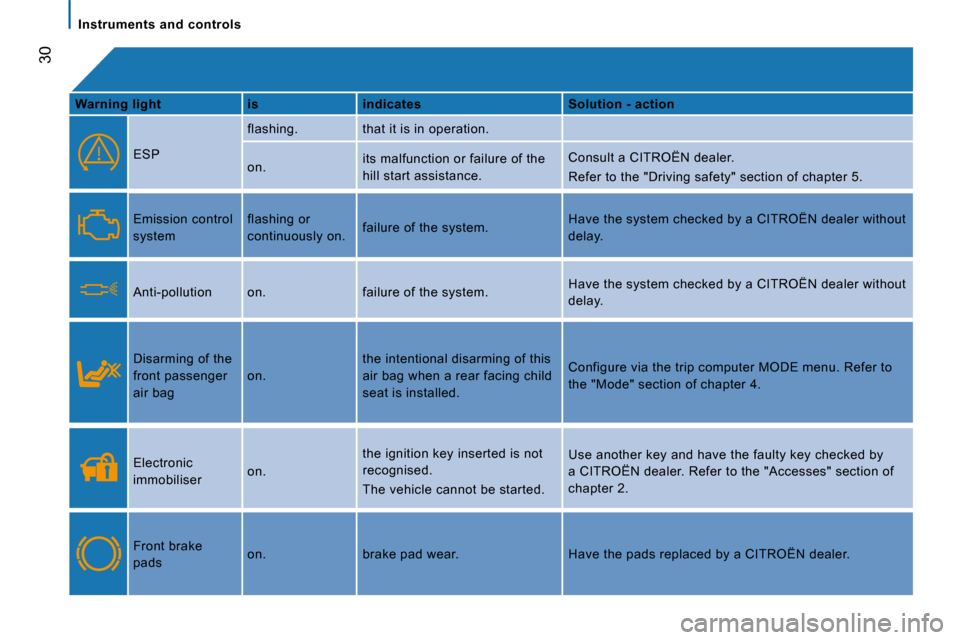

Warning light is indicates Solution - action
ESP flashing. that it is in operation.

on. its malfunction or failure of the
hill start assistance. Consult a CITROËN dealer.
Refer to the "Driving safety" section of chapter 5.

Emission control
system flashing or
continuously on.
failure of the system. Have the system checked by a CITROËN dealer with
out
delay.
Anti-pollution on. failure of the system. Have the system checked by a CITROËN dealer wi
thout
delay.
Disarming of the
front passenger
air bag
on. the intentional disarming of this
air bag when a rear facing child
seat is installed. Configure via the trip computer MODE menu. Refer t
o
the "Mode" section of chapter 4.
Electronic
immobiliser
on. the ignition key inserted is not
recognised.
The vehicle cannot be started. Use another key and have the faulty key checked
by
a CITROËN dealer. Refer to the "Accesses" section of
chapter 2.
Front brake
pads
on. brake pad wear. Have the pads replaced by
a CITROËN dealer.

31
2
READY TO SET OFF
Instruments and controls

Warning light is indicates Solution - action
Water in diesel
filter on,
accompanied by
a message on
the display. that there is water in the diesel
fuel filter.
Have the filter bled by a CITROËN dealer. Refe
r to the
"Checks" section of chapter 7.
Low fuel level on with the
gauge needle in
zone E. that the fuel reserved is being
used. Fill up with fuel without delay. The evaluation of
the fuel
reserve is a parameter which is sensitive to the st yle of
driving, the profile of the road, the time elapsed and the
distance travelled since the warning light first ca me on.
Diesel
pre-heating
on. that the weather conditions
impose pre-heating. Wait for the warning light to switch off before op
erating
the starter.
Side lights on. manual selection. Turn the ring on the lights sta
lk to the first position.
automatic switching on of the
lights, ring in position A. Adjust the sensitivity of the brightness sensor vi
a the
MODE menu. Refer to the "Mode" section of chapter 4 .
Dipped
headlamps
on. manual selection. Turn the ring on the lights sta
lk to the second position.
Main beam
headlamps pulling of the stalk towards you. Pull the stalk
to return to dipped headlamps.

Instruments and controls

Warning light is indicates Solution - action
Direction
indicators flashing with
buzzer. a change of direction using the
lights stalk, to the left of the
steering wheel. To the Right: press the stalk upwards.
To the Left: press the stalk downwards.
Front fog lamps on. that the button on the centre
console has been pressed. Manual selection.
The fog lamps only operate if the side lights or di
pped
headlamps are on.
Rear fog lamps on. that the button on the centre
console has been pressed. Manual selection. The fog lamps only operate if th
e
side lights or dipped headlamps are on. When visibi lity
is normal, please switch the fog lamps off.
Cruise control on. that the cruise control has been
selected. Manual selection.
Refer to the "Steering wheel controls" section of
chapter 3.
Faulty bulb on.
accompanied by
a message on
the display. that one or more bulbs have
blown.
Have the bulb changed.
Refer to the "Changing a bulb" section of chapter 8
or
contact a CITROËN dealer
Rear parking
assistance
on. failure of the system. The audible assistance is no longer active.
Have the system checked by a CITROËN dealer
without delay.

33
2
READY TO SET OFF
Instruments and controls

Display displays indicates Solution - action
Temperature/Ice the ice warning,
the temperature
flashing
accompanied by
a message on
the display. weather conditions which could
result in ice on the road.
Be particularly vigilant and do not brake sharply.
Refer
to the "Driving Safety" section of chapter 5".
Date 11:00:00 a setting: of
the Date. of the
Time. a configuration via the MODE
menu.
Refer to the "Mode" section of chapter 4.
Headlamp beam
height a headlamp
height setting. A position from 0 to
3 depending on the load carried Adjust using the control on the fascia panel.
Refer to the "Steering wheel controls" section of
chapter 3.
Service spanner a service
spanner which
remains lit. that a service will soon be due.
Refer to the list of checks in the servicing boo
klet. Have
the service carried out by a CITROËN dealer.

33
2
READY TO SET OFF
Instruments and controls

Display displays indicates Solution - action
Temperature/Ice the ice warning,
the temperature
flashing
accompanied by
a message on
the display. weather conditions which could
result in ice on the road.
Be particularly vigilant and do not brake sharply.
Refer
to the "Driving Safety" section of chapter 5".
Date 11:00:00 a setting: of
the Date. of the
Time. a configuration via the MODE
menu.
Refer to the "Mode" section of chapter 4.
Headlamp beam
height a headlamp
height setting. A position from 0 to
3 depending on the load carried Adjust using the control on the fascia panel.
Refer to the "Steering wheel controls" section of
chapter 3.
Service spanner a service
spanner which
remains lit. that a service will soon be due.
Refer to the list of checks in the servicing boo
klet. Have
the service carried out by a CITROËN dealer.

34
Instruments and controls
FUEL GAUGE
The fuel level is tested each time the key is
turned to the "running" position.
The gauge is positioned on:
- F (Full): the fuel tank is full,
approximately 90 litres.
- E (Empty): the reserve is now being
used, the warning light comes on
continuously.
The reserve when the warning first comes
on is approximately 11 litres.
Fuel tanks of different capacities (60 and
125 litres) are available as an option.
COOLANT TEMPERATURE

The needle is positioned between C
(Cold) and H (Hot): normal operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations. - wait for the engine to cool down in
order to check the level and top it up if
necessary. Follow this advice:
the cooling system is pressurised. In order to
avoid any risk of scalding, unscrew the cap
by two turns to allow the pressure to drop.
When the pressure has dropped, check the
level and remove the cap to top up.
If the needle remains in the red zone,
contact a CITROËN dealer.
Refer to the "Levels" section of
chapter 7.
Refer to the "Fuel" section of chapter 7.
What you should do if the needle enters
the red zone, or if the warning light
comes on:
- stop immediately, switch off the ignition. The fan may continue to operate for
a certain time up to approximately
10 minutes.
EMISSION CONTROL
EOBD (European On Board Diagnosis) is
a diagnostics system which complies with,
among others, the standards concerning
authorised emissions of:
- CO (carbon monoxide),
- HC (unburnt hydrocarbons),
- NOx (nitrogen oxides) or particles, detected by oxygen sensors placed
upstream and downstream of the
catalytic converters. Therefore, the driver is warned of
any malfunction of this emission
control system by the lighting of
this specific warning light on the
instrument panel.
There is a risk of damage to the catalytic
converter. Have it checked by a CITROËN
dealer.
