2008 Citroen JUMPER DAG Owner's Manual

12
Familiarisation
SIT COMFORTABLY Side lights/PARK
Press this button, turning the ignition key
one notch in the opposite direction to
starting at the same time. You can then
remove the key: The side lights will remain
on while you are parked.

 41 Electric window controls

A. Driver's electric window control.

B. Passenger's electric window control.
The electric window functions are
deactivated one minute after the ignition is
switched off.

 70
Ignition switch
- PARK position.
- STOP position
- RUNNING position.
- START position.

 37

1
FAMILIARISATION
13
Familiarisation
SEE CLEARLY
Lights Windscreen wipers
Front fog lamps and rear fog
lamps.
 40

 42

 42
Automatic switching on of the lights.
Lights off.
Side lights.
Dipped headlamps or main beam
headlamps.
A. Park.

B. Intermittent (4 speeds).

C. Slow continuous.

D. Fast continuous.

E. Single wipe. Windscreen wash
Pull the control towards you, the windscreen
wash is accompanied by a timed sweep of
the wipers.

Familiarisation

Automatic air conditioning : use of the fully automatic operation by pressing th e "AUTO" button is preferable.
VENTILATION

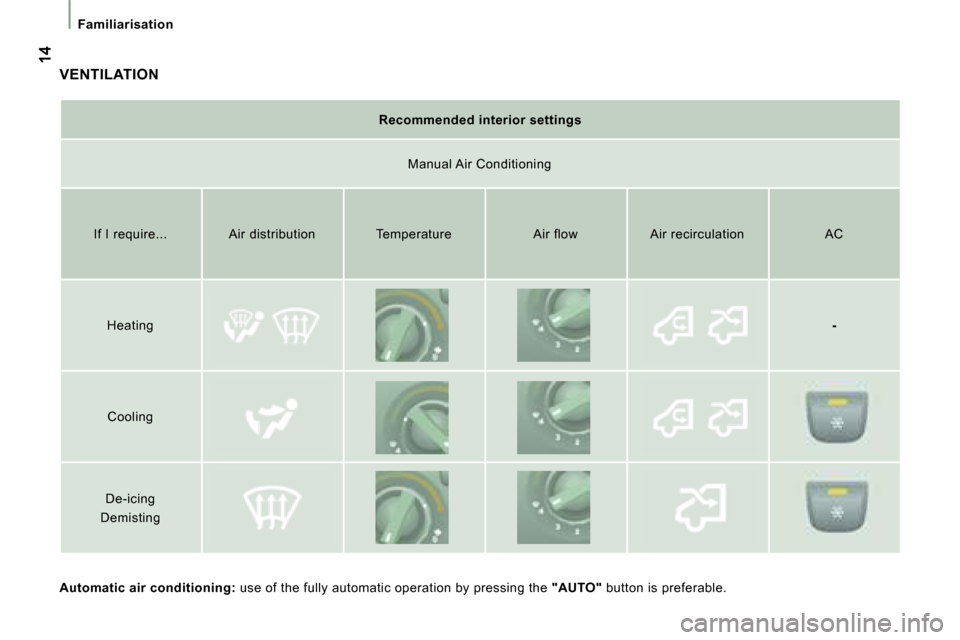

Manual Air Conditioning
If I require... Air distribution Temperatur e Air flow Air recirculation AC
Heating -
Cooling
De-icing
Demisting
Recommended interior settings

1
FAMILIARISATION
15
Familiarisation
MONITOR THOROUGHLY
Instrument panel Warning lights

A. Speedometer.

B. Instrument panel display.

C. Rev counter. With the ignition on, the orange and red
warning lights come on.
With the engine running, these warning
lights should switch off.
If warning lights remain on, refer to the
chapter concerned.

 26

 27 Reversing camera
The camera comes on when you engage
reverse gear and remains active up to
approximately 9 mph (15 km/h). It is
deactivated above 11 mph (18 km/h).

Screen
Press the button and place the screen in the
required position.

Buttons
Brightness adjustment.
Back-lighting adjustment.
ON/OFF provides views of the
rear without engaging reverse
gear.

 76

16
Familiarisation Child lock
This prevents opening of the sliding side
door from the inside. Two rings, located between the seat back
and the seat cushion permit the securing of
a child seat.
Isofix mountings

 23
 111
KEEP YOUR PASSENGERS SAFE

 72
To disarm the front passenger air bag, refer
to the "MODE" section of chapter 4, then on
the "Passenger air bag” menu, select OFF.
The air bag warning light on the instrument
panel comes on throughout the duration of
disarming.

1
FAMILIARISATION
17
Familiarisation
Cruise control
The cruise control is displayed on the
instrument panel by a warning light located
in the rev counter.

 43 Hill start assistance
This function, linked with the ESP, makes
hill starts easier and is activated in the
following conditions:
- the vehicle must be stationary, with the
engine running,
- the gradient of the road must be higher than 5 %

 38 Pneumatic suspension
This equipment allows you to alter the
height of the rear sill to make loading or
unloading easier.
Press the control, release to stop the
movement. Each press increases by one
level: +1 to +3.
Press the control, release to stop the
movement. Each press decreases by one
level: -1 to -3.
Driving with the sill too high or too low may
damage the components under the body.

 78
Function deactivated.
Function selected.
DRIVE SAFELY

18
REMOTE CONTROL
ACCESSES
Unlocking the cab
Press this button to unlock your
vehicle's cab. The diode on the
remote control is lit, the interior
courtesy light comes on briefly
and the direction indicators
flash twice. Unlocking the rear doors
Press this button to unlock the
side door and the rear doors of
the load space. The diode on the
remote control is lit. Central locking
Press this button briefly to lock all
of your vehicle's doors, cab and
load space. If one of the doors is
open or is not closed correctly,
the central locking will not work.
The direction indicators flash once.
The indicator light on the control
on the centre console comes on
then flashes.
Accesses

19
2
READY TO SET OFF
Deadlocking Press this button twice in
succession to deadlock the
vehicle. It is then impossible to
open the doors from the inside or
the outside.
The direction indicators flash three times.
Never leave anyone inside the vehicle when
it is deadlocked.
Folding/unfolding the key
Press this button to release the
key from its housing.
To fold the key, press the button
then fold the key into the housing.
If you do not press the button, the
mechanism may be damaged. Accesses
