F A M I L I A R I S A T I O N
MONITORING
Instrument panelControls
A. Speedometer.
B. Rev counter.
C. Fuel gauge.
D. Lighting rheostat.
E. Warning lamp.
Ignition on, the orange and red alert warning lamps come on.
With the engine running, these same warning lamps should go out.
If a warning lamp stays on, refer to the relevant page.
Warning lamps
23 24
A. Deactivation of the ESP/ASR system.
86
B. Deactivation of the visual and audible parking assistance.
114
C. Deactivation of the lane departure warning system.
96
D. Deactivation of the alarm volumetric sensors.
61
Page 20 of 257
23
I
D A S H B O A R D
Display lighting rheostat
On opening the driver’s door or unlocking with the remote control, for approximately 30 seconds the instrument panel is activated, dis-playing the mileage recorders and if applicable, the maintenance indica-tor spanner.
Central display
Display of warning lampsTrip mileage recorder reset button
Display of alerts and Status of functions
Display of warning lamps
INSTRUMENT PANEL
5 Trip mileage recorder
6 Fuel gauge
7 Engine oil level check
8 Coolant temperature
1 Rev counter
2 Cruise control or speed limiter settings
3 Speedometer
4 Maintenance indicator on switching on, then mileage recorder
Page 21 of 257
24
I
D A S H B O A R D
WARNING LAMPS
LH direction indicator
RH direction indicator
Dipped beam
I f t h i s w a r n i n g l a m p fl a s h e s , it is indicating a malfunctio-ning of the directional hea-dlamps.
Contact a CITROËN dealer.
Sidelamps
Foglamps (rear)
Main beam
Foglamps (front)
The direction indicator lamps all operate simultaneously when the hazard warning is on.
Lighting and signalling lamps
See "Visibility".
Alert warning lamps
Imperative stop warning lamp
When the warning lamp comes on, it is imperative to stop the vehicle and switch off the engine.
Contact a CITROËN dealer.
Warning lamp for handbrake, brake fl u i d l e v e l a n d b r a k i n g distribution fault
When the engine is running, this warning lamp indicates that the handbrake is applied or incomple- t e l y r e l e a s e d , t h a t t h e b r a k e fl u i d l e - v e l i s i n s u f fi c i e n t , o r t h a t t h e b r a k i n g system is malfunctioning.
If the warning lamp remains lit when the handbrake is released, stop immediately and contact a CITROËN the handbrake is released, stop released, stop
Dealer (See "Safety").
Page 22 of 257
25
I
D A S H B O A R D
Driver’s seat belt not fastened
This lamp comes on if the driver's seat belt is not fas-tened when the ignition is switched on and while the vehicle is moving at up to 20 km/h (approx. 12 mph)
Above 20 km/h (12 mph), the war- n i n g l a m p fl a s h e s f o r a b o u t 1 2 0 s e -conds, accompanied by an audible signal.
Passenger seat belt not fastened/unfastened
On switching on the ignition, the war-ning lamp comes on when the pas-senger’s seat belt is not fastened.
It goes out when the engine is run-ning, doors closed, after 30 se-conds.
Then it comes on, if the belt is not fastened, while the vehicle is moving at up to 20 km/h (approx. 12 mph).
Above 20 km/h (12 mph), the warning l a m p fl a s h e s f o r a b o u t 1 2 0 s e c o n d s , accompanied by an audible signal.
Front passenger’s airbag deactivation warning lamp
(See "Safety").
Doors open detection
This warning lamp, when the engine is running, comes on if a door, the bonnet and/or the boot is open.
Front/side airbag fault warning lamp
(See "Safety").
Anti-lock Braking System
The ABS warning lamp li-ghts when the ignition is switched on and should go out after a few seconds.
If the warning lamp does not go out, there may be a system mal-function.
Diesel Preheater
Wait for it to go out before operating the starter.
Depollution system warning lamp
I f i t fl a s h e s o r l i g h t s u p w h i l e you are driving, this indica-tes a depollution system operating fault.
Urgently consult a CITROËN Dealer.
SERVICE warning lamp
If it comes on, this indi-cates a fault with one of the systems that do not h a v e a s p e c i fi c w a r n i n g lamp.
See the radio "Log of alerts" to dis-cover the origin of the corresponding alert message.
Child safety warning lamp
If child safety is activated, this warning lamp comes on then goes out approximately 10 seconds after starting the engine.
Page 23 of 257
26
I
D A S H B O A R D

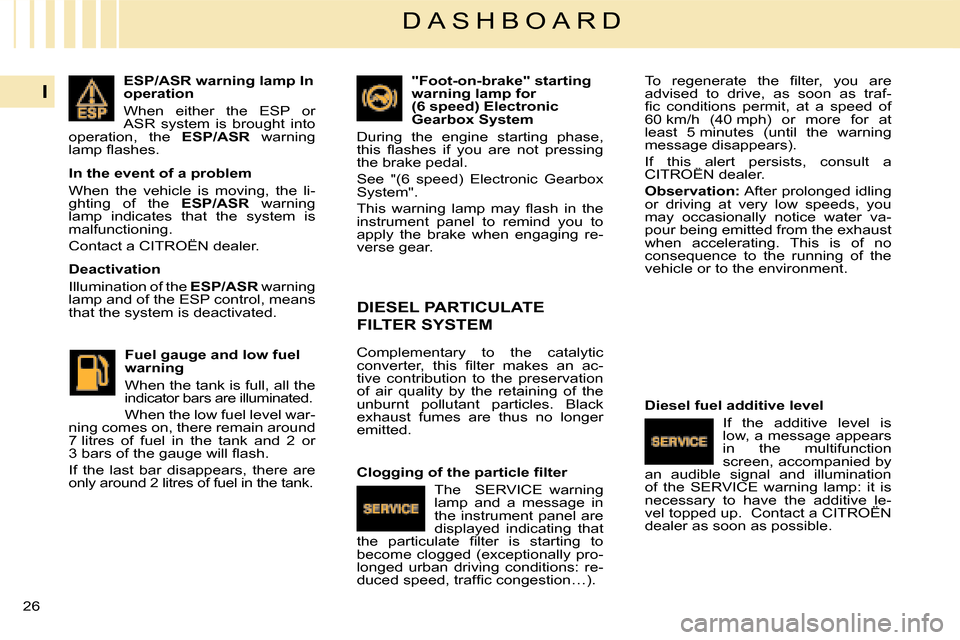

ESP/ASR warning lamp In operation
When either the ESP or ASR system is brought into operation, the ESP/ASR warning l a m p fl a s h e s .
In the event of a problem
When the vehicle is moving, the li-ghting of the ESP/ASR warning lamp indicates that the system is malfunctioning.
Contact a CITROËN dealer.
Deactivation
Illumination of the ESP/ASR warning lamp and of the ESP control, means that the system is deactivated.
Fuel gauge and low fuel warning
When the tank is full, all the indicator bars are illuminated.
When the low fuel level war-ning comes on, there remain around 7 litres of fuel in the tank and 2 or 3 b a r s o f t h e g a u g e w i l l fl a s h .
If the last bar disappears, there are only around 2 litres of fuel in the tank.
"Foot-on-brake" starting warning lamp for (6 speed) Electronic Gearbox System
During the engine starting phase, t h i s fl a s h e s i f y o u a r e n o t p r e s s i n g the brake pedal.
See "(6 speed) Electronic Gearbox System".
T h i s w a r n i n g l a m p m a y fl a s h i n t h e instrument panel to remind you to apply the brake when engaging re-verse gear.
Complementary to the catalytic c o n v e r t e r , t h i s fi l t e r m a k e s a n a c -tive contribution to the preservation of air quality by the retaining of the unburnt pollutant particles. Black exhaust fumes are thus no longer emitted.
C l o g g i n g o f t h e p a r t i c l e fi l t e r
The SERVICE warning lamp and a message in the instrument panel are displayed indicating that t h e p a r t i c u l a t e fi l t e r i s s t a r t i n g t o become clogged (exceptionally pro-longed urban driving conditions: re- d u c e d s p e e d , t r a f fi c c o n g e s t i o n … ) .
DIESEL PARTICULATE
FILTER SYSTEM
T o r e g e n e r a t e t h e fi l t e r , y o u a r e advised to drive, as soon as traf- fi c c o n d i t i o n s p e r m i t , a t a s p e e d o f 60 km/h (40 mph) or more for at least 5 minutes (until the warning message disappears).
If this alert persists, consult a CITROËN dealer.If this alert persists, this alert
Observation: After prolonged idling or driving at very low speeds, you may occasionally notice water va-pour being emitted from the exhaust when accelerating. This is of no consequence to the running of the vehicle or to the environment.
Diesel fuel additive level
If the additive level is low, a message appears in the multifunction screen, accompanied by an audible signal and illumination of the SERVICE warning lamp: it is necessary to have the additive le-vel topped up. Contact a CITROËN necessary to have the additive le-additive le-
dealer as soon as possible.
Page 24 of 257
26
I
D A S H B O A R D
ESP/ASR warning lamp In operation
When either the ESP or ASR system is brought into operation, the ESP/ASR warning l a m p fl a s h e s .
In the event of a problem
When the vehicle is moving, the li-ghting of the ESP/ASR warning lamp indicates that the system is malfunctioning.
Contact a CITROËN dealer.
Deactivation
Illumination of the ESP/ASR warning lamp and of the ESP control, means that the system is deactivated.
Fuel gauge and low fuel warning
When the tank is full, all the indicator bars are illuminated.
When the low fuel level war-ning comes on, there remain around 7 litres of fuel in the tank and 2 or 3 b a r s o f t h e g a u g e w i l l fl a s h .
If the last bar disappears, there are only around 2 litres of fuel in the tank.
"Foot-on-brake" starting warning lamp for (6 speed) Electronic Gearbox System
During the engine starting phase, t h i s fl a s h e s i f y o u a r e n o t p r e s s i n g the brake pedal.
See "(6 speed) Electronic Gearbox System".
T h i s w a r n i n g l a m p m a y fl a s h i n t h e instrument panel to remind you to apply the brake when engaging re-verse gear.
Complementary to the catalytic c o n v e r t e r , t h i s fi l t e r m a k e s a n a c -tive contribution to the preservation of air quality by the retaining of the unburnt pollutant particles. Black exhaust fumes are thus no longer emitted.
C l o g g i n g o f t h e p a r t i c l e fi l t e r
The SERVICE warning lamp and a message in the instrument panel are displayed indicating that t h e p a r t i c u l a t e fi l t e r i s s t a r t i n g t o become clogged (exceptionally pro-longed urban driving conditions: re- d u c e d s p e e d , t r a f fi c c o n g e s t i o n … ) .
DIESEL PARTICULATE
FILTER SYSTEM
T o r e g e n e r a t e t h e fi l t e r , y o u a r e advised to drive, as soon as traf- fi c c o n d i t i o n s p e r m i t , a t a s p e e d o f 60 km/h (40 mph) or more for at least 5 minutes (until the warning message disappears).
If this alert persists, consult a CITROËN dealer.If this alert persists, this alert
Observation: After prolonged idling or driving at very low speeds, you may occasionally notice water va-pour being emitted from the exhaust when accelerating. This is of no consequence to the running of the vehicle or to the environment.
Diesel fuel additive level
If the additive level is low, a message appears in the multifunction screen, accompanied by an audible signal and illumination of the SERVICE warning lamp: it is necessary to have the additive le-vel topped up. Contact a CITROËN necessary to have the additive le-additive le-
dealer as soon as possible.
Page 28 of 257
29
I
D A S H B O A R D
When the ignition is switched on, the oil level indicator is displayed for se-veral seconds.This display indicates normal ope-rating.
A fl a s h i n g o f "OIL" indicates an oil level that is below the minimum.
Check using the manual dipstick.
Check the oil level with the vehicle on horizontal ground, the engine ha-ving been switched off for at least 15 minutes.
A fl a s h i n g o f "OIL --" indicates a malfunction of the indicator.
Consult your CITROËN dealer.
ENGINE OIL LEVEL
INDICATOR
The rheostat is active if the sidelamps are on and applies to:
- the instrument panel
- the displays
The desired brightness is selected via control A or by pressing control AB.
With control B, press until the bri-ghtness is at maximum. Release, press until you reach minimum.
DASHBOARD LIGHTING RHEOSTAT
Page 41 of 257
42
III
C O M F O R T
A i r c o n d i t i o n i n g
At any time of year, the air condition-
ing is useful for removing air humidity
and misting.
To keep the air conditioning com-
pressor well sealed, it is essential to
operate the air conditioning at least
once in every month.
To be effective, the air conditioning
should only be used with the win-
dows closed.
If you are towing a heavy trailer or if
outside temperatures are very high,
the air conditioning may be tempo-
rarily interrupted in favour of engine
cooling.
Sensor
The automatic air conditioning inside the passenger compartment makes use of the sunlight sensor, which is located on the dashboard behind the instrument panel.
Take care not to obstruct it.
Water arising from condensation in
the air conditioning is allowed to drain
out through an aperture provided for
this purpose; a pool of water may
thus form beneath the vehicle when
stationary.
You are recommended to have the
air conditioning system checked on
a regular basis (see Maintenance
Guide).
The air conditioning uses energy
from the engine to operate. This re-
sults in extra fuel consumption
