7
F A M I L I A R I S A T I O N
INTERIOR
Translucent instrument panel
This system gives optimum contrast, whatever the external light level.
Audio and communication systems
These systems make use of the latest technologies: MP3-compatible audio, Bluetooth® hands-free kit, GPS mobile ®
phone.
Scented air freshener
The air freshener distributes scented air throughout the cabin. It is located in the centre air vent
Cruise control/Speed limiter
These two systems allow the vehicle’s speed to be maintained at a programmed level.
23
163
48
110 , 112
Page 33 of 257
34
II
M U L T I F U N C T I O N D I S P L A Y
Main menu
Press control A to display the "Main menu" for the multifunction screen. Using this menu, you have access to the following functions:
Presentation:
1 - Time.
2 - Ambient temperature
3 - Date and Display zone
If the outside temperature is between +3 °C and -3 °C, the temperature d i s p l a y fl a s h e s ( r i s k o f i c e ) .
Note: the outside temperature displayed may be higher than the actual temperature if the vehicle is standing in bright sunlight.
Radio-CD
(See "Radio")
Trip computer
Bluetooth hands-free kit
(See "Radio")
Controls
A - Access to the "Main menu".
B - Scrolling in the display menus.
C - Validation and selection in the menus of the function chosen o r t h e v a l u e m o d i fi e d .
D - Cancellation of the operation or return to the previous display.
E - Selection of the type of information you wish to see permanently displayed (date, radio-CD, trip computer) on the right of the screen.
DISPLAY C
It allows:
- Distance to your destination.
- Access to log of alerts (list of the alerts that have been previously signalled).
- Access to status of functions, for example activation/deactivation of automatic lighting of head-lamps, ESP, windscreen wipers.
The driver is advised not to operate the controls when driving.
Page 176 of 257
164
XIII
A U D I O
BUTTON CONTROLS
AOn/Off.Volume adjust.
BCD eject.
CCD aperture.
DSOURCEOne press: Selection of sound source (Radio, CD, CD changer).
EBAND/AST
Short press: Selection of frequency bands and memory banks.Long press: Automatic pre-set function (Autostore).
FCall-up of audio adjustments:Call-up of audio adjustments:Sound ambiences, bass, treble, loudness, fade, balance, speed-sensitive volume.
GLIST
Radio source:- Short press: Display of the list of radio stations avail-able (30 maximum).- Long press: Update of list of stations.CD source: Display of list of tracks of the CD.
HESCShort press: Cancel the current operation or delete a superimposed display.Long press: Return to the permanent display.
ITA /PT YShort press: TA function (road information).Long press: PTY function (selection of programme type).
JRadio source: Manual search of higher frequencies.CD/MP3 changer source: Selection of the previous CD/CD-cover.Other sources: Scrolling in the Main Menu.
K
Radio source: Automatic search of higher frequencies.CD source, CD changer source and MP3 source:Forward search for tracks.- Long press: Fast forward with accelerated sound.Other sources: In the menus, choice of your adjustments.If your vehicle has the Bluetooth® system: Selection of characters.
LOK
Button for validation and activation/deactivation o f certain functions.If your vehicle has the Bluetooth® system: ®Answer call, end call.
M
Radio source: Manual search of lower frequencies.CD/MP3 changer source: Selection of the next CD/CD-cover.Other sources: Scrolling in the Main Menu.
N
Radio source: Automatic search of lower frequencies.CD source, CD changer source and MP3 source:Reverse search for tracks.- Long press: Rewind with accelerated sound.O t h e r s o u r c e s : I n t h e m e n u s , c h o i c e o f y o u r adjustments.If your vehicle has the Bluetooth® system:® Selection of characters.If your vehicle If your
OMENUDisplay of the Main Menu.In certain countries, this control is deactivated while the vehicle is moving.
P
1- 6
1- 5
Radio source:- Short press: Recall of pre-set stations.- Long press: Memorisation.CD changer source: Selecting a CD.
QDARK
Short successive presses:- One press: Display of radio, time and temperature only.- Two presses: Display off (blank display).- Three presses: Return to the standard display.
RMODESelection of the type of information displayed.
SCD changer.
Page 177 of 257
165
XIII
A U D I O

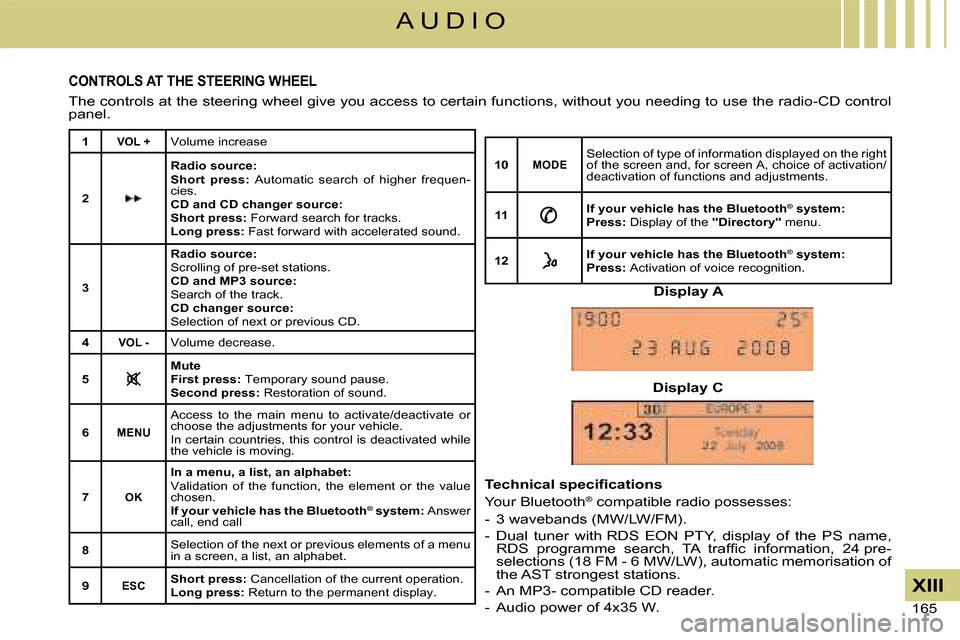

CONTROLS AT THE STEERING WHEEL
The controls at the steering wheel give you access to certain functions, without you needing to use the radio-CD control panel.
1VOL +Volume increase
2
Radio source:Short press: Automatic search of higher frequen-cies.CD and CD changer source:Short press: Forward search for tracks.Long press: Fast forward with accelerated sound.
3
Radio source:Scrolling of pre-set stations.CD and MP3 source:Search of the track.CD changer source:Selection of next or previous CD.
4VOL -Volume decrease.
5MuteFirst press: Temporary sound pause.Second press: Restoration of sound.
6MENU
Access to the main menu to activate/deactivate or choose the adjustments for your vehicle.In certain countries, this control is deactivated while the vehicle is moving.
7OK
In a menu, a list, an alphabet:Validation of the function, the element or the value chosen.If your vehicle has the Bluetooth® system:® Answer call, end call
8Selection of the next or previous elements of a menu in a screen, a list, an alphabet.
9ESCShort press: Cancellation of the current operation.Long press: Return to the permanent display.
10MODESelection of type of information displayed on the right of the screen and, for screen A, choice of activation/deactivation of functions and adjustments.
11If your vehicle has the Bluetooth® system: ®
Press: Display of the "Directory" menu.
12If your vehicle has the Bluetooth® system:®
Press: Activation of voice recognition.
Display A
Display C
T e c h n i c a l s p e c i fi c a t i o n s
Your Bluetooth® compatible radio possesses:
- 3 wavebands (MW/LW/FM).
- Dual tuner with RDS EON PTY, display of the PS name, R D S p r o g r a m m e s e a r c h , T A t r a f fi c i n f o r m a t i o n , 2 4 p r e -selections (18 FM - 6 MW/LW), automatic memorisation of the AST strongest stations.
- An MP3- compatible CD reader.
- Audio power of 4x35 W.
Page 186 of 257
174
XIII
A U D I O
HANDS-FREE TELEPHONE
Your audio system may be Bluetooth®
compatible. It allows you to connect a mobile telephone for "hands free" use and even to use its directory.
It permits you to twin up to four telephones, to be able then to connect whichever one you choose.The Bluetooth® functions available and the content of the display are dependent on the type of mobile telephone, its settings and the type of contract you have. For this reason it is advisable to make enquiries with your telephone provider.Prior to any operation:- Your display should be lit up (key in position M).
- Your telephone’s Bluetooth®
system must be activated.
Twinning a telephone
Twinning a telephone consists of having it recognised by the Bluetooth® system on your vehicle. This then permits an instantaneous connection.Twinning can only be performed with ignition switched on, display illuminated, engine stopped. No other telephone should be connected.- The twinning must be performed with the telephone and its Bluetooth® system activated.®
Note:
Refer to the user instructions to familiarise yourself with the features of twinning.- The telephone detects the Bluetooth® system on your vehicle. ®
"C4" displays on your telephone.
You should then select "C4" on your telephone controls. Next you must choose whether or not to accept this twinning then select, on screen Cusing J, M or 8, one of the 4memories. Validate with a press on button L or 7.
Note:
You can select a memory already attributed, although the telephone twinned to this location will no longer be.- Next the telephone asks you to e n t e r a n i d e n t i fi c a t i o n c o d e : 1234.
- Validate.
Note:
This entry may be demanded earlier in the twinning sequence.The telephone is now twinned to your Bluetooth® system. For ®
immediate access to the Bluetooth®
functions, it may be necessary to make a connection (see following p a g e " C o n fi g u r a t i o n : C o n n e c t i n g a twinned mobile telephone"). O n c e t h e t w i n n i n g i s fi n i s h e d , y o u w i l l be able to connect your telephone via the "Main menu".
Connecting a twinned telephone
Each time you enter the vehicle, after switching on the audio system, your telephone is detected automatically. If more than one telephone is present, the last telephone to have b e e n c o n n e c t e d i s t h e fi r s t t o b e recognised.Note:Disconnections may occur. You may have to make a new connection ( s e e f o l l o w i n g p a g e , " C o n fi g u r a t i o n : Connecting a twinned mobile telephone").Remarks:- In the event of a problem, it is recommended to switch your telephone off and then on again.- If you switch off your telephone w i t h i n t h e fi e l d o f r e c e p t i o n o f the Bluetooth® system on your vehicle, the next connection will not be automatic. To restore automatic connection, you will have to connect your telephone manually (see following page, " C o n fi g u r a t i o n : C o n n e c t i n g a twinned mobile telephone").- If you are already in telephone communication when the audio system is turned on, the latter detects the telephone.- To avoid interference, you are advised not to place your mobile telephone close to your radio.
To accept an incoming call
Using button L or control 7 at the steering wheel.
Page 188 of 257
176
XIII
A U D I O
Swapping a call
During a telephone conversation, the system is able to tell you of a second call incoming. To accept it, validate. To change from one call to the other, select this choice.
End a call
This choice enables you to end a telephone conversation, for example if there is another call incoming.
Secret mode
Selecting this choice allows you not to be heard by the other person. To restore sound to the other person, select deactivation of Secret mode in the menu "Call Management".
Note:
If you wish to transfer a call from the audio system to the mobile telephone (for example when leaving your vehicle), refer to the user instructions for the latter.
Voice recognition
A short press on button 12 starts voice recognition for the telephone.Voice recognition allows you to make a call to a number for which you have recorded a label on the mobile telephone that is twinned and connected.
Remark:
It is possible to stop the call as long as the dialling has not commenced, by means of a short press on button 12.
Remarks:
- While you are on a call, the audio source currently being listened to is paused.
- Some ring tones on your mobile telephone may not be recognised by the Bluetooth® system on your ®
vehicle. A different ring tone will be chosen by the system.
Displays
Press the "MODE" button to display telephone information in the right hand part of the display.
A "Telephone" symbol appears on your display when you connect a mobile telephone.A "Battery" symbol appears at the bottom of the display to indicate the range of the mobile telephone connected.An "Envelope" symbol appears at the bottom of the display to indicate the presence of an unread SMS on the mobile telephone connected.A "Sound track" symbol appears at the bottom of the display to indicate the presence of a message on the mobile telephone connected.
Page 218 of 257
27
QUESTIONSOLUTION
R E S P O N S E
T h e r e i s a l o n g w a i t i n g
t i m e a f t e r i n s e r t i n g a C D
or SD card. When a new medium is inserted, the system reads a c
ertain amount of
d a t a ( d i r e c t o r y , t i t l e , a r t i s t , e t c . ) . T h i s m a y t a k e a f e w s e c o n d s .This phenomenon is normal.
I cannot connect my
Bluetooth telephone. T h e t e l e p h o n e ' s B l u e t o o t h f u n c t i o n m a y b e d e a c t i v a t
e d o r t h e e q u i p m e n t
may not be visible. - C h e c k t h a t y o u r t e l e p h o n e ' s B l u e t o o t h f u n c t i o n
is activated.
- Check that your telephone is visible.
Page 257 of 257
39
QUESTIONSOLUTION
RESPONSE
The route is not
calculated successfully. T h e e x c l u s i o n c r i t e r i a m a y c o n l i c t w i t h t h e c u r r e n t
l o c a t i o n ( e x c l u s i o n o f
t o l l r o a d s o n a m o t o r w a y w i t h t o l l s ) . Check the exclusion criteria.
T h e r e i s a l o n g w a i t a f t e r
i n s e r t i n g a C D . When a new medium is inserted, the system reads a c
ertain amount of
d a t a ( f o l d e r , t i t l e , a r t i s t , e t c . ) . T h i s m a y t a k e a f e w s e c o n d s .This phenomenon is normal.
I cannot connect my
Bluetooth telephone. The telephone's Bluetooth function may be switched
off or the equipment
may not be visible. - Check that your telephone's Bluetooth function
is switched on.
- Check that your telephone is visible.
